User Manual for Audio-Technica ATM350W Cardioid Condenser Instrument Microphone with Woodwind Mounting System Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATM350W Cardioid Condenser Instrument Microphone
- Product category: Small Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Small Diaphragm Condenser
 |
User manual for the Audio-Technica ATM350W Cardioid Condenser Instrument Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

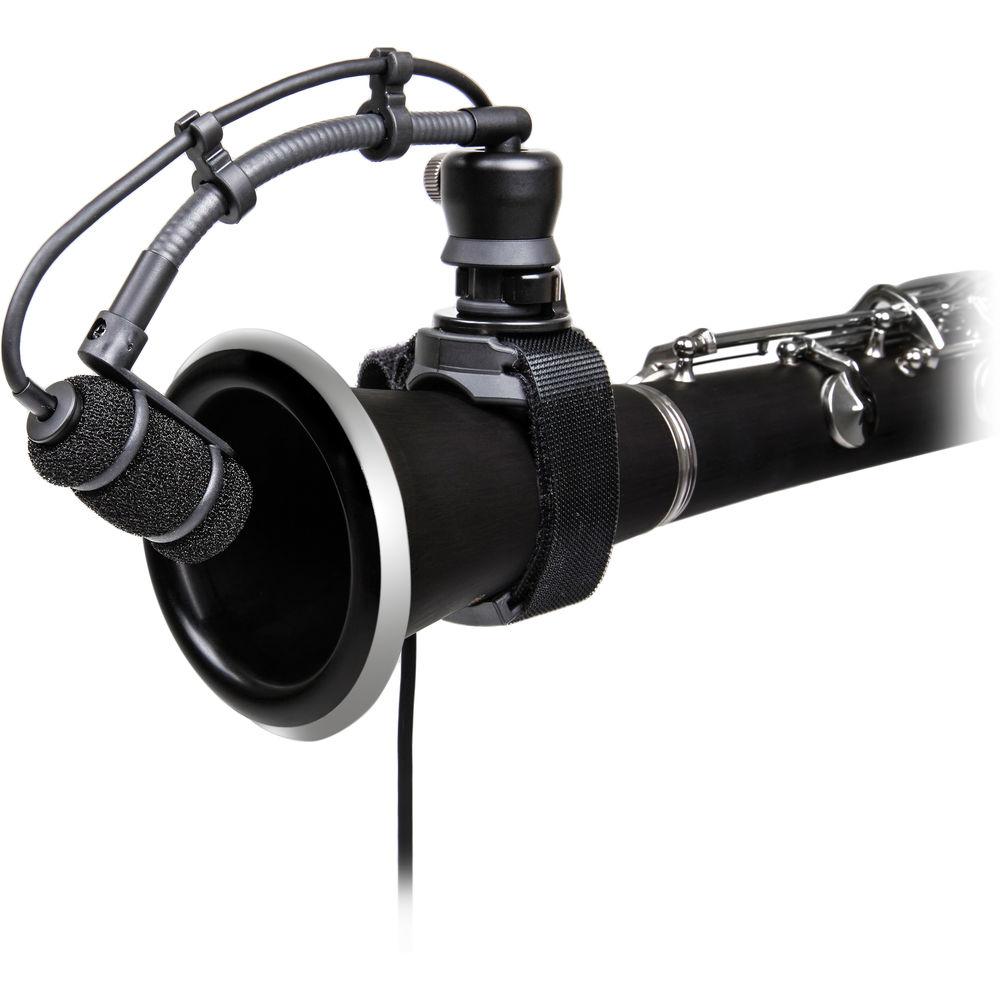

Product description The Audio-Technica ATM350W Cardioid Condenser Instrument Microphone System includes the ATM350a cardioid condenser microphone, which is a high-SPL mic that provides a clear, well-balanced response from any instrument. When teamed with the included AT8491W woodwind mount and strong, flexible AT8490 5" gooseneck, the mic can be securely fastened to any woodwind instrument and positioned to stay where you want it. The gooseneck’s rigidity ensures that it won’t flop around, no matter how aggressively you play.The microphone’s cardioid polar pattern isolates the instrument by reducing side and rear pickup, and the switchable 80 Hz high-pass filter on the in-line power module helps control undesired low-frequency noise. The system also includes an AT8468 violin mount with a hook-and-loop fastener and a protective carrying case. - Low-profile mic design for minimum visibility
- Crisp, clear, well-balanced microphone response, even at high SPLs
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

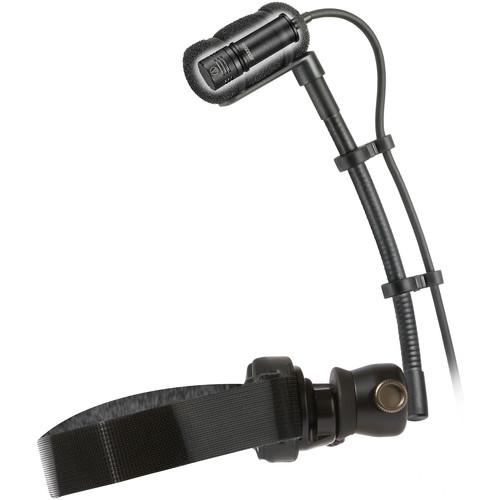

- UniMount woodwind mount attaches securely to any woodwind instrument via a flexible strap, providing improved shock resistance to the microphone
- Rugged UniMount 5" gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play
- In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
- Interchangeable elements available for hypercardioid and omnidirectional polar patterns
- Included violin mount with a hook-and-loop fastener provides an additional mounting option

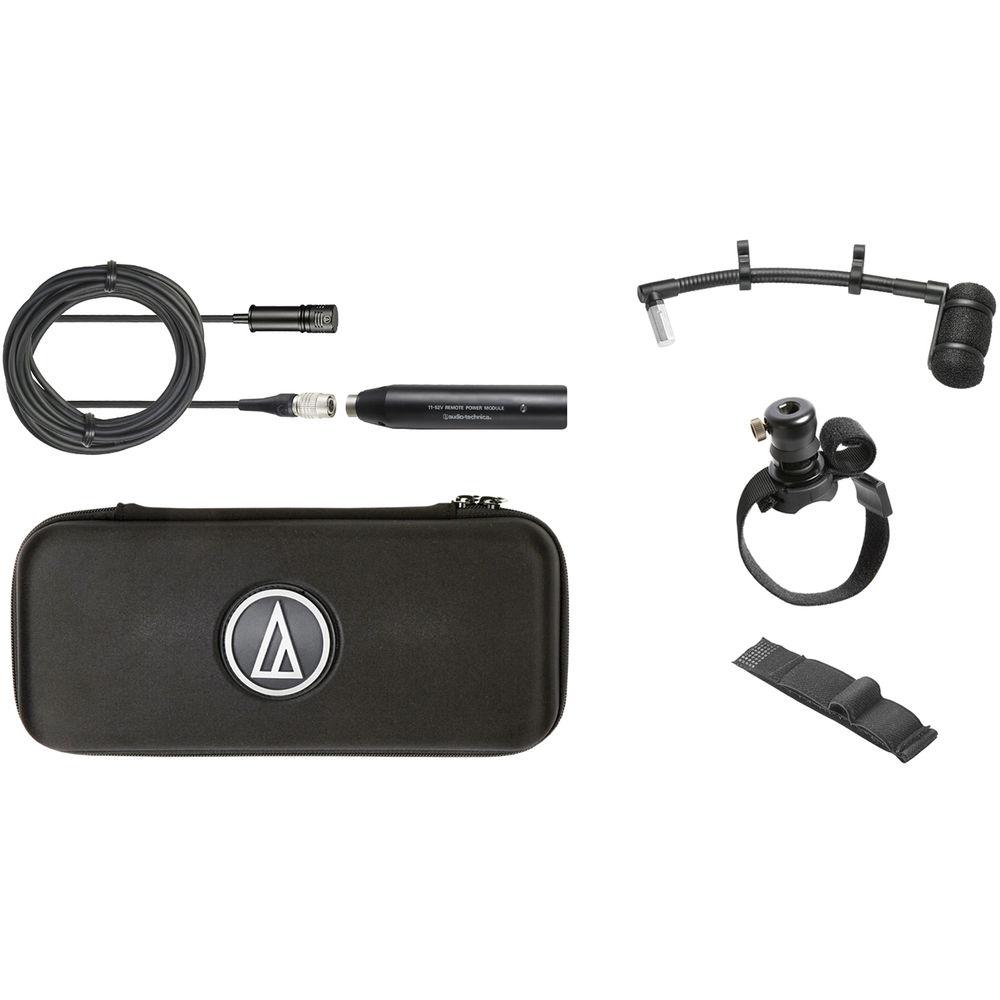

UPC: 042005192311 In the Box Audio-Technica ATM350W Cardioid Condenser Instrument Microphone with Woodwind Mounting System (5" Gooseneck) ATM350a Cardioid Condenser Microphone AT8543 Power Module AT8491W Unimount Woodwind Mount Gooseneck for ATM350a Microphone (5") AT8468 Violin Mount for Audio-Technica Lavalier Microphones Protective Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATM350W Cardioid Condenser Instrument Microphone with Woodwind Mounting System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATM350W Specs | | | Transducer | Condenser | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 65 dB | | Maximum SPL | Cardioid: 159 dB SPL | | THD | 1% | | Impedance | Cardioid: 200 Ohms | | Sensitivity | Cardioid: -49 dB | | Low-Cut Filter | 0 to 12 dB/Octave @ 80 Hz | | Dynamic Range | Cardioid: 130 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 13.1' / 4.0 m | | Operating Voltage | 11 to 52 V | | Length | 1.49" / 37.85 mm | | Diameter | 0.48" / 12.19 mm | | Weight | 0.5 oz / 14 g | | | | Box Dimensions (LxWxH) | 12.25 x 5.75 x 3.25" |
