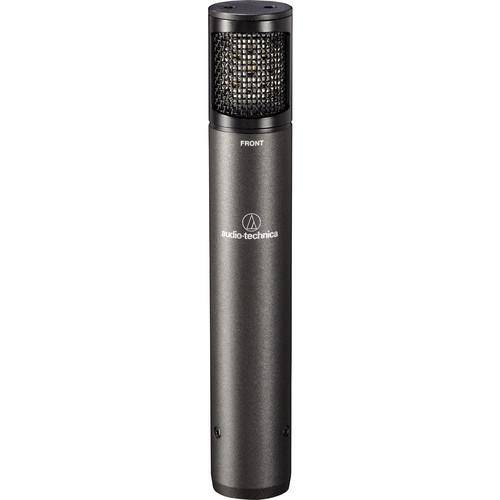

User Manual for Audio-Technica ATM450 Cardioid Condenser Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATM450 Cardioid Condenser Instrument Microphone
- Product category: Small Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Small Diaphragm Condenser
 |
User manual for the Audio-Technica ATM450 Cardioid Condenser Instrument Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

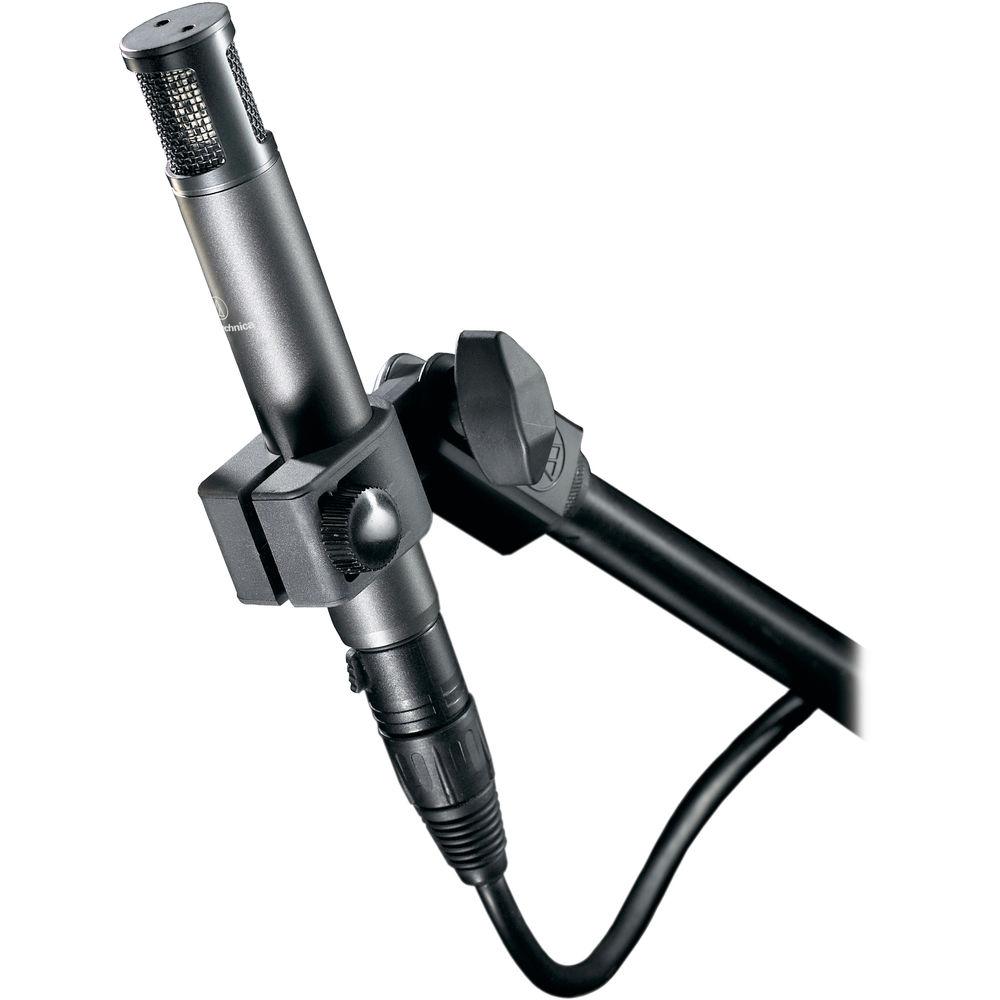

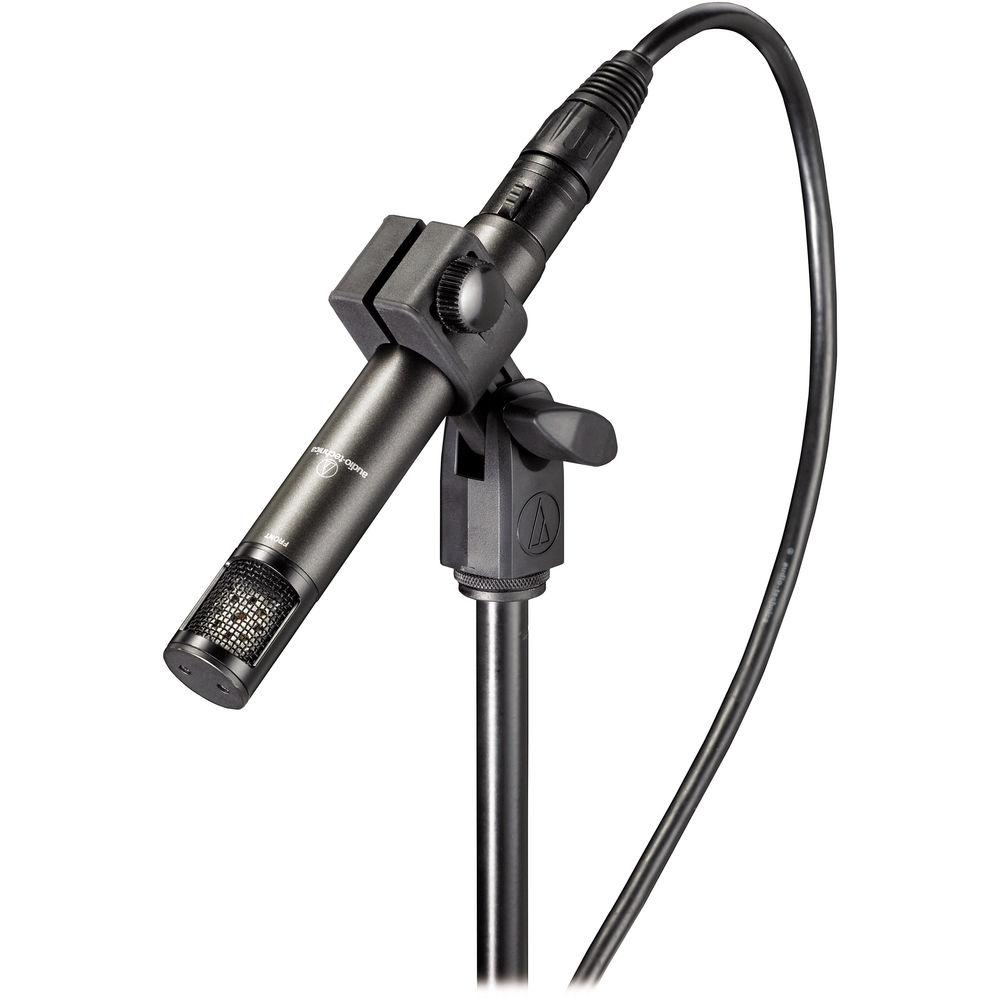

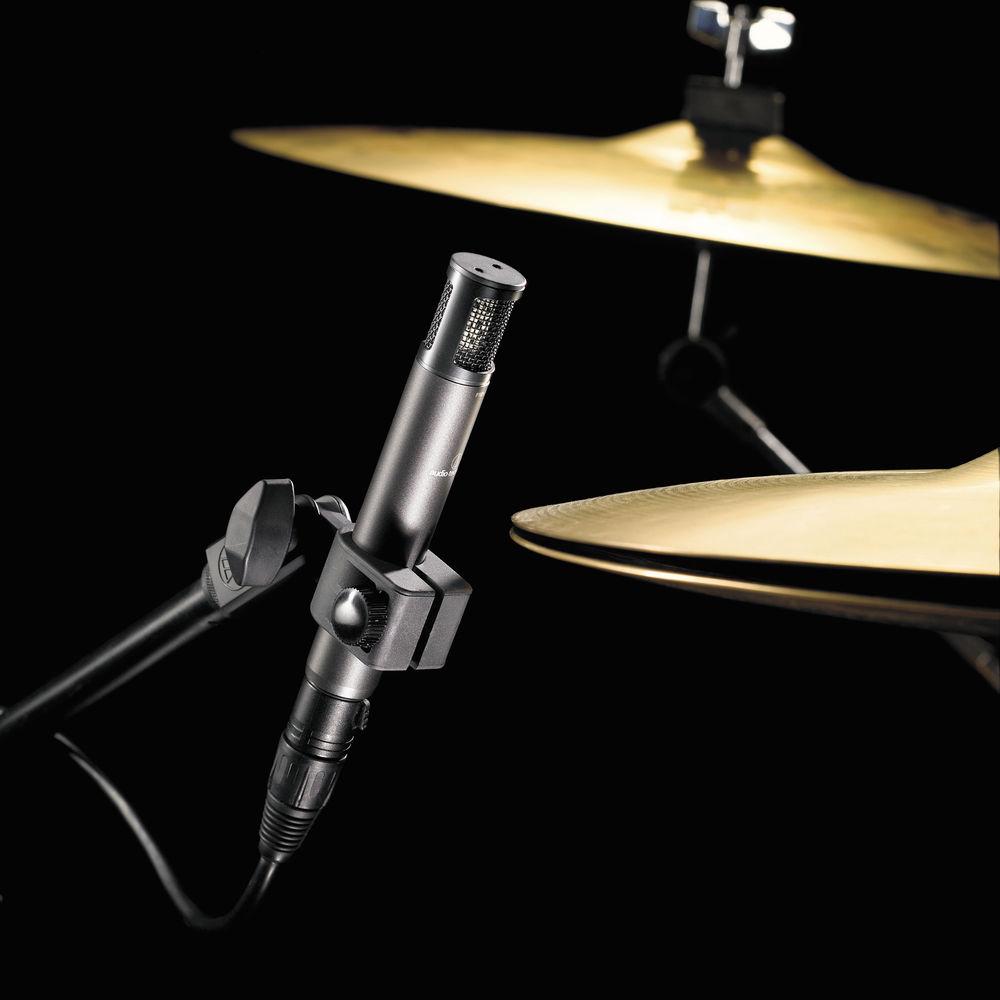

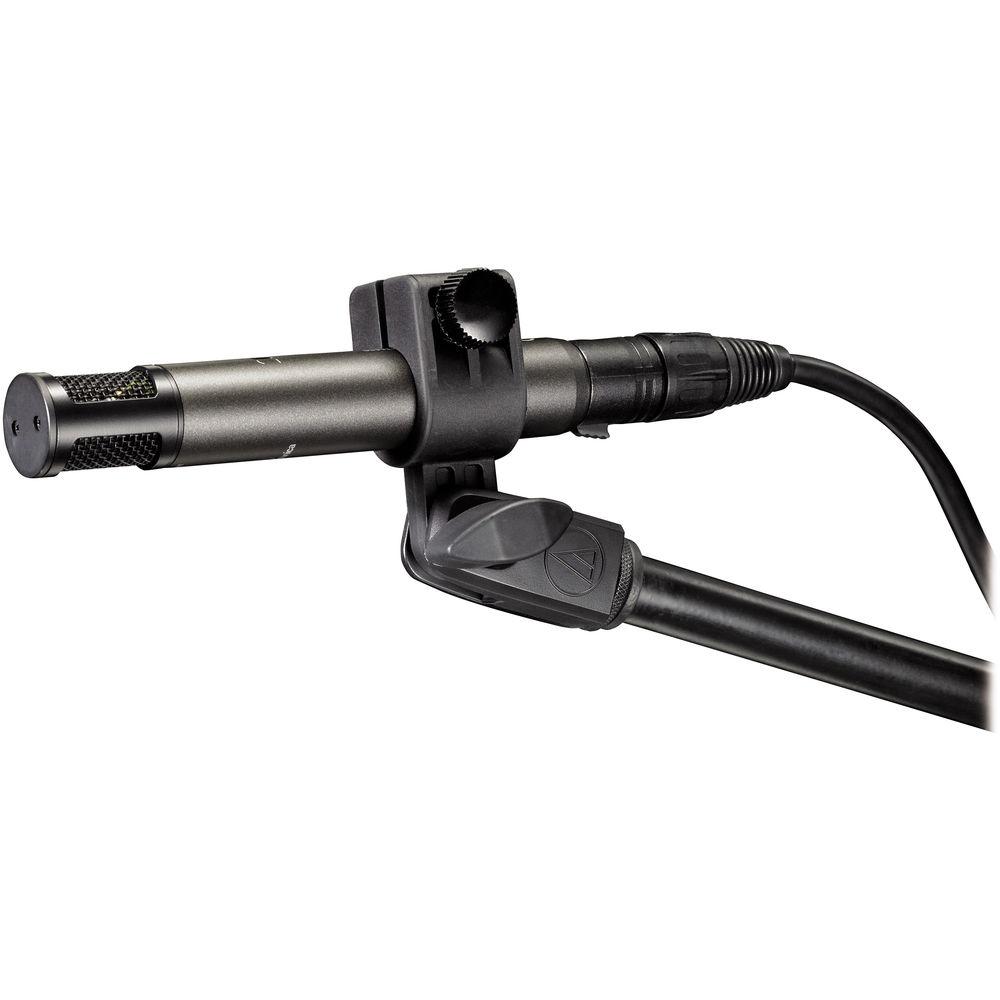

Product description The ATM450 Cardioid Condenser Instrument Microphone from Audio-Technica is designed with a side-address capsule, allowing for easy placement and flexible positioning on percussion, guitar cabinets, piano, and similar applications. The cardioid polar pattern is effective in reducing off-axis noise and feedback, and the wide frequency response results in rich, natural detail. There is a low frequency roll-off switch for reducing low frequency ambiance and noise and a -10 dB Pad switch for providing additional headroom and minimizing noise caused by transient peaks. The package includes an isolation clamp, an adapter, a windscreen, and a soft protective pouch. - Side Address Capsule
- Side-address stick design maximizes placement options with minimal obstructions
- 80 Hz High Pass Filter
- Integral 80 Hz HPF switch minimizes low frequency noise
- 10 dB Pad
- -10 dB pad switch provides additional headroom and minimizes noise caused by peaking audio signal

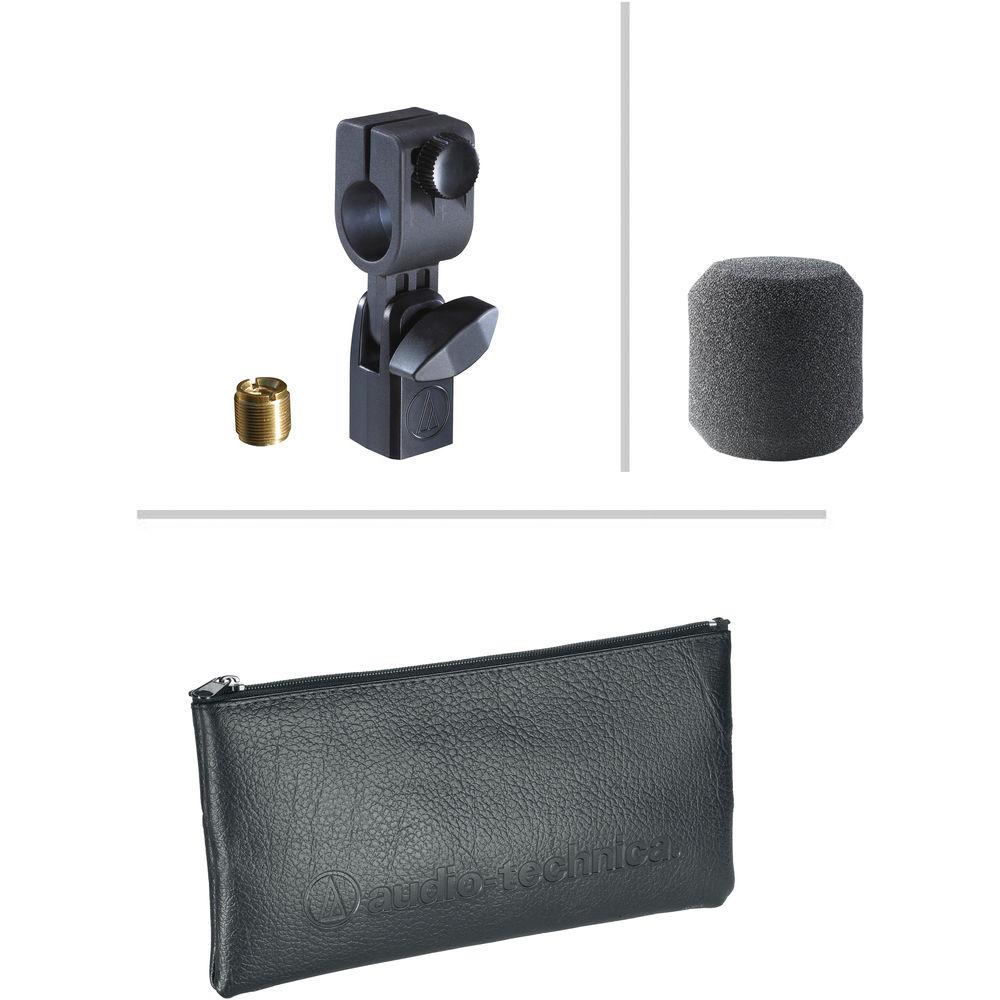

In the Box Audio-Technica ATM450 Cardioid Condenser Instrument Microphone 8471 Isolation Clamp fzbsaxqu 5/8"-27 to 3/8"-16 Threaded Adapter Windscreen Soft Protective Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATM450 Cardioid Condenser Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATM450 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 20 kHz | | Signal to Noise Ratio | 69 dB | | Maximum SPL | 152 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | -41 dB | | Low-Cut Filter | 18 dB/Octave @ 80 Hz | | Dynamic Range | 127 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.5 mA | | Operating Voltage | 11 to 52 V | | Length | 5.00" / 126.9 mm | | Diameter | 0.83" / 21 mm | | Weight | 3.46 oz / 98 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.5 x 5.1 x 2.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
