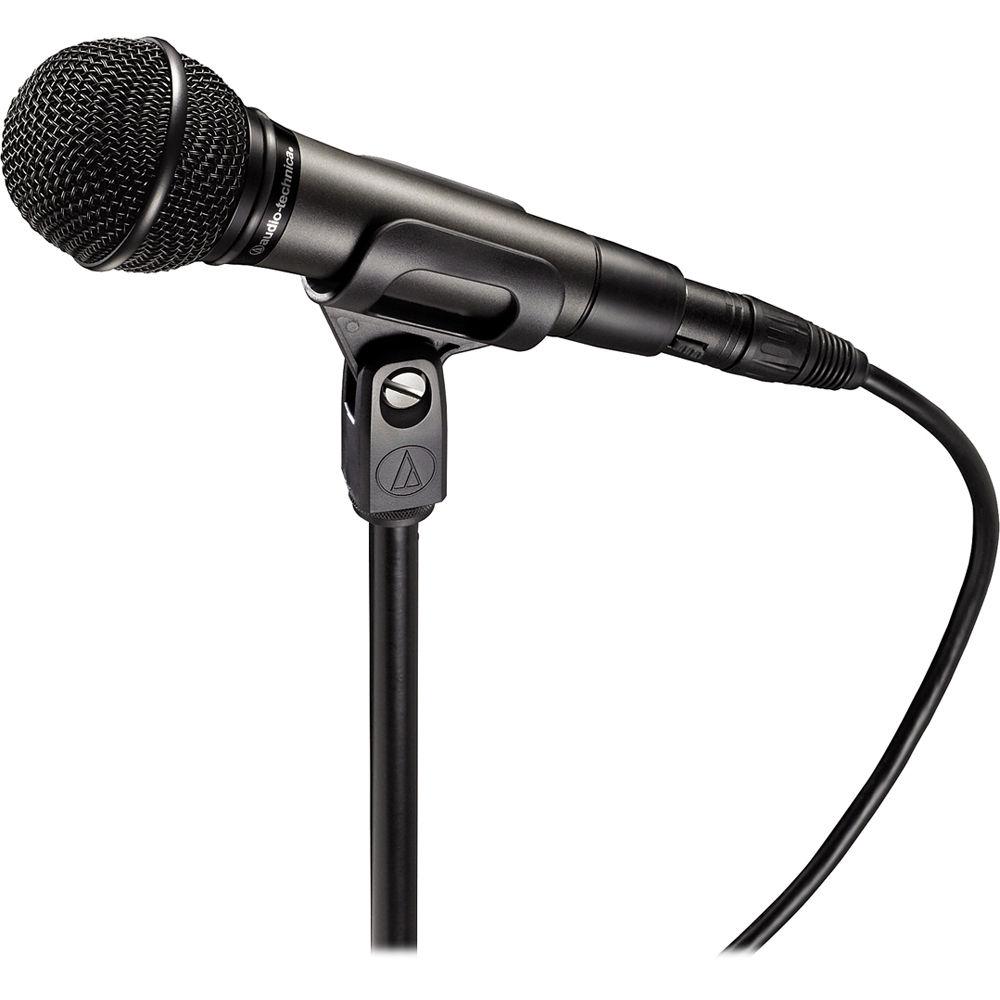

User Manual for Audio-Technica ATM510 Handheld Cardioid Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATM510 Handheld Cardioid Dynamic Microphone
- Product category: Dynamic Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Dynamic Microphones
 |
User manual for the Audio-Technica ATM510 Handheld Cardioid Dynamic Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

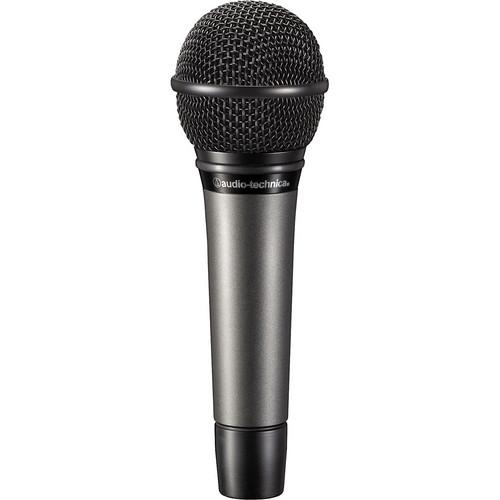

Product description The Audio-Technica ATM510 is a handheld cardioid dynamic microphone designed for full-range vocal reproduction in houses or worship, concert venues, conferences, and live stage applications. Its cardioid polar pattern delivers on-axis directivity while attenuating sounds from the sides and rear. The dynamic element features a neodymium rare-earth magnet for increased output level and improved transient response. The 90 Hz to 16 kHz frequency response naturally minimizes extreme high and low frequencies for a tone tailored for speech and singing. Plosives and wind noise are reduced by the multi-stage windscreen while the anti-shock design controls handling noise. With its rugged all-metal construction, the ATM510 is sure to handle the rigors of life on the road. It ships with a stand adapter and a soft protective pouch. - Anti-shock internal mounting system reduces handling and stage noise
- Tailored for smooth, natural vocal reproduction
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source
- Neodymium rare-earth magnet for improved output and transient response
- Excellent off-axis rejection for minimum feedback
- Multi-stage windscreen design offers excellent protection against plosives, wind noise, and sibilance
- Quiet-Flex stand clamp provides silent, flexible microphone positioning
- Corrosion-resistant contacts from gold-plated XLR 3-pin connector
- Rugged all-metal construction for tour-worthy durability

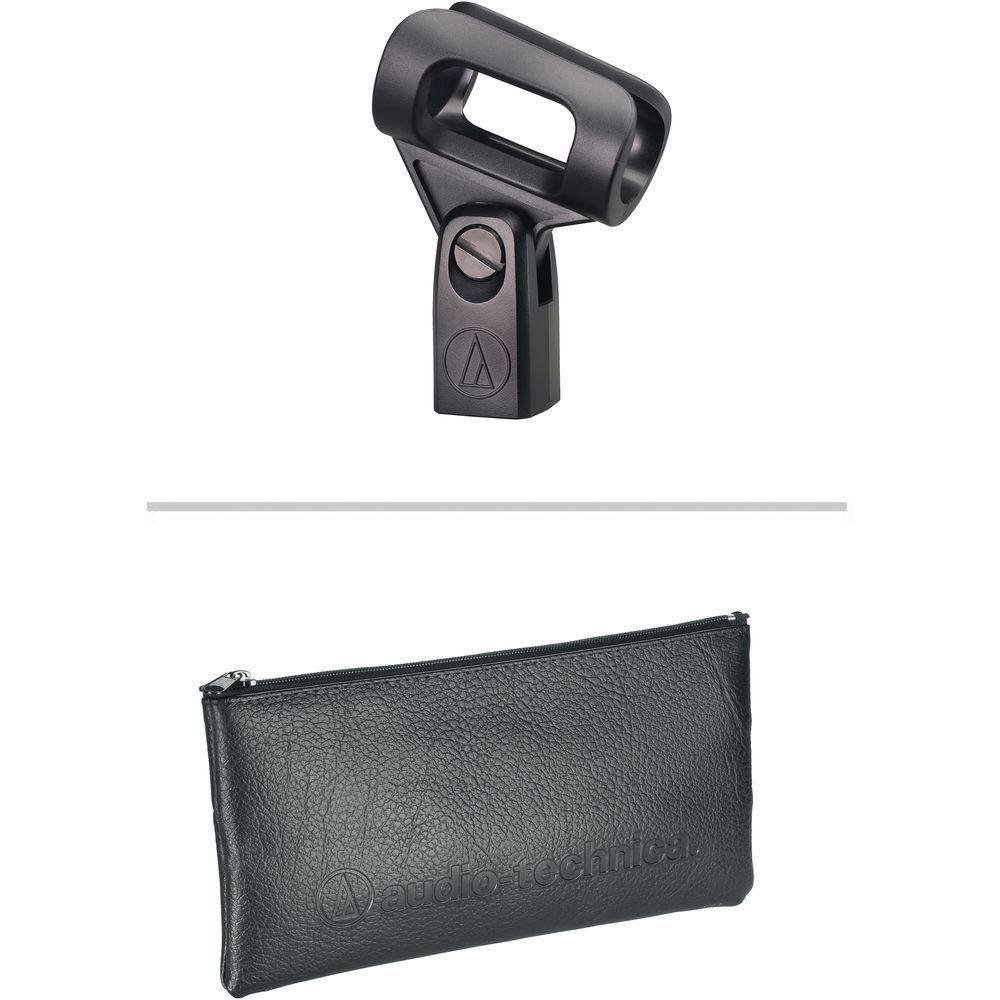

In the Box Audio-Technica ATM510 Handheld Cardioid Dynamic Microphone AT8470 Quiet-Flex Mic Clamp 5/8"-27 to 3/8"-16 Threaded Adapter Soft Protective Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATM510 Handheld Cardioid Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATM510 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 90 Hz to 16 kHz | | Pad | None | | Impedance | 300 Ohms | | Sensitivity | 1.7 mV/Pa | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.69" / 170 mm | | Diameter | 2.11" / 53.7 mm | | Weight | 9.10 oz / 258 g | | | | Package Weight | 1.145 lb | | Box Dimensions (LxWxH) | 9.7 x 5.3 x 3.0" |
