User Manual for Audio-Technica ATM650 Dynamic Hypercardioid Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATM650 Dynamic Hypercardioid Instrument Microphone
- Product category: Instrument Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Instrument Microphones
 |
User manual for the Audio-Technica ATM650 Dynamic Hypercardioid Instrument Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

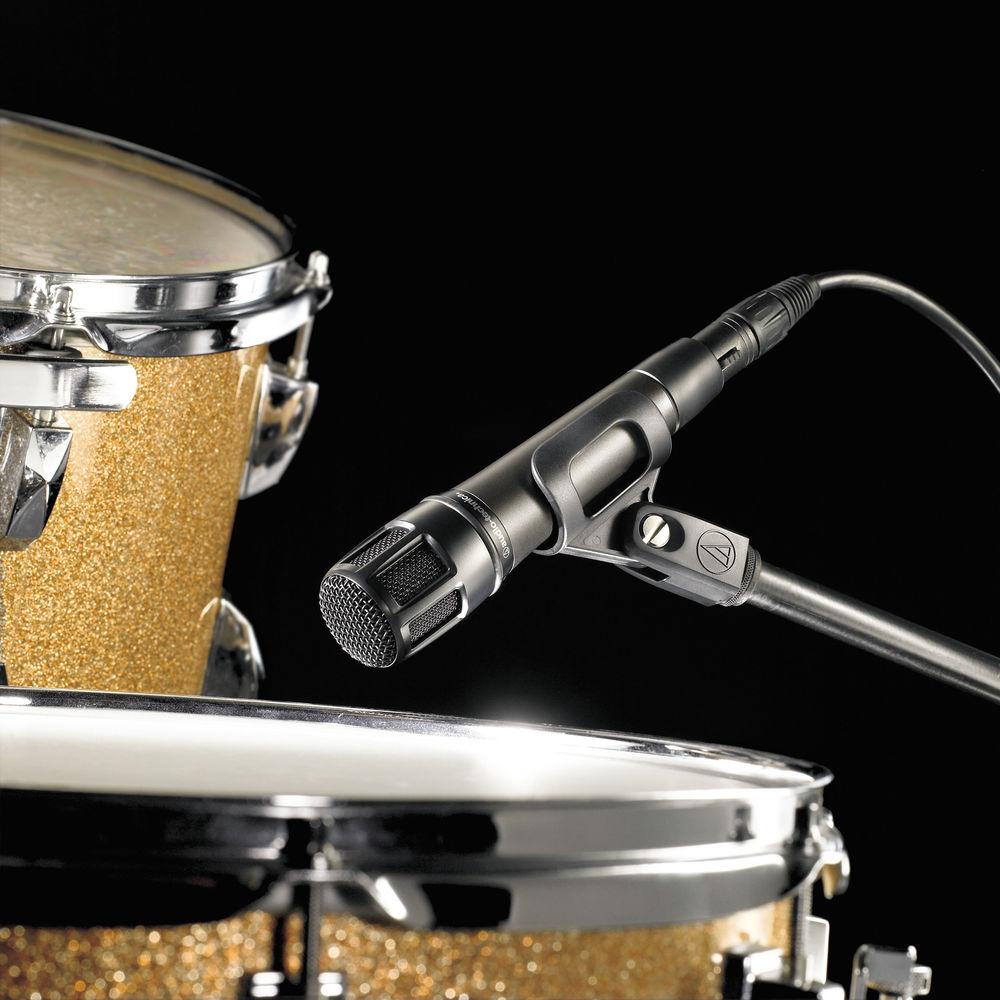

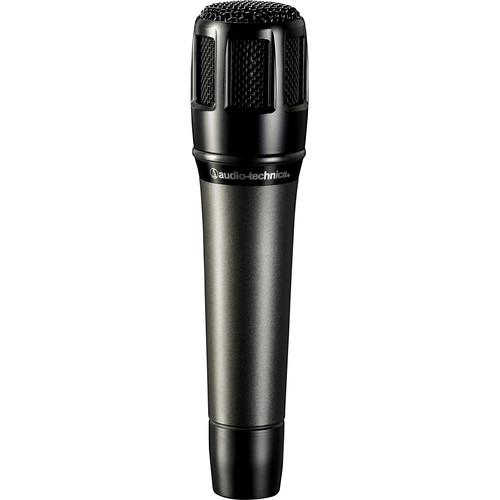

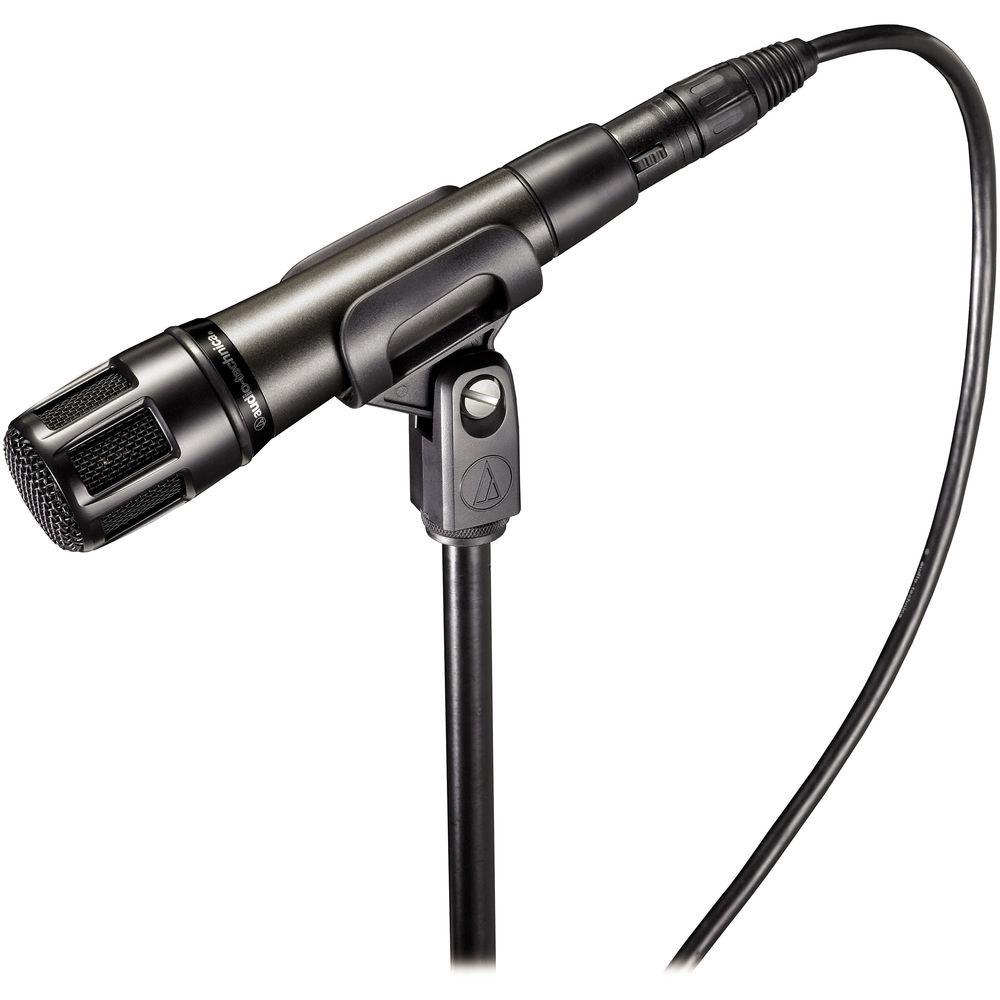

Product description The Audio-Technica ATM650 is a hypercardioid dynamic microphone designed for vocal or general instrument pickup. The rugged design of the ATM650 allows for a long term performance under the most adverse conditions. The ATM650 features a hypercardioid polar pattern for optimum rejection of off-axis noise and feedback. The wide frequency response is tailored for smooth, natural sound reproduction. The ATM650 is a workhorse solution for stage performances. - Dynamic Element
- The dynamic element handles high-sound pressure without distortion and noise.
- Hypercardioid Polar Pattern
- Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source.
- Dual-Wall Floating Construction
- Special dual-wall floating construction reduces handling noise and assures consistent performance from mic to mic.
- Hi-ENERGY Neodymium Magnet
- Hi-ENERGY neodymium magnet for articulate vocal reproduction.
- Multi-Stage Flat Grille
- Multi-stage flat grille design is engineered to enable easy placement as close as possible to sound source.

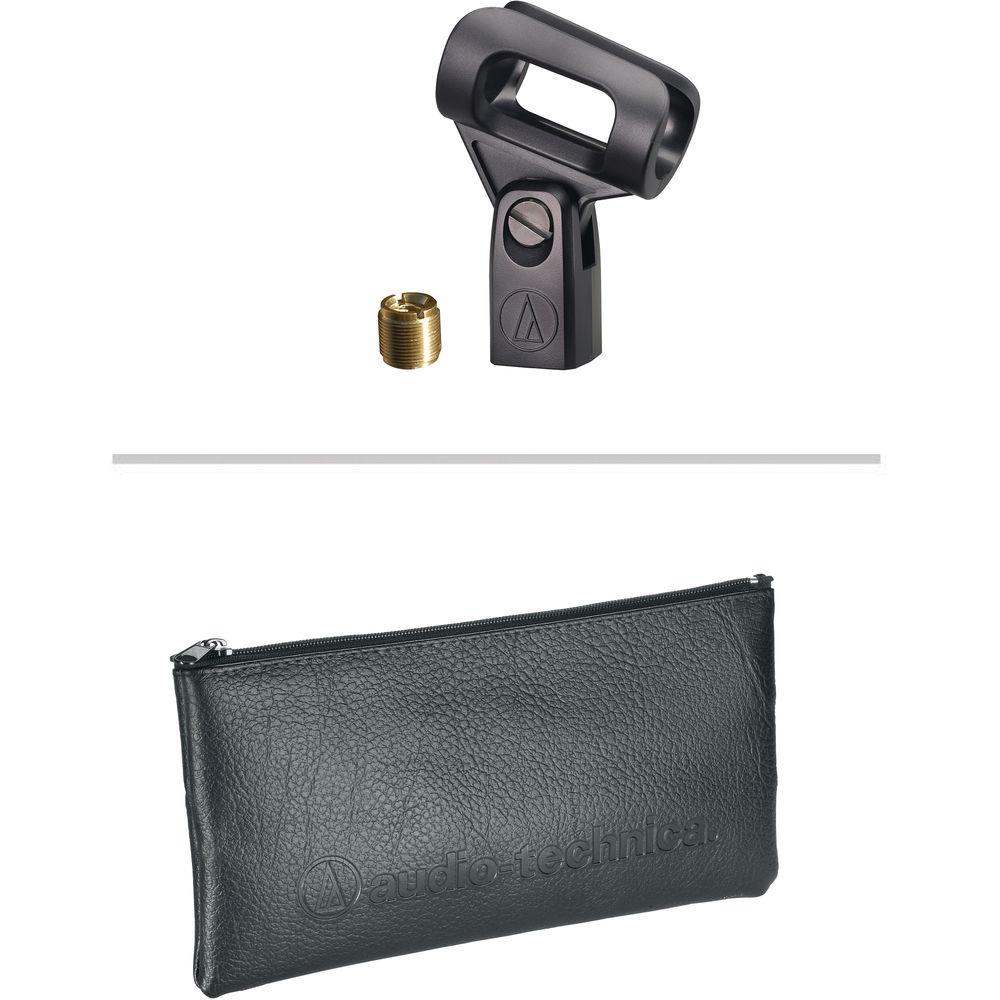

In the Box Audio-Technica ATM650 Dynamic Hypercardioid Instrument Microphone AT8470 Quiet-Flex Mic Clamp fzbsaxqu 5/8"-27 to 3/8"-16 Threaded Adapter Soft Protective Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATM650 Dynamic Hypercardioid Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATM650 Specs | Transducer | Dynamic | | Polar Pattern | Hypercardioid | | Frequency Response | 80 Hz to 17 kHz | | Dynamic Range (Typical) | Not specified by manufacturer | | Signal-to-Noise Ratio | Not specified by manufacturer | | Maximum Input Sound Level | Not specified by manufacturer | | Power Requirements | Dynamic Element phantom power not required | | Output Impedance | 300 Ohms | | Output Connectors | Integral 3-pin XLRM-type | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 6.46 x 1.53" / 164 x 38.8 mm (Length x Diameter) | | Weight | 9.8 oz / 279 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 9.6 x 5.2 x 2.8" |
