User Manual for Audio-Technica ATM710 Cardioid Condenser Handheld Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATM710 Cardioid Condenser Handheld Microphone
- Product category: Handheld Performance Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Handheld Performance Microphones
 |
User manual for the Audio-Technica ATM710 Cardioid Condenser Handheld Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

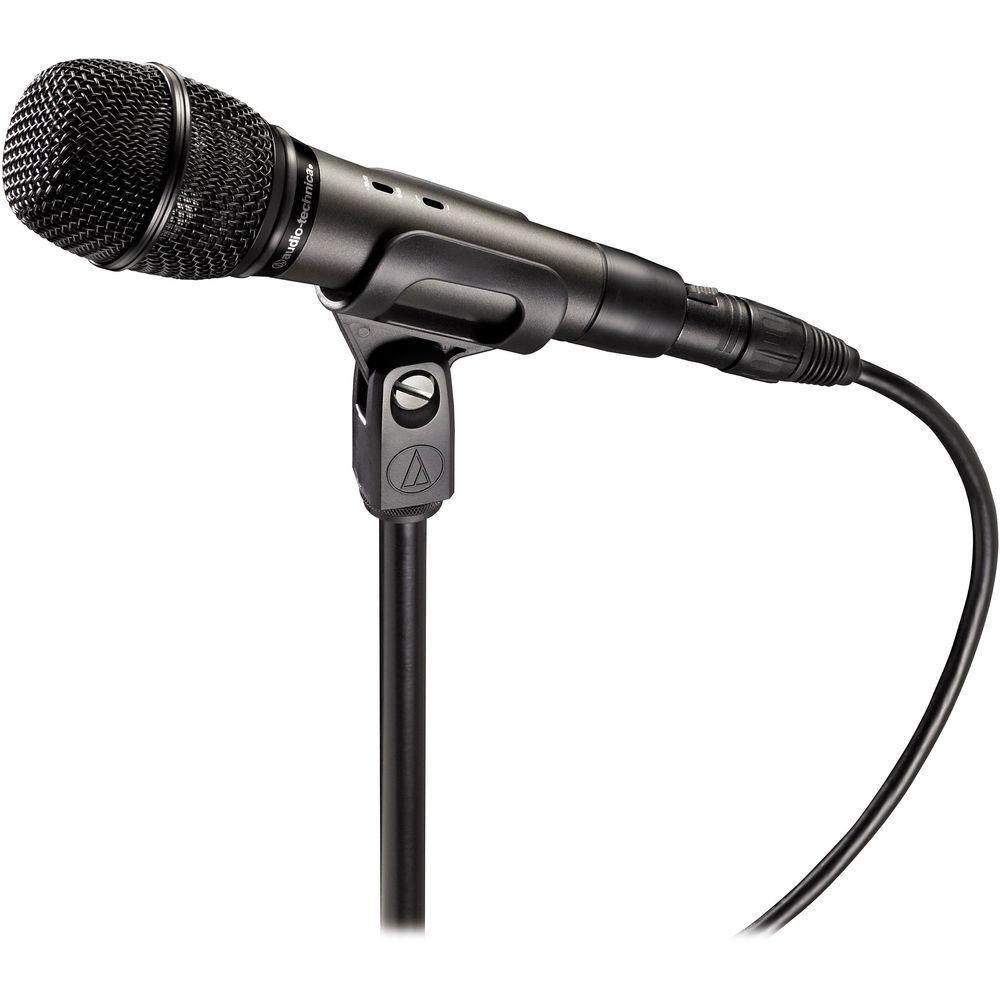

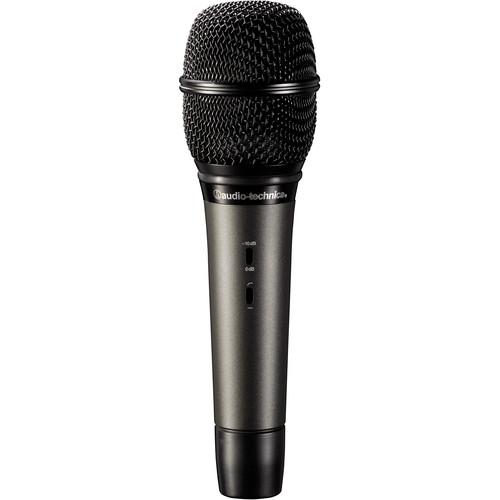

Product description The Audio-Technica ATM710 is a professional cardioid condenser microphone designed to capture vocals in performance and recording applications. The highly sensitive condenser element provides enhanced detail and character over dynamic elements. The cardioid polar pattern is effective in rejecting off-axis noise and audio signal. The ATM710 features an 80Hz low cut filter switch for eliminating low frequency noise. A -10 dB Pad provides added headroom when capturing peaking audio signal. - Condenser Element
- The condenser element results in rich warm sonic character and detail.
- Cardioid Polar Pattern
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source.
- Dual-Wall Floating Construction
- Special dual-wall floating construction reduces handling noise and assures consistent performance from mic to mic.
- Superior Anti-Shock
- Superior anti-shock engineering for low handling noise

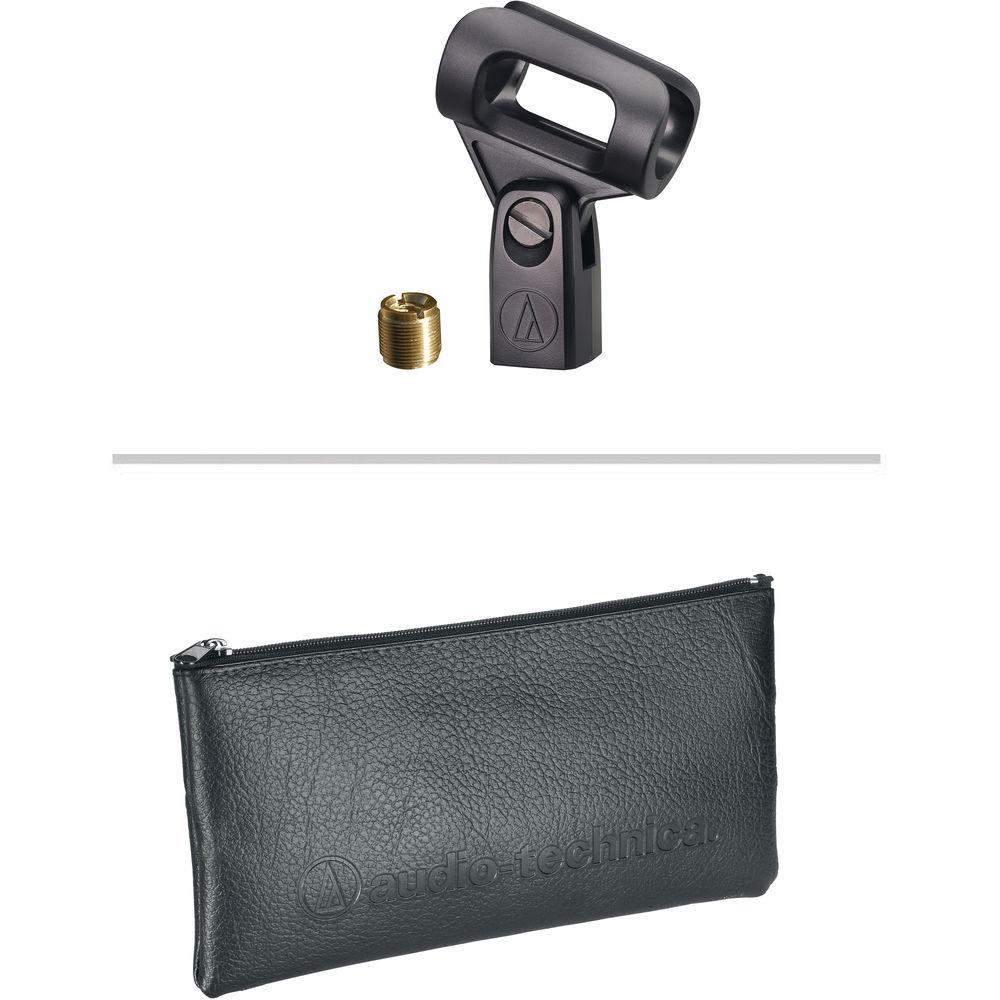

In the Box Audio-Technica ATM710 Cardioid Condenser Handheld Microphone AT8470 Quiet-Flex Stand Clamp 5/8"-27 to 3/8"-16 Threaded Adapter Soft Protective Pouch 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATM710 Cardioid Condenser Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATM710 Specs | Transducer | Fixed-charge back plate permanently polarized condenser | | Polar Pattern | Cardioid | | Frequency Response | 40-20,000 Hz | | Dynamic Range (Typical) | 127 dB, 1 kHz at Max SPL | | Signal-to-Noise Ratio | 73 dB, 1 kHz at 1 Pa | | Maximum Input Sound Level | 148 dB SPL, 1 kHz at 1% T.H.D. | | Power Requirements | 11-52V DC, 3.5 mA typical | | Output Impedance | 200 ohms | | Output Connectors | Integral 3-pin XLRM-type | | Pad | -10dB | | Low Frequency Roll-Off | 80 Hz, 12 dB/octave | | Dimensions | 7.05 x 1.97" (179 x 50mm) (Length x Diameter) | | Weight | 274 g (9.7 oz) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.5 x 5.1 x 2.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
