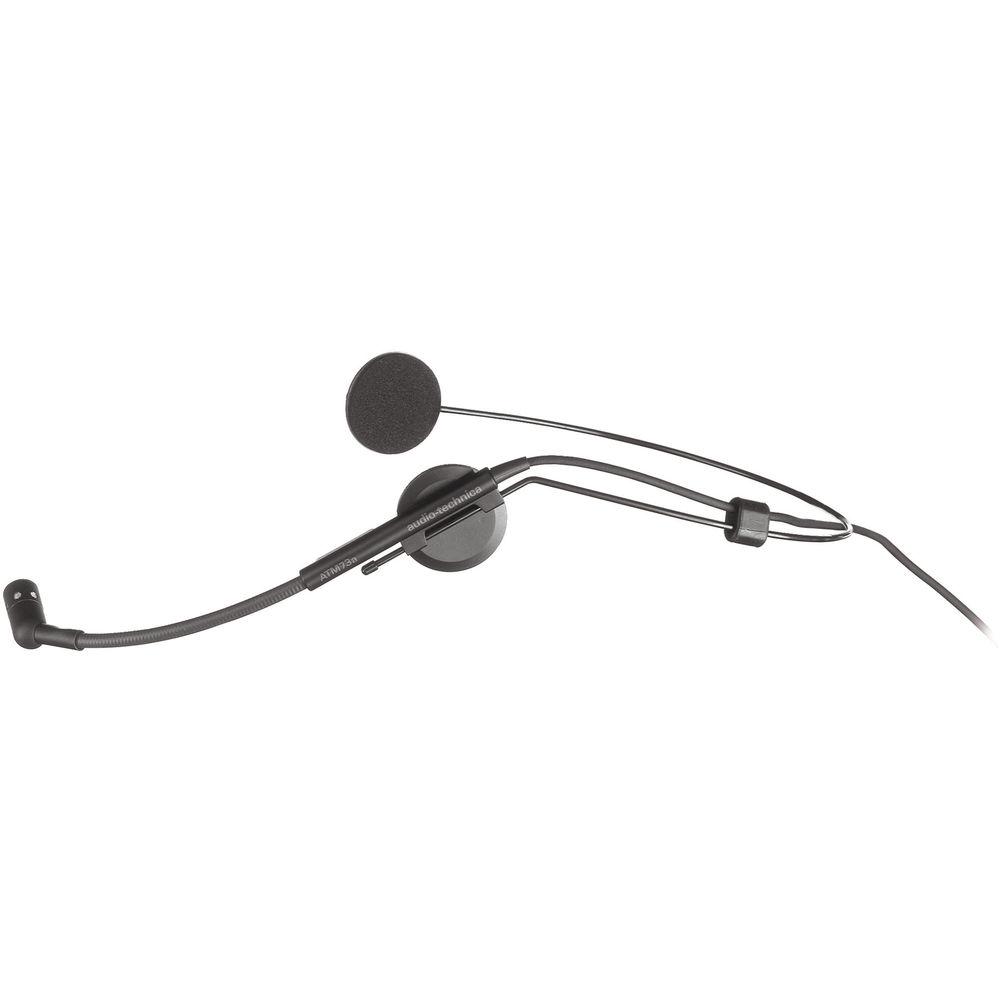

User Manual for Audio-Technica ATM73A - Fixed Charge Condenser Head-worn Microphone with AT8531 Power Module Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATM73A - Fixed Charge Condenser
- Product category: Headset & Earset Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Headset & Earset Microphones
 |
User manual for the Audio-Technica ATM73A - Fixed Charge Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

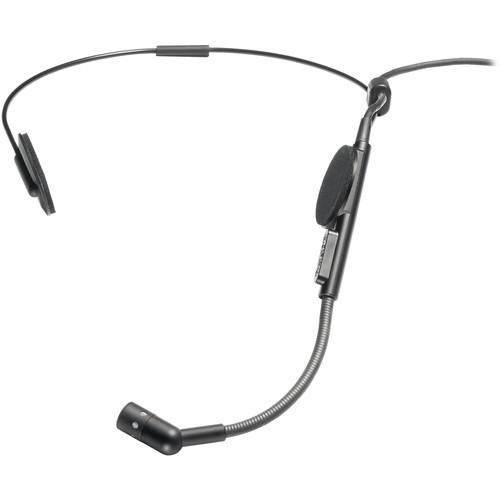

Product description The Audio-Technica ATM73A is a head-worn microphone ideal for drummers, keyboard players and anyone in need of hands free microphone operation. The comfortable, unobtrusive headband design features a side-of-mouth pickup. The cardioid polar pattern improves isolation of desired sound source while minimizing off-axis noise and feedback. The microphone is terminated with a switchcraft TA3-female connector, the included AT8531 phantom power supply id belt mounted and provides the standard XLR output. - Ideal for drummers, keyboard players or anyone requiring hands-free operation.
- Comfortable, unobtrusive headband design with side-of-mouth pickup.
- Belt-mounted power module operates on battery or phantom power.
- Cardioid polar pattern improves isolation of desired sound source.

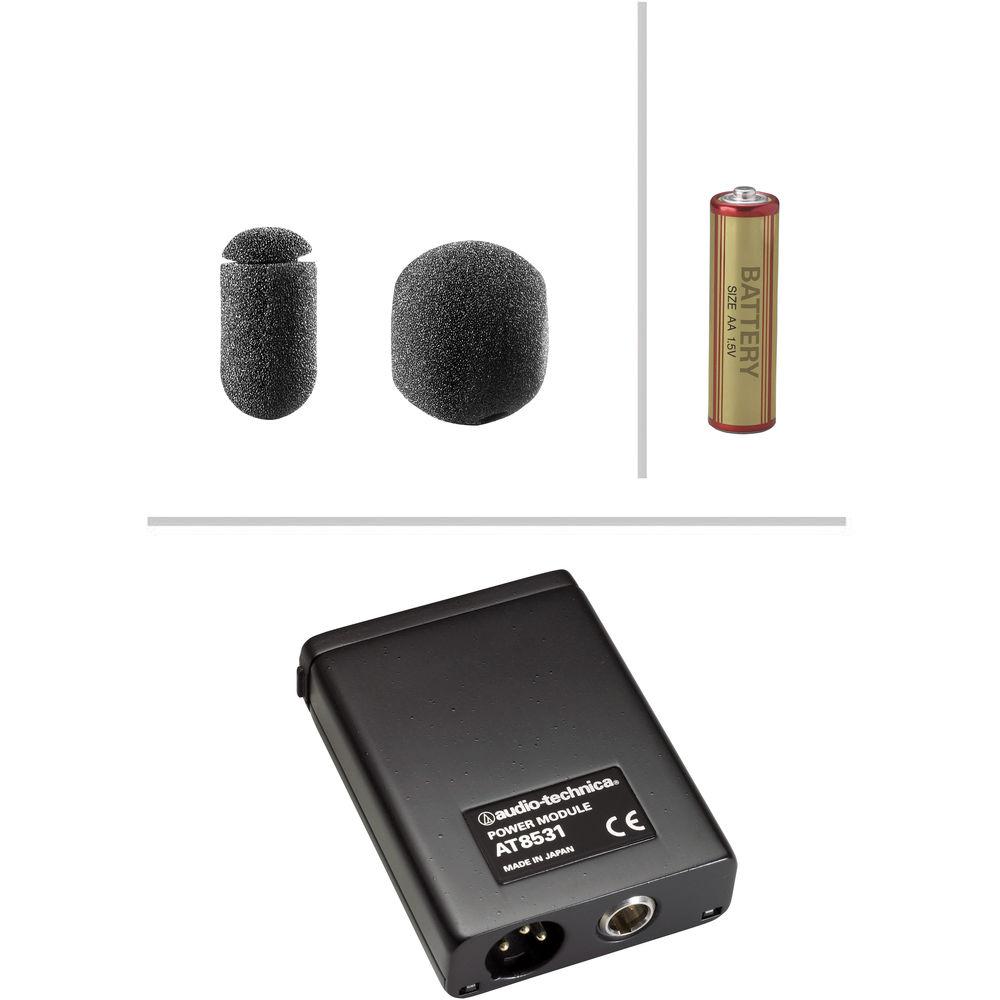

UPC: 042005309368 In the Box Audio-Technica ATM73A - Fixed Charge Condenser Head-worn Microphone with AT8531 Power Module AT8531 Power Module AT8128 Windscreen AT8125 Windscreen Battery 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATM73A - Fixed Charge Condenser Head-worn Microphone with AT8531 Power Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATM73A Specs | Transducer | Fixed-charge back plate, permanently polarized condenser | | Polar Pattern | Cardioid | | Frequency Response | 40-15,000 Hz | | Dynamic Range (Typical) | PHANTOM: 111 dB, 1 kHz at Max SPL
BATTERY: 97 dB, 1 kHz at Max SPL | | Signal-to-Noise Ratio | 59 dB, 1 kHz at 1 Pa | | Maximum Input Sound Level | PHANTOM: 146 dB SPL, 1 kHz at 1% T.H.D.
BATTERY: 132 dB SPL, 1 kHz at 1% T.H.D. | | Power Requirements | 11-52V DC, 2 mA typical | | Output Impedance | PHANTOM: 200 ohms
BATTERY: 270 ohms | | Output Connectors | Integral 3-pin XLRM-type from power module | | Pad | No | | Low Frequency Roll-Off | 80 Hz, 18 dB/octave | | Dimensions | Microphone: 0.39" (10.0 mm) (Diameter)
Power Module: 3.31 x 2.48 x .87" (84 x 63 x 22mm) (HxWxD) | | Weight | Microphone: 1.1 oz (31 g)
Power Module: 4.9 oz (139 g) | | | | Package Weight | 0.76 lb | | Box Dimensions (LxWxH) | 7.4 x 7.3 x 2.5" |
