User Manual for Audio-Technica ATM73cH Cardioid Condenser Headworn Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATM73cH Cardioid Condenser Headworn Microphone
- Product category: Microphones for Wireless Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Microphones for Wireless
 |
User manual for the Audio-Technica ATM73cH Cardioid Condenser Headworn Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

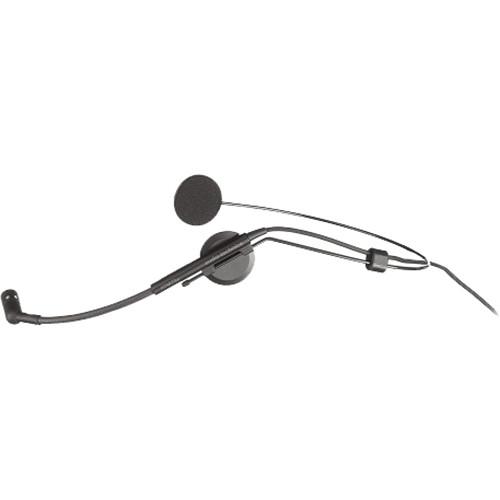

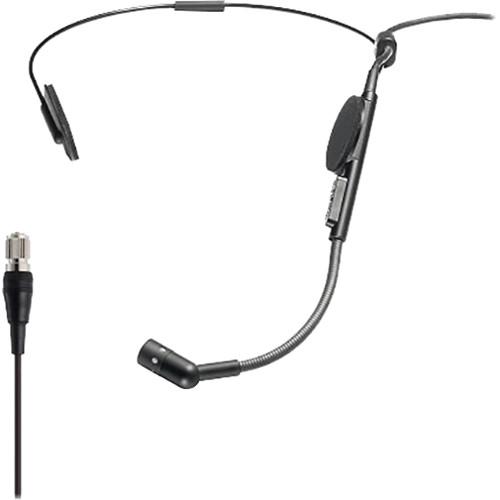

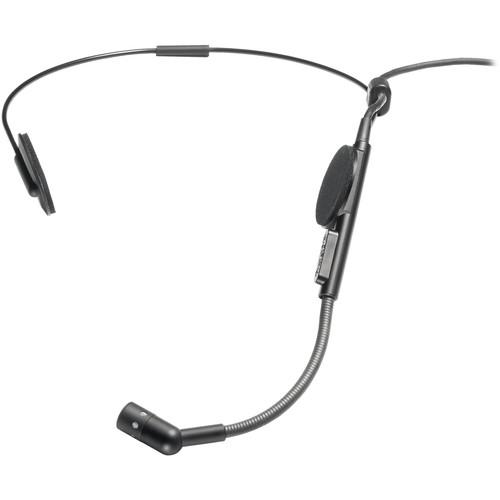

Product description The ATM73cH Cardioid Condenser Headworn Microphone from Audio-Technica is a head-worn microphone ideal for drummers, keyboard players and anyone in need of hands free microphone operation. The comfortable, unobtrusive headband design features a side-of-mouth pickup. The cardioid polar pattern improves isolation of the desired sound source while minimizing off-axis noise and feedback. The microphone features a 55" permanently attached miniature cable terminated with a screw-down cH-style connector for complete compatibility with Audio-Technica cH-style wireless bodypack transmitters. - Ideal for drummers, keyboard players or anyone requiring hands-free operation
- Comfortable, unobtrusive headband design with side-of-mouth pickup
- The microphone is terminated with a screw-down cH-style connector for complete compatibility with Audio-Technica UniPak transmitters
- Cardioid polar pattern improves isolation of desired sound source

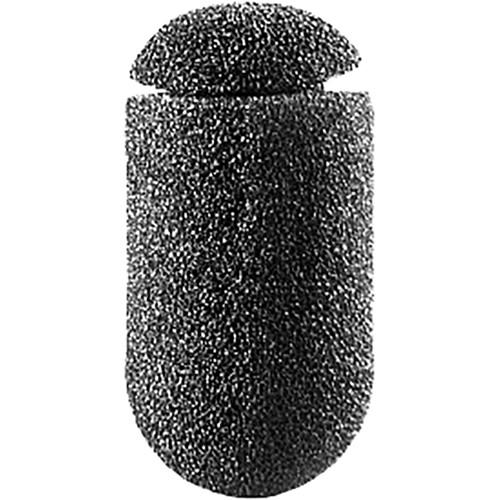

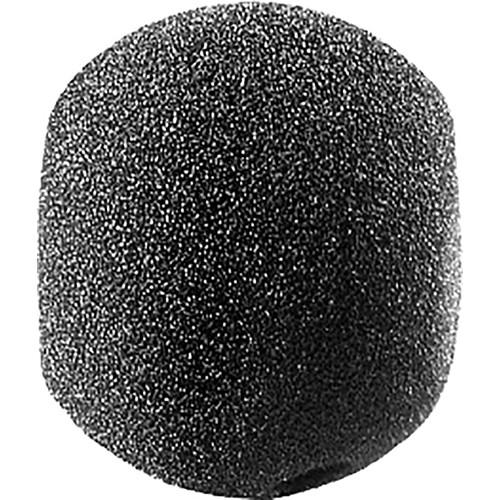

UPC: 042005196944 In the Box Audio-Technica ATM73cH Cardioid Condenser Headworn Microphone Foam Windscreen for Headworm Microphone Foam Windscreen (Large) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATM73cH Cardioid Condenser Headworn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATM73CH Specs | | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 15 kHz | | Signal to Noise Ratio | 59 dB A-Weighted | | Maximum SPL | 132 dB SPL Peak | | Impedance | 270 Ohms | | Sensitivity | 56 dB | | Dynamic Range | 97 dB A-Weighted | | | | Output Connector | 4-Pin CH-Style Hirose | | Cable Length | 55" / 1.40 m | | Operating Voltage | 11 to 52 V | | Diameter | 0.39" / 9.91 mm | | Weight | 1.1 oz / 31 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
