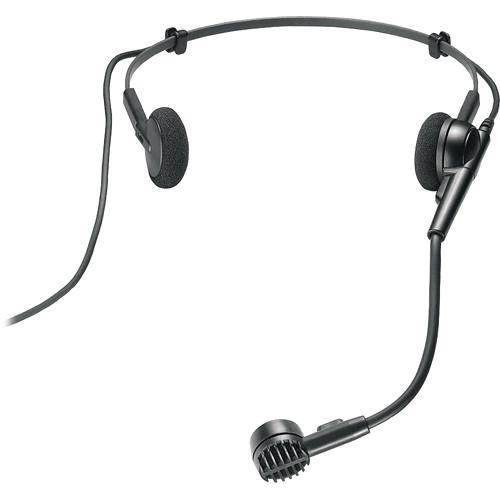

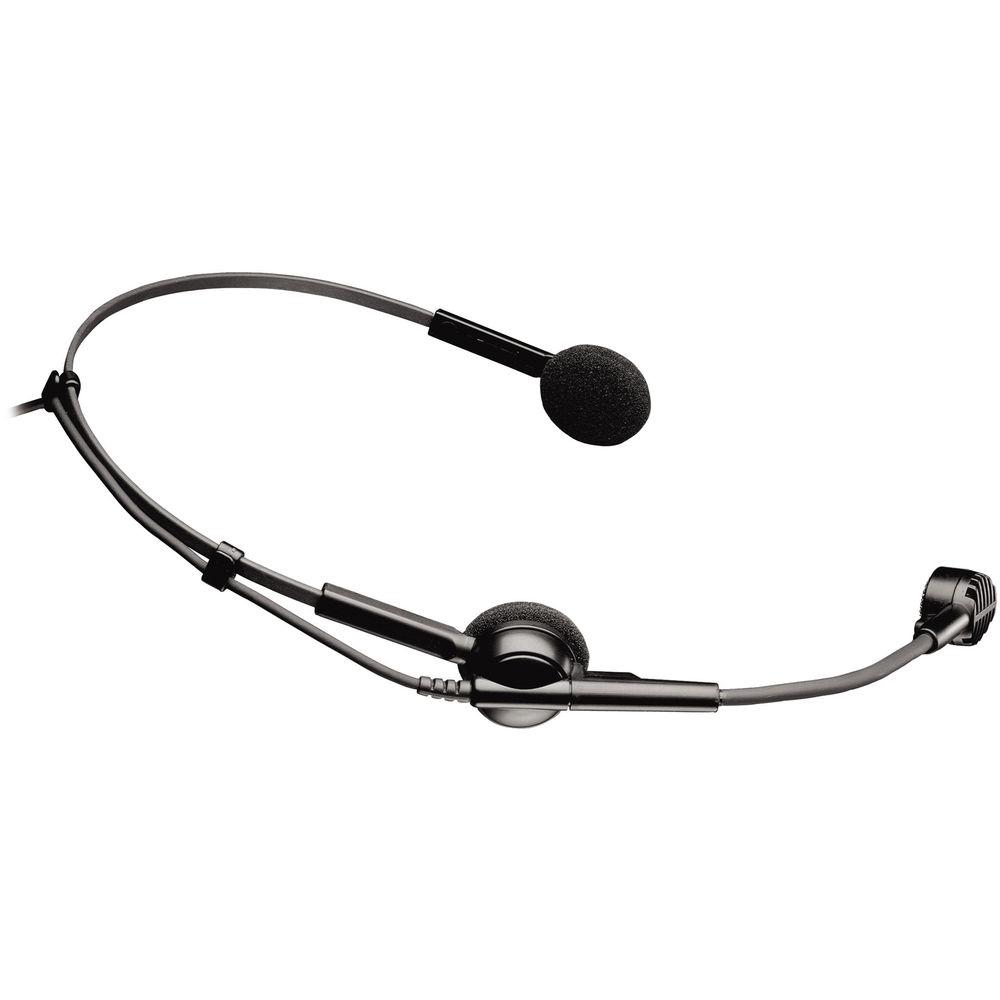

User Manual for Audio-Technica ATM75 - Cardioid Headworn Condenser Microphone with XLR Connector Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATM75 - Cardioid Headworn Condenser
- Product category: Headset & Earset Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Headset & Earset Microphones
 |
User manual for the Audio-Technica ATM75 - Cardioid Headworn Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The ATM75 offers the comfort and performance well beyond what one would even expect from Audio-Technica. So super lightweight (only 60 grams) you'll forget its there and it won't interfere with your performance in the least. Combine this with the ATM75's Cardioid polar pattern, wide frequency range, low frequency roll-off switch and crystal clear reproduction and it looks like - you just found what you're looking for! - Professional quality vocal pickup with hands free operation
- Low visibility headband provides stable, comfortable fit
- Pivot mounted flexible mic boom descends from left or right side
- Belt mounted power module operates on battery or phantom power
- 55" (1.4 m) cable permanently attached between microphone and power module

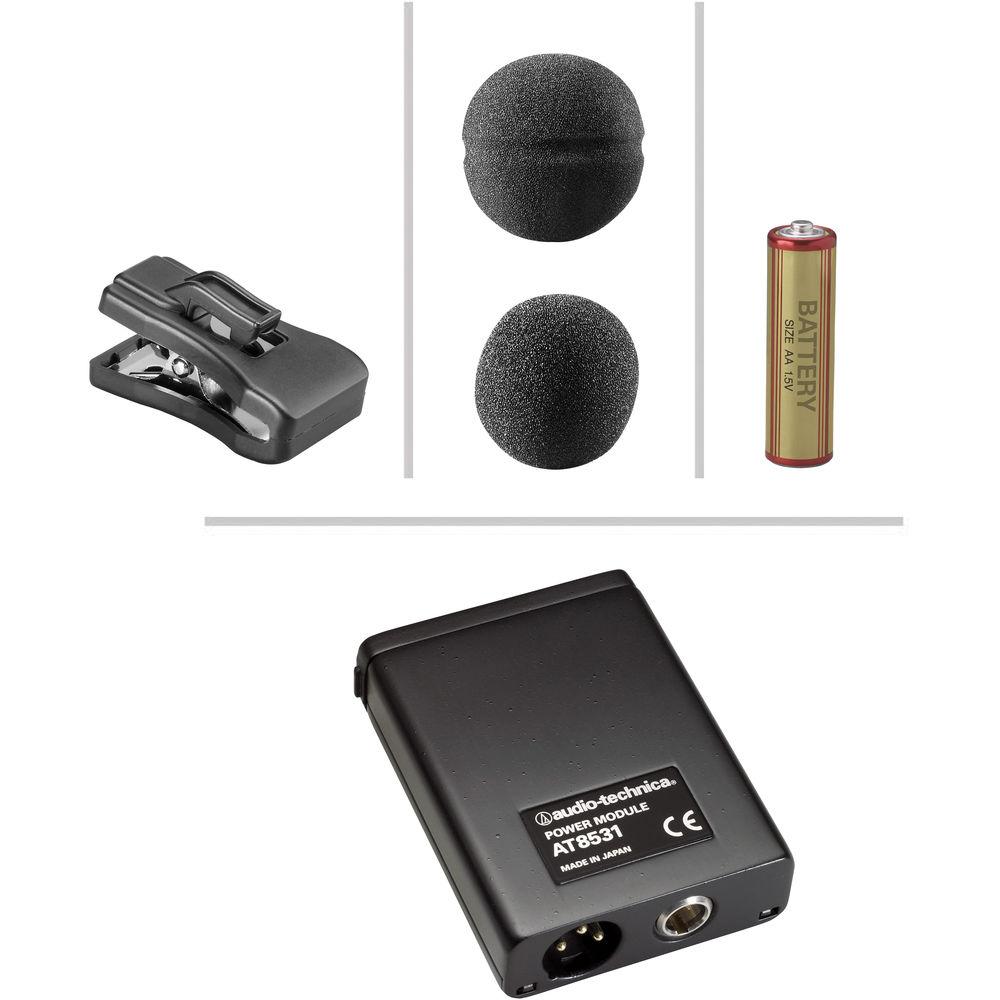

UPC: 042005309382 In the Box Audio-Technica ATM75 - Cardioid Headworn Condenser Microphone with XLR Connector (AT8139L) Large Windscreen (AT8139S) Small Windscreen (AT8439) Clothing Clip (AT8531) Detachable Power Module "AA" Battery 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATM75 - Cardioid Headworn Condenser Microphone with XLR Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATM75 Specs | Transducer | (Fixed Charge) Condenser | | Polar Pattern | Cardioid | | Frequency Response | 60 Hz - 15 kHz | | Dynamic Range (Typical) | Phantom: 96 dB, (1 kHz @ Maximum SPL)
Battery: 85 dB, (1 kHz @ Maximum SPL) | | Signal-to-Noise Ratio | 58 dB, (1 kHz at 1 Pa) | | Maximum Input Sound Level | Phantom: 132 dB SPL, (1 kHz @ 1% T.H.D.)
Battery: 121 dB SPL, (1 kHz @ 1% T.H.D.) | | Power Requirements | Phantom: 9 - 52v, (2 mA Typical)
Battery: 1.5v, (AA/UM3) | | Output Impedance | Phantom: 200 Ohms
Battery: 270 Ohms | | Output Connectors | XLR-3M Type (from Attached Power AT8531 Module) | | Pad | None | | Low Frequency Roll-Off | Yes, (80 Hz, 18 dB Per Octave) | | Applications | Sound Reinforcement, Tour Guides and Stage Usage | | Dimensions | Headset: 4.72" (120.0mm) Nominal at Widest Point
Flexible Boom: 3.17"(80.5mm)
Microphone: 0.80" (20.4mm) Diameter
Power Module: 3.27 x 2.48 x 0.87 (83.1 x 62.99 x 22.1mm) HxWxD | | Weight | Microphone: 2.1 oz. (60 g)
Power Module: 5.2 oz. (147 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.4 x 7.3 x 2.7" |
