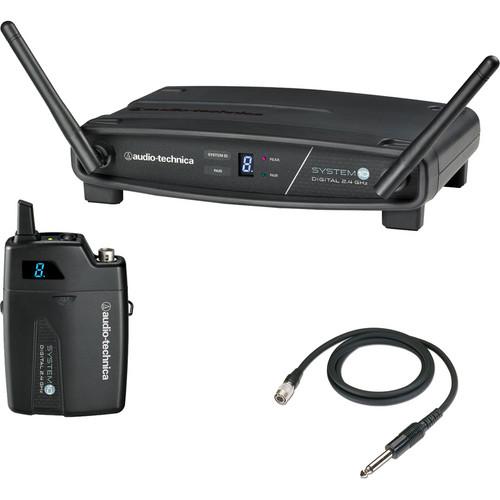

The ATW-1101/G System 10 from Audio-Technica is a digital wireless solution for your electric guitar or bass rig that includes the ATW-R1100 digital receiver, the ATW-T1001 UniPak pocket transmitter and the AT-GcW guitar cable. The ATW-1101/G uses 24-bit, 48 kHz digital audio and operates free from TV interference in the 2.4 GHz frequency range. Built for expandability, you can use up to eight systems simultaneously. The ATW-1101/G is designed for quick and easy setup. Specifically for electric guitarists and bassists, it comes with the 36" AT-GcW guitar cable for connecting your guitar or bass to the ATW-T1001 UniPak pocket transmitter. Just plug the cable's 1/4" phone plug connector into your guitar, then plug the locking 4-pin connector on the other side into the pocket transmitter. Finally, just use a guitar cable to connect the unbalanced output on the ATW-R1100 digital receiver to your guitar amplifier's input and you are ready to go. The ATW-1101/G wireless system is engineered to quickly find the best signal possible, utilizing an automatic frequency selection function that chooses open bands for you when you "pair" your transmitter with the receiver. Also designed to combat interference, the ATW-1101/G uses three different diversity techniques. Using frequency diversity, the system sends the wireless signal on two separate channels simultaneously and chooses the one with the clearest signal. It also transmits the signal across multiple intervals in time in order to fight multipath interference. This is known as time diversity. Furthermore, the system also makes use of space diversity, choosing between the receiver's dual antennas depending on which is picking up the best signal integrity. - Unbalanced 1/4" output on receiver for connecting to guitar amp
- Balanced XLR output on receiver allows for connection to microphone level inputs on mixers
- Level controls on transmitter and receiver
- Pair indicator illuminates on receiver when synced with transmitter
- AF Peak indicator on receiver allows you to monitor the input stage on the transmitter for clipping
UPC: 042005175369 In the Box Audio-Technica ATW-1101/G System 10 Digital Wireless Guitar Set AT-GCW - Instrument & Guitar Cable vqdfcsbvweacrrrartwrxs ATW-T1001 System 10 Digital UniPak Transmitter ATW-R1100 System 10 Digital Wireless Receiver Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-1101 G System 10 Digital Wireless Guitar Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-1101/G Specs | | | Operating Frequencies | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion | <0.05% typical | | Operating Range | 30 m (100') typical | | Operating Temperature Range | 0 to +40° C (32 to 104° F) | | Frequency Response | 20 Hz to 20 kHz | | Audio Sampling | 24 bit, 48 kHz | | | | Receiving System | Diversity (frequency/time/space) | | Output Connections | 1x XLR, balanced
1x 1/4" (6.3 mm), unbalanced | | Maximum Output Level | Balanced: 0 dBV
Unbalanced: +6 dBV | | Power Supply | 100-240V AC (50/60 Hz) to 12V DC 0.5A, center positive, switched mode external power supply | | Dimensions | 7.48 x 1.82 x 5.06" (190.0 x 46.2 x 128.5 mm) | | Weight | 10.2 oz (290 g) | | | | RF Output Power | 10 mW | | Spurious Emission | Following federal and national regulations | | Input Connections | 1x 4-pin locking connector
Wiring:
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V | | Batteries | 2x 1.5V AA (not included) | | Battery Life | >7 hours (alkaline) | | Dimensions | 2.76 x 4.21 x .98" (70.2 x 107 x 24.9 mm) | | Weight | 3.5 oz (100 g), without batteries | | | | Type | 1/4" TS Phone to 4-pin Connector | | Length | 36" (0.9 m) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 13.8 x 10.9 x 4.4" |
