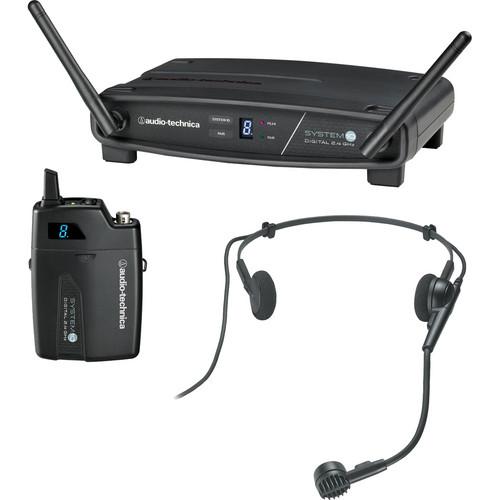

The ATW-1101/H System 10 from Audio-Technica is a digital wireless headworn microphone solution for drummers, keyboardists, dancers, instructors and others that require the use of their hands during performance. The set includes the ATW-R1100 digital receiver, the ATW-T1001 UniPak pocket transmitter and the PRO 8HEcW headworn microphone. It uses 24-bit, 48 kHz digital audio and operates free from TV interference in the 2.4 GHz frequency range. Built for expandability, you can use up to eight systems simultaneously. The PRO 8HEcW dynamic headworn microphone is designed to offer accurate, close range capture of an individual voice. The cushioned headband is designed to fit comfortably on your head and it can be worn on either the left or right side. The capsule features a hypercardioid polar pattern that promotes isolation of the vocal source by rejecting outside sound from floor monitors, drum sets, crowd noise, etc. This lends to consistent sound quality and high gain before feedback. The mic is fitted with a windscreen to filter out pops from breath and wind noise, and it has a dynamic Hi-ENERGY neodymium element that does not require phantom power. It has a 55" cable that terminates with a locking 4-pin connector which plugs into the ATW-T1001 UniPak pocket transmitter. The ATW-1101/H wireless system is engineered to quickly find the best signal possible, utilizing an automatic frequency selection function that chooses open bands for you when you "pair" your transmitter with the receiver. Also designed to combat interference, the ATW-1101/H uses three different diversity techniques. Using frequency diversity, the system sends the wireless signal on two separate channels simultaneously and chooses the one with the clearest signal. It also transmits the signal across multiple intervals in time in order to fight multipath interference. This is known as time diversity. Furthermore, the system also makes use of space diversity, choosing between the receiver's dual antennas depending on which is picking up the best signal integrity. - Balanced XLR output and unbalanced 1/4" output on receiver allows for connection to balanced microphone level inputs or unbalanced aux level inputs on mixers and sounds systems
- Flexible, pivoting boom allows mic to be worn on left or right side
- Headband cushions for support and comfort
- Level controls on transmitter and receiver
- Pair indicator illuminates on receiver when synced with transmitter
- AF Peak indicator on receiver allows you to monitor the input stage on the transmitter for clipping
UPC: 042005175376 In the Box Audio-Technica ATW-1101/H System 10 Digital Wireless Headworn Dynamic Microphone Set Pro 8HEcW Hypercardioid Dynamic Headworn Microphone ATW-T1001 System 10 Digital UniPak Transmitter ATW-R1100 System 10 Digital Wireless Receiver Large Foam Windscreen for Headworn Microphone Small Foam Windscreen for Headworn Microphone AT8439 - Clothing Clip Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-1101 H System 10 Digital Wireless Headworn Dynamic Microphone Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-1101/H Specs | | | Operating Frequencies | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion | <0.05% typical | | Operating Range | 30 m (100') typical | | Operating Temperature Range | 0 to 40° C (32 to 104° F) | | Frequency Response | 20 Hz to 20 kHz | | Audio Sampling | 24 bit, 48 kHz | | | | Receiving System | Diversity (frequency/time/space) | | Output Connections | 1x XLR, balanced
1x 1/4" (6.3 mm), unbalanced | | Maximum Output Level | Balanced: 0 dBV
Unbalanced: +6 dBV | | Power Supply | 100-240V AC (50/60 Hz) to 12V DC 0.5A, center positive, switched mode external power supply | | Dimensions | 7.48 x 1.82 x 5.06" (190.0 x 46.2 x 128.5 mm) | | Weight | 10.2 oz (290 g) | | | | RF Output Power | 10 mW | | Spurious Emission | Following federal and national regulations | | Input Connections | 1x 4-pin locking connector
Wiring:
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V | | Batteries | 2x 1.5V AA (not included) | | Battery Life | >7 hours (alkaline) | | Dimensions | 2.76 x 4.21 x .98" (70.2 x 107 x 24.9 mm) | | Weight | 3.5 oz (100 g), without batteries | | | | Element | Dynamic | | Polar Pattern | Hypercardioid | | Frequency Response | 200 Hz - 18 kHz | | Open Circuit Sensitivity | -55 dB (1.7 mV) re 1V at 1 Pa | | Impedance | 600 ohms | | Connector | Locking 4-Pin HRS connector | | Cable Length | 55" (1.4 m) | | Dimensions | 4.72" (120.0 mm), headset, nominal at widest point
3.17" (80.5 mm), flexible boom
0.80" (20.4 mm), microphone diameter | | Weight | 2.1 oz (60 g) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 13.8 x 10.9 x 4.3" |
