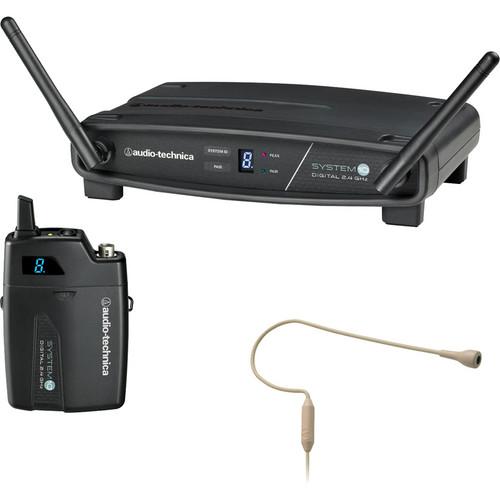

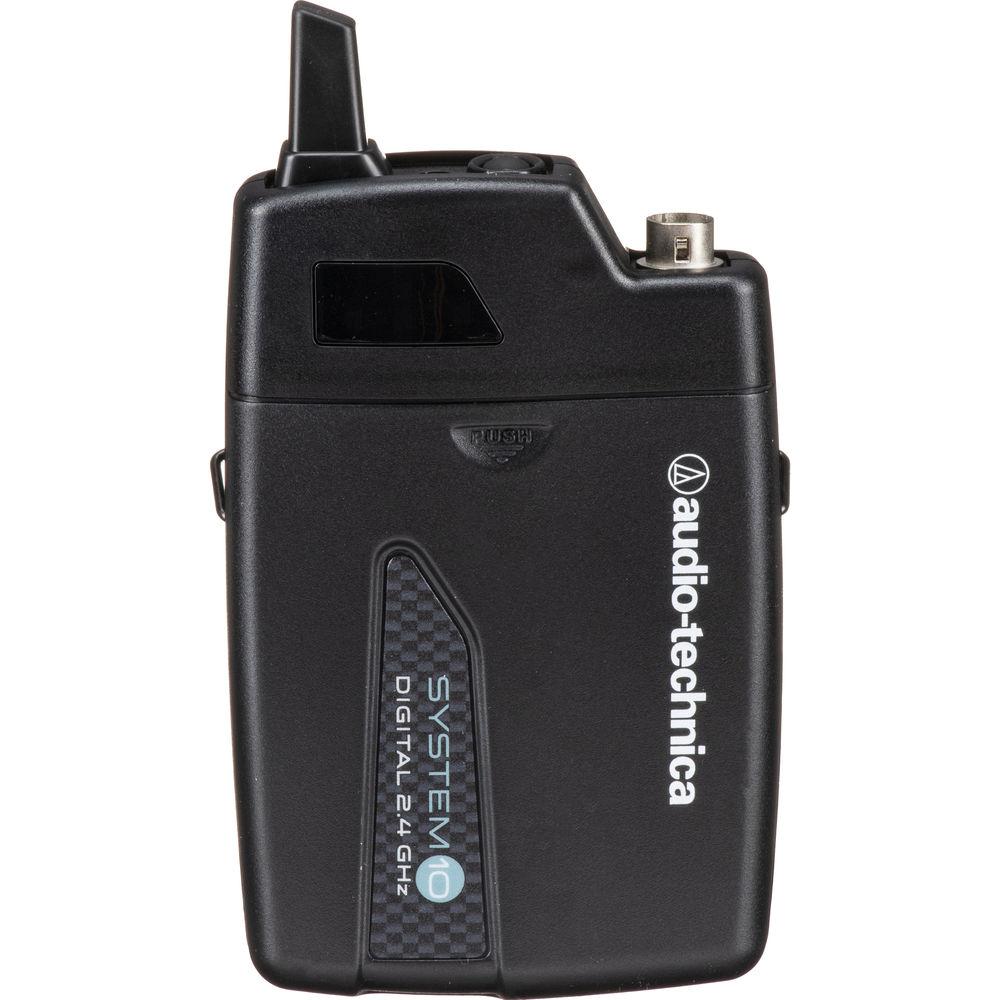

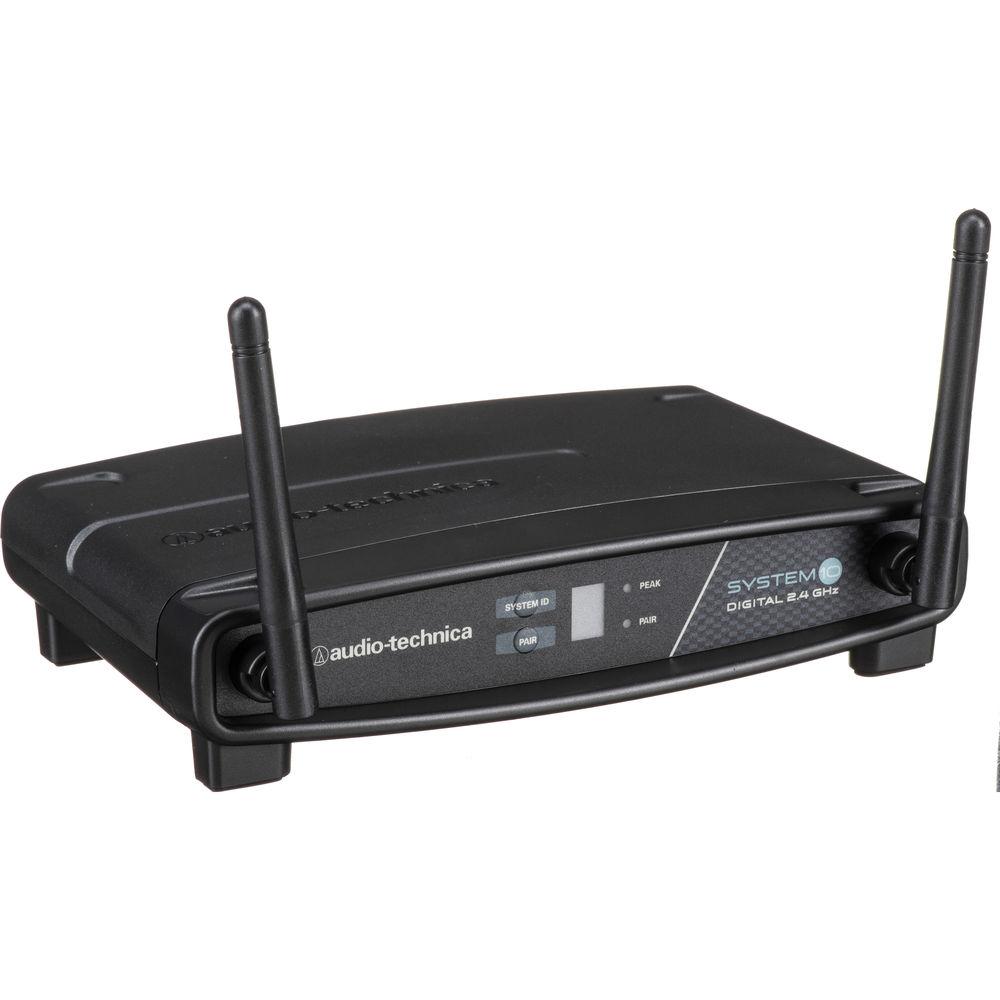

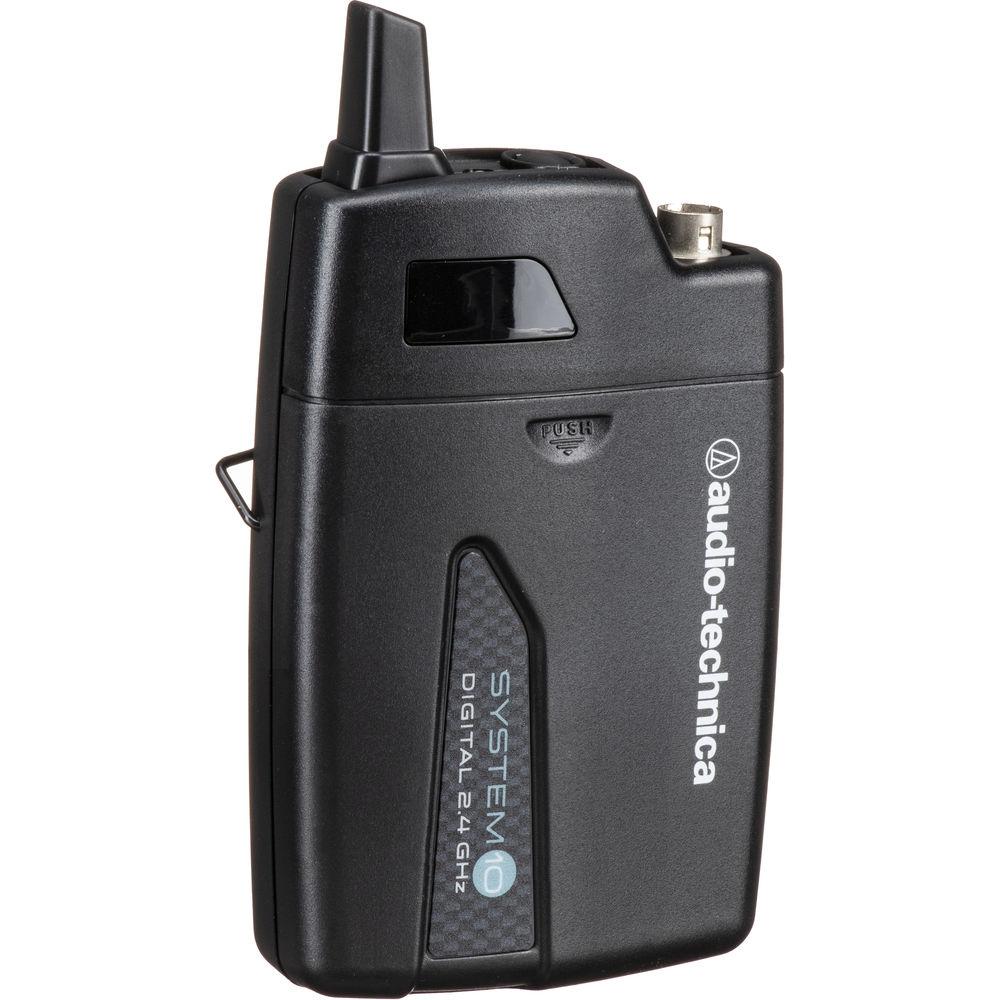

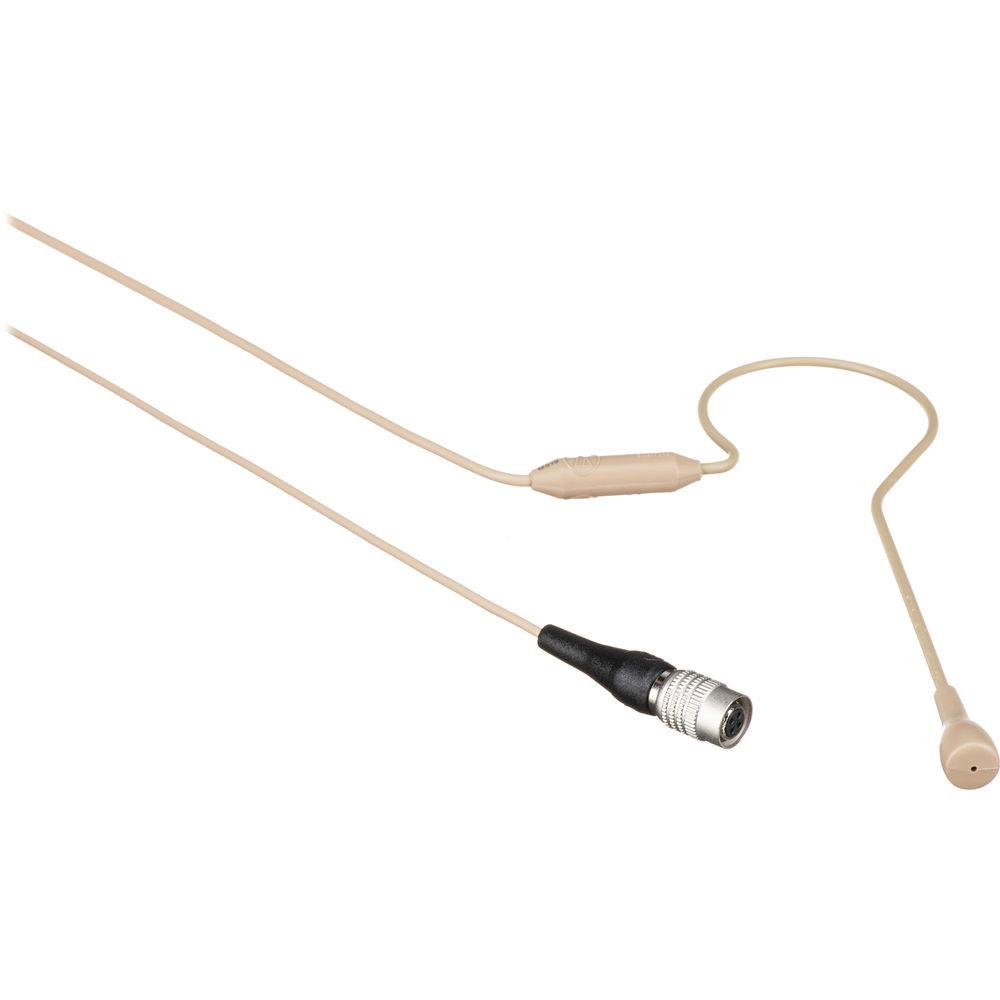

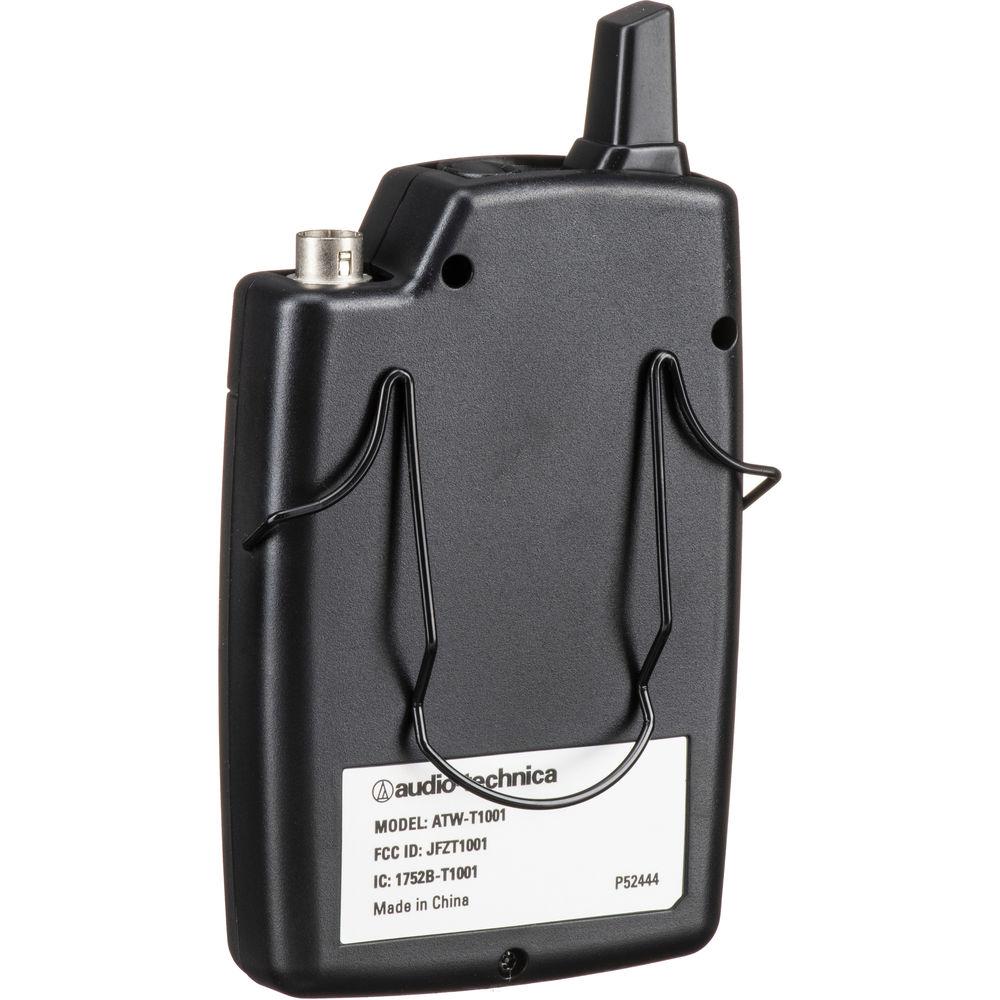

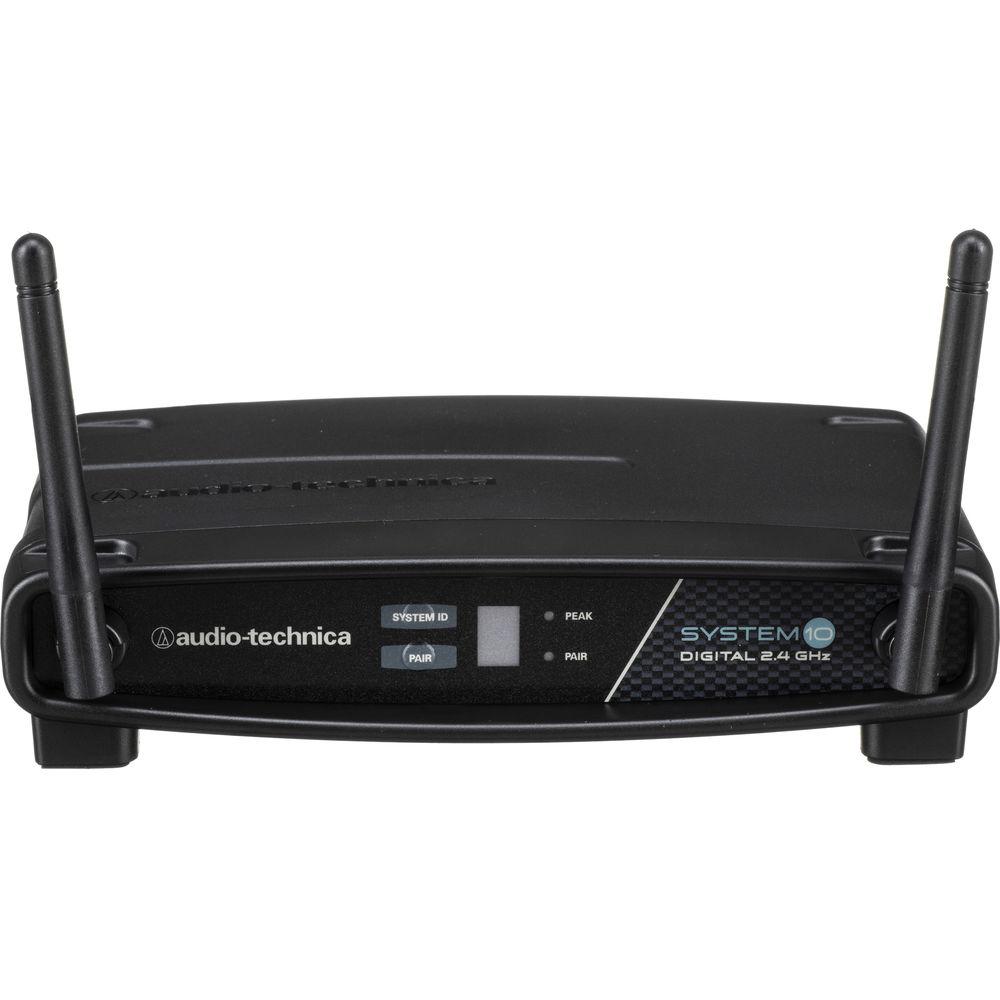

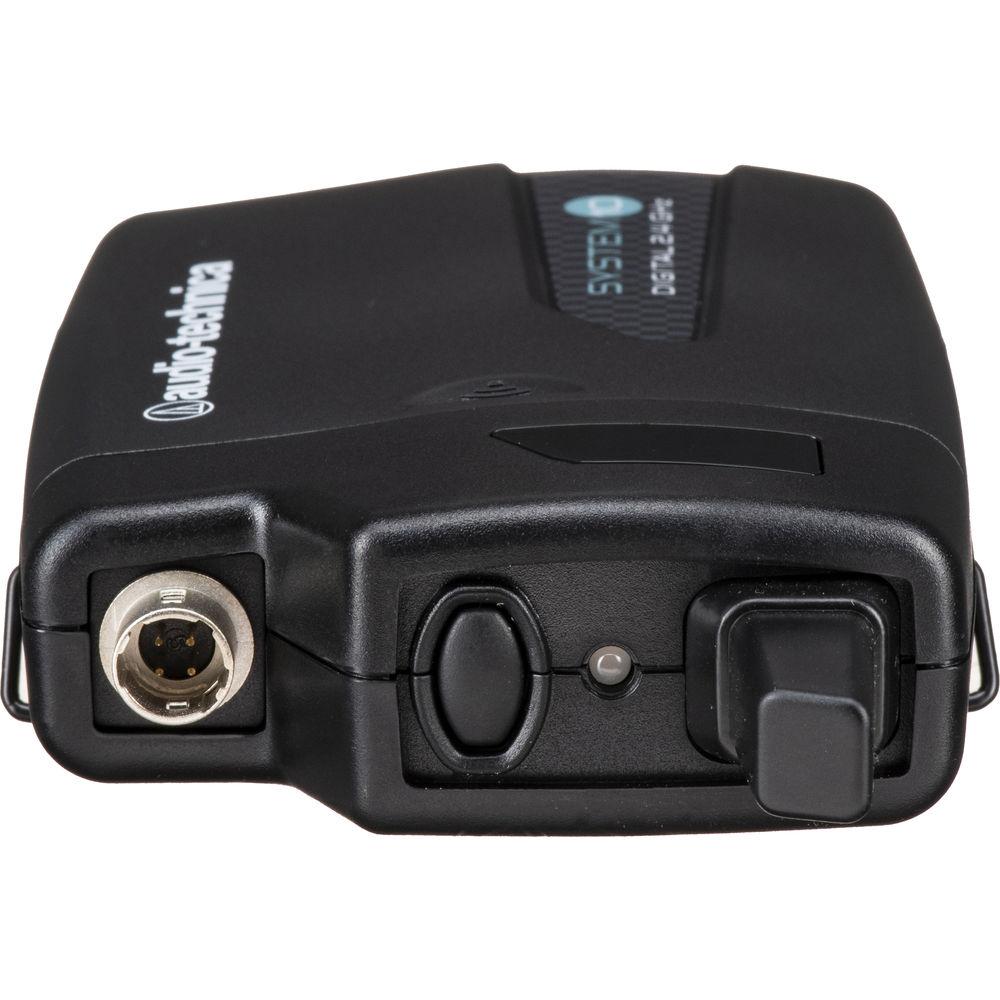

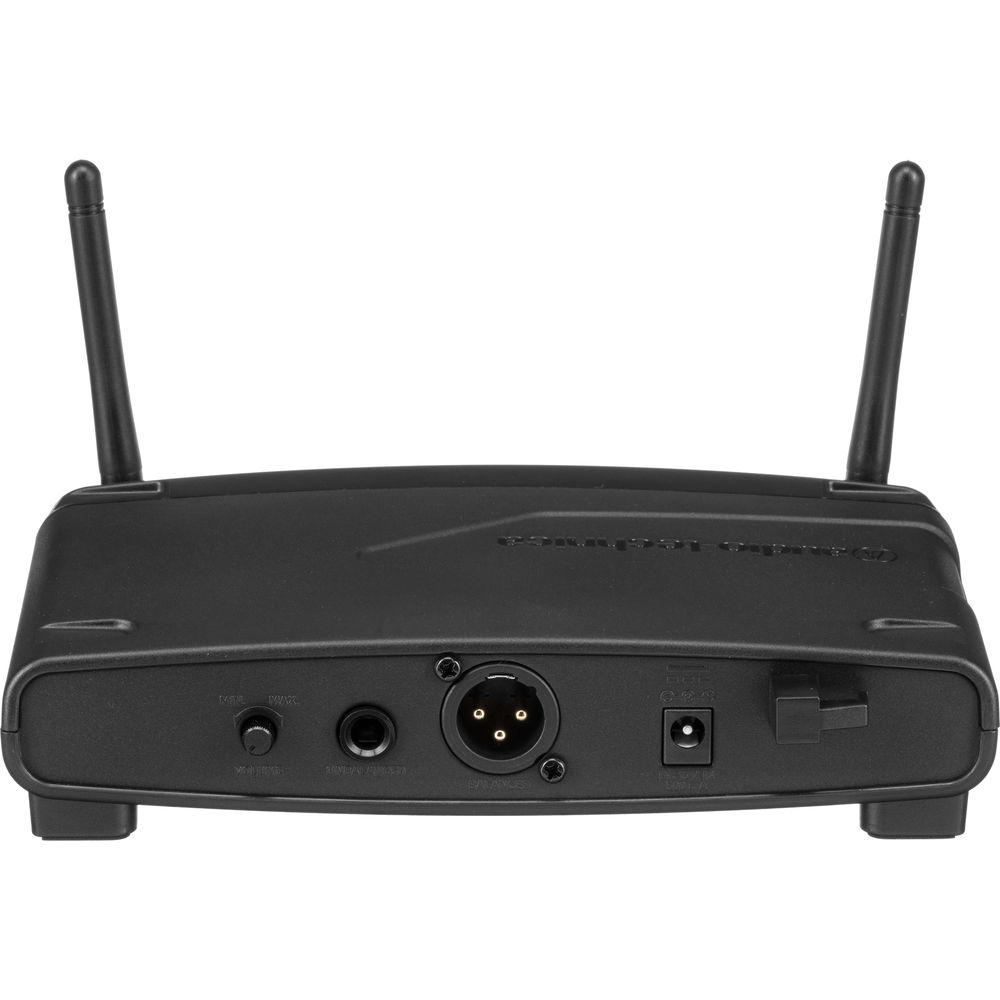

The ATW-1101/H92-TH System 10 from Audio-Technica is a digital wireless headworn microphone solution for lecturers and similar applications that require articulate vocal reproduction. The set includes the ATW-R1100 digital receiver, the ATW-T1001 UniPak pocket transmitter and the beige PRO 92cW-TH headworn microphone. It uses 24-bit, 48 kHz digital audio and operates free from TV interference in the 2.4 GHz frequency range. Built for expandability, you can use up to eight systems simultaneously. The PRO 92cW-TH is a headworn condenser microphone with a flexible boom and a shaped earpiece that fits over your left or right ear. It has a frequency response that is optimized to reproduce clear speech without coloring the sound. It features an omnidirectional polar pattern which is designed to provide a large acoustical pick up radius. This helps to ensure that your speech or performance is captured accurately, and it allows you to speak comfortably with the mic sitting near the corner of your mouth. The mic is fitted with a windscreen to filter out pops from breath and wind noise, and it has a 55" cable that terminates with a locking 4-pin connector which plugs into the ATW-T1001 UniPak pocket transmitter. The ATW-1101/H92-TH wireless system is engineered to quickly find the best signal possible, utilizing an automatic frequency selection function that chooses open bands for you when you "pair" your transmitter with the receiver. Also designed to combat interference, the ATW-1101/H92-TH uses three different diversity techniques. Using frequency diversity, the system sends the wireless signal on two separate channels simultaneously and chooses the one with the clearest signal. It also transmits the signal across multiple intervals in time in order to fight multipath interference. This is known as time diversity. Furthermore, the system also makes use of space diversity, choosing between the receiver's dual antennas depending on which is picking up the best signal integrity. - Balanced XLR output and unbalanced 1/4" output on receiver allows for connection to balanced microphone level inputs or unbalanced aux level inputs on mixers and sounds systems
- Microphone designed to withstand everyday wear and tear
- Includes clothing clip to prevent the weight of the cable from pulling the headset
- Includes pouch for mic storage
- Level controls on transmitter and receiver
- Pair indicator illuminates on receiver when synced with transmitter
- AF Peak indicator on receiver allows you to monitor the input stage on the transmitter for clipping

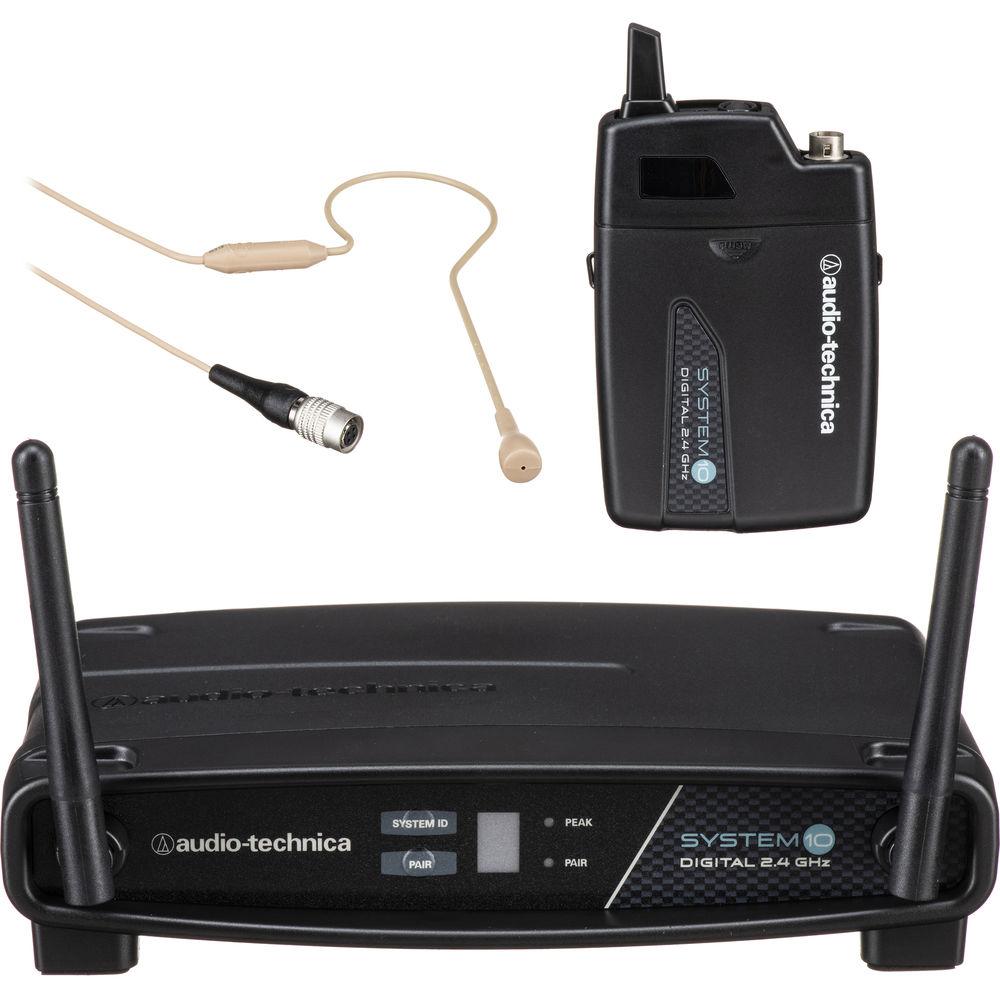

UPC: 042005175390 In the Box Audio-Technica ATW-1101/H92-TH System 10 Digital Wireless Headworn Condenser Microphone Set (Beige) PRO-92CW Omnidirectional Headworn Microphone vqdfcsbvweacrrrartwrxs ATW-T1001 System 10 Digital UniPak Transmitter ATW-R1100 System 10 Digital Wireless Receiver Windscreen Clothing Clip Mic Carrying Pouch Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-1101 H92-TH System 10 Digital Wireless Headworn Condenser Microphone Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-1101/H92-TH Specs | | | Operating Frequencies | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion | <0.05% typical | | Operating Range | 30 m (100') typical | | Operating Temperature Range | 0 to +40° C (32 to 104° F) | | Frequency Response | 20 Hz to 20 kHz | | Audio Sampling | 24 bit, 48 kHz | | | | Receiving System | Diversity (frequency/time/space) | | Output Connections | 1x XLR, balanced
1x 1/4" (6.3 mm), unbalanced | | Maximum Output Level | Balanced: 0 dBV
Unbalanced: +6 dBV | | Power Supply | 100-240V AC (50/60 Hz) to 12V DC 0.5A, center positive, switched mode external power supply | | Dimensions | 7.48 x 1.82 x 5.06" (190.0 x 46.2 x 128.5 mm) | | Weight | 10.2 oz (290 g) | | | | RF Output Power | 10 mW | | Spurious Emission | Following federal and national regulations | | Input Connections | 1x 4-pin locking connector
Wiring:
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V | | Batteries | 2x 1.5V AA (not included) | | Battery Life | >7 hours (alkaline) | | Dimensions | 2.76 x 4.21 x .98" (70.2 x 107 x 24.9 mm) | | Weight | 3.5 oz (100 g), without batteries | | | | Element | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz - 20 kHz | | Open Circuit Sensitivity | -45 dB (5.6 mV) re 1V at 1 Pa | | Maximum Input Sound Level | 116 dB SPL, 1 kHz at 1% T.H.D. | | Signal-to-Noise Ratio | 60 dB, 1 kHz at 1 Pa | | Current Consumption | 0.3 mA typical @ 5V | | Voltage Range | 1.5 - 9V | | Connector | Locking 4-Pin HRS connector | | Cable Length | 55" (1.4 m) | | Dimensions | 0.85" (21.7 mm), microphone length
0.36" (9.2 mm), microphone diameter
4.33" (110.0 mm), boom length
0.09" (2.4mm), boom diameter | | Weight | 0.14 oz (4.0 g), mic and boom
0.84 oz (24.0 g), mic, boom, connector and cable | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 13.7 x 10.9 x 4.3" |
