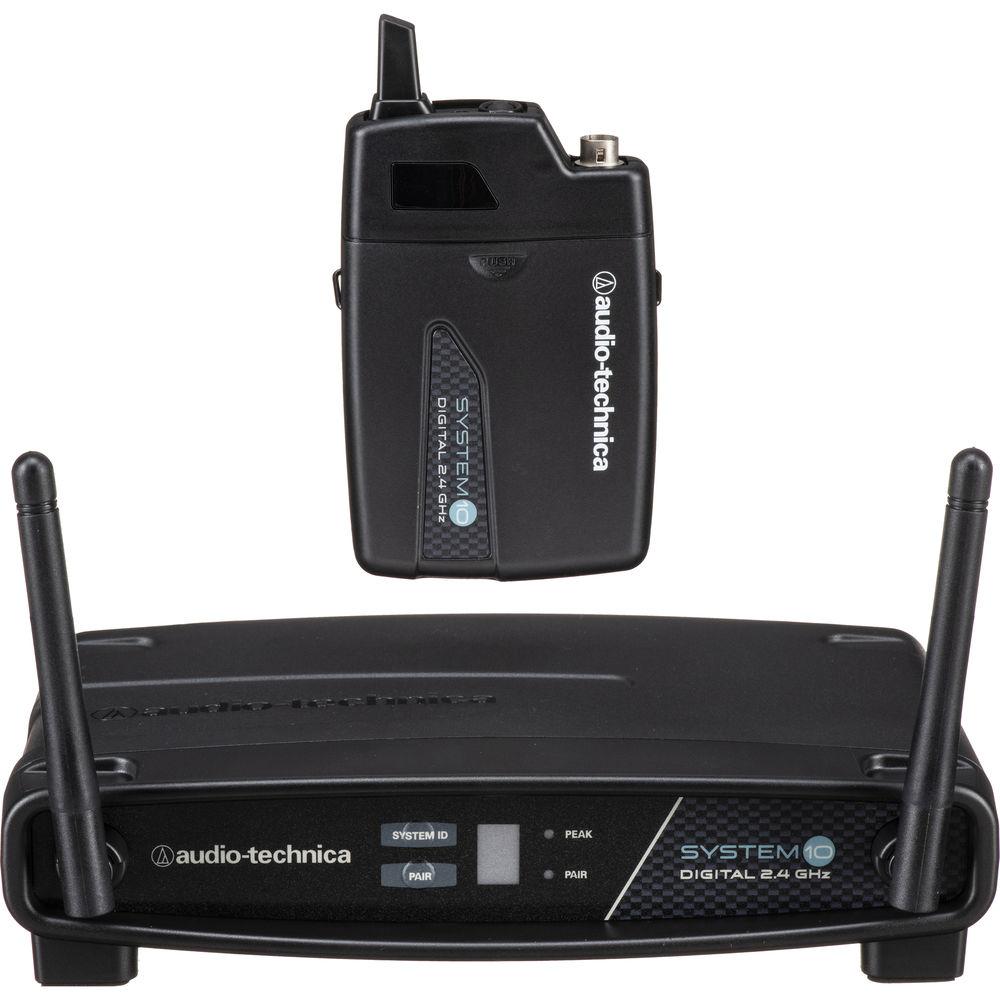

User Manual for Audio-Technica ATW-1101 System 10 Digital Wireless Receiver and Pocket Transmitter Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-1101 System 10 Digital Wireless
- Product category: Wireless Systems Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Systems
 |
User manual for the Audio-Technica ATW-1101 System 10 Digital Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description - Audio-Technica System 10 Unboxing and Product Overview
- Audio-Technica System 10 Stack-mount Digital Wireless Systems

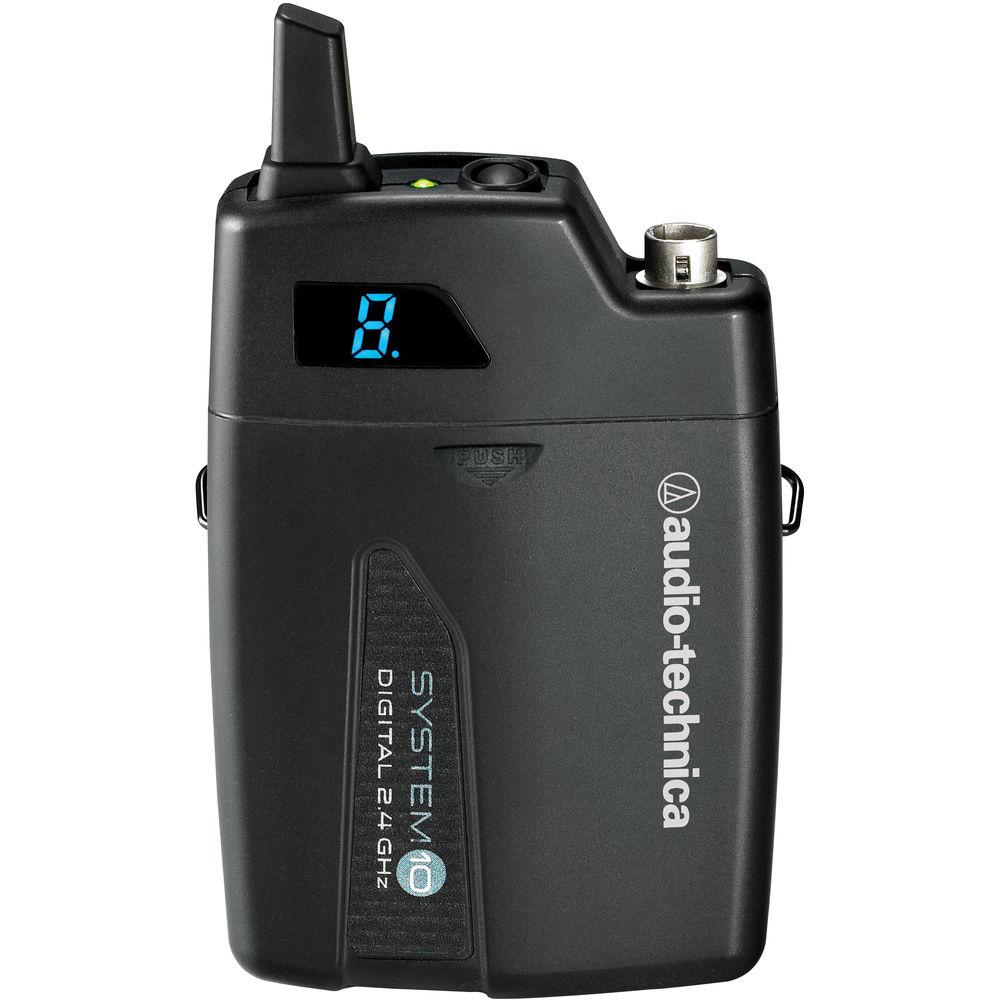

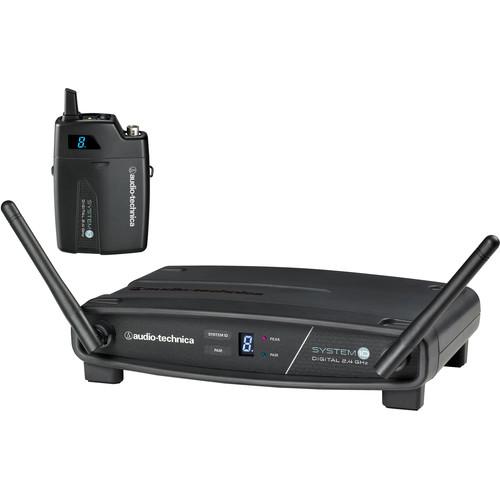

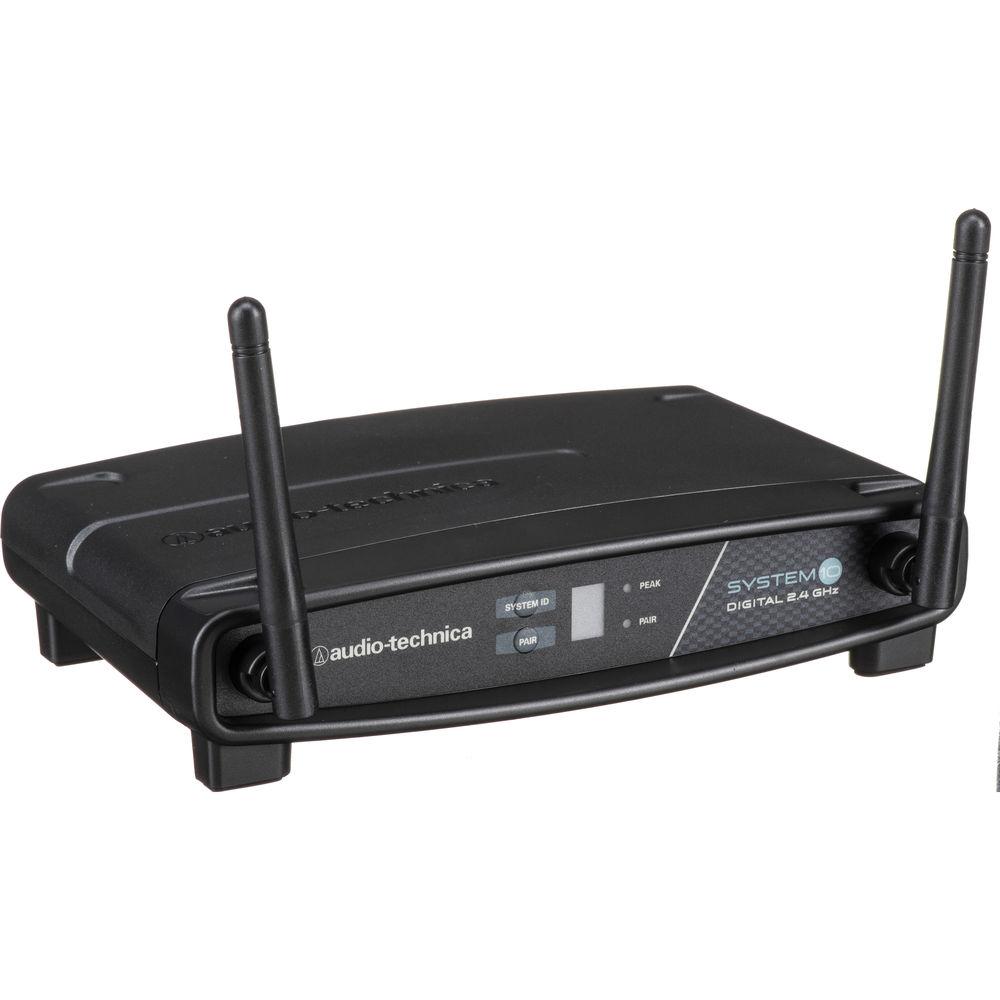

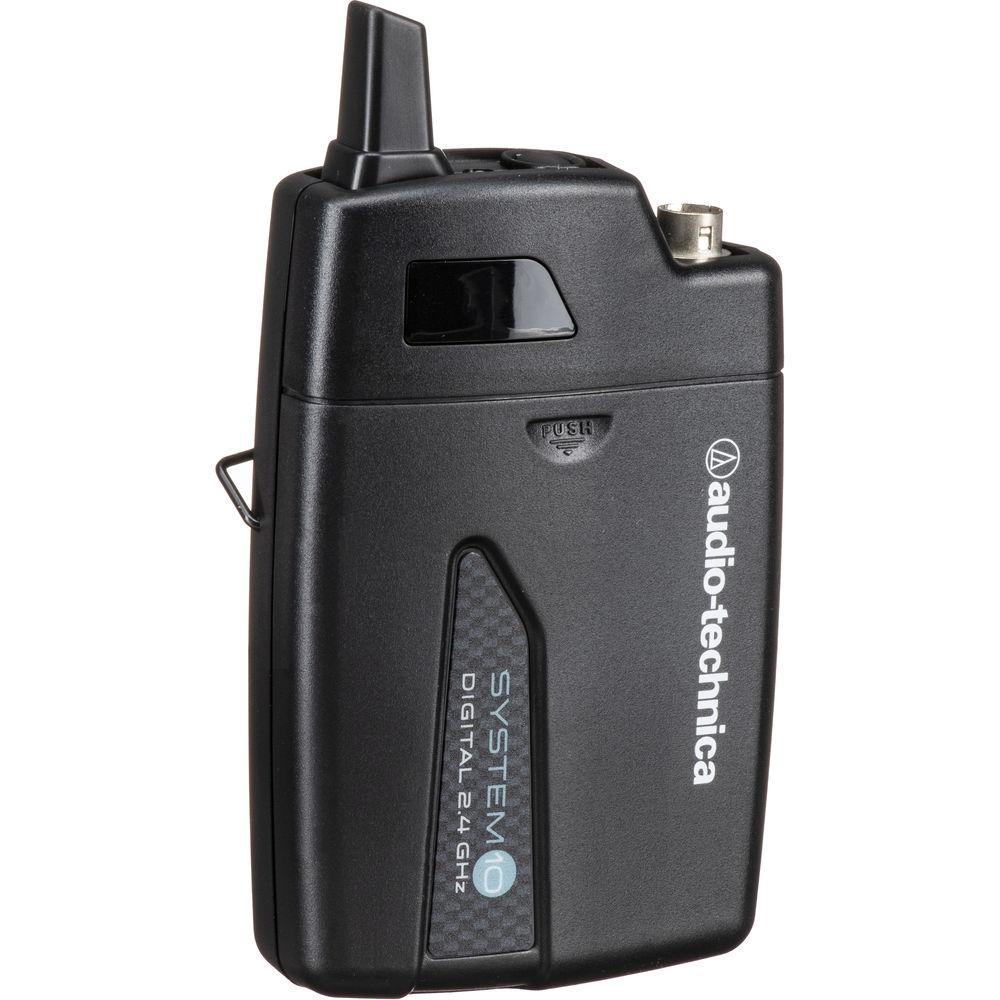

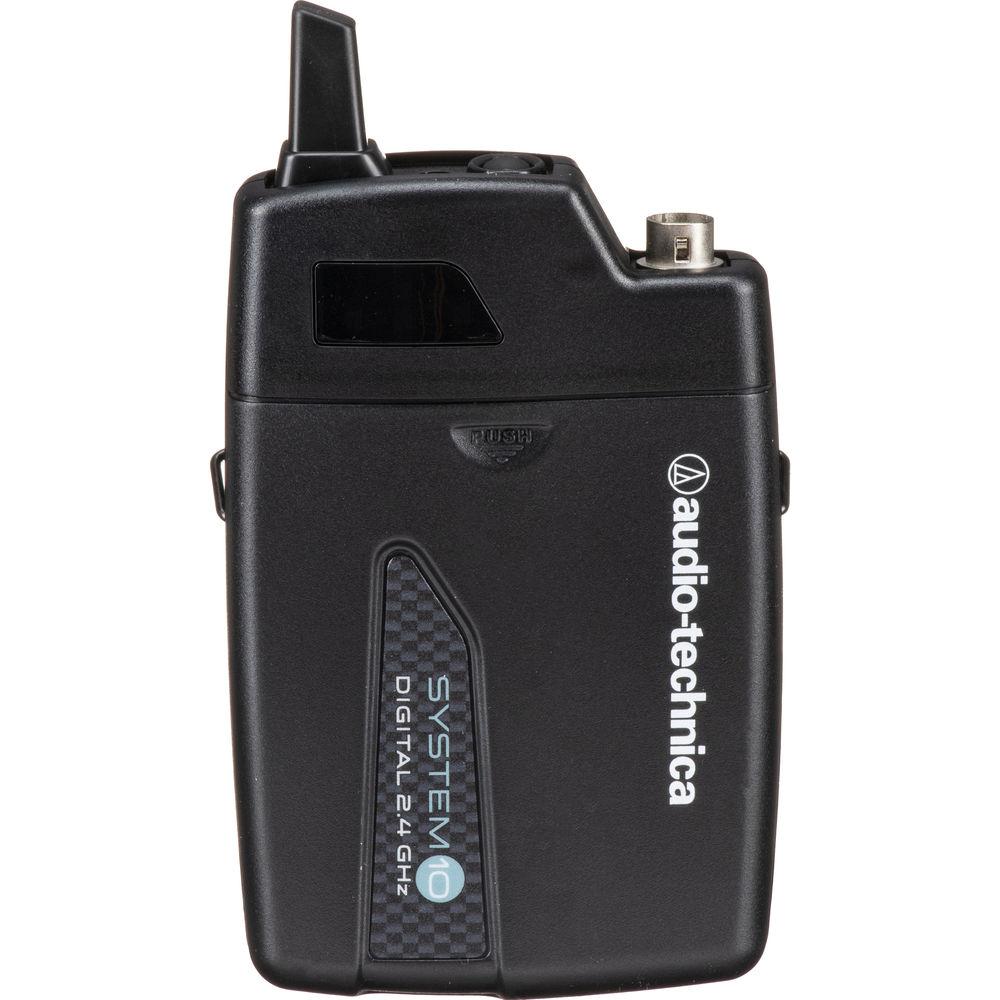

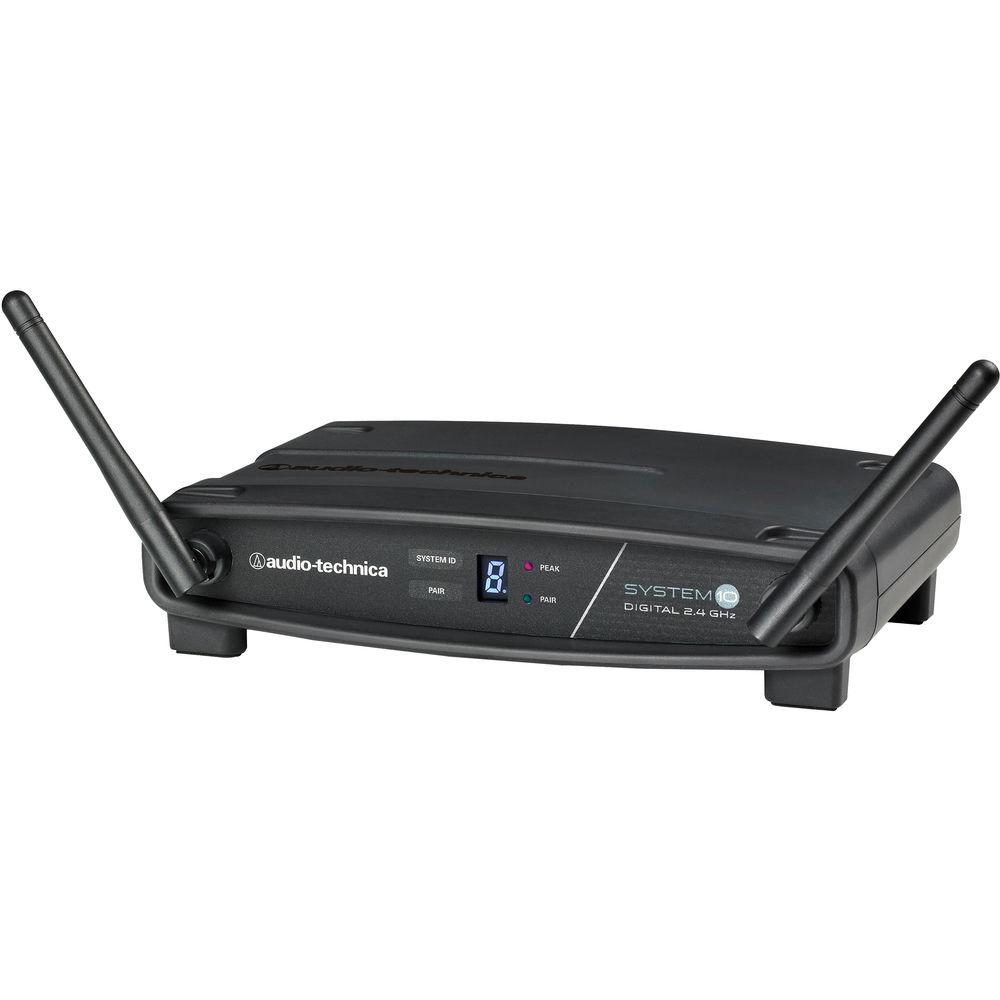

The ATW-1101 System 10 from Audio-Technica is a digital wireless package that includes the ATW-R1100 digital receiver and the ATW-T1001 UniPak pocket transmitter. The system can be completed by adding an Audio-Technica Wireless Essentials series microphone or instrument cable. The ATW-1101 uses 24-bit, 48 kHz digital audio and operates free from TV interference in the 2.4 GHz frequency range. Built for expandability, you can use up to eight systems simultaneously. When completed with a compatible Audio-Technica mic, the ATW-1101 system can be used to accommodate a wide variety of wireless applications. Choose from a selection of clip-on lavalier and headworn mics for speakers and singers, as well as clip-on instrument microphones to be used with horns, acoustic guitars and more. There are also instrument cables available for electric guitarists and bassists. The compatible mic or cable plugs into the included ATW-T1001 transmitter using a 4-pin UniPak connector. Designed to fit discretely into your pocket, the ATW-T1001 transmits the wireless signal to the included ATW-R1100 digital receiver which plugs into your mixer, sound system or amplifier depending on the application. The ATW-1101 wireless system is engineered to quickly find the best signal possible, utilizing an automatic frequency selection function that chooses open bands for you when you "pair" your transmitter with the receiver. Also designed to combat interference, the ATW-1101 uses three different diversity techniques. Using frequency diversity, the system sends the wireless signal on two separate channels simultaneously and chooses the one with the clearest signal. It also transmits the signal across multiple intervals in time in order to fight multipath interference. This is known as time diversity. Furthermore, the system also makes use of space diversity, choosing between the receiver's dual antennas depending on which is picking up the best signal integrity. - Compatible with the PRO 8HEcW and ATW-1101/H92-TH headworn mics, the MT830cW lavalier mic, the AT-GcW guitar cable and others

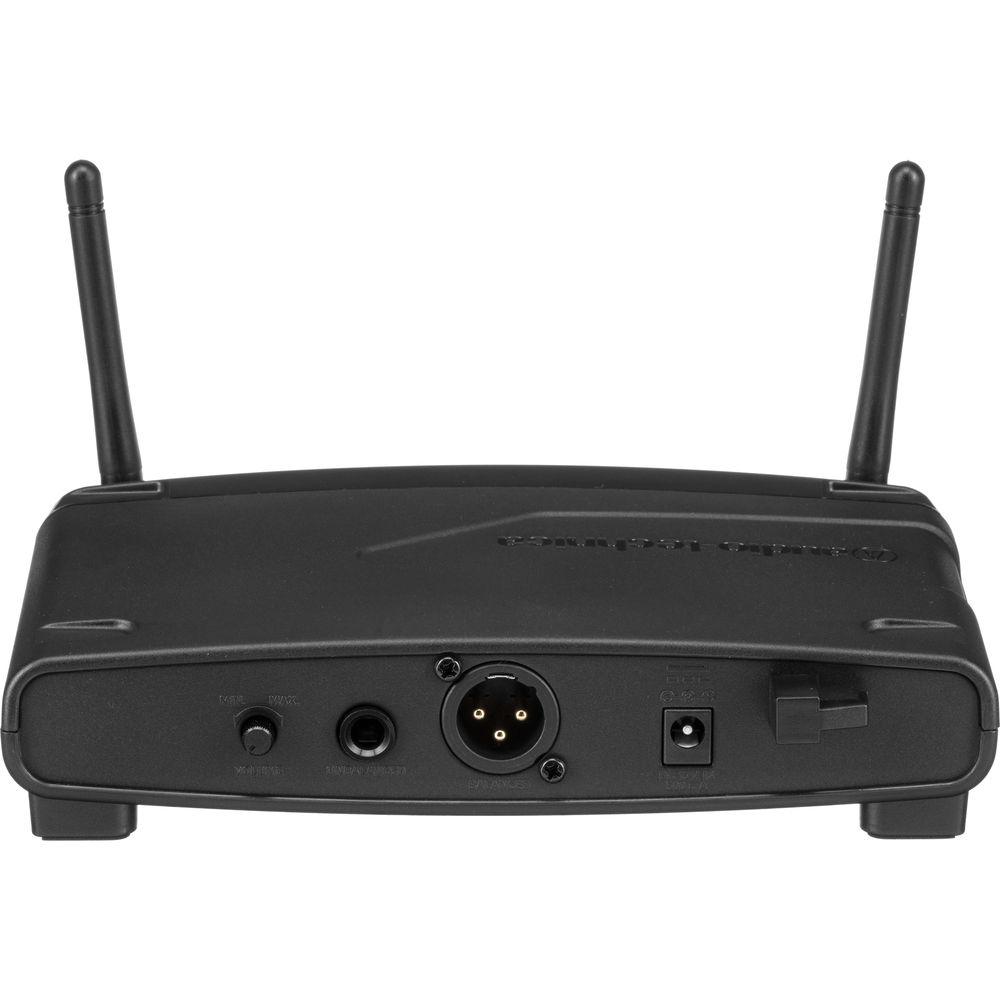

- Balanced XLR output on receiver allows for connection to microphone level inputs on mixers
- Unbalanced 1/4" output on receiver for connecting to guitar amp
- Level controls on transmitter and receiver

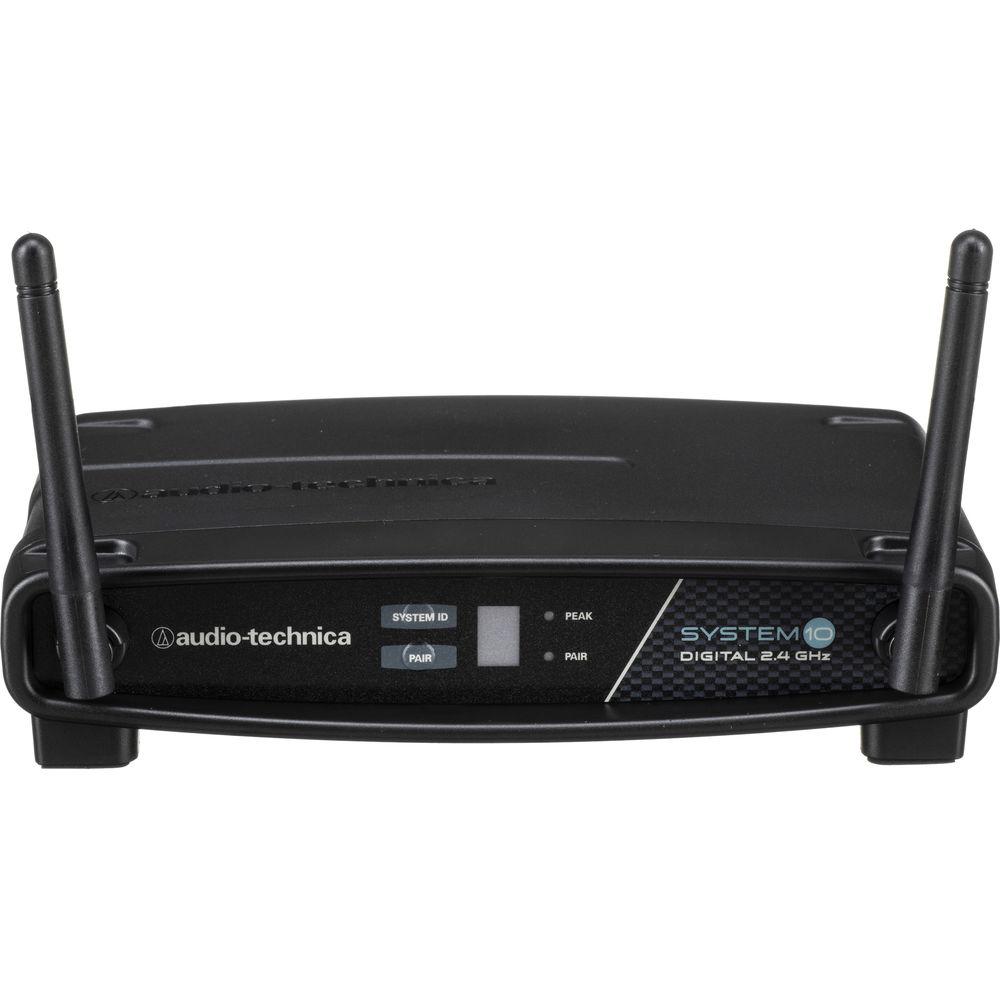

- Pair indicator illuminates on receiver when synced with transmitter
- AF Peak indicator on receiver allows you to monitor the input stage on the transmitter for clipping

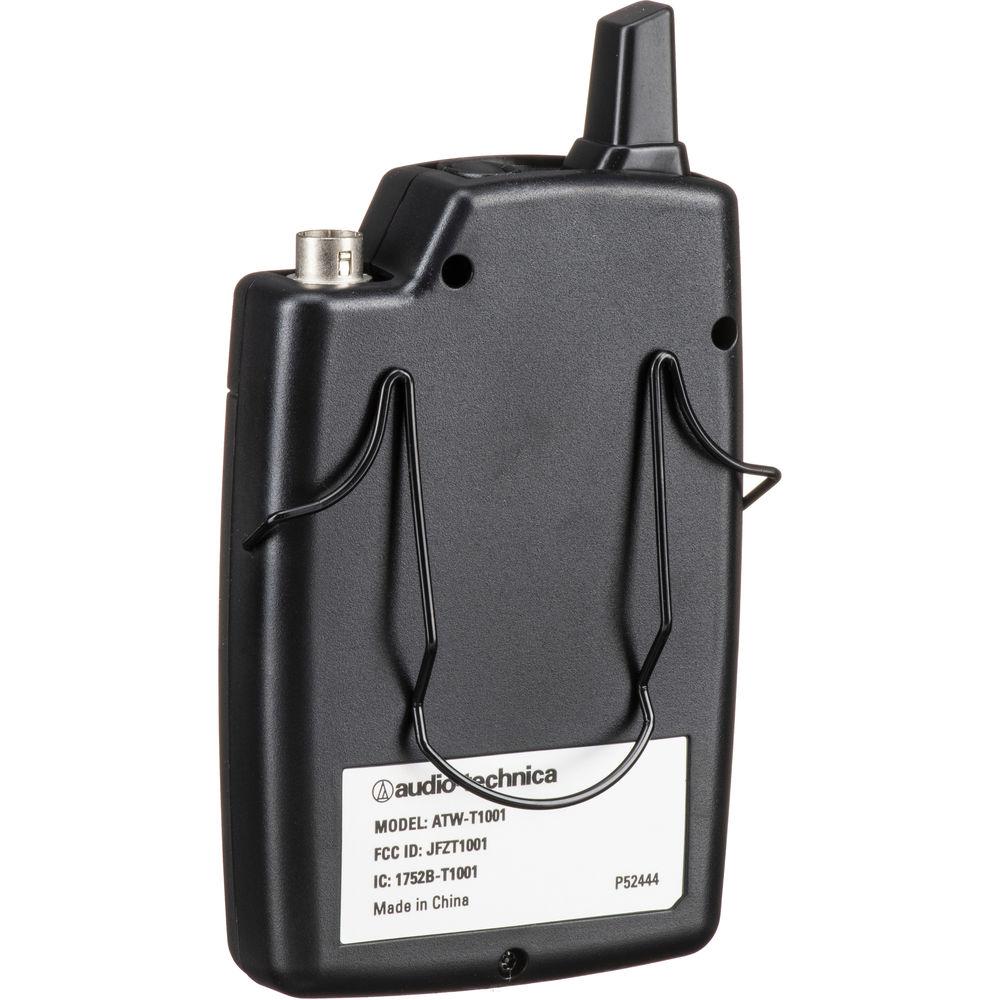

In the Box Audio-Technica ATW-1101 System 10 Digital Wireless Receiver and Pocket Transmitter ATW-T1001 System 10 Digital UniPak Transmitter vqdfcsbvweacrrrartwrxs ATW-R1100 System 10 Digital Wireless Receiver Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-1101 System 10 Digital Wireless Receiver and Pocket Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-1101 Specs | | | Operating Frequencies | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion | <0.05% typical | | Operating Range | 30 m (100') typical | | Operating Temperature Range | 0 to +40° C (32 to 104° F) | | Frequency Response | 20 Hz to 20 kHz | | Audio Sampling | 24 bit, 48 kHz | | | | Receiving System | Diversity (frequency/time/space) | | Output Connections | 1x XLR, balanced
1x 1/4" (6.3 mm), unbalanced | | Maximum Output Level | Balanced: 0 dBV
Unbalanced: +6 dBV | | Power Supply | 100-240V AC (50/60 Hz) to 12V DC 0.5A, center positive, switched mode external power supply | | Dimensions | 7.48 x 1.82 x 5.06" (190.0 x 46.2 x 128.5 mm) | | Weight | 10.2 oz (290 g) | | | | RF Output Power | 10 mW | | Spurious Emission | Following federal and national regulations | | Input Connections | 1x 4-pin locking connector
Wiring:
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V | | Batteries | 2x 1.5V AA (not included) | | Battery Life | >7 hours (alkaline) | | Dimensions | 2.76 x 4.21 x .98" (70.2 x 107 x 24.9 mm) | | Weight | 3.5 oz (100 g), without batteries | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 13.8 x 11.0 x 4.3" |
