User Manual for Audio-Technica ATW-1102 System 10 Digital Wireless Handheld Microphone Set Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-1102 System 10 Digital Wireless
- Product category: Wireless Systems Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Systems
 |
User manual for the Audio-Technica ATW-1102 System 10 Digital Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description - Product Demo
- Audio-Technica System 10 Stack-mount Digital Wireless Systems

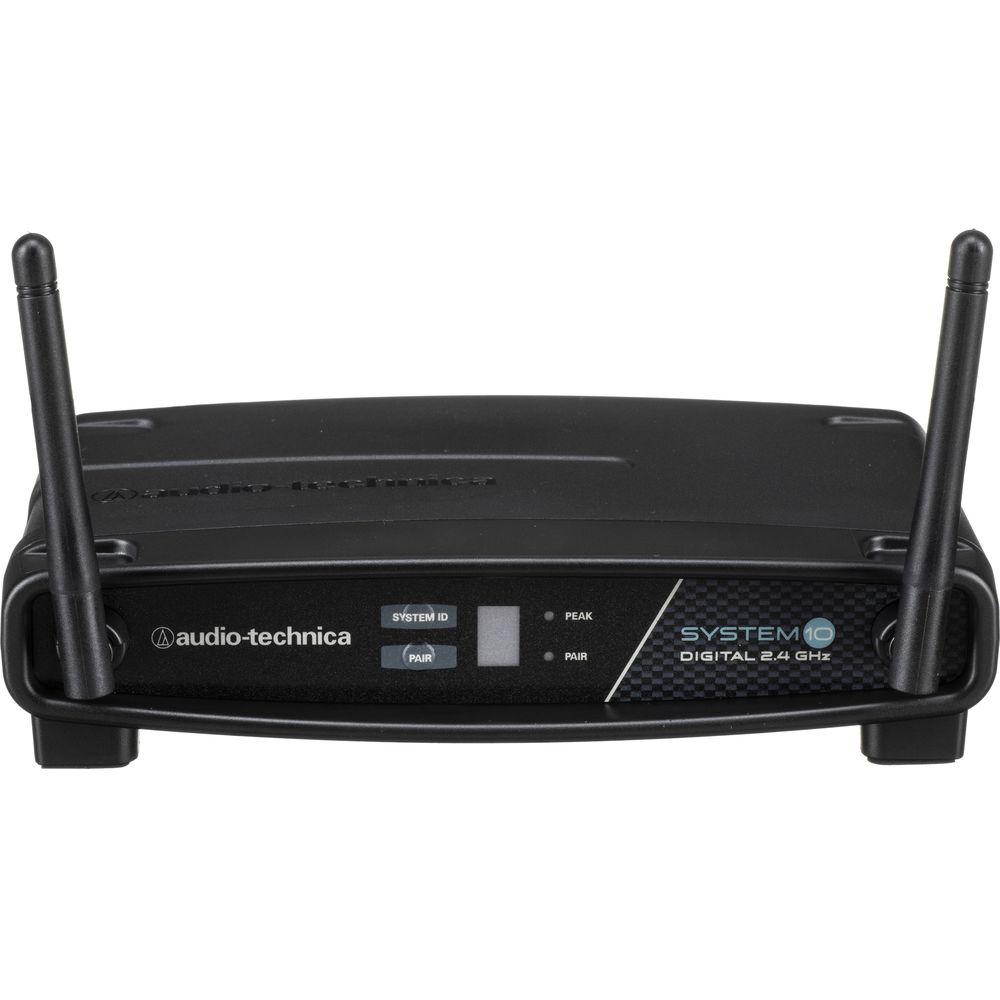

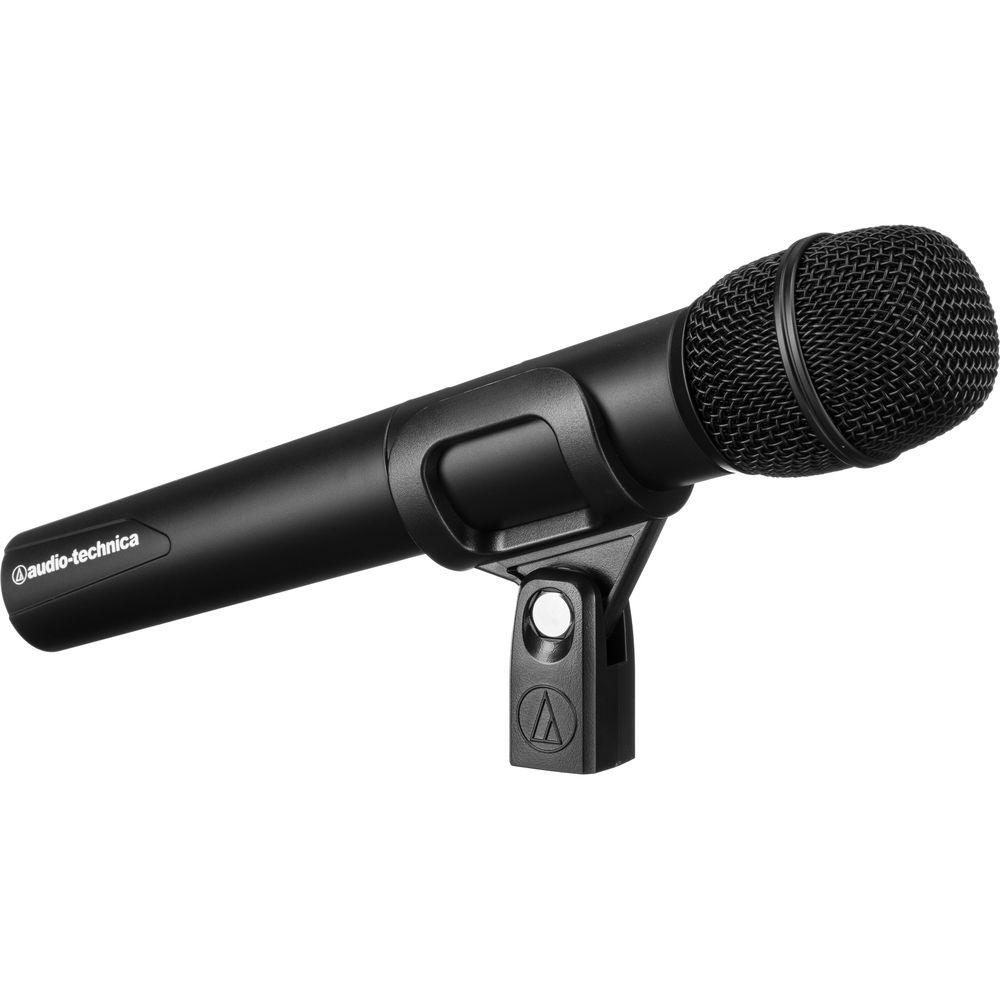

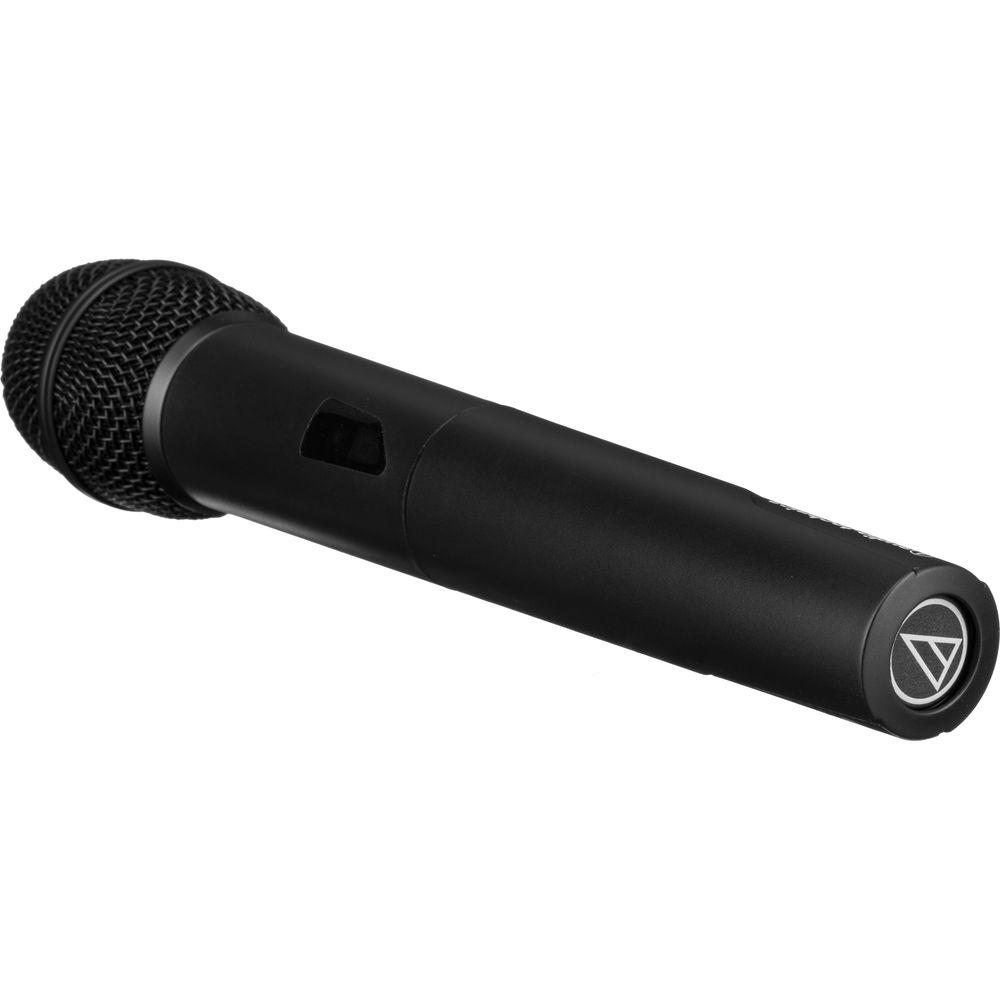

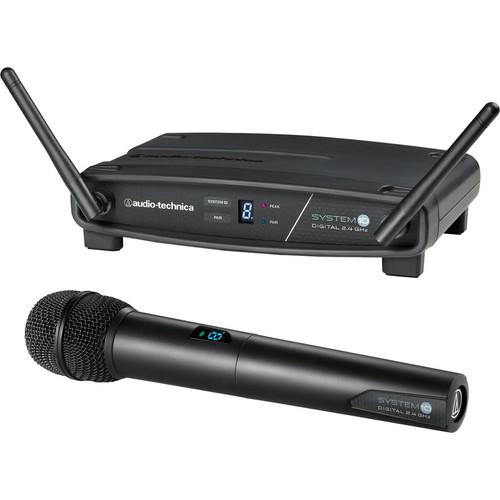

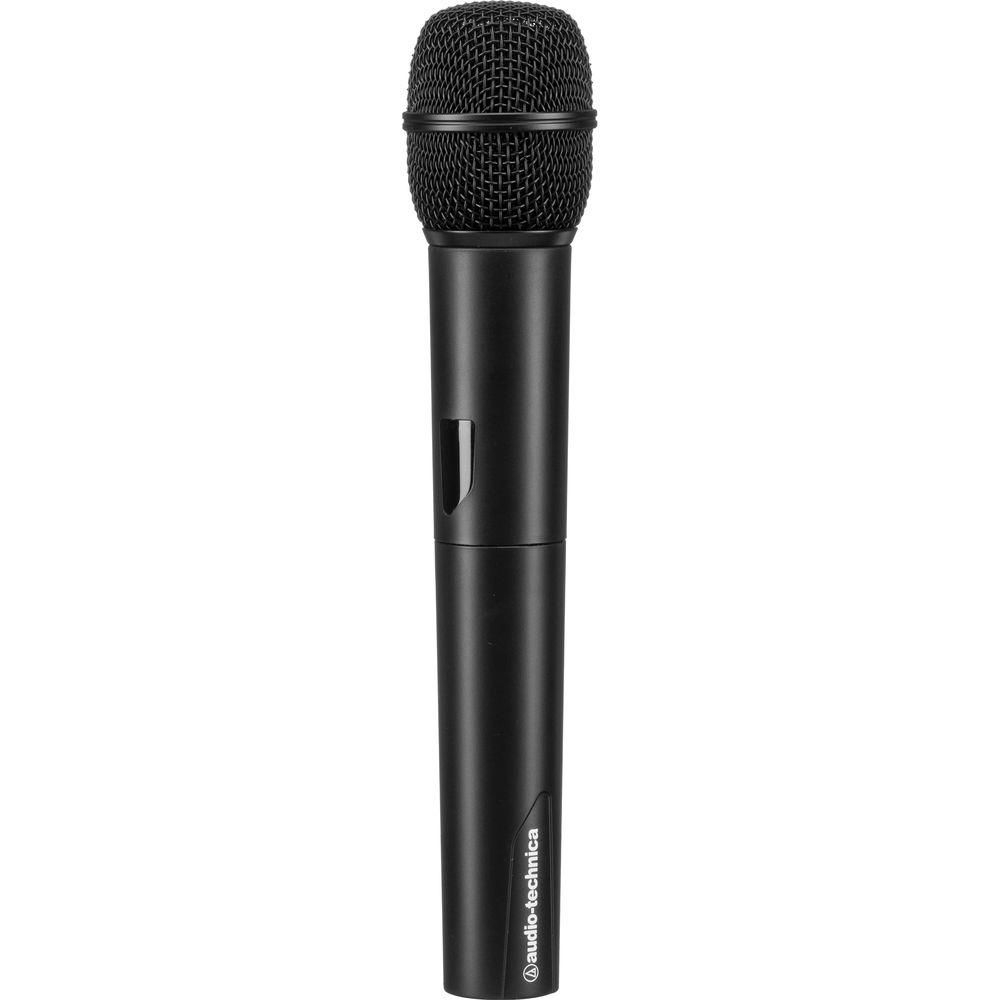

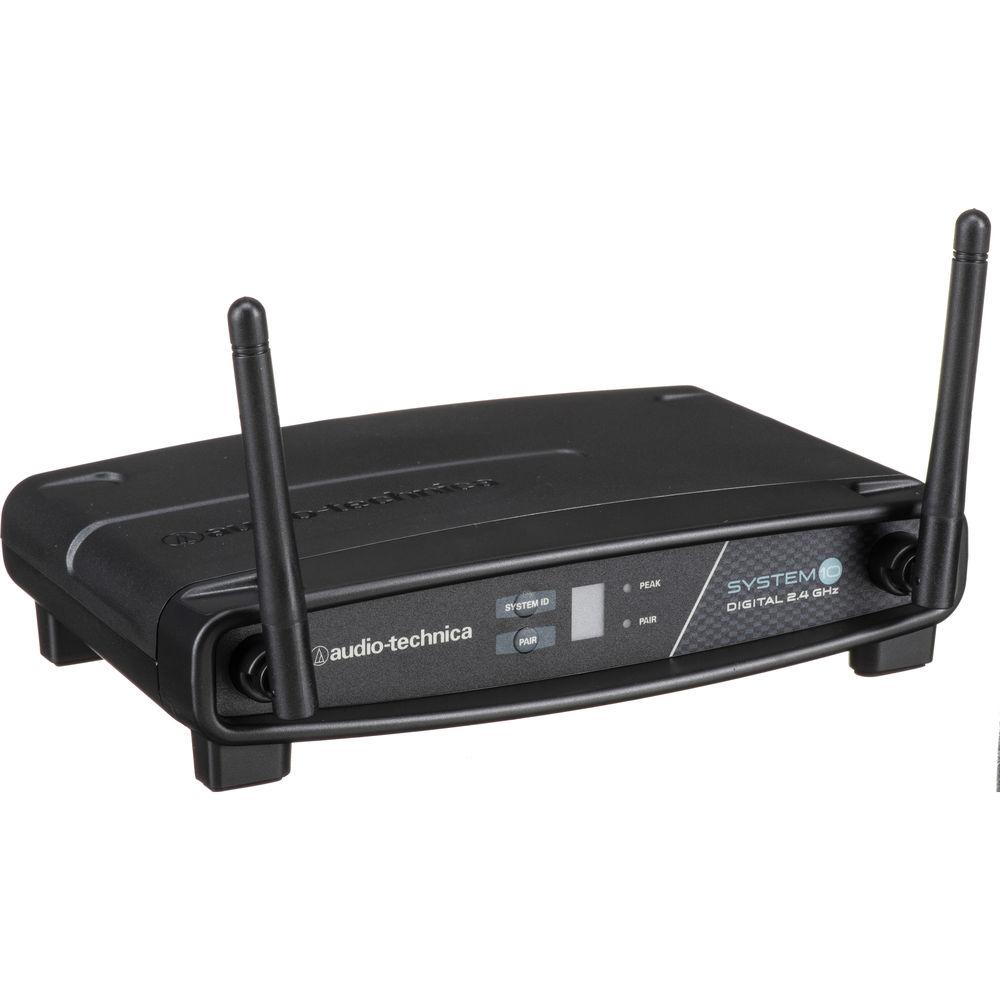

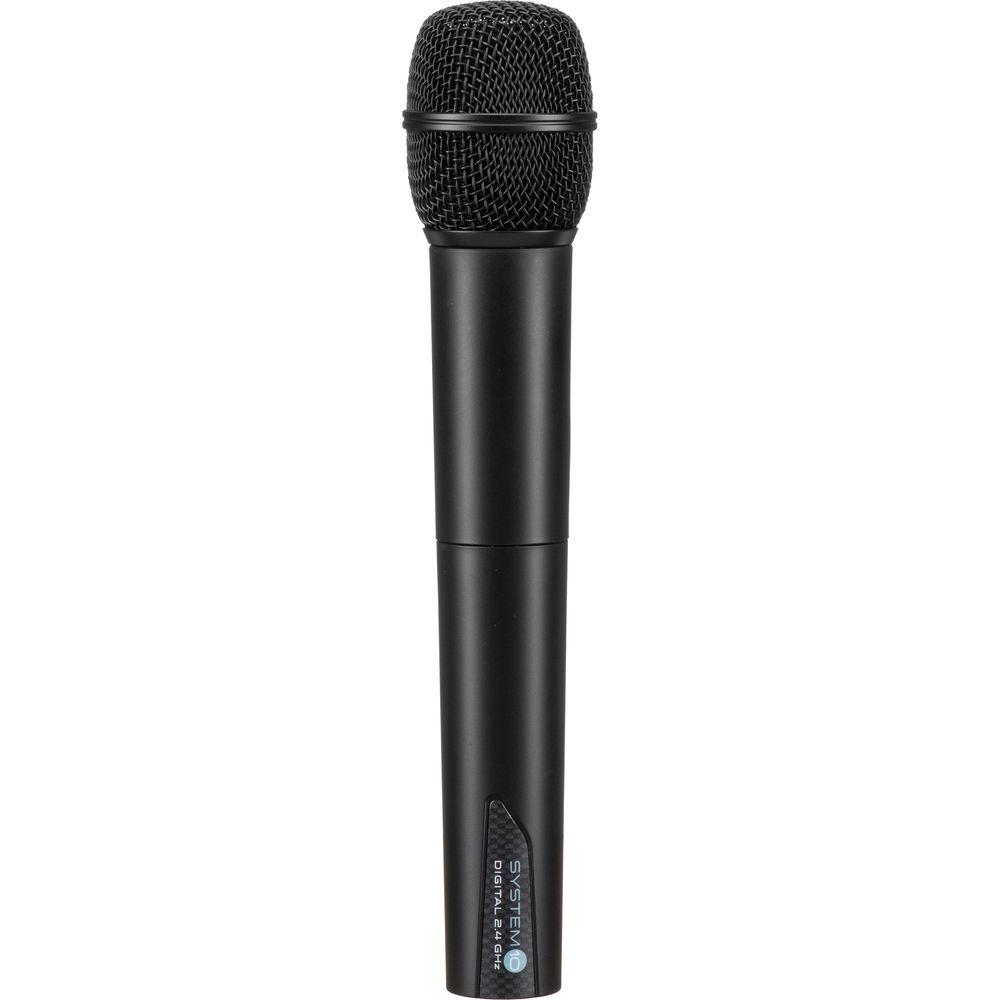

The ATW-1102 System 10 from Audio Technica is a digital wireless handheld microphone solution that can be used for public speaking, live singing and more. The set includes the ATW-R1100 digital receiver and the ATW-T1002 handheld microphone transmitter. It uses 24-bit, 48 kHz digital audio and operates free from TV interference in the 2.4 GHz frequency range. Built for expandability, you can use up to eight systems simultaneously. The ATW-T1002 handheld microphone transmitter features a dynamic, unidirectional element that is designed to reject sound from the back and sides of the mic. This design is ideal for stage use, helping to achieve higher gain before feedback and greater isolation for the speaker or singer. The ATW-T1002 is also equipped with a mute switch and an input level control. The mute switch can come in handy in live music or public speaking settings for quickly muting the sound so you can give discrete instructions to others on stage without the audience hearing what you are saying. The input level control can be adjusted to customize the sensitivity of the microphone to match how loud or soft you sing or speak. This can help to ensure that every word you say is captured as well as help to avoid clipping and unwanted distortion. Also including the ATW-R1100 digital receiver, the ATW-1102 wireless system is engineered to quickly find the best signal possible, utilizing an automatic frequency selection function that chooses open bands for you when you "pair" your transmitter with the receiver. Also designed to combat interference, the ATW-1102 system uses three different diversity techniques. Using frequency diversity, the system sends the wireless signal on two separate channels simultaneously and chooses the one with the clearest signal. It also transmits the signal across multiple time intervals in order to fight multipath interference. This is known as time diversity. Furthermore, the system also makes use of space diversity, choosing between the receiver's dual antennas depending on which is picking up the best signal integrity. - Pairing switch and transmitter system ID display on transmitter for pairing with the receiver and identifying which channel is being used

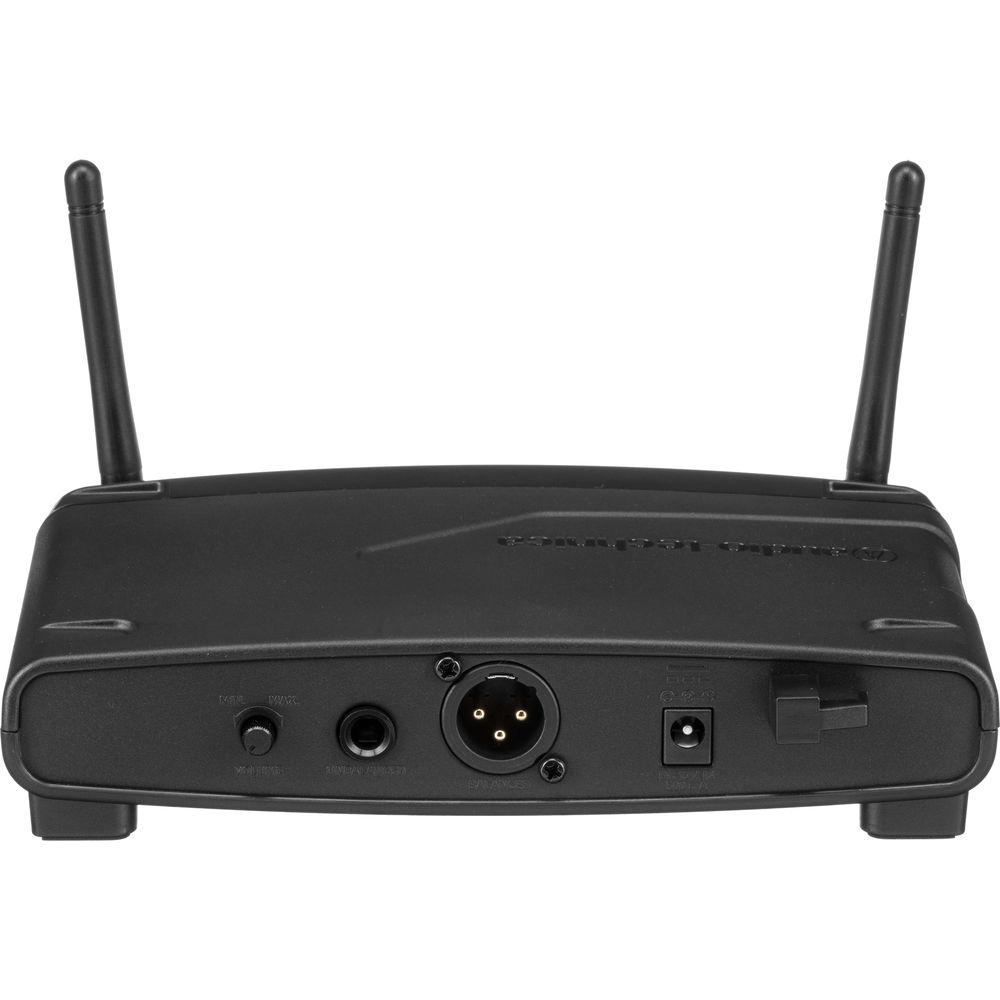

- Balanced XLR output and unbalanced 1/4" output on receiver allow for connection to balanced microphone level inputs or unbalanced aux level inputs on mixers and sounds systems
- Level controls on transmitter and receiver
- Pair indicator illuminates on receiver when synced with transmitter
- AF Peak indicator on receiver allows you to monitor the input stage on the transmitter for clipping
In the Box Audio-Technica ATW-1102 System 10 Digital Wireless Handheld Microphone Set ATW-T1002 System 10 Handheld Unidirectional Microphone/Transmitter ATW-R1100 System 10 Digital Wireless Receiver AT8456a Quiet-Flex Mic Stand Clamp Power Supply Limited 2-Year Warranty User Manual PDF 521.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-1102 System 10 Digital Wireless Handheld Microphone Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-1102 Specs | | | Operating Frequencies | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion | <0.05% typical | | Operating Range | 100' (30 m) typical | | Operating Temperature Range | 0° C to +40° C (32° F to 104° F) | | Frequency Response | 20 Hz to 20 kHz | | Audio Sampling | 24 bit, 48 kHz | | | | Receiving System | Diversity (frequency/time/space) | | Output Connections | 1x XLR, balanced
1x 1/4" (6.3 mm), unbalanced | | Maximum Output Level | Balanced: 0 dBV
Unbalanced: +6 dBV | | Power Supply | 100-240V AC (50/60 Hz) to 12V DC 0.5A, center positive, switched mode external power supply | | Dimensions | 7.48 x 1.82 x 5.06" (190.0 x 46.2 x 128.5 mm) | | Weight | 10.2 oz (290 g) | | | | RF Output Power | 10 mW | | Spurious Emission | Following federal and national regulations | | Batteries | 2x 1.5V AA (not included) | | Battery Life | >7 hours (alkaline) | | Element | Dynamic | | Polar Pattern | Unidirectional | | Dimensions | 10.03" (254.8 mm), long
1.97" (50.0 mm), diameter | | Weight | 9.9 oz (280 grams), without batteries | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 13.8 x 10.9 x 4.3" |
