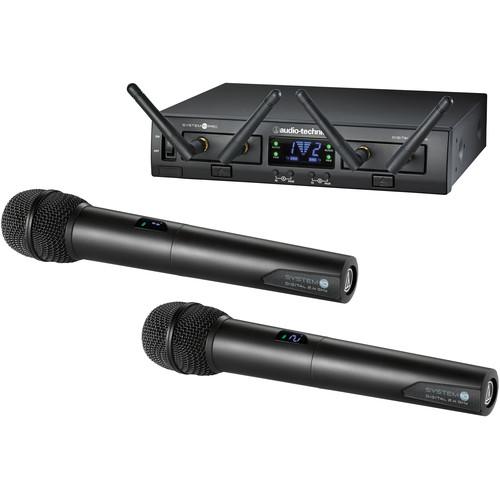

Product description Hands-On Review: Audio-Technica System 10 Camera-Mounted Digital Wireless System Read More The System 10 PRO ATW-1322 from Audio-Technica is a digital 24-bit/48 kHz wireless microphone system that operates on the 2.4 GHz ISM band and is used to capture audio for applications such as live stage, theater, DJ setups, and more. The System 10 PRO features a half-rack chassis that allows you to mount one or two receiver units, however the receiver units can be released from the chassis and mounted remotely (up to 328' away) via Ethernet cable. Up to five chassis or 10 receiver units can be linked using a RJ12 cable, creating a multi-channel system with up to 10 channels. In addition, other features include an easy-to-read display on each transmitter and receiver unit for quick setup, clear and natural-quality sound, and three levels of diversity, namely frequency, time, and space. Frequency Diversity sends the signal on two allocated frequencies, Time Diversity sends the signal in multiple time slots, and Space Diversity uses two antennas on each transmitter and receiver unit, thus to help maximize signal integrity. The System 10 PRO Rack-Mount system includes one ATW-RC13 receiver chassis with rack-mount adapters, two ATW-RU13 receiver units with corresponding AT8690 receiver unit mounting brackets, one RJ12 cable, one AC adapter, and two ATW-T1002 handheld dynamic handheld microphones. - System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver (2.4 GHz)
- Audio-Technica System 10 PRO Rack-mount Digital Wireless Systems

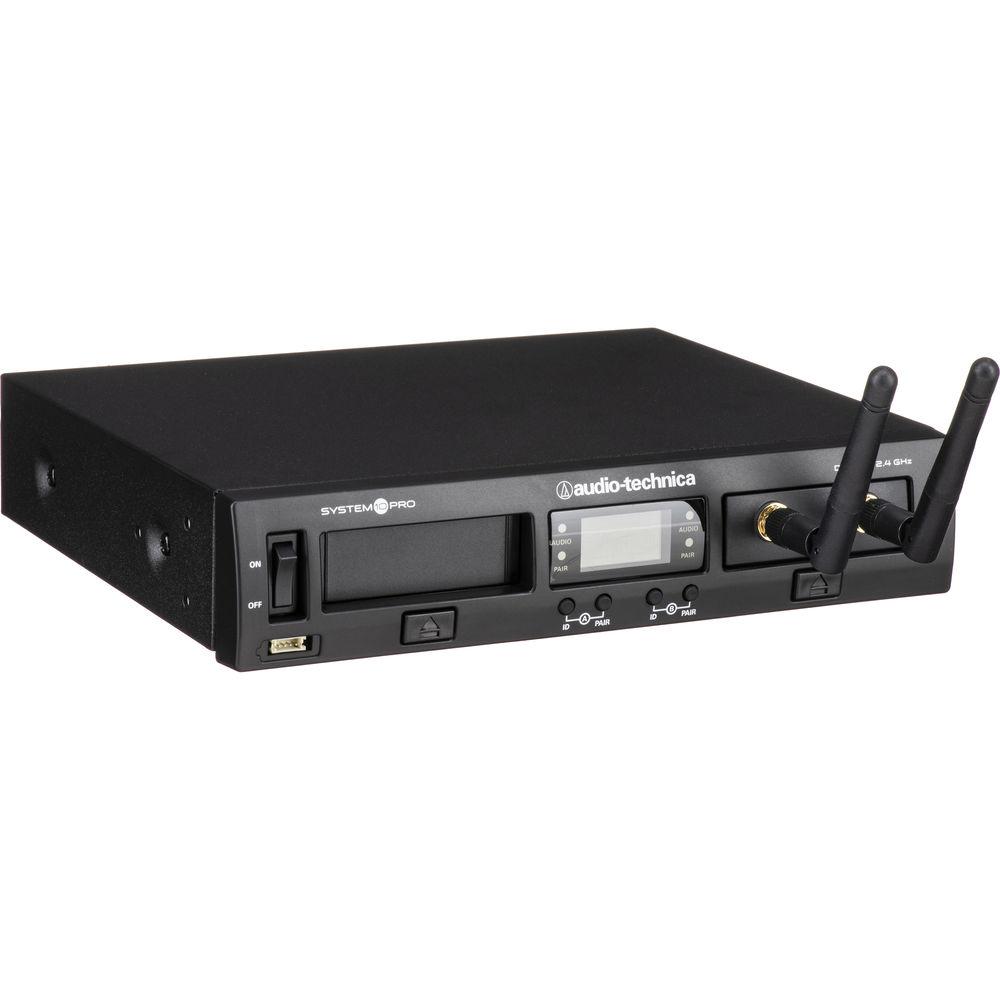

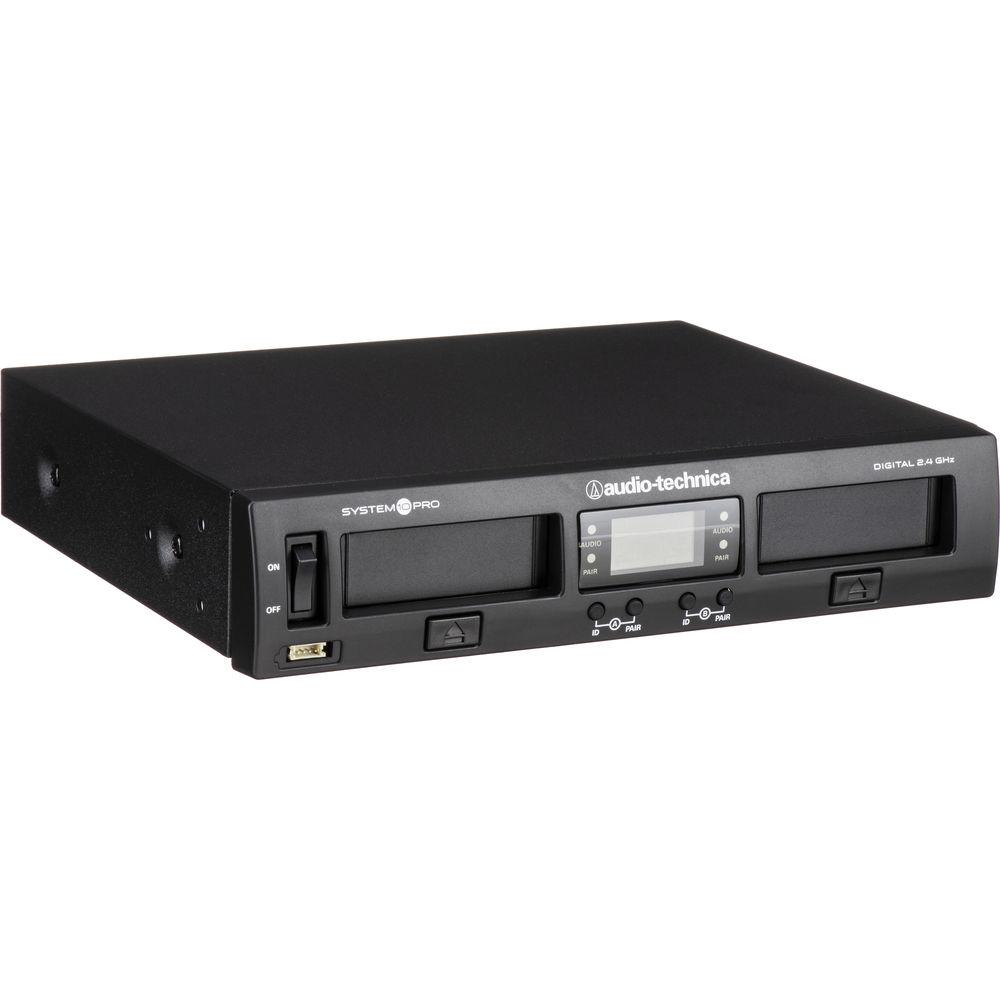

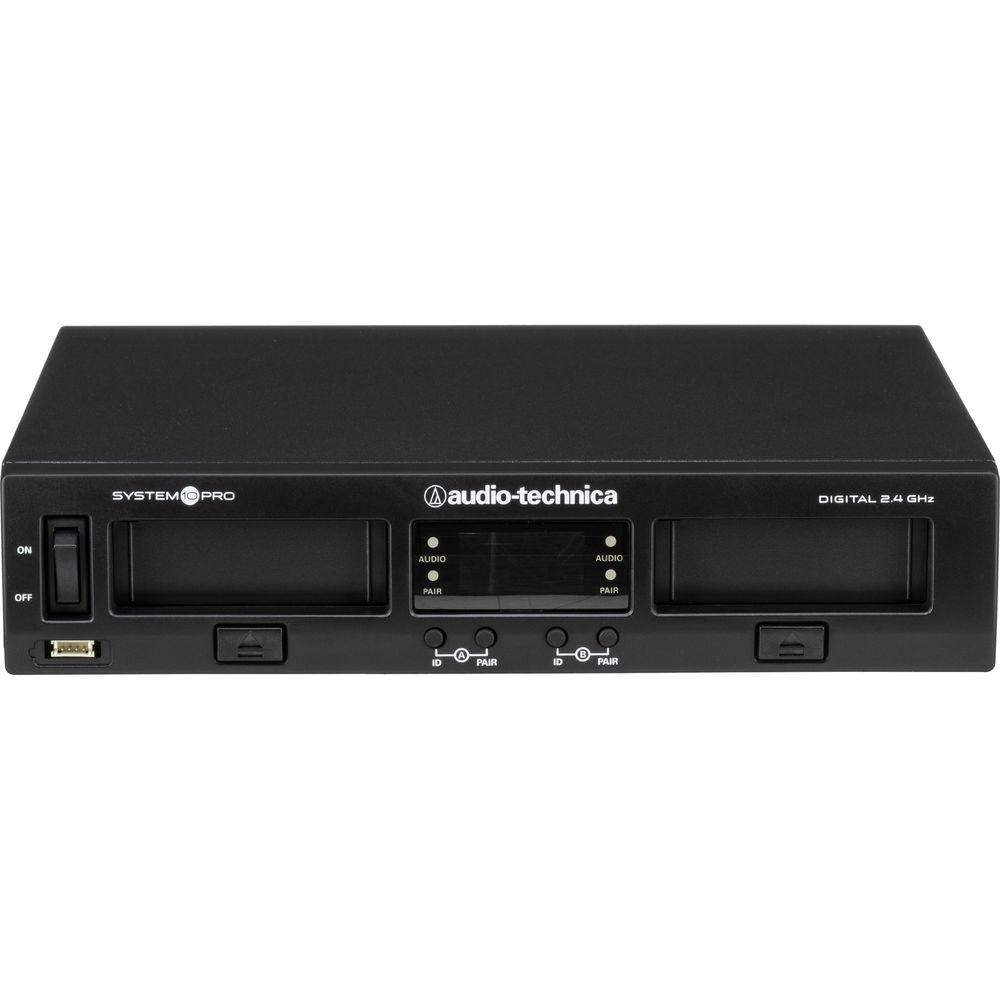

The System 10 PRO ATW-RC13 from Audio-Technica is a digital 24-bit/48 kHz wireless receiver that operates on the 2.4 GHz ISM band. It can be used to capture audio when paired with a transmitter and microphone for applications such as live stage, theater, DJ setups, and more. The System 10 PRO features a half-rack chassis that allows you to mount one or two receiver units; however, the receiver units can be released from the chassis and mounted remotely (up to 328' away) via an Ethernet cable. Up to five chassis (10 receiver units) can be linked using a RJ12 cable, creating a multi-channel system with up to 10 channels being used simultaneously. In addition, other features include an easy-to-read display for easy setup, and three levels of diversity, namely frequency, time, and space, to help deliver a professional-quality sound. Frequency Diversity sends the signal on two allocated frequencies. Time Diversity sends the signal in multiple time slots. Space Diversity uses two antennas on each transmitter and receiver unit, thus to help maximize signal integrity. Each System 10 PRO rack-mount receiver includes a rack-mount adapter, receiver unit mounting brackets, one RJ12 cable, and an AC adapter. - Digital 24-bit/48 kHz wireless operation for professional-sound quality and dependable performance

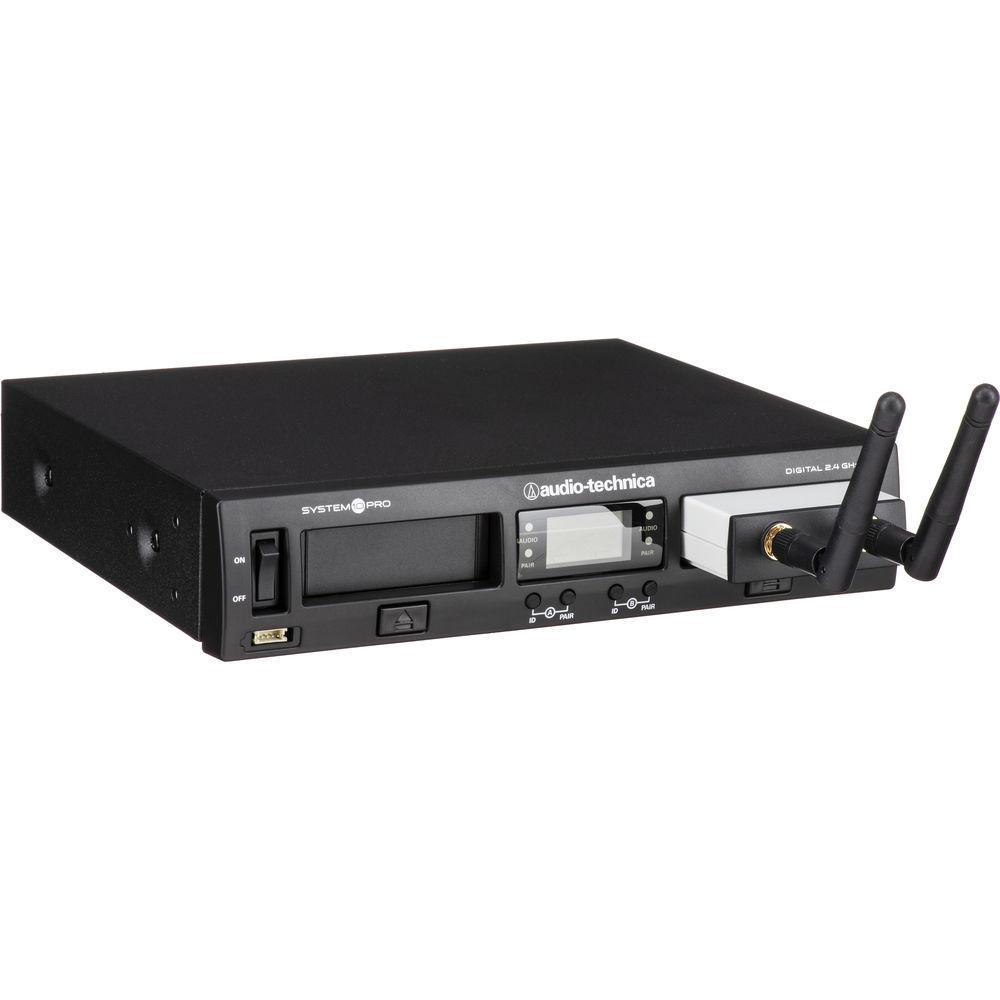

- Receiver units can be docked in the chassis or mounted remotely (up to 328' away) via an Ethernet cable for added versatility
- Up to five chassis (10 receiver units) can be linked and used simultaneously
- Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
- Extremely easy operation with instantaneous channel selection, sync, and setup
- Ground-lift switch helps eliminate audible hum caused by ground loops

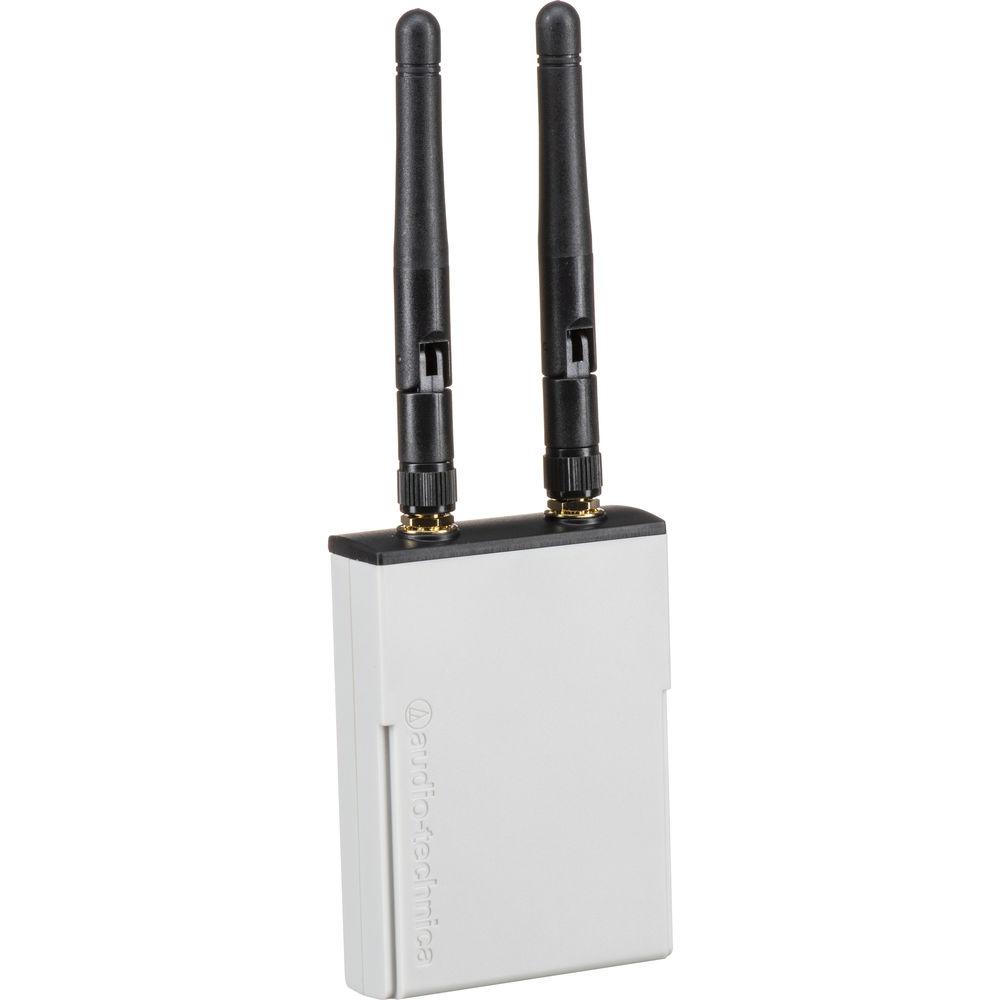

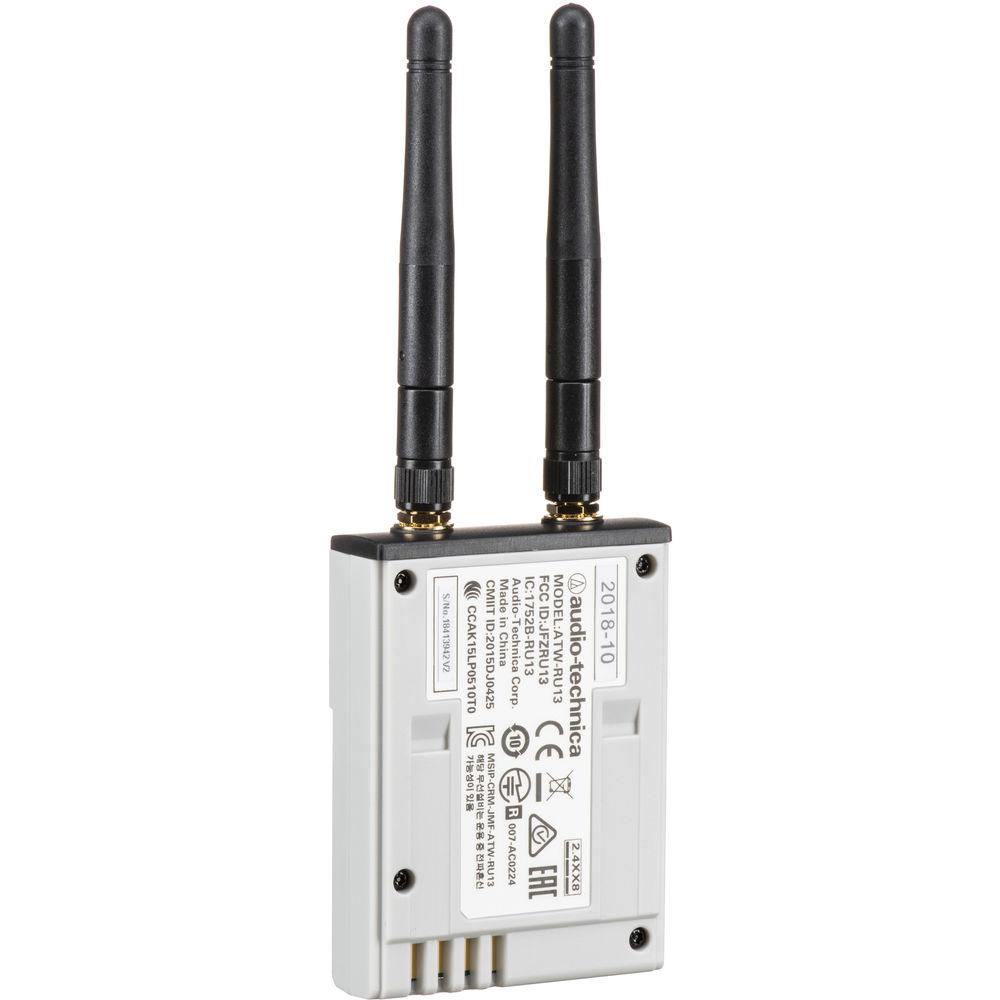

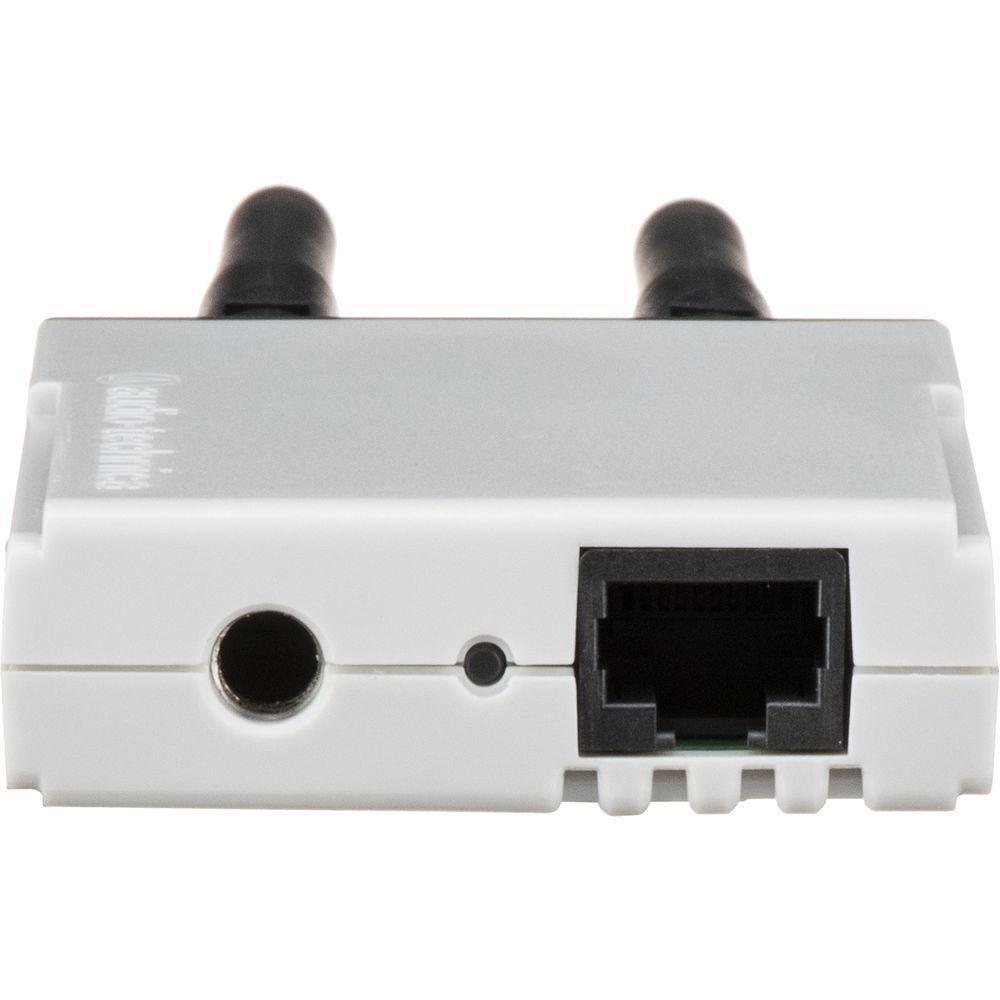

- ATW-RU13 System 10 PRO Receiver Unit (2.4 GHz) The ATW-RU13 System 10 PRO Receiver Unit from Audio-Technica is a 24-bit/48 kHz digital module that operates in the 2.4 GHz range. It can be used when paired with a System 10 PRO rack-mount system chassis and transmitter/microphone (sold separately) to capture audio for applications such as presentations, lectures, boardrooms, live stage, theater, houses of worship, and more. The ATW-RU13 receiver module provides easy setup with clear, natural sound quality and has three levels of diversity assurance, namely frequency, time, and space. This module can also be used remotely and linked via an Ethernet cable, and used up to 328' away from the chassis. The ATW-RU13 includes two antennas with one receiver holder. UPC: 042005186655
- ATW-T1002 System 10 Handheld Unidirectional Microphone/Transmitter The Audio-Technica ATW-T1002 System 10 Handheld Unidirectional Microphone/Transmitter is a digital high-fidelity wireless transmitter designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup, and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, this digital transmitter offers easy operation. It also offers an easy-to-read digital ID display.The System 10 wireless transmitter ensures clear communications by providing 3 levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on 2 dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses 2 antennas on the transmitter and receiver (sold separately) to maximize signal integrity. The ATW-T1002 handheld transmitter features a Unidirectional dynamic microphone element and has a Power/Mute switch, as well as an adjustable input level control.
- Digital 24-bit / 48 kHz wireless operation for high-quality sound and dependable performance
- 2.4 GHz range - completely free from TV interference
- Three levels of diversity assurance: frequency, time, and space
- Unidirectional dynamic microphone
- Power/Mute/Battery indicator shows operation status and lets you know when batteries are low, dead or installed incorrectly
- Adjustable input level control with included transmitter screwdriver
- Transmitter pairing switch and system ID display for pairing the transmitter with a receiver
- Power/Mute button allows toggling between muted and unmuted operation via a single touch

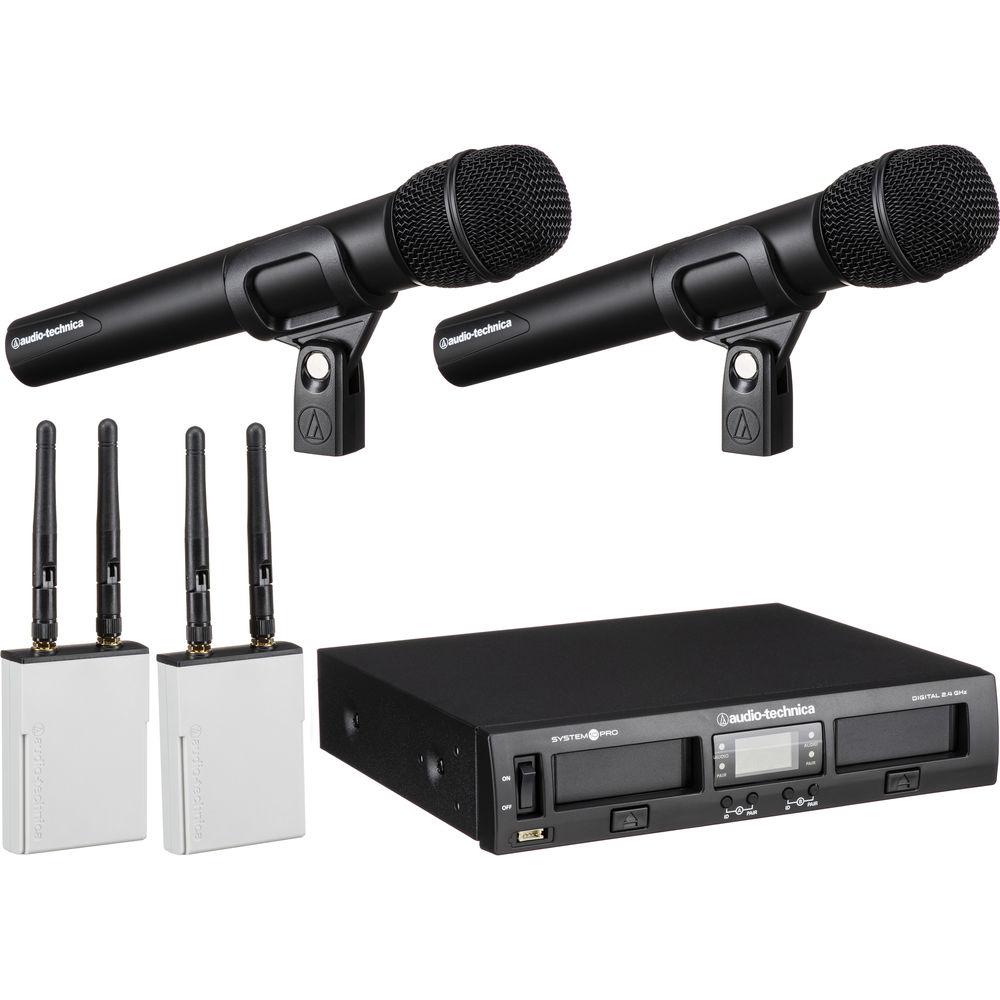

UPC: 042005178018 In the Box Bundle Items System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver (2.4 GHz) 2 x ATW-RU13 System 10 PRO Receiver Unit (2.4 GHz) 2 x ATW-T1002 System 10 Handheld Unidirectional Microphone/Transmitter - AT8456a Quiet-Flex Mic Stand Clamp
Also Includes - Power Supply
- AC Adapter
- Link Cable
- Rack-Mount Adapters
- Joining Plate
- Rubber Feet
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-1322 System 10 PRO Rack-Mount Digital Dual Handheld Mic System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver (2.4 GHz)

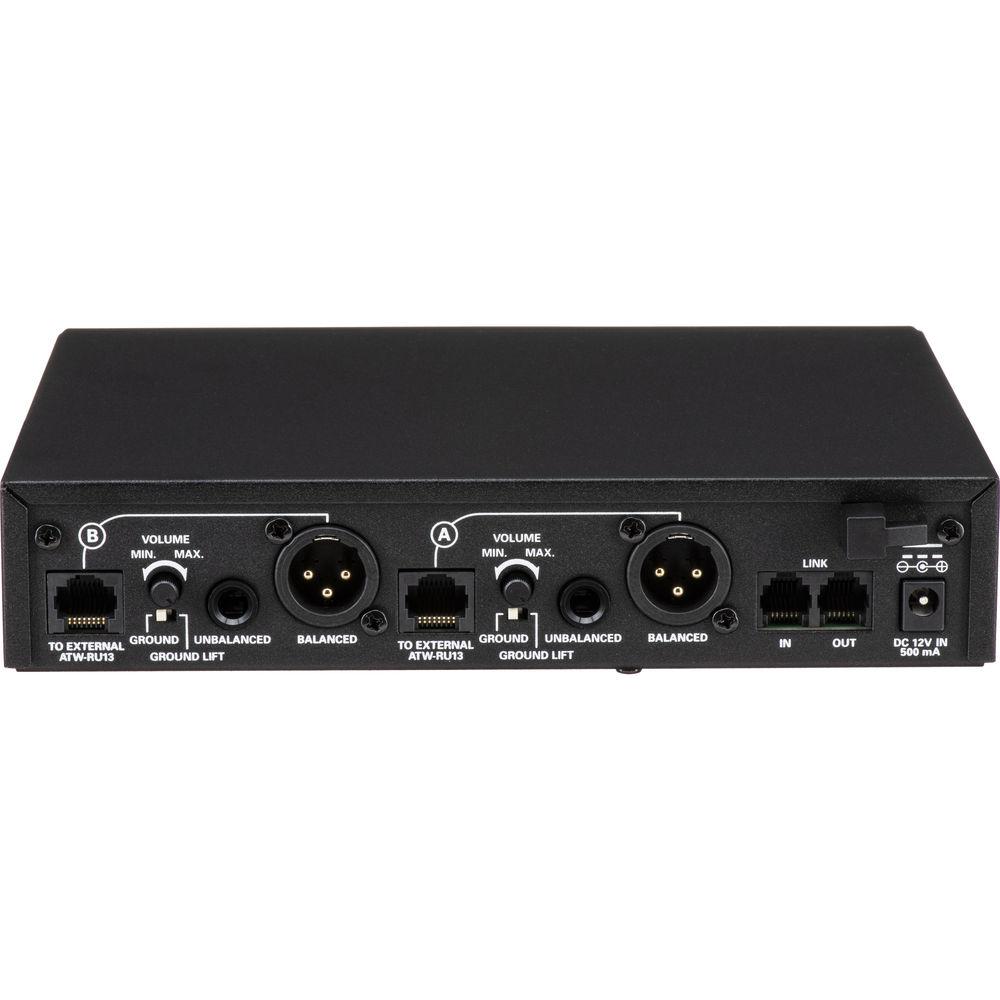

| | | Operating Frequencies | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion (THD) | <0.05% typical | | Operating Range | 200' (60 m) open range environment with no interfering signals | | Operating Temperature Range | 32 to 104°F (0 to 40°C) battery performance may be reduced at very low temperatures | | Frequency Response | 20 Hz to 20 kHz (depending on microphone type) | | | | Receiving System | Diversity (frequency/time/space) | | Output Connectors | Remote Receiver Connector: RJ45
Link Connector: RJ12 | | Maximum Output Level | XLR Balanced: 0 dBV
1/4" (6.3 mm) Unbalanced: +6 dBV | | Power Supply | 100-240 VAC (50/60 Hz) to 12 VDC 0.5 A power supply switched mode external | | Dimensions (W x H x D) | 8.26 x 1.73 x 6.67" (209.8 x 44 x 169.3 mm) | | Weight | 33.2 oz (940 g) | | | | Box Dimensions (LxWxH) | 13.89 x 10.24 x 3.35" | - ATW-RU13 System 10 PRO Receiver Unit (2.4 GHz)
| | | Operating Frequencies | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion (THD) | <0.05% typical | | Operating Range | 200' (60 m) open range environment with no interfering signals | | Operating Temperature Range | 32 to 104°F (0 to 40°C) battery performance may be reduced at very low temperatures | | Frequency Response | 20 Hz to 20 kHz (depending on microphone type) | | Audio Sampling | 24-bit/ 48 kHz | | Latency | 3.8 ms | | | | Receiving System | Diversity (frequency/time/space) | | Remote Receiver Connector | RJ45 | | Mounting Thread | 1/4" x 20 | | Dimensions (W x H x D) | 2.24 x 0.75 x 3.06" (57 x 19 x 77.6 mm) | | Weight | 2.3 oz (64 g) | | | | Box Dimensions (LxWxH) | 5.8 x 4.3 x 3.4" | - ATW-T1002 System 10 Handheld Unidirectional Microphone/Transmitter
| Operating Frequency | 2.4 GHz ISM band | | Dynamic Range | > 109 dB (A-weighted), typical | | Total Harmonic Distortion | < 0.05% typical | | Operating Range | 100' (30 m) typical Open range environment with no interfering signals | | Frequency Response | 20 Hz to 20 kHz Depending on microphone type | | Audio Sampling | 24 bit / 48 kHz | | RF Output Power | 10 mW | | Spurious Emission | Following federal and national regulations | | Battery Requirement | Two 1.5 V AA (not included) | | Battery Life | > 7 hours (alkaline) Depending on battery type and use pattern | | Operating Temperature | 32 to 104°F (0 to 40°C) Battery performance may be reduced at very low temperatures | | Dimensions (LxDiameter) | 10.03 x 1.97" (254.8 x 50.0 mm) | | Weight | 9.9 oz (280 g) | | | | Box Dimensions (LxWxH) | 12.75 x 2.7 x 2.6" |
