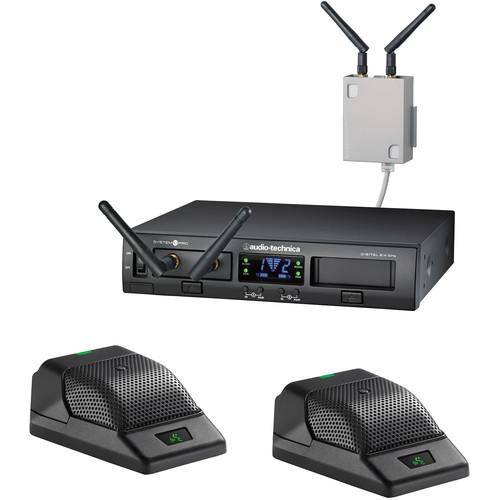

Product description The ATW-1366 System 10 Pro Rackmount Dual Boundary Wireless Mic System from Audio-Technica includes an ATW-RC-13 receiver chassis with rackmount adapters, two ATW-RU13 receiver units with mounting brackets, a joining plate, and two ATW-T1006 boundary microphone transmitters. This system can be used to provide 2.4 GHz wireless performance and capture audio for conference rooms, and other meeting spaces. The cardioid condenser boundary mic is equipped with a touch-sensitive user switch that can toggle between talk and mute modes. It can also function as a press-to-talk or press-to-mute button. There are two red/green LEDs, one visible from the front of the unit, and the other from the rear, which indicates toggle/talk/mute mode, battery level, and charging status. Additionally, the durable half-rack chassis is equipped to house two receiver units that can operate locally or release from the chassis and mount remotely up to 328' away via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system. This creates a multichannel system with the simultaneous use of up to 10 separate channels. Finally, the System 10 wireless features 24-bit operation, easy setup, clear, natural sound quality, and three levels of diversity assurance: frequency, time, and space. Both the receiver chassis and transmitter feature easy-to-read displays. - System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver (2.4 GHz) The System 10 PRO ATW-RC13 from Audio-Technica is a digital 24-bit/48 kHz wireless receiver that operates on the 2.4 GHz ISM band. It can be used to capture audio when paired with a transmitter and microphone for applications such as live stage, theater, DJ setups, and more. The System 10 PRO features a half-rack chassis that allows you to mount one or two receiver units; however, the receiver units can be released from the chassis and mounted remotely (up to 328' away) via an Ethernet cable. Up to five chassis (10 receiver units) can be linked using a RJ12 cable, creating a multi-channel system with up to 10 channels being used simultaneously. In addition, other features include an easy-to-read display for easy setup, and three levels of diversity, namely frequency, time, and space, to help deliver a professional-quality sound. Frequency Diversity sends the signal on two allocated frequencies. Time Diversity sends the signal in multiple time slots. Space Diversity uses two antennas on each transmitter and receiver unit, thus to help maximize signal integrity. Each System 10 PRO rack-mount receiver includes a rack-mount adapter, receiver unit mounting brackets, one RJ12 cable, and an AC adapter.
- Digital 24-bit/48 kHz wireless operation for professional-sound quality and dependable performance
- Receiver units can be docked in the chassis or mounted remotely (up to 328' away) via an Ethernet cable for added versatility
- Up to five chassis (10 receiver units) can be linked and used simultaneously
- Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
- Extremely easy operation with instantaneous channel selection, sync, and setup
- Ground-lift switch helps eliminate audible hum caused by ground loops
- ATW-T1006 System 10 Wireless Boundary Microphone/Transmitter The ATW-T1006 from Audio-Technica is a 2.4 GHz wireless cardioid condenser boundary microphone. It can be used in conference spaces when paired with a System 10 or System 10 PRO digital wireless receiver (sold separately), and utilized for speeches, boardroom meetings, school lectures, and more.Featuring a touch-sensitive user switch, the ATW-T1006 boundary microphone can toggle between talk and mute modes, or function as a press-to-talk or press-to-mute button. Two red/green LEDs – one visible from the front of the unit, the other from the rear – indicate toggle/talk/mute mode, battery level, and charging status.Also, the mic offers three levels of input gain (-6, 0, and +6 dB), which can be selected with a switch on the bottom of the unit. Another switch engages the low-cut filter. The 3.7V rechargeable lithium-ion battery can provide up to nine hours of use on a full charge, and is easily recharged with the included USB charging cable.
- Automatic frequency selection for seamless, interference-free operation
- Cardioid condenser boundary microphone/transmitter pairs with any System 10 or System 10 PRO digital wireless receiver
- Operates in the 2.4 GHz range - completely free from TV interference
- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- ATW-RU13 System 10 PRO Receiver Unit (2.4 GHz) The ATW-RU13 System 10 PRO Receiver Unit from Audio-Technica is a 24-bit/48 kHz digital module that operates in the 2.4 GHz range. It can be used when paired with a System 10 PRO rack-mount system chassis and transmitter/microphone (sold separately) to capture audio for applications such as presentations, lectures, boardrooms, live stage, theater, houses of worship, and more. The ATW-RU13 receiver module provides easy setup with clear, natural sound quality and has three levels of diversity assurance, namely frequency, time, and space. This module can also be used remotely and linked via an Ethernet cable, and used up to 328' away from the chassis. The ATW-RU13 includes two antennas with one receiver holder. UPC: 042005186655
In the Box Bundle Items System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver (2.4 GHz) uzacrdcw 2 x ATW-T1006 System 10 Wireless Boundary Microphone/Transmitter - 3.7 V Rechargeable Lithium-Ion Battery
2 x ATW-RU13 System 10 PRO Receiver Unit (2.4 GHz) Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-1366 System 10 Pro Rackmount Dual Boundary Wireless Mic System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver (2.4 GHz)
| | | Operating Frequencies | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion (THD) | <0.05% typical | | Operating Range | 200' (60 m) open range environment with no interfering signals | | Operating Temperature Range | 32 to 104°F (0 to 40°C) battery performance may be reduced at very low temperatures | | Frequency Response | 20 Hz to 20 kHz (depending on microphone type) | | | | Receiving System | Diversity (frequency/time/space) | | Output Connectors | Remote Receiver Connector: RJ45
Link Connector: RJ12 | | Maximum Output Level | XLR Balanced: 0 dBV
1/4" (6.3 mm) Unbalanced: +6 dBV | | Power Supply | 100-240 VAC (50/60 Hz) to 12 VDC 0.5 A power supply switched mode external | | Dimensions (W x H x D) | 8.26 x 1.73 x 6.67" (209.8 x 44 x 169.3 mm) | | Weight | 33.2 oz (940 g) | | | | Box Dimensions (LxWxH) | 13.89 x 10.24 x 3.35" | - ATW-T1006 System 10 Wireless Boundary Microphone/Transmitter
| Type of Microphone | Wireless boundary transmitter | | Compatible Receivers | System 10 or System 10 PRO | | Polar Pattern | Cardioid condenser | | Bandwidth | 2.4 GHz | | Audio Performance | Digital 24-bit/48 kHz | | Controls | 3 x Gain levels : -6 dB (for loudest voices), 0 dB, and +6 dB (for softest voices)
Low-cut filter
Talk/Mute Mode: Switch | | LEDs | 2 x red/green | | Frequency Selection | Automatic | | Battery | 3.7 V rechargeable lithium-ion | | Battery Duration | Up to 9-hours of use on full charge | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 9.9 x 5.85 x 2.85" | - ATW-RU13 System 10 PRO Receiver Unit (2.4 GHz)
| | | Operating Frequencies | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion (THD) | <0.05% typical | | Operating Range | 200' (60 m) open range environment with no interfering signals | | Operating Temperature Range | 32 to 104°F (0 to 40°C) battery performance may be reduced at very low temperatures | | Frequency Response | 20 Hz to 20 kHz (depending on microphone type) | | Audio Sampling | 24-bit/ 48 kHz | | Latency | 3.8 ms | | | | Receiving System | Diversity (frequency/time/space) | | Remote Receiver Connector | RJ45 | | Mounting Thread | 1/4" x 20 | | Dimensions (W x H x D) | 2.24 x 0.75 x 3.06" (57 x 19 x 77.6 mm) | | Weight | 2.3 oz (64 g) | | | | Box Dimensions (LxWxH) | 5.8 x 4.3 x 3.4" |
