Product description Hands-On Review: Audio-Technica System 10 Camera-Mounted Digital Wireless System Read More - Audio Technica System 10 Demo
- Audio-Technica System 10 Camera-Mount Digital Wireless Systems

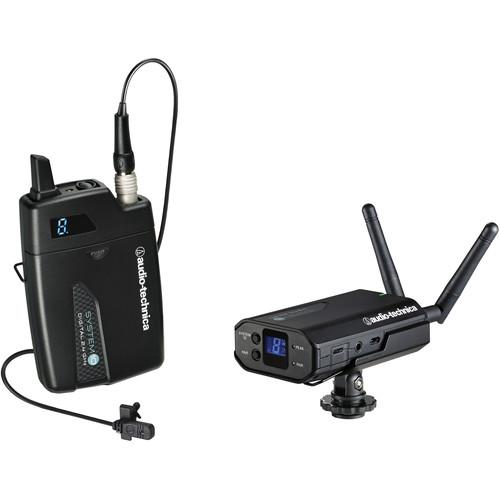

The Audio-Technica ATW-1701/L System 10 Camera-Mount Digital Wireless Lavalier Microphone System is designed to be placed in the cold shoe or hot shoe of a video camera, DSLR, mirrorless, or other similar camera for digital film making and electronic news gathering (ENG) applications.

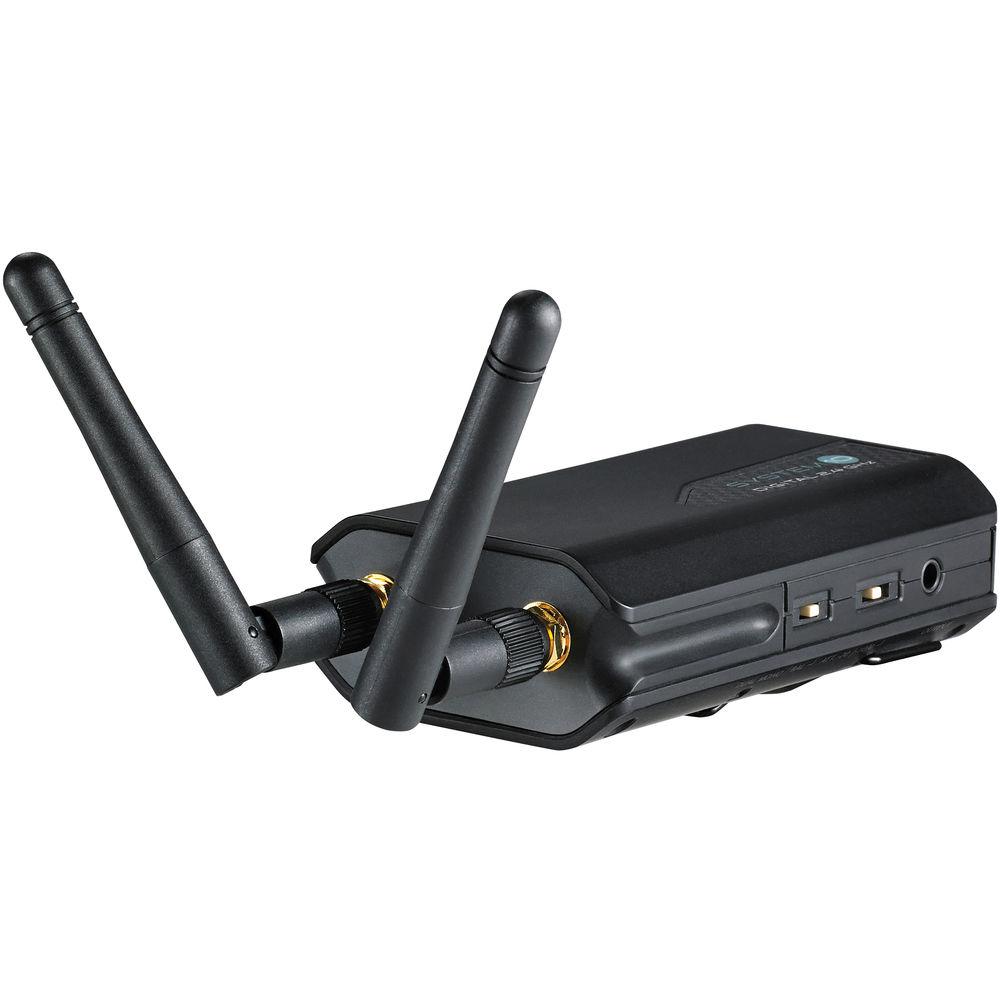

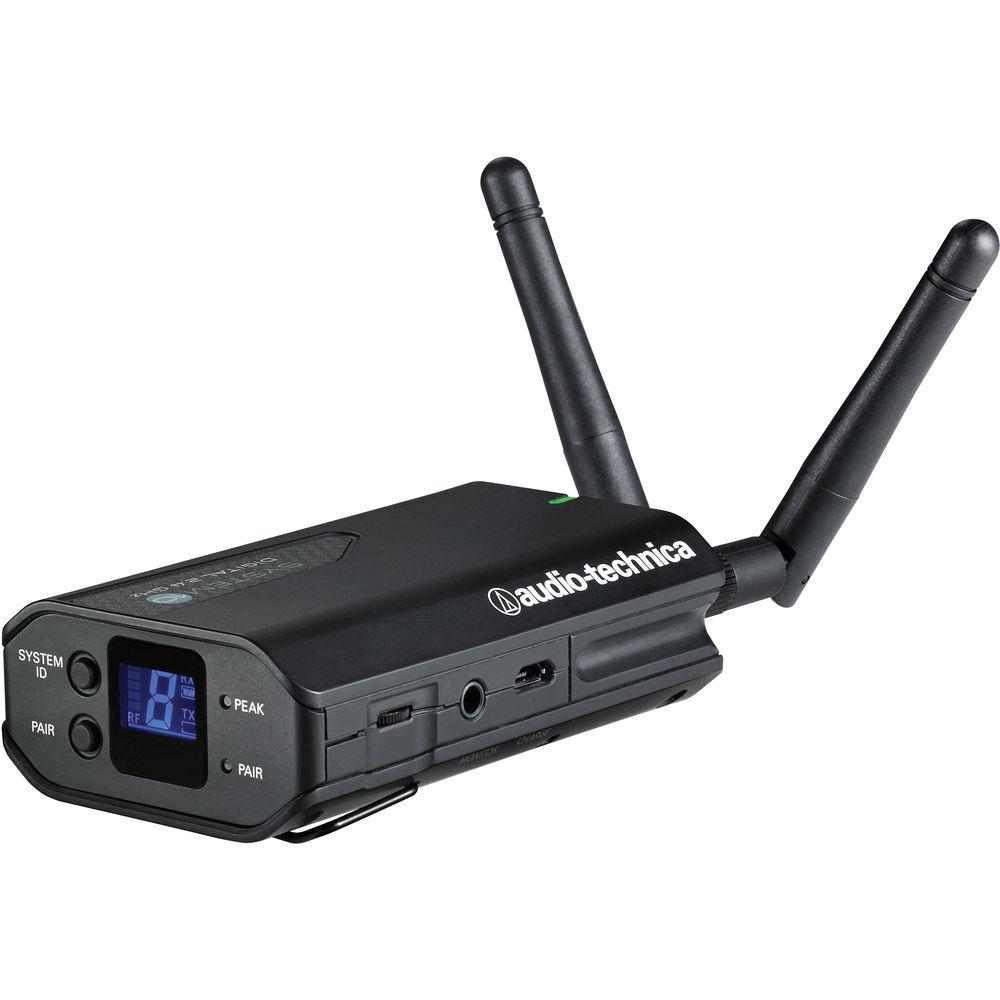

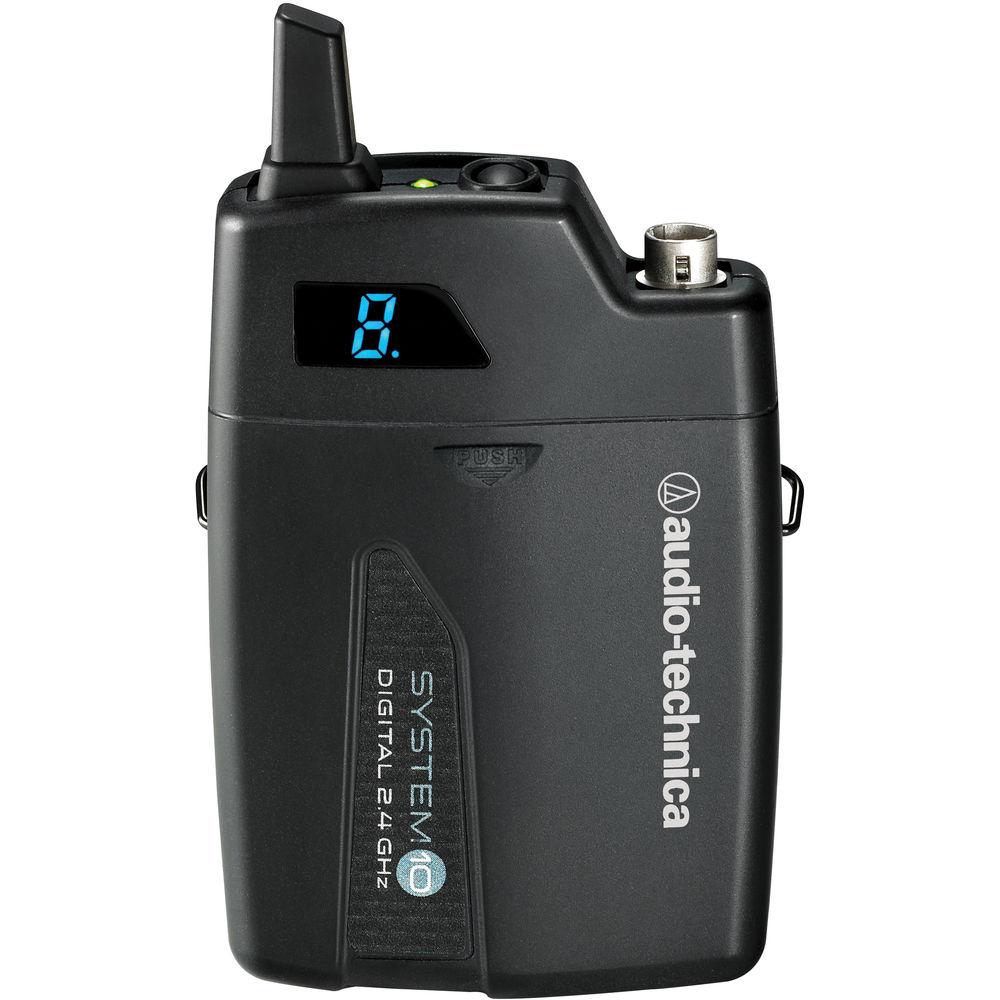

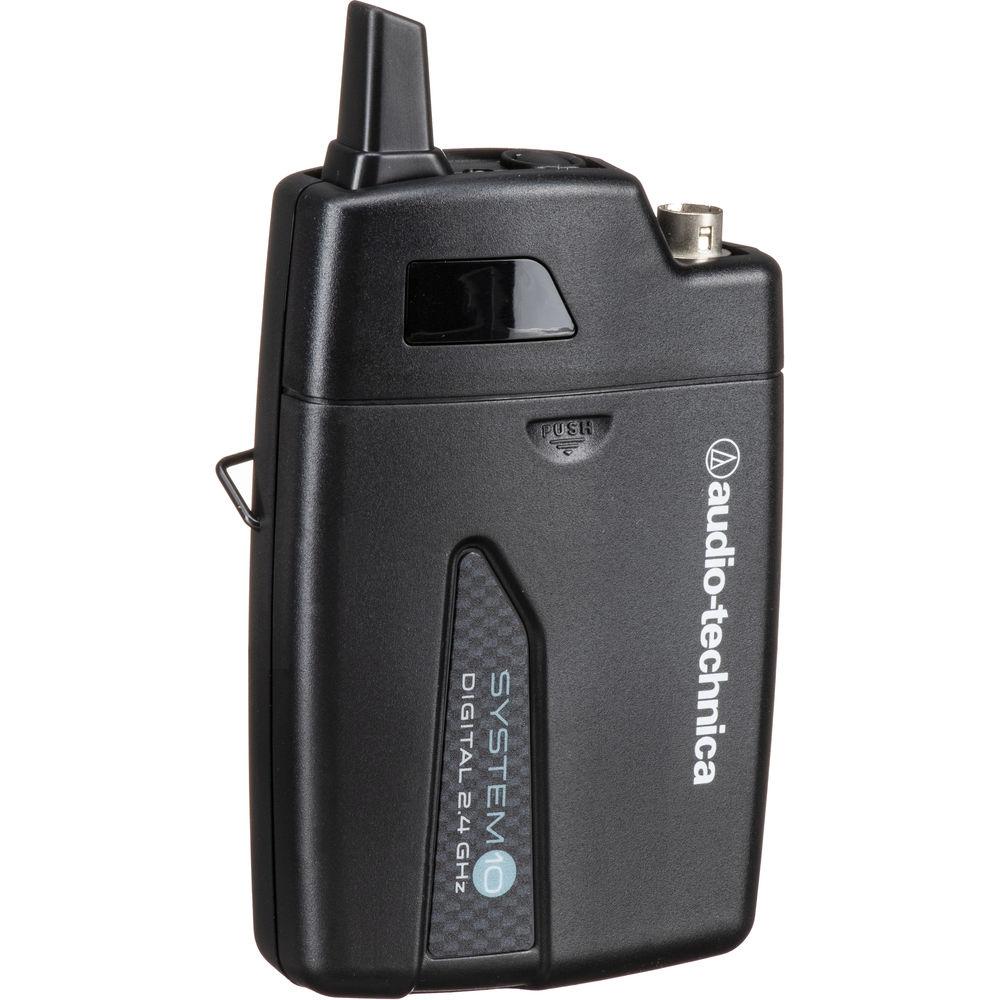

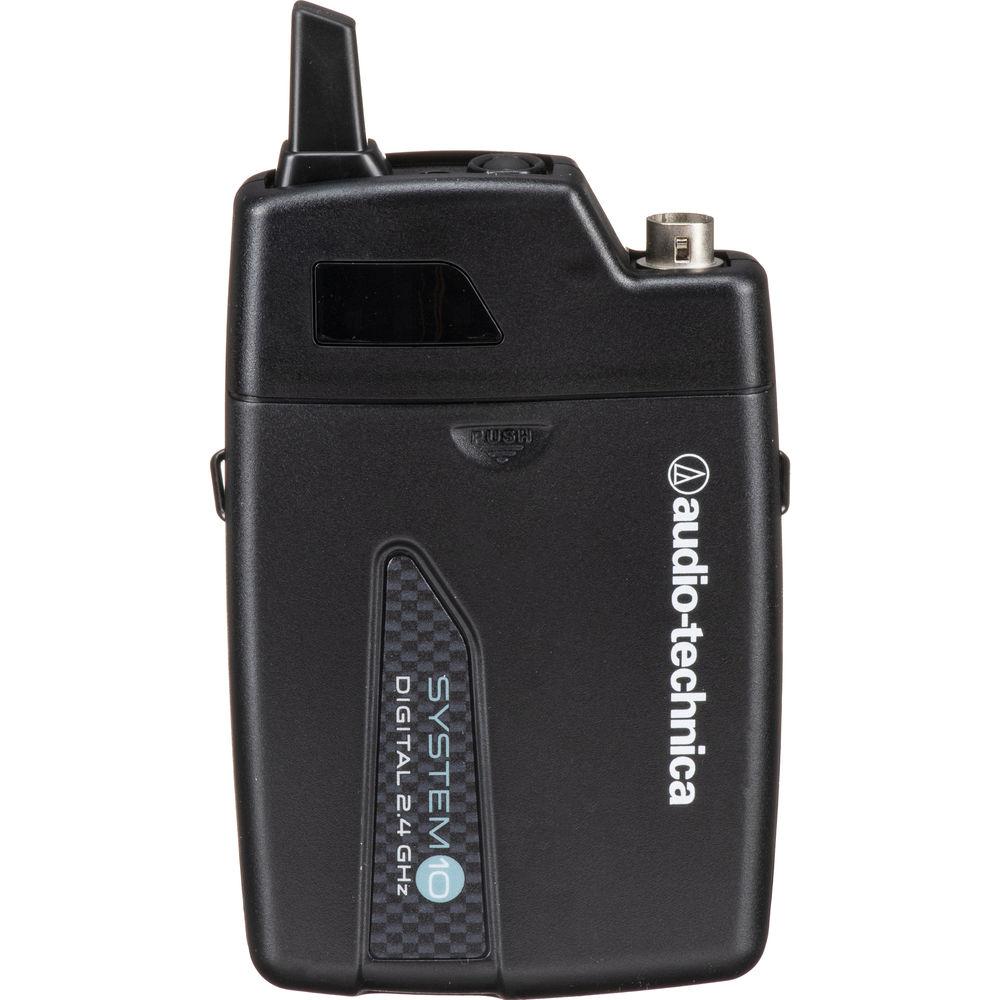

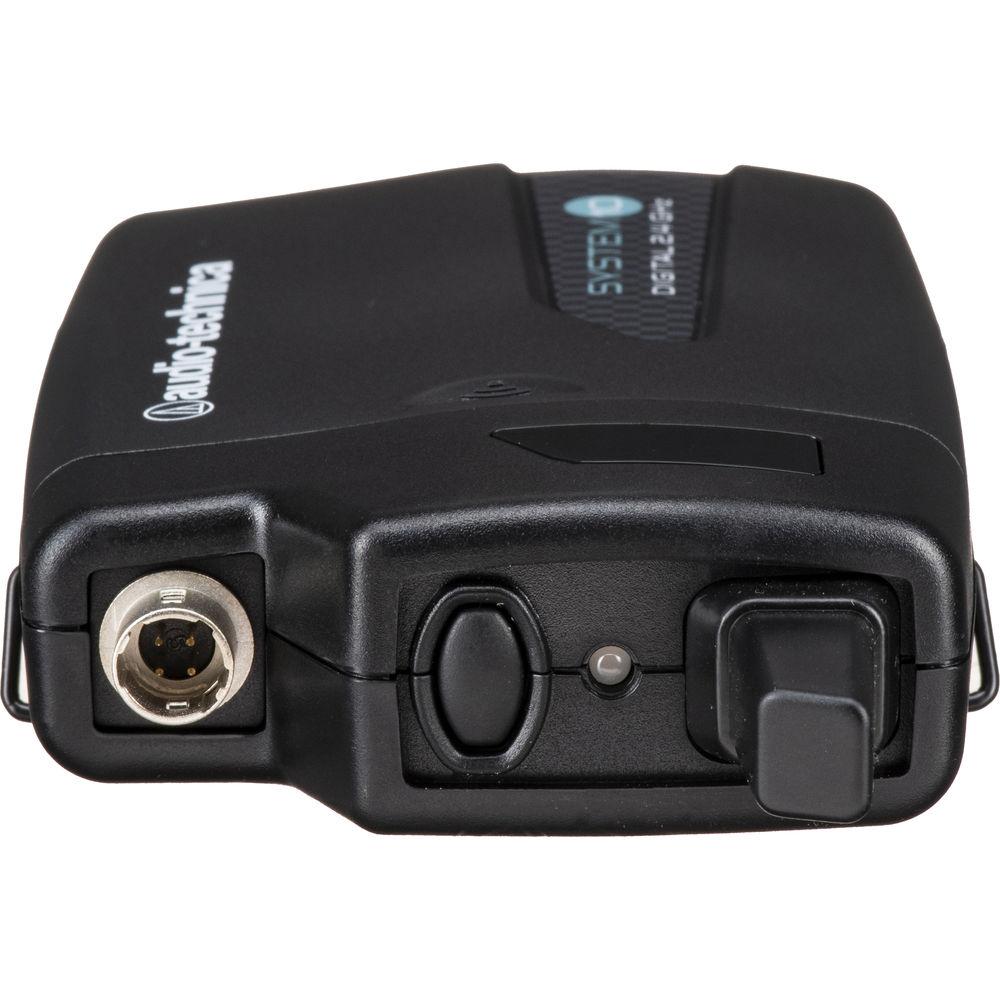

The compact camera-mountable ATW-R1700 receiver features an independent headphone monitor output, and selectable balanced or unbalanced audio outputs on 3.5mm mini-jack connectors. The unit is powered by an internal rechargeable Li-Ion battery, and both the receiver and bodypack transmitter battery life indicators are displayed on the receiver. This system comes with a wearable bodypack transmitter with 10 mW RF output powered by two 1.5V AA batteries (not included) for an effective operating range of approximately 100'. Additionally, the MT830cW omnidirectional lavalier microphone is included for connection to the bodypack transmitter.
The ATW-1701/L system operates in the 2.4 GHz range and is immune to both TV and DTV interference. For reception the receiver implements time, frequency, and space diversity processing with instantaneous channel selection, sync, and setup.
Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver to maintain signal integrity. - Frequency Diversity
- Sends the signal on two dynamically allocated frequencies for interference-free communication
- Time Diversity
- Sends the signal in multiple time slots to maximize immunity to multipath interference
- Space Diversity
- Uses two antennas on each transmitter and receiver to maintain signal integrity.

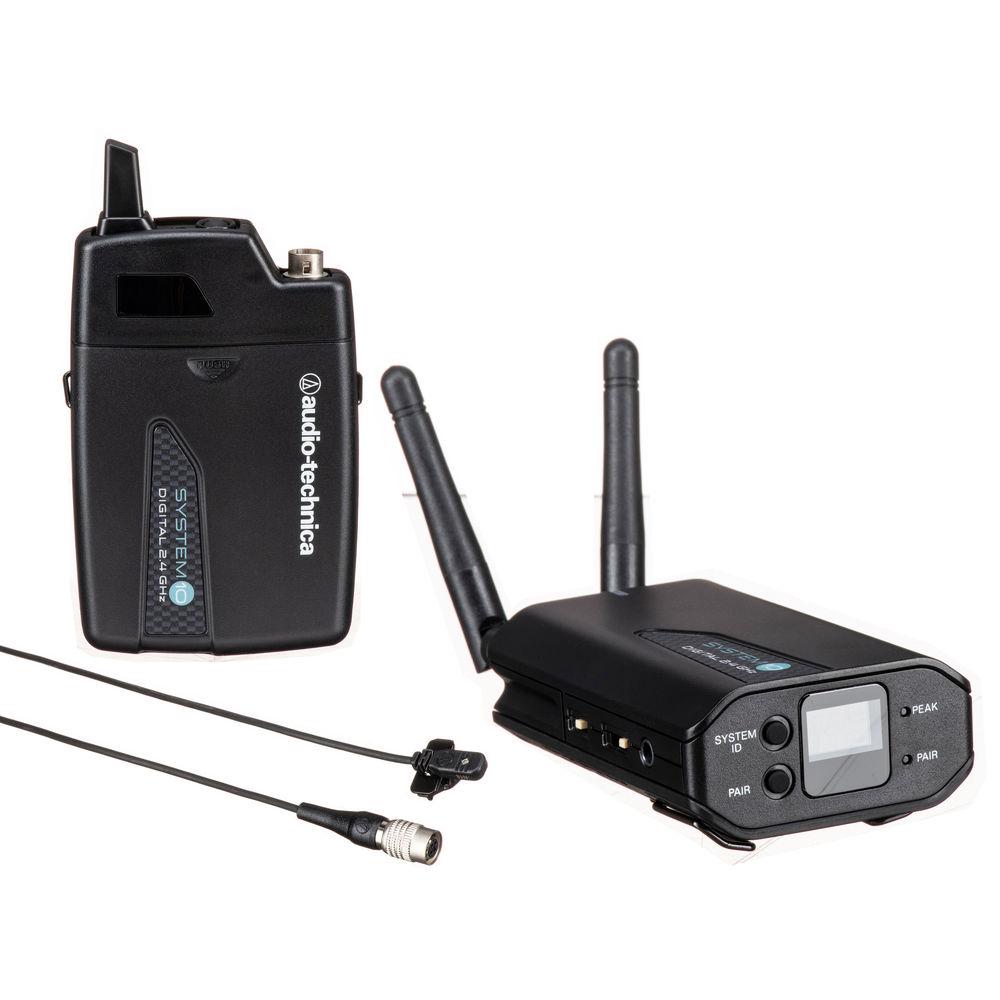

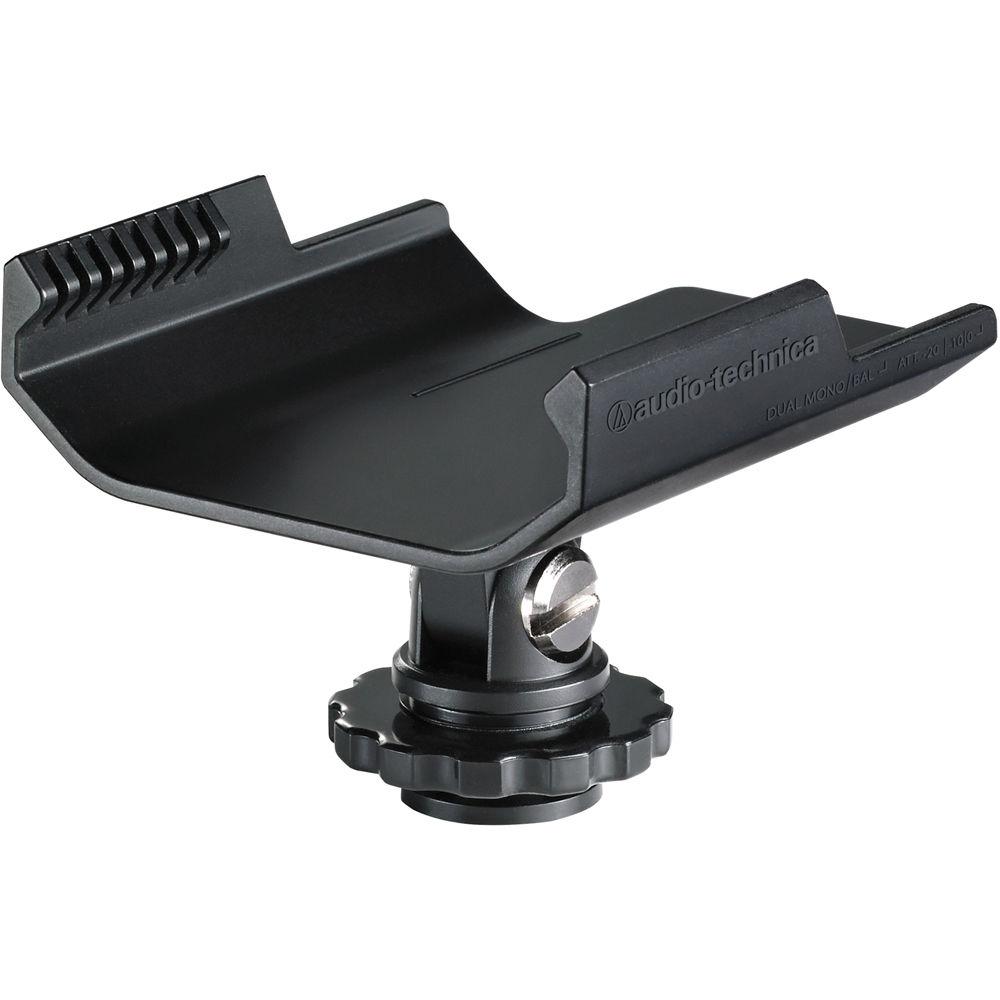

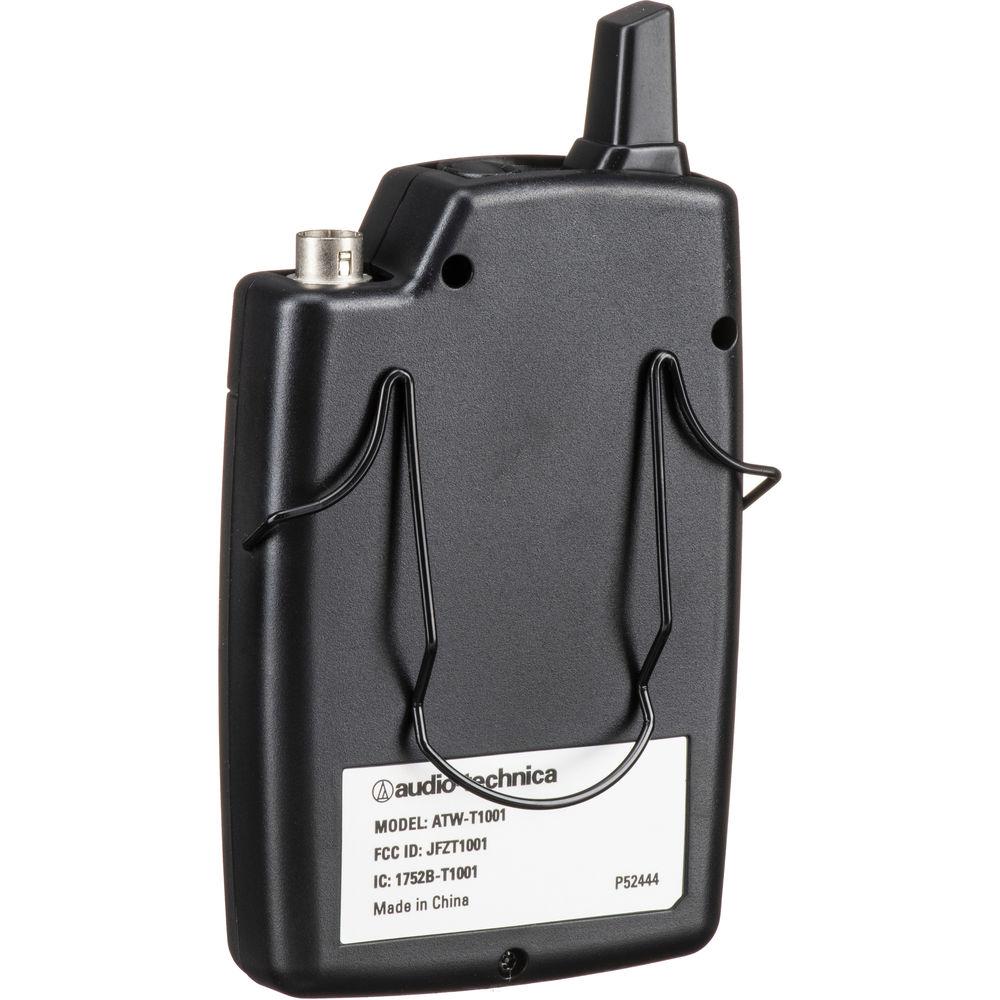

UPC: 042005185054 In the Box Audio-Technica ATW-1701/L System 10 Camera-Mount Digital Wireless System with Omni Lavalier Mic Hot- or Cold-Shoe Adapter 1/8 to 1/8" Mini-Jack Output Cable ATW-R1700 Camera-Mount Wireless 2.4 GHz Receiver ATW-T1001 System 10 Digital UniPak Transmitter MT830cW Omnidirectional Lavalier Condenser Microphone (Black, Locking 4-Pin Hirose Connector) Limited 2-Year Warranty Audio Technica System 10 Camera-Mount Wireless System jaime traba 04/29/2015 User Manual PDF 736.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-1701 L System 10 Camera-Mount Digital Wireless System with Omni Lavalier Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-1701/L Specs | | | Operating Frequencies | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion | <0.05% typical | | Operating Range | 100' (30 m) typical in open range environment with no interfering signals | | Operating Temperature | 32 to 104° F (0 to 40° C) | | Frequency Response | 20 to 20,000 Hz | | | | System | Diversity (frequency, time, space) | | Antennas | 2 | | Power Supply | Internal Li-Ion battery | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | RF Power Output | 10 mW | | Spurious Emission | Following federal and national regulations | | Input Connections | Four-pin locking connector
Pin 1: GND, Pin 2: INST INPUT
Pin 3: MIC INPUT, DC BIAS +9 V | | Batteries | 2x 1.5V AA (not included) | | Battery Life | >7 hours (alkaline), depending on battery type and use pattern | | Dimensions (W x H x D) | 2.76 x 4.21 x 0.98" (70.2 x 107.0 x 24.9 mm) | | Weight | 3.50 oz (100 g) without batteries | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 15.6 x 10.6 x 5.2" |
