User Manual for Audio-Technica ATW-2129b Wireless Lavalier Microphone System Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-2129b Wireless Lavalier Microphone System
- Product category: Wireless Systems Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Systems
 |
User manual for the Audio-Technica ATW-2129b Wireless Lavalier Microphone System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

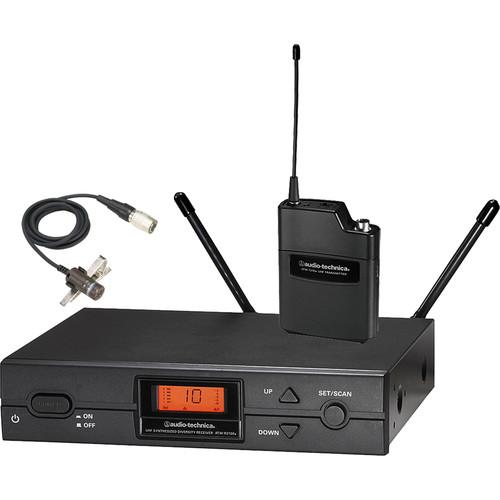

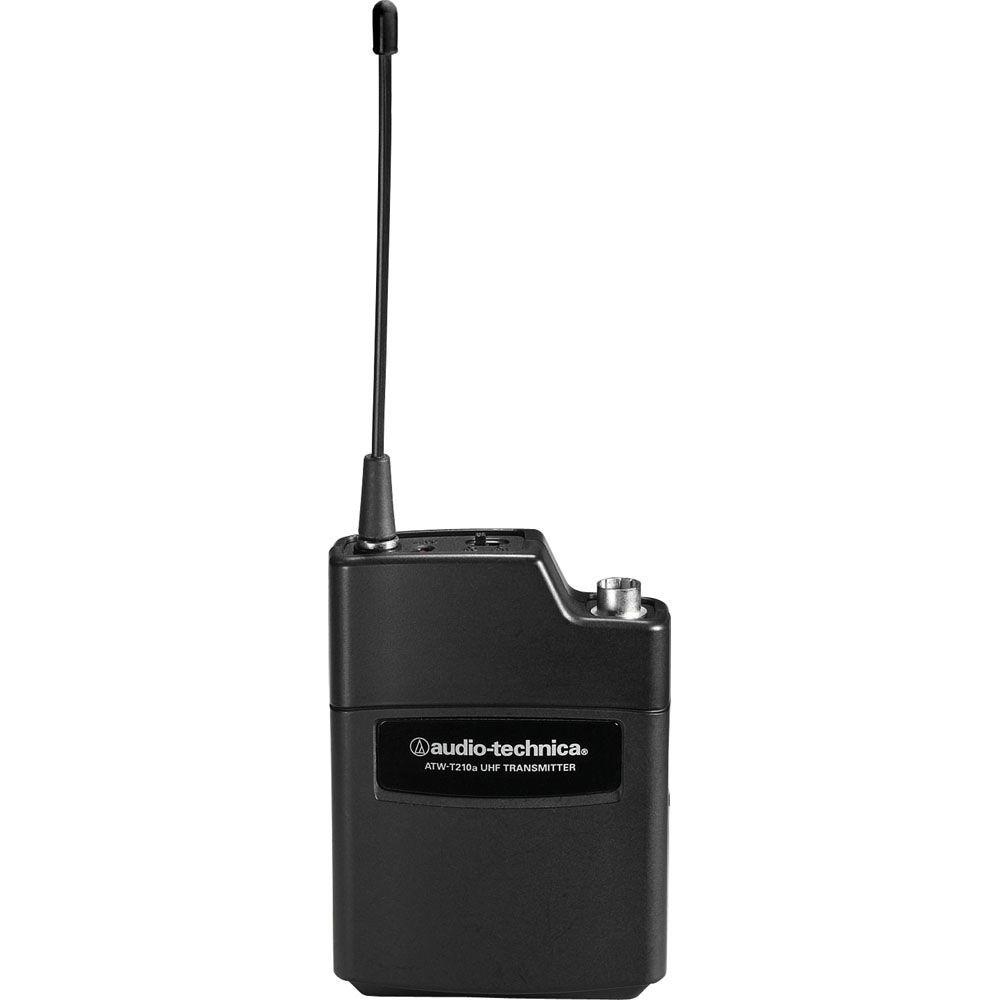

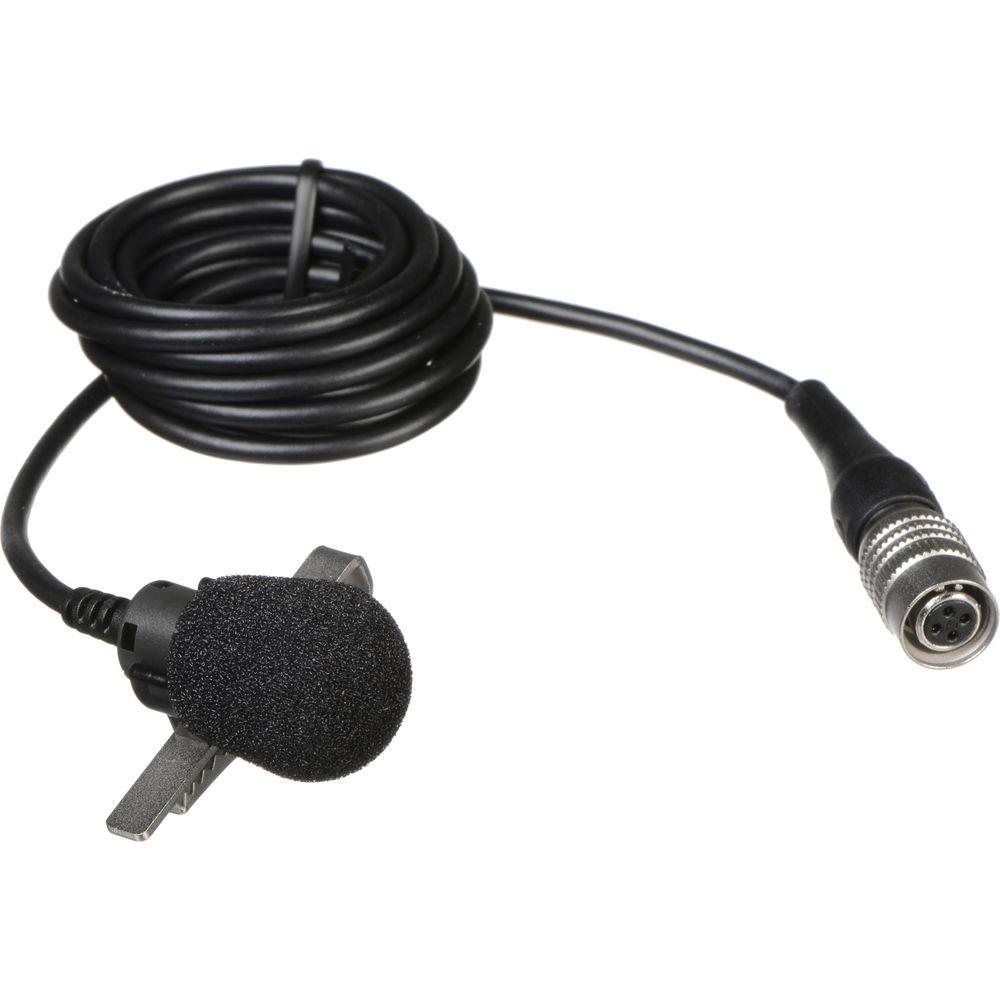

Product description The Audio-Technica ATW-2129b Wireless Lavalier Microphone System delivers professional features and wireless microphone quality, while remaining a cost effective solution for presentations, performance PA, houses-of-worship, nightclubs, restaurants, bars, and more.The system features the ATW-R2100b receiver with UHF diversity reception, 10 user selectable frequencies, automatic frequency scan and Tone Lock squelch system for interference free reception. Balanced XLR and 1/4" phone connections adapt to professional and consumer gear, and a bright LCD display delivers a comprehensive read over settings in dimly lit conditions.The included ATW-T210a UniPak (bodypack) transmitter features a 4-pin locking microphone input, and the AT829cW lavalier microphone is included. The microphone is small and easily clips onto clothing and accurately reproduces speech without noise and distortion. - Serious advances in affordable professional wireless
- Clear sound quality and rock-solid, dependable performance
- Automatic frequency scanning
- 10 compatible user-switchable channels in one of two UHF frequency ranges
- Antenna power available for powered antennas & other in-line RF devices
- True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
- Tone Lock tone squelch system fights interference

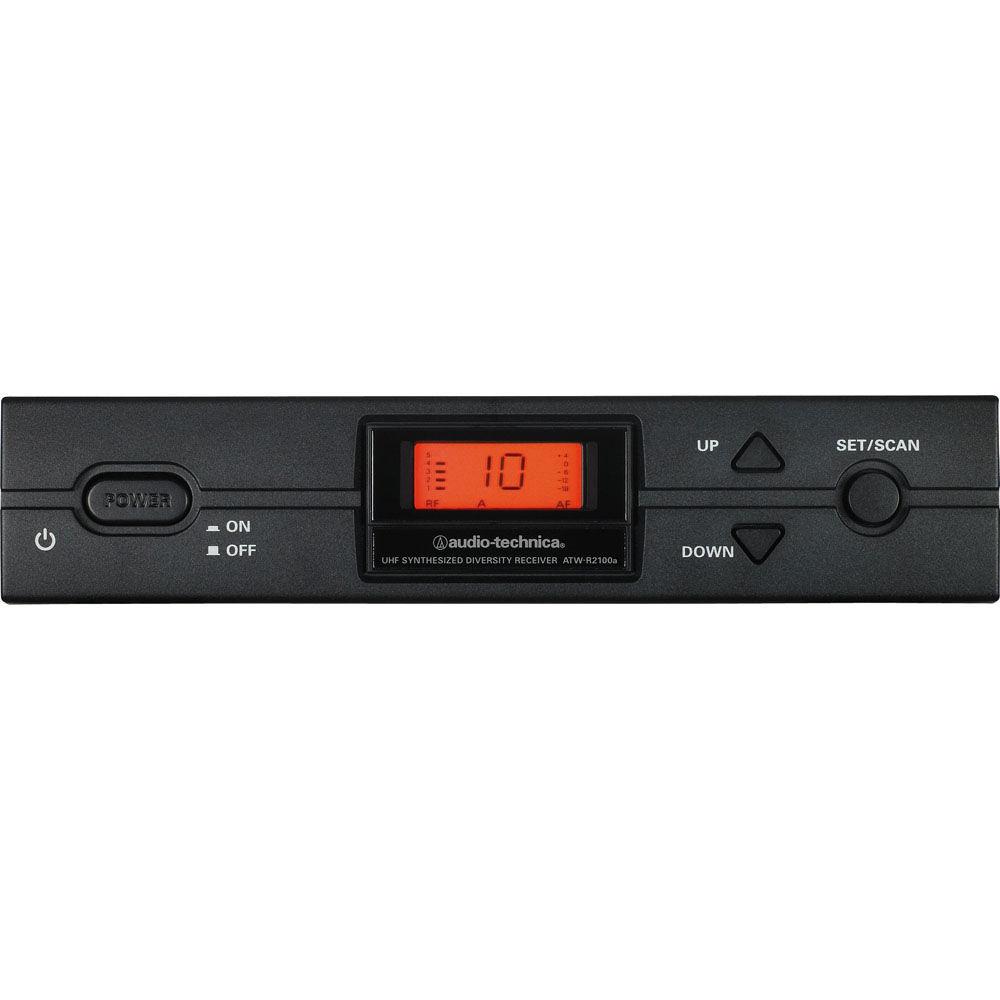

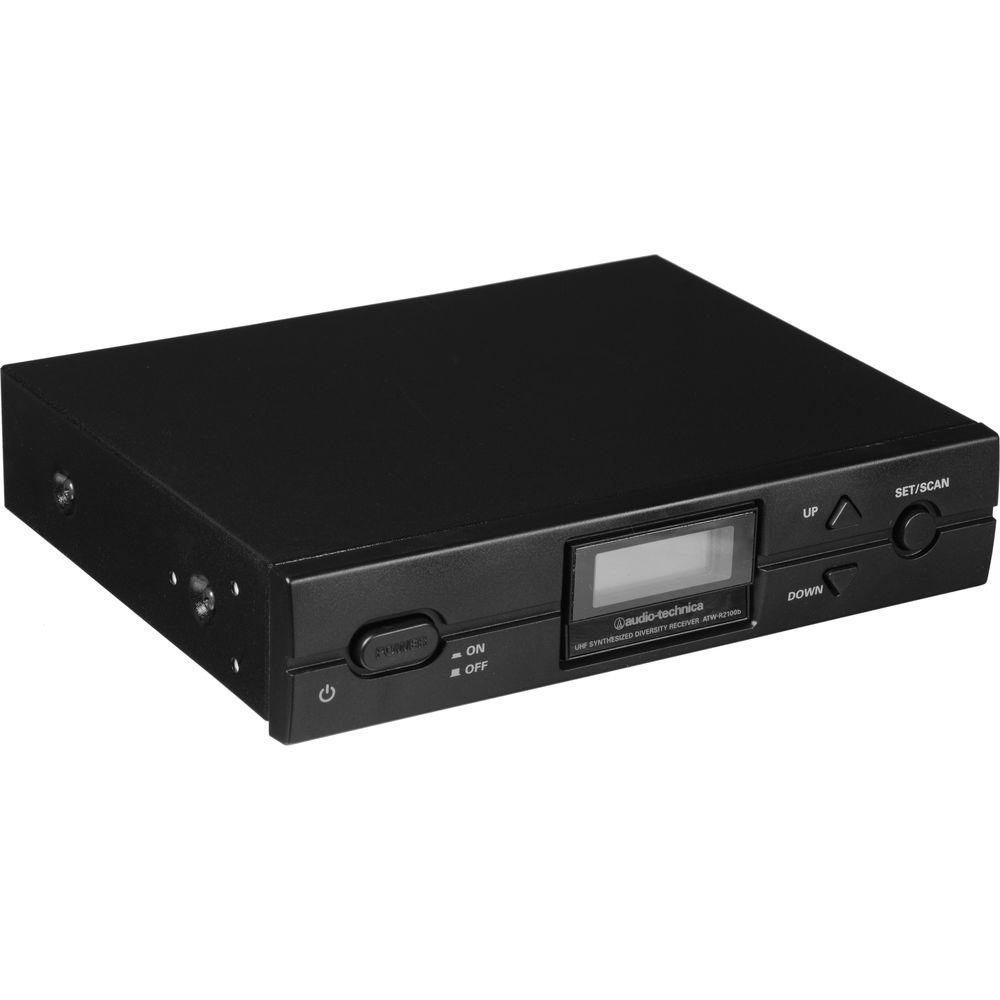

- Rugged metal half-rack receiver with soft-touch controls and LCD display

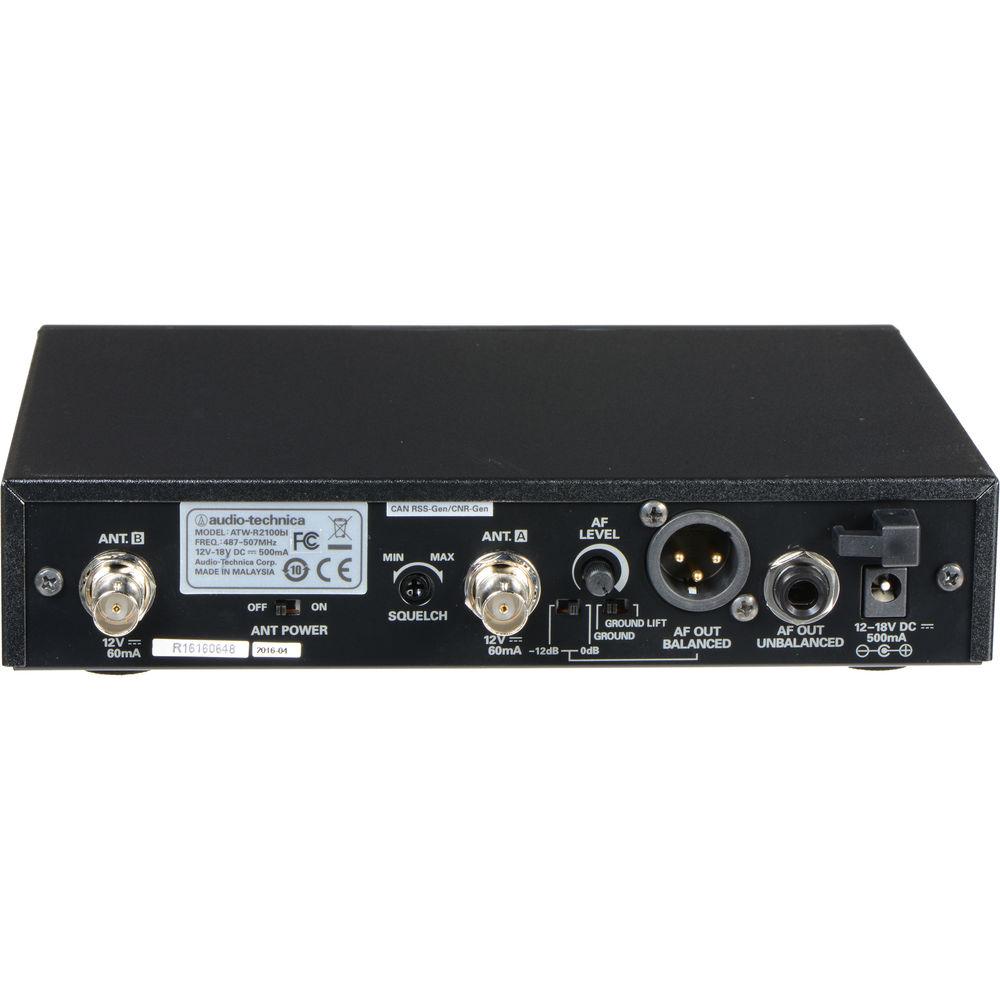

- Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
- Switchable transmitter power output with high and low settings offered
- Includes rack-mount kit and detachable UHF antennas
- Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
UPC: 042005191932 In the Box Audio-Technica ATW-2129b Wireless Lavalier Microphone System (Band I: 487.125 to 506.500 MHz) Flexible UHF Antennas AC Power Adapter Rack-Mount Adapters Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-2129b Wireless Lavalier Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-2129BI Specs | | | Type of System | UHF Frequency Agile Diversity | | RF Carrier Frequency Range | Band I: 487.125 to 506.500 MHz | | Overall Frequency Response | 100 Hz to 15 kHz (+1 dB, -3 dB) | | # Of Channels | 10 Total | | | | Type of Receiver | ATW-R2100a UHF Diversity Half-Rack Mount | | Type of Outputs | Balanced: XLR-male
Unbalanced: 1/4" Phone | | Headphone Monitoring | No | | Power Requirements | 12-18 VDC, 500 mA | | Battery Type/Approx. Life | AC Power Only | | Display | Back-lit LCD | | Mounting Options | Rack-Mount Adapters (Included) | | Antenna Type | BNC-type, 50 Ohms
Bias voltage 12 VDC, 60 mA, each | | Base Dimensions (WxHxD) | 8.27 x 1.73 x 6.39" (210 x 44 x 162.2 mm) | | Weight | 2.20 lb (1.0 kg) | | | | Type of Transmitter | ATW-T210a UniPak Bodypack | | Type of Microphone | AT829cW lavalier microphone | | Polar Pattern | Cardioid | | Microphone Input | 4-pin locking | | Battery Type/Approx. Life | Two 1.5 V AA alkaline | | Mute Switch | Off/On Switch | | Antenna Type | 1/4 wave | | Dimensions (WxHxD) | 2.60 x 3.63 x 0.89" (66 x 92.3 x 22.5 mm) | | Weight | 2.9 oz (81 g) | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 15.0 x 13.4 x 3.8" |
