User Manual for Audio-Technica ATW-3202DE2 3000 Series Fourth Generation UHF Handheld Transmitter No Capsule Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-3202DE2 3000 Series Fourth Generation
- Product category: Wireless Transmitters Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Transmitters
 |
User manual for the Audio-Technica ATW-3202DE2 3000 Series Fourth Generation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

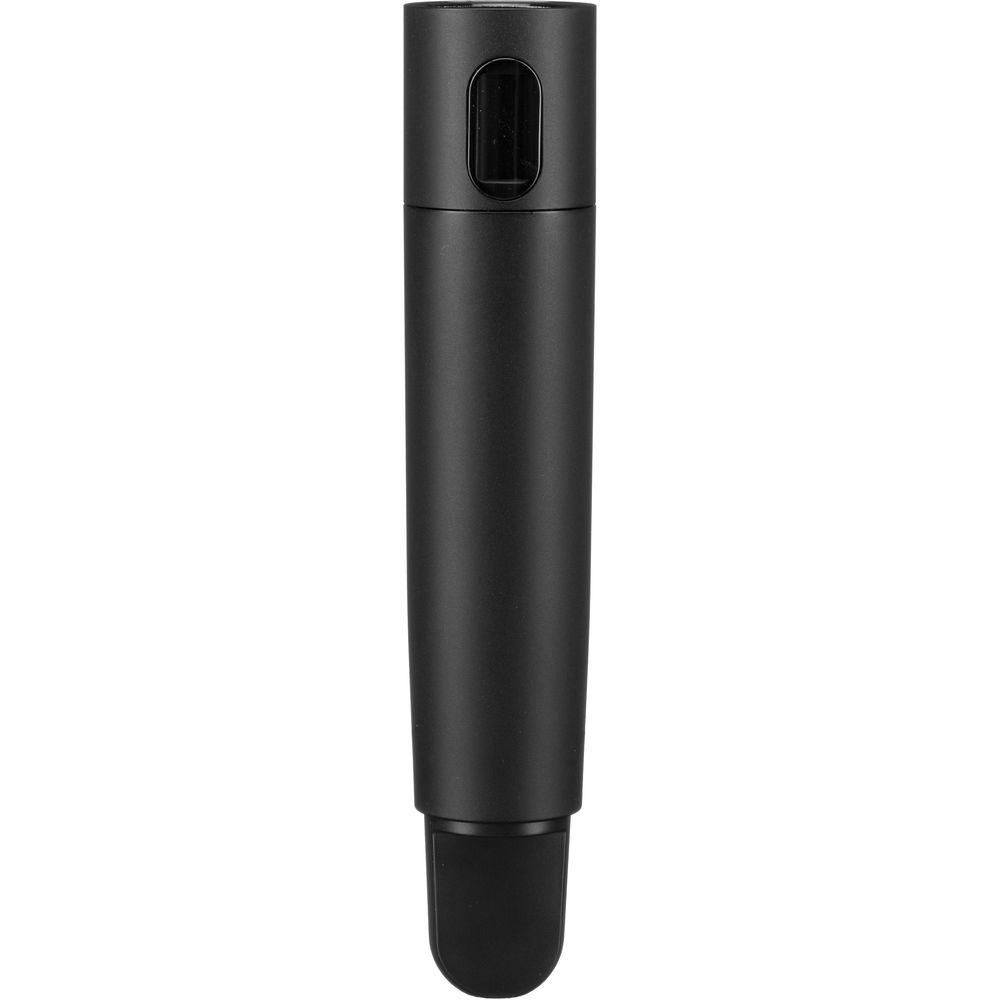

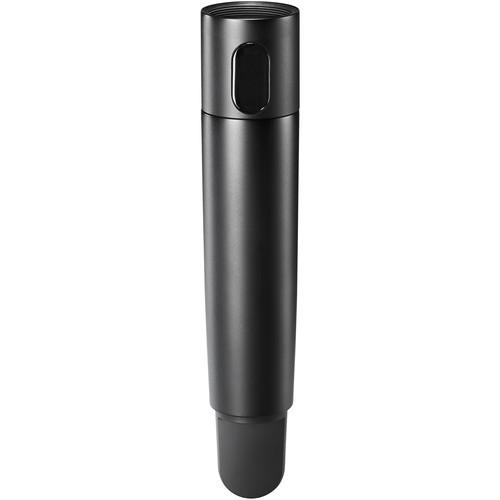

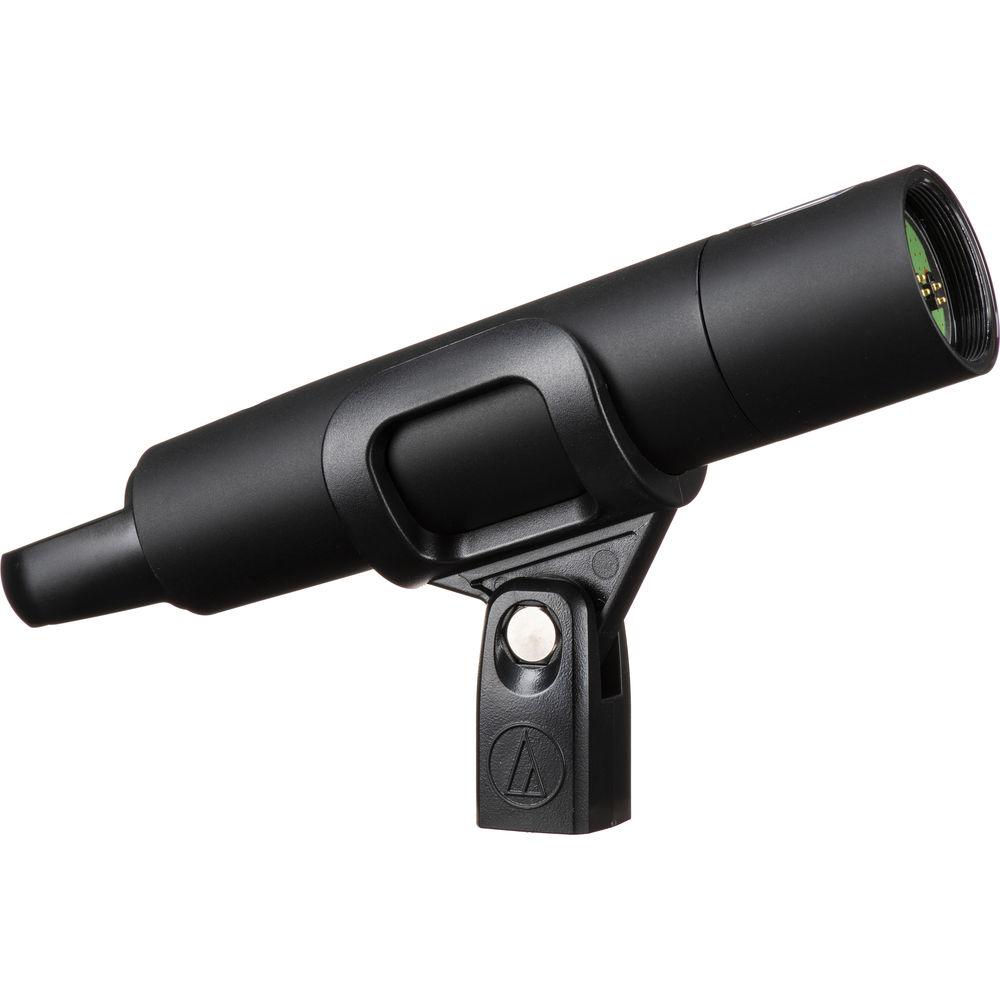

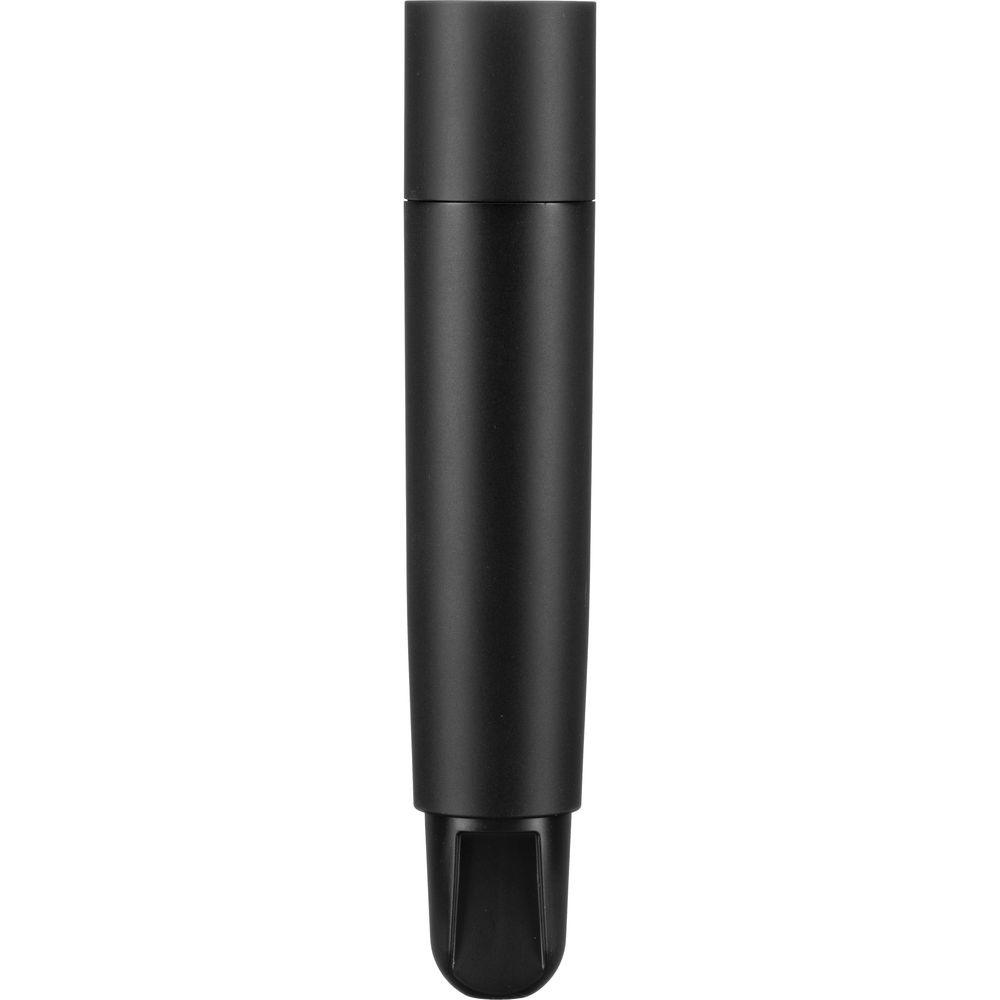

Product description The ATW-3202DE2 3000 Series Fourth Generation UHF Handheld Transmitter from Audio-Technica is a frequency-agile, true diversity UHF wireless transmitter with industry-standard thread mounts for interchangeable capsules. The transmitter can be used when paired with a wireless receiver and microphone capsule (sold separately) to capture audio for live stage, theater, broadcast TV, lecture, and presentation applications. The ATW-3202DE2 handheld transmitter is enclosed in a rugged metal housing, offers low handling noise, 2395 frequencies, and is built with an OLED easy-read display. The transmitter's operating range is up to 328'. In addition, it is powered by two AA batteries and equipped with charging terminals to work with the ATW-CHG3 and ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries. - Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment
- Unique multifunction button on the handheld transmitter can be used to switch to a backup frequency should interference be encountered
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup

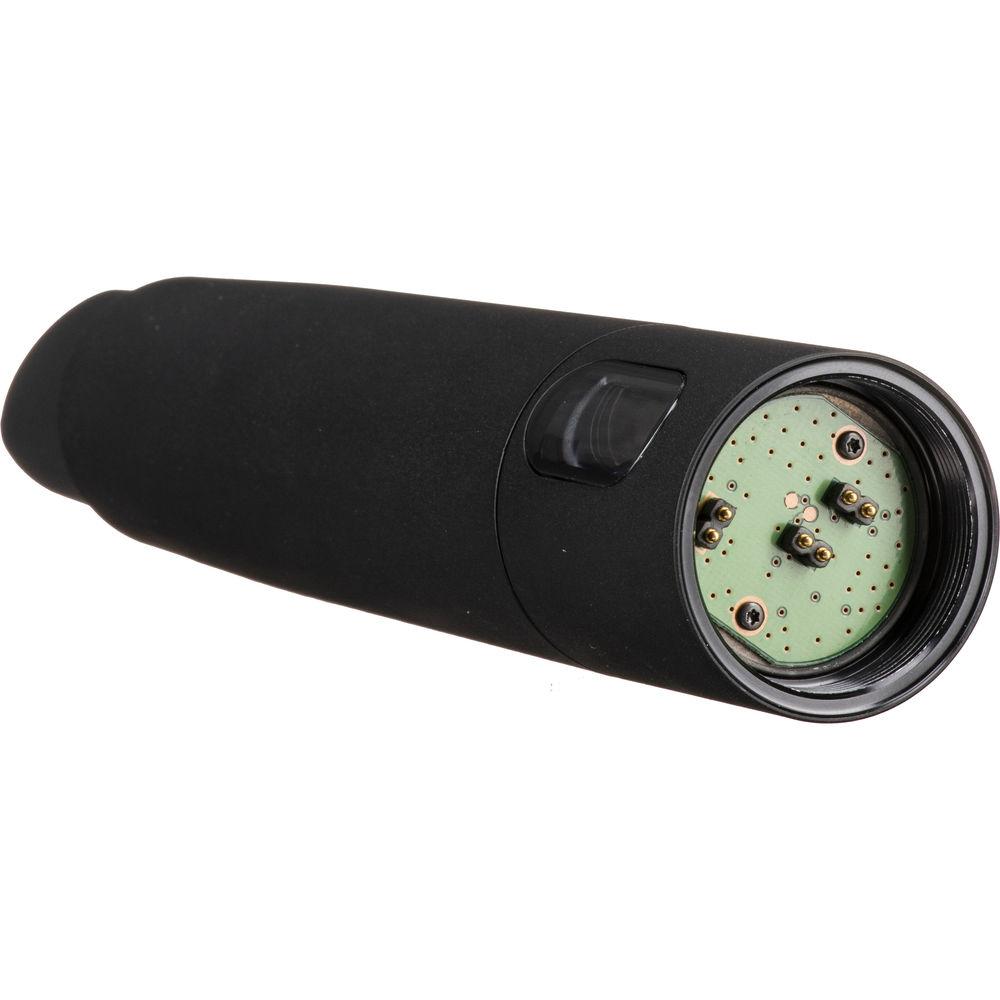

- The handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules

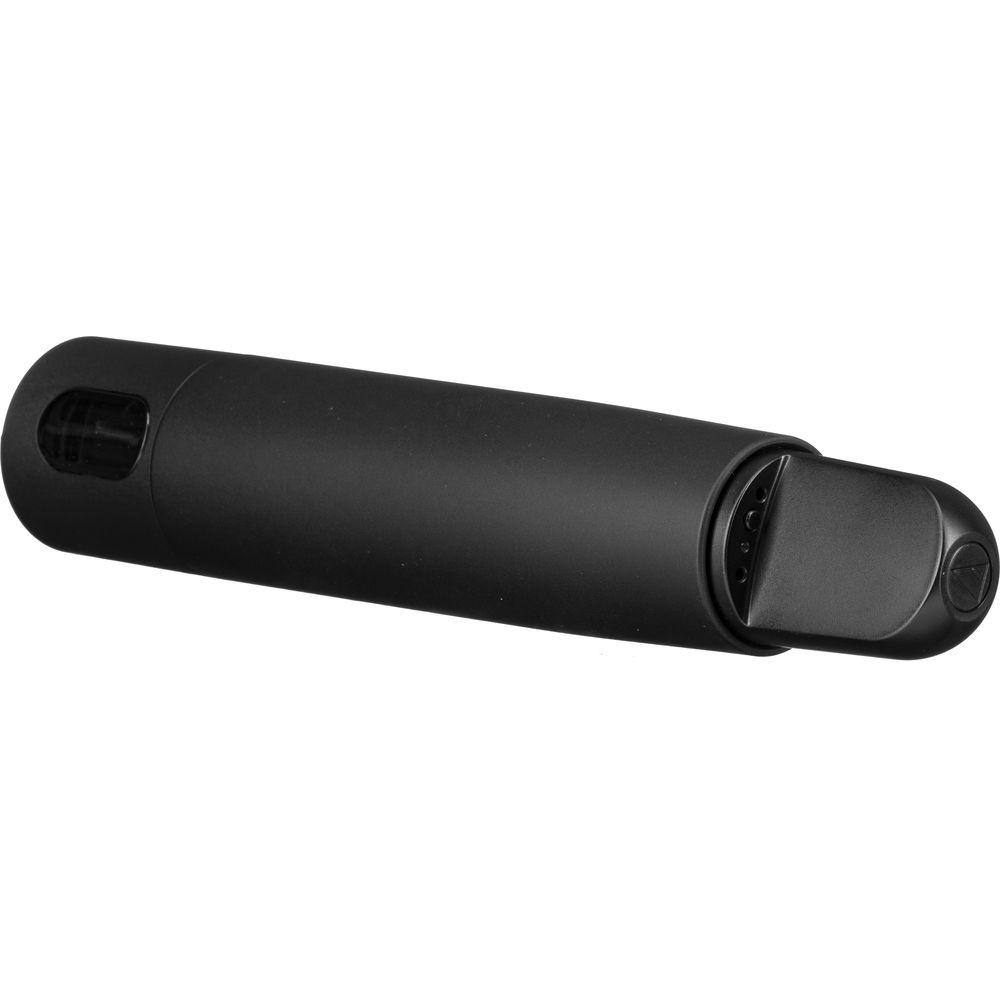

- Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
In the Box Audio-Technica ATW-3202DE2 3000 Series Fourth Generation UHF Handheld Transmitter / No Capsule (DE2: 470.125 to 529.975 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-3202DE2 3000 Series Fourth Generation UHF Handheld Transmitter No Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-T3202DE2 Specs | | | RF Power Output | High: 30 mW
Low: 10 mW
(Switchable, at 50 Ohms) | | Frequency Range | DE2: 470.125 to 529.975 MHz | | Spurious Emissions | Following federal and national regulations | | Batteries | 2 x 1.5 V AA (not included) | | Battery Life | Alkaline
High: 8.0 hours
Low: 9.0 hours
Ni-MH 1900 mAh
High: 9.0 hours
Low: 9.5 hours
(Depending on battery type, usage, and environmental conditions) | | Dimensions (L x D) | Without Capsule: 7.60 x 1.46" / 193 x 37 mm (maximum diameter) | | Weight | Without Capsule: 7.1 oz / 200 g (without batteries) | | | | Package Weight | 0.775 lb | | Box Dimensions (LxWxH) | 13.9 x 3.2 x 2.65" |
