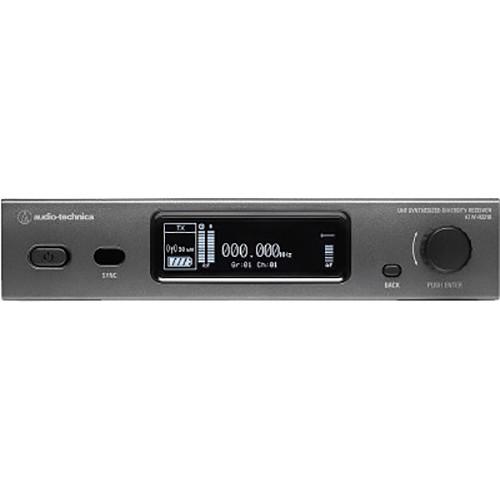

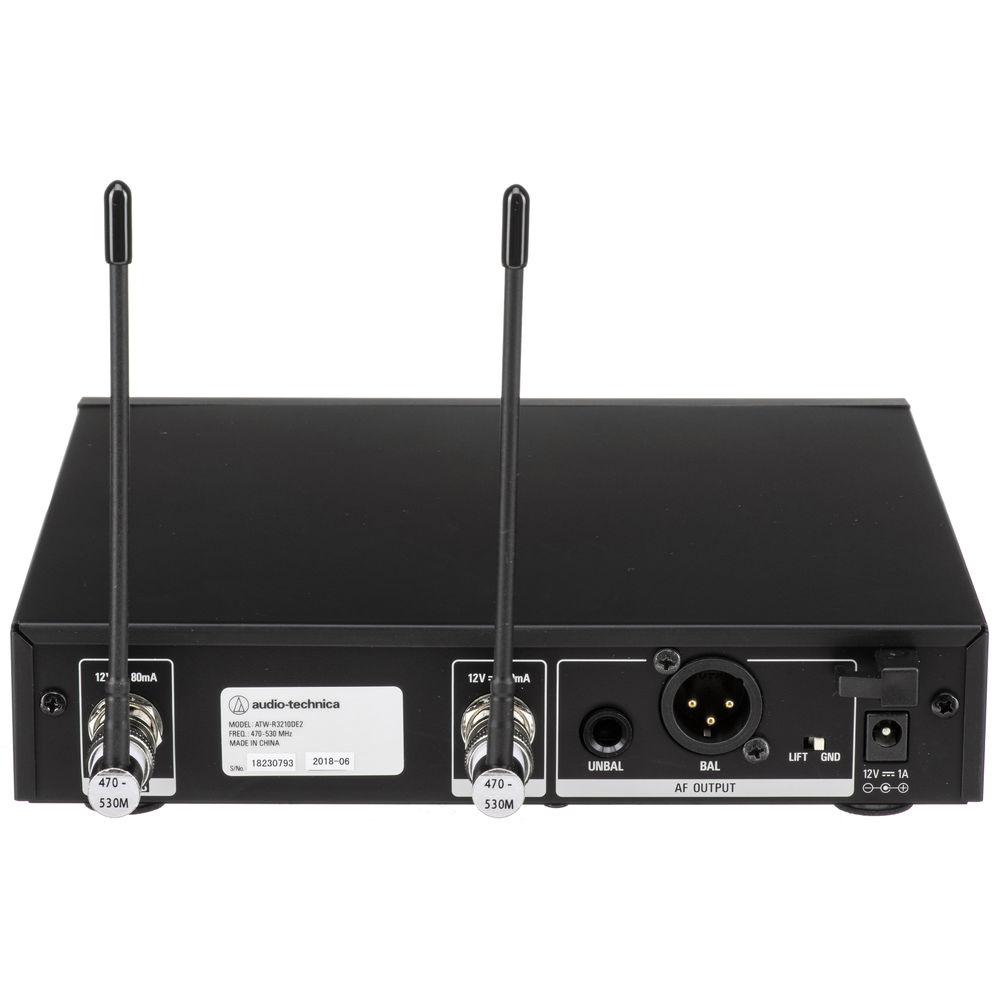

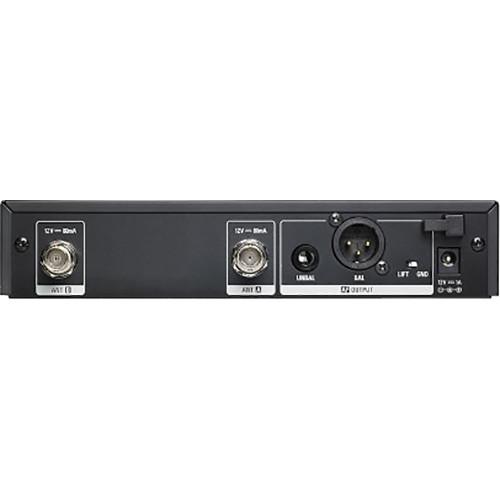

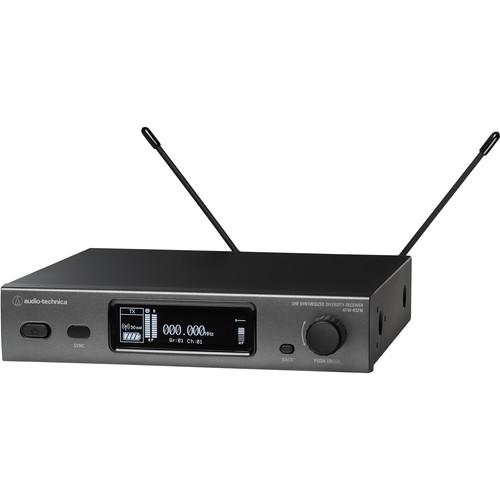

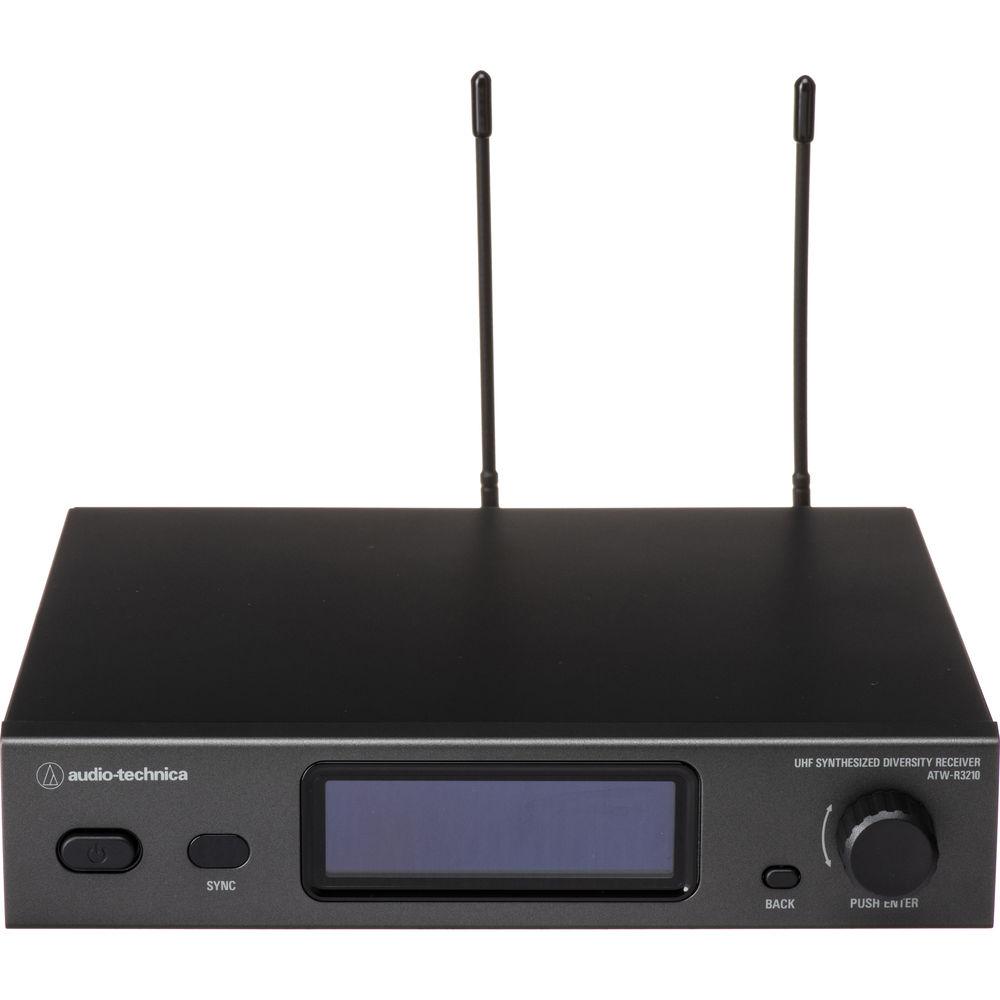

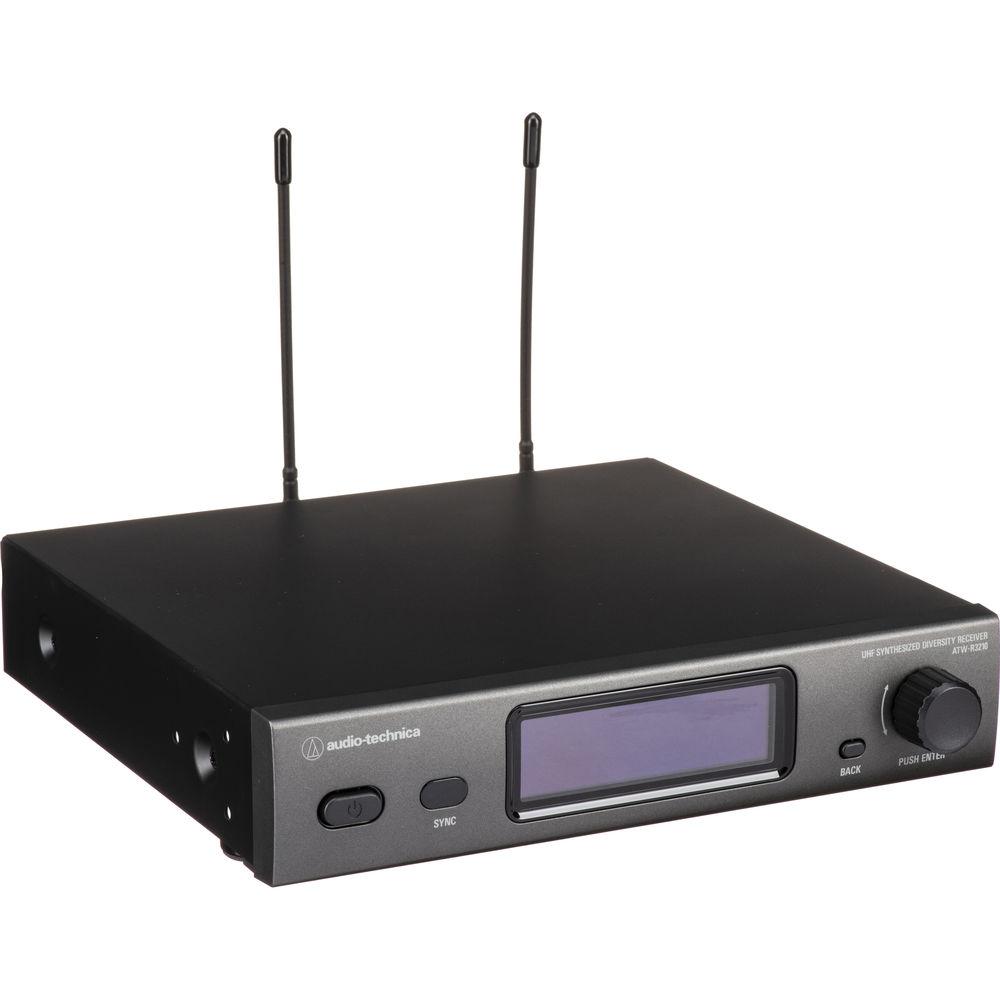

Product description The ATW-3210DE2 3000 Series (Fourth Generation) True Diversity Receiver from Audio-Technica is a frequency-agile, true diversity UHF wireless microphone receiver. It can be used when paired with a handheld or bodypack transmitter and microphone (sold separately) to deliver natural audio for live stage, presentation, and broadcast applications. The ATW-3210DE2 receiver features 2395 frequencies and has a range up to 328'. Frequencies can be easily scanned and selected on the receiver, and then synced with the transmitter via IR sync functionality. In addition, the receiver is equipped with two flexible antennas, a balanced XLR output, and an unbalanced 1/4" output. - Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment
- True Diversity operation reduces dropouts
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Antenna power available for powered antennas and other in-line RF devices
- Ground-lift switch helps eliminate audible hum caused by ground loops
- Balanced and unbalanced audio output jacks
In the Box Audio-Technica ATW-3210DE2 3000 Series (Fourth Generation) True Diversity Receiver (DE2: 470.125 to 529.975 MHz) 2 x Flexible UHF Antennas AC Adapter Rackmount Adapters Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-3210DE2 3000 Series True Diversity Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-R3210DE2 Specs | | | Receiving System | True diversity | | Frequency | DE2: 470.125 to 529.975 MHz | | Image Rejection | 60 dB, nominal | | RF Sensitivity | 20 dBuV at 60 dBA S/N ratio (50 Ohms termination) | | Antenna | Power: 12 VDC, 160 mA (combined)
Input: BNC-type, 50 Ohms | | Maximum Output Level | XLR: +14 dBV, balanced
1/4" / 6.3 mm: +8 dBV, unbalanced | | Power Supply | 100-240 VAC to 12 VDC, 50/60 Hz, 1 A (center positive) switched-mode external power supply | | Operating Temperature Range | 41 to 113°F / 5 to 45°C | | Dimensions (W x D x H) | 8.27 x 7.52 x 1.71" / 210.0 x 191.0 x 43.4 mm | | Weight | 38.8 oz / 1100 g, without accessories | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 15.2 x 13.4 x 3.3" |
