User Manual for Audio-Technica ATW-3211 831EE1 3000 Series Fourth Generation Wireless Microphone System with AT831cH Lavalier Mic Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-3211 831EE1 3000 Series Fourth
- Product category: Wireless Systems Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Systems
 |
User manual for the Audio-Technica ATW-3211 831EE1 3000 Series Fourth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

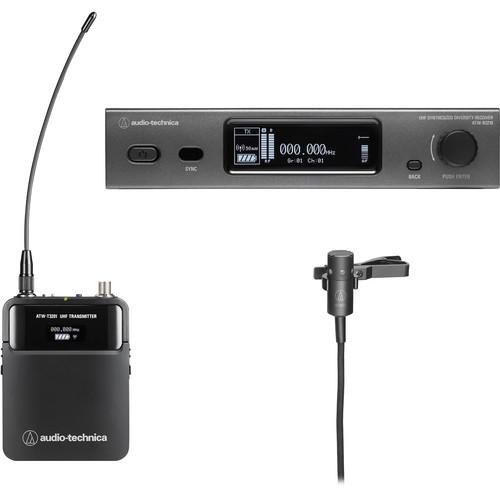

Product description NAMM 2018: Audio-Technica Reveals New Wireless Systems Read More tcdceefczdybdftadvwsz The Audio-Technica ATW-3211/831EE1 3000 Series Fourth Generation is a frequency-agile, true diversity UHF wireless microphone system designed to give users the power and flexibility to operate within the congested UHF spectrum. The system includes an ATW-R3210 receiver, an ATW-T3201 bodypack transmitter, and an AT831cH cardioid condenser lavalier microphone, and is designed to capture voice and instruments with intelligible and natural sound while minimizing potential interference, for stage, television, lecture, event presentation, or house of worship applications. Operating in the EE1: 530.000 to 589.975 MHz band with 2400 frequencies and a range up to 328', the 3000 Series Fourth Generation system offers a 60 MHz tuning range, which is more than twice that offered by the previous versions. Frequencies can be easily scanned and selected on the receiver, and then synced with the transmitter via IR sync functionality. In case of interference, the Multifunction button on the transmitter lets you quickly switch to a backup frequency so you can keep working with minimal interruption. The ATW-R3210 receiver is equipped with two flexible antennas, a balanced XLR output, and an unbalanced 1/4" output. The ATW-T3201 bodypack transmitter is powered via two AA batteries and features a rugged metal housing with a cH-style screw-down 4-pin connector for secure connection to the microphone. The AT831cH microphone allows for close miking of voice and instruments (especially acoustic guitar) with crisp and clean sound. Its cardioid polar pattern effectively rejects unwanted background sound and helps reduce feedback on stage. The ATW-3211/831EE1 ships with a windscreen and a tie clip for the mic, as well as an AC adapter and rackmount adapters for the receiver. - Key Features
-
- Fourth-generation 3000 Series wireless system gives users the power and flexibility to operate within the congested UHF spectrum

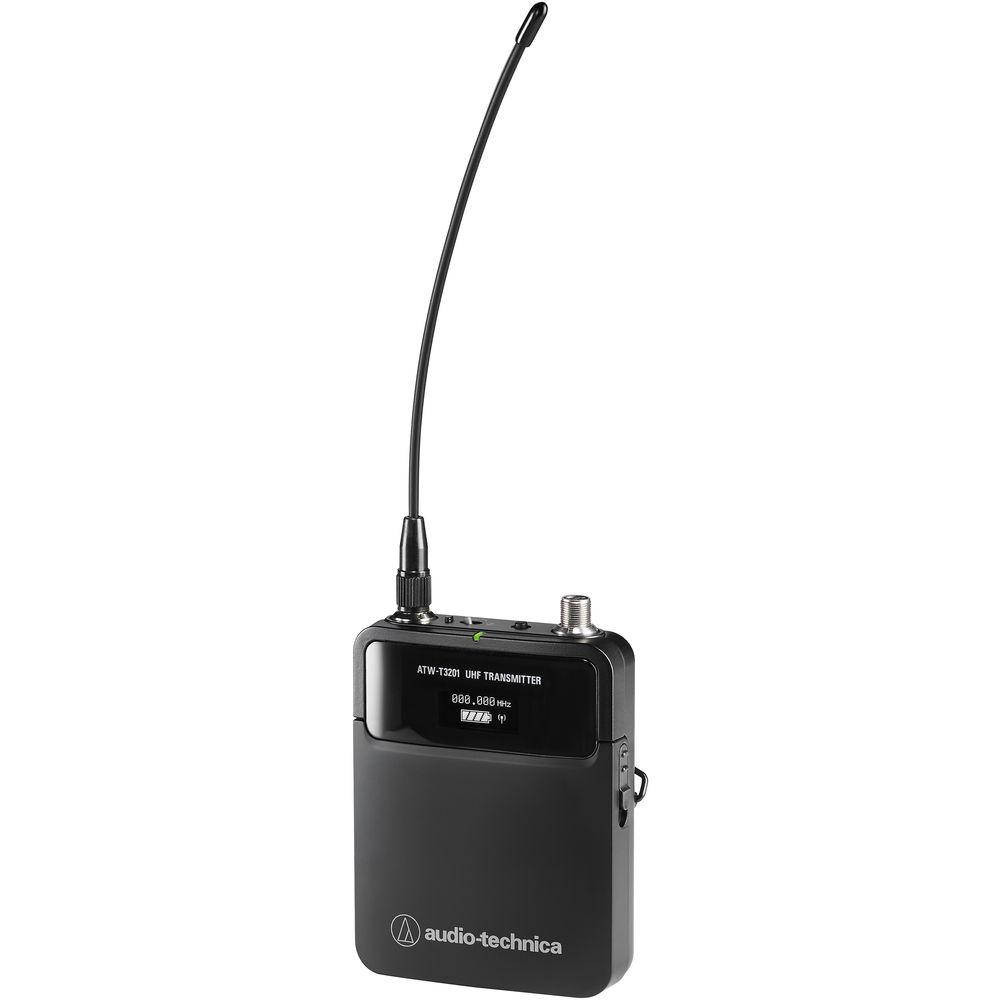

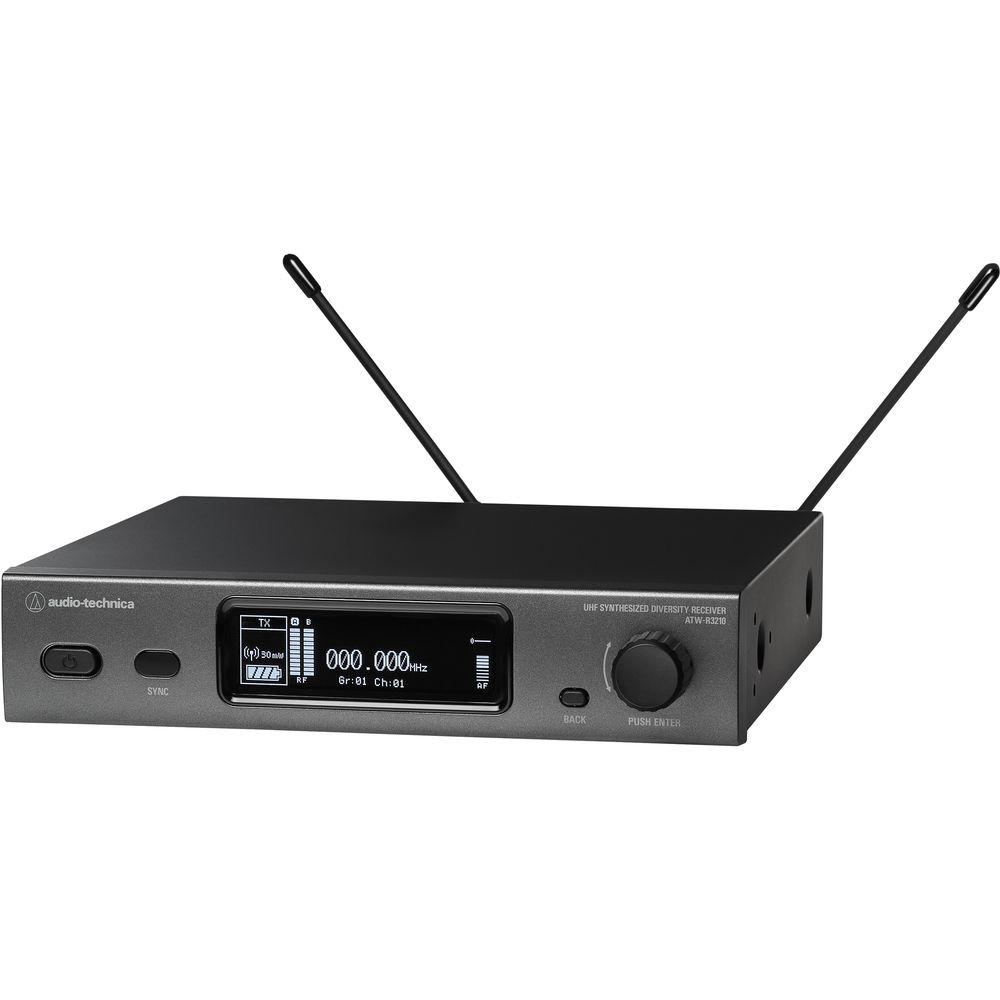

- Includes ATW-R3210 receiver and ATW-T3201 bodypack transmitter with AT831cH cardioid condenser lavalier microphone
- Wide 60 MHz UHF tuning bandwidth for maximum versatility—Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
- Microphone allows for close miking of voice and instruments (especially acoustic guitar) with crisp and clean sound
- Cardioid pattern for significant rejection of unwanted background sound and reduced feedback on stage
- True diversity operation reduces dropouts
- 328' operating range
- Multifunction button on bodypack transmitter can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
- Rugged cH-style connector on bodypack transmitter provides secure connection to mic and cables with cH-style screw-down 4-pin connector
- Bodypack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
- Transmitter with rugged, metal housing is powered via two AA batteries
- Charging terminals on transmitter work with ATW-CHG3 and ATW-CHG3N (both available separately) smart charging docks to recharge NiMH batteries (available separately)
- Antenna power available for powered antennas (available separately) and other in-line RF devices
- Ground-lift switch helps eliminate audible hum caused by ground loops
- XLR balanced and 1/4" unbalanced audio output jacks
UPC: 042005196180 In the Box Audio-Technica ATW-3211/831EE1 3000 Series Fourth Generation Wireless Microphone System with AT831cH Lavalier Mic (EE1: 530.000 to 589.975 MHz) ATW-R3210 Receiver 2 x Flexible UHF Antennas AC Adapter Rackmount Adapters ATW-T3201 Bodypack Transmitter AT831cH Cardioid Condenser Lavalier Microphone AT8417 - Lavalier Tie / Clothing Clip tcdceefczdybdftadvwsz AT8116 Mini Lavalier Windscreen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-3211 831EE1 3000 Series Fourth Generation Wireless Microphone System with AT831cH Lavalier Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-3211/831EE1 Specs | | | Operating Frequencies | EE1: 530.000 to 589.975 MHz
2400 frequencies | | Frequency Step | 25 kHz, minimum | | Modulation Mode | FM | | Maximum Deviation |
