User Manual for Audio-Technica ATW-49CB Wide-Band Antenna Combiner Kit for Audio-Technica UHF Wireless Systems Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-49CB Wide-Band Antenna Combiner Kit
- Product category: Antenna Accessories Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Antenna Accessories
|
User manual for the Audio-Technica ATW-49CB Wide-Band Antenna Combiner Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

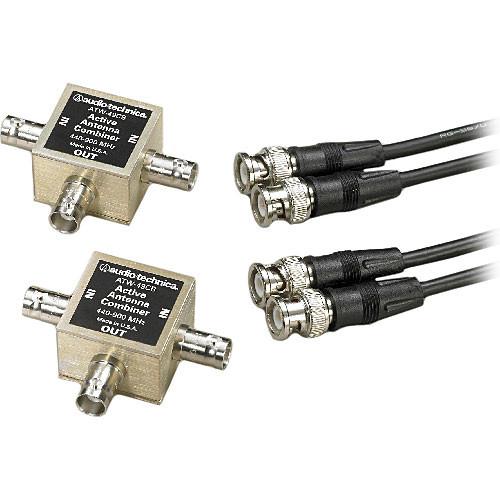

Product description The Audio-Technica AT-W49CB Wide-Band Antenna Combiner Kit is designed to enhance signal reception for Audio-Technica 5000, 4000, 3000 and 2000 Series wireless UHF microphone receivers and antenna distribution systems. The Antenna Combiner Kit includes two active antenna combiners with two antenna inputs and one output. Also included are two BNC-to-BNC antenna cables measuring 18-inches in length.Two wide-band UHF antennas such as the ATW-A49 LPDA "paddle" antennas can be connected to a single combiner. With two antenna combiners included in this kit, four wide-band antennas may be connected to a single receiver or distribution system. Wide-band operation enables a broad RF operating range between 440 to 900 MHz, making the kit an ideal tool for most UHF wireless microphone systems. The active combiners are capable of sending power to active antennas, boosters, etc. - Includes Two Antenna Combiners
- This kit features two antenna combiners with two inputs and one output. The combiners are capable of connecting four antennas to a single UHF receiver or distribution system.
- Wide-Band Operation
- The wide-band operation is compatible with any UHF wireless microphone system within 440 to 900 MHz.
- Power Distribution to Active Antennas or Signal Boosters
- The antenna combiners are active and capable of passing power to active in-line antennas, boosters, etc.
UPC: 042005141777 In the Box Audio-Technica ATW-49CB Wide-Band Antenna Combiner Kit for Audio-Technica UHF Wireless Systems 2 x Dual Input, Single Output BNC Antenna Combiners 2 x BNC-to-BNC Antenna Cable (18-inch) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-49CB Wide-Band Antenna Combiner Kit for Audio-Technica UHF Wireless Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-49CB Specs | Bandwidth | 440 to 900 MHz | | Gain | 0 dB typical | | Impedance | 50 Ohms, typical
within specified bandwidth) | | Termination | 3-BNC Female | | Power | 5-14 VDC
30 mA @ 12 VDC | | Dimensions | 2.38 x 0.92 x 1.83" / 61 x 23 x 47 mm | | Weight | 1.8 oz / 51 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 9.6 x 5.0 x 2.5" |
