Product description The Audio-Technica ATW-49SP Wide-Band Antenna Splitter Kit is designed to split the signal of two wide-band antennas and send two identical outgoing RF signals to wireless receivers of different frequency bands. The Antenna Splitter Kit includes two active antenna combiners with one antenna input and two outputs. Also included are four BNC-to-BNC antenna cables measuring 18-inches in length and two BNC-to-BNC barrel connectors.A wide-band UHF antenna such as the ATW-A49 LPDA "paddle" antenna can be connected to a single splitter. With two antenna splitters included in this kit, signal from two wide-band antennas may be split four ways to feed two UHF receivers or distribution systems. Wide-band operation enables a broad RF operating range between 440 to 900 MHz, making the kit an ideal tool for most UHF wireless microphone systems. The active splitters are capable of sending power to active antennas, boosters, etc. - Includes Two Antenna Splitters
- This kit features two antenna splitters with one input and two outputs. The splitters are capable of splitting the signal of two wide-band antennas and send two identical outgoing RF signals to wireless receivers of different frequency bands.
- Wide-Band Operation
- The wide-band operation is compatible with any UHF wireless microphone system within 440 to 900 MHz.
- Power Distribution to Active Antennas or Signal Boosters
- The antenna combiners are active and capable of passing power to active in-line antennas, boosters, etc.

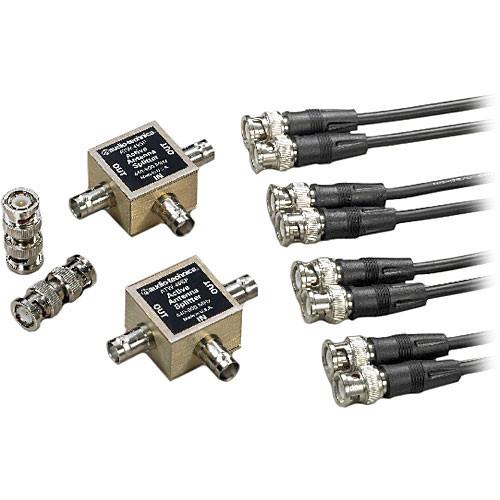

UPC: 042005138982 In the Box Audio-Technica ATW-49SP Wide-Band Antenna Splitter Kit for Audio-Technica UHF Wireless Systems 2 x Single Input, Dual Output BNC Antenna Combiners 4 x BNC-to-BNC Antenna Cable (18-inch) 2 x BNC-to-BNC Barrel Connectors Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-49SP Wide-Band Antenna Combiner Kit for Audio-Technica UHF Wireless Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-49SP Specs | Bandwidth | 440 to 900 MHz | | Gain | 0 dB typical | | Impedance | 50 Ohms, typical
within specified bandwidth | | Termination | 3-BNC Female | | Power | 5-14 VDC
30 mA @ 12 VDC | | Dimensions | 2.38 x 0.92 x 1.83" / 61 x 23 x 47 mm | | Weight | 1.8 oz / 51 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.7 x 5.2 x 2.5" |
