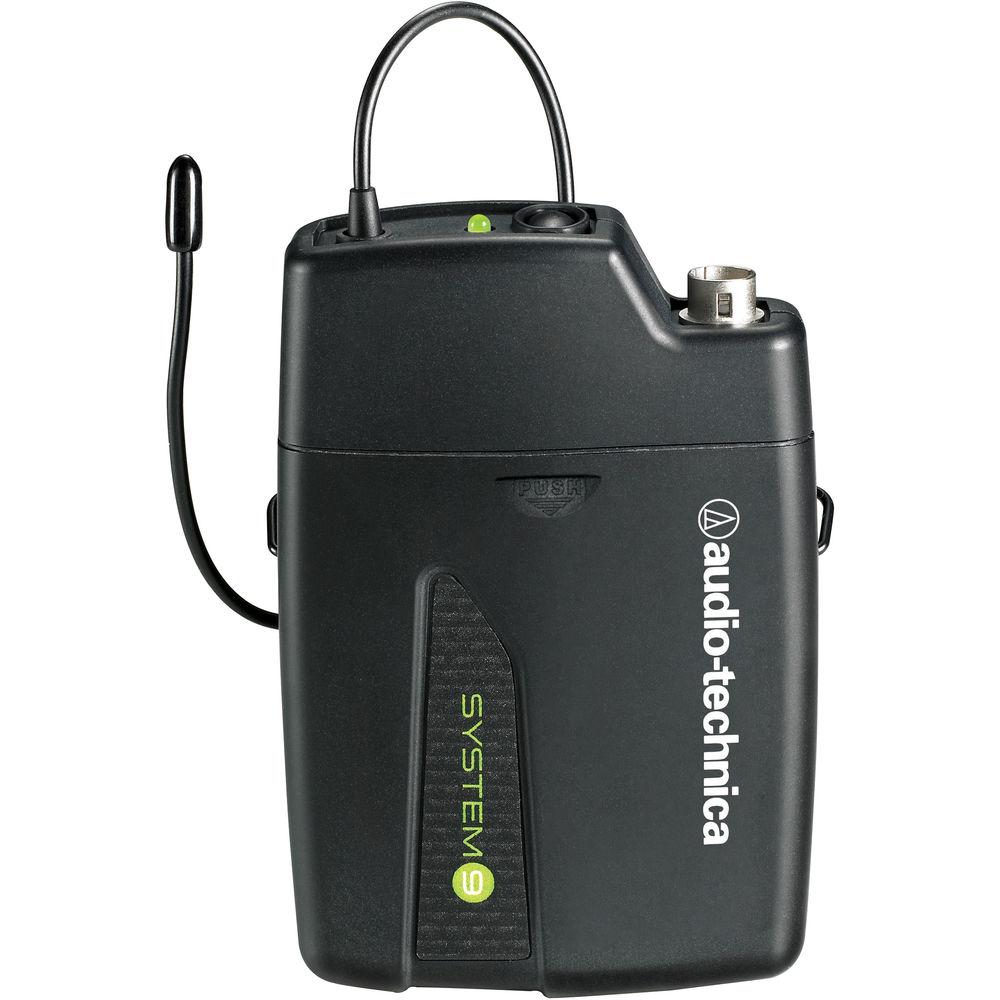

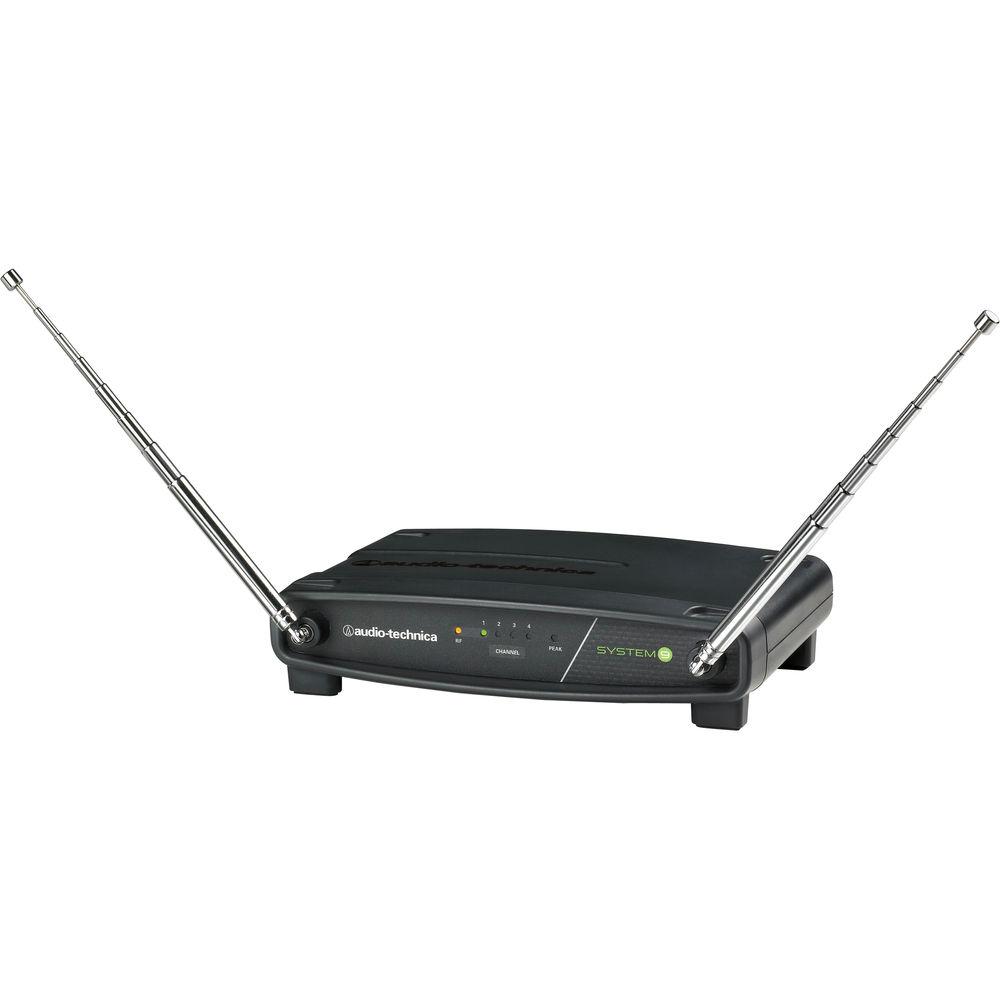

Product description The Audio-Technica ATW-901A/G System 9 VHF Wireless Unipak System is designed for live sound reinforcement applications. The system consists of a wireless VHF receiver, a bodypack transmitter, and an AT-GcW guitar/instrument input cable.The receiver utilizes two dipole antennas for extended range, and allows you to select your VHF transmission frequency from 169.505, 170.245, 171.045, or 171.905 MHz. The receiver includes LED indicator lights for channel, RF, and AF peak. The back of the receiver features a volume control knob, a squelch control knob, a balanced XLR audio output, and an unbalanced 1/4" audio output. The receiver also includes a power cord hook to prevent accidental pull-out of the DC power supply.The bodypack transmitter is powered by two AA batteries and includes variable microphone and instrument trim, channel selection DIP switches, a Power/Mute button, and a Unipak input connector. - Four Selectable VHF Transmission Frequencies
- Select from 169.505, 170.245, 171.045, and 171.905 MHz
- Dipole Antenna for Extended Range
- The receiver utilizes two antennas to improve the range of the system
- Squelch Control
- The receiver features a squelch adjustment knob that controls the threshold for the radio signal that regulates audio output. If the radio signal from the microphone drops below the threshold, the squelch control mutes the audio output to prevent the transmission of radio interference and white noise from entering the speakers

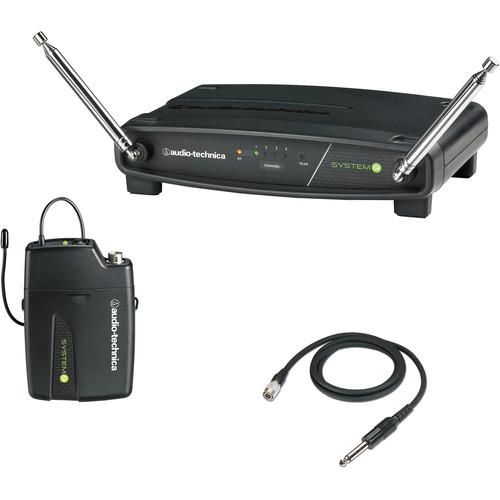

UPC: 042005194889 In the Box Audio-Technica ATW-901A/G System 9 VHF Wireless Unipak System with AT-GcW Guitar/Instrument Input Cable AT-GcW Guitar/Instrument Input Cable Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-901A G System 9 VHF Wireless Unipak System with AT-GcW Guitar Instrument Input Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-901A/G Specs | | | Type | VHF High Band | | Operating Frequencies | 169.505, 170.245, 171.045, 171.905 MHz | | Modulation Mode | FM | | Maximum Deviation | ±10 kHz | | Dynamic Range | ≥90 dB (A-weighted), typical | | Operating Range | 200' (61.0 m), open range environment with no interfering signals | | Operating Temperature Range | 40 to 110° F (4 to 43° C), battery performance may be reduced at very low temperatures | | Frequency Response | 80 to 13,000 Hz | | | | Receiving System | Non-diversity, single-channel, dual-antenna system | | Image Rejection | 50 dB minimum | | Audio Output | Nominal Output Level
Balanced XLR: 350 mV (1 kHz modulation, 10 kHz deviation, 100-kOhm load)
Unbalanced 1/4" (6.3 mm): 700 mV (1 kHz modulation, 10 kHz deviation, 100-kOhm load) | | Power Supply | 100 to 240 VAC (50/60 Hz) to 12 VDC at 0.5 A (center positive) switched mode external power supply | | Dimensions (W x H x D) | 7.48 x 1.82 x 5.06" (190 x 46.2 x 129 mm) | | Weight | 12.0 oz (337 g) | | | | RF Power Output | High: 10 mW | | Spurious Emission | Following federal and national regulations | | Input Connections | Four-pin, Locking Connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: BIAS +9 VDC | | Batteries | Two 1.5 V AA (not included) | | Current Consumption | 8 hours (alkaline), depending on battery type and use pattern | | Dimensions (W x H x D) | 2.76 x 4.08 x 0.98" (70.2 x 104 x 24.9 mm) | | Weight | 2.8 oz (79 g) (without batteries) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 13.9 x 10.8 x 4.3" |
