User Manual for Audio-Technica ATW-902A System 9 VHF Wireless Handheld Microphone System Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-902A System 9 VHF Wireless
- Product category: Wireless Systems Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Systems
 |
User manual for the Audio-Technica ATW-902A System 9 VHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

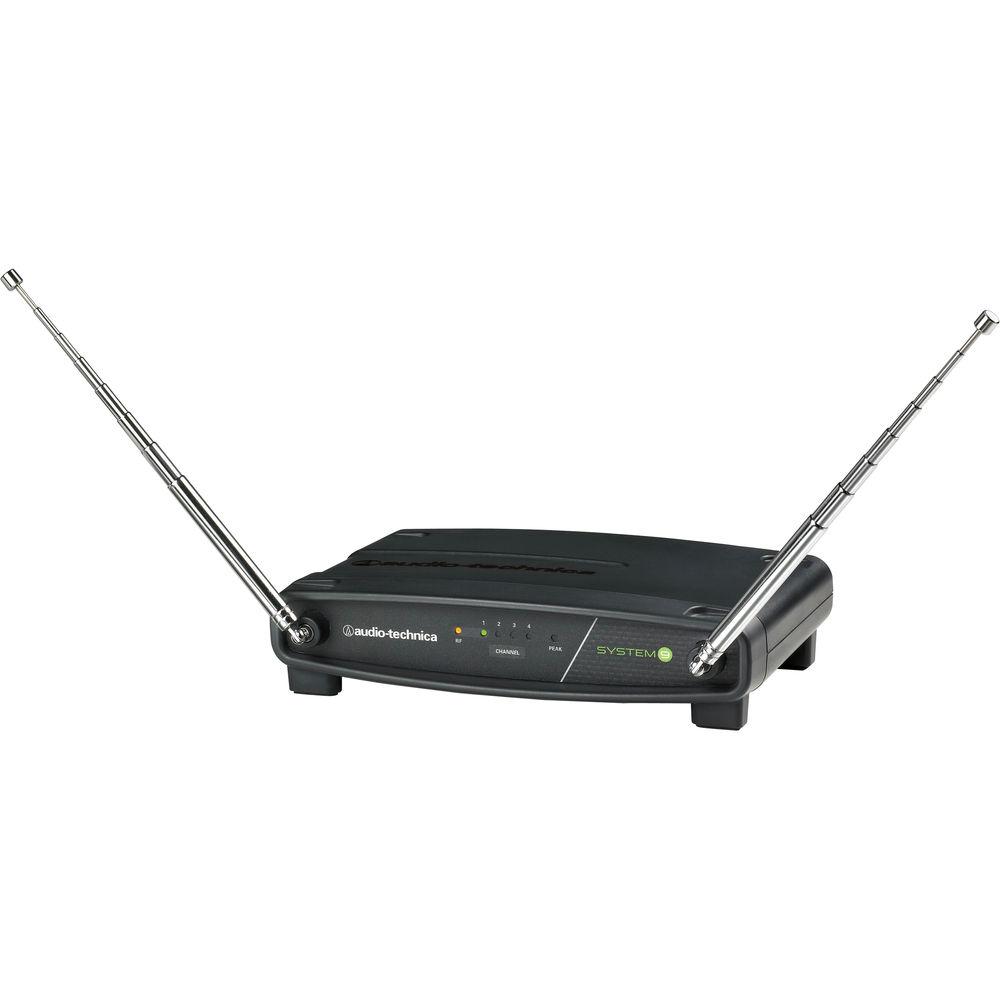

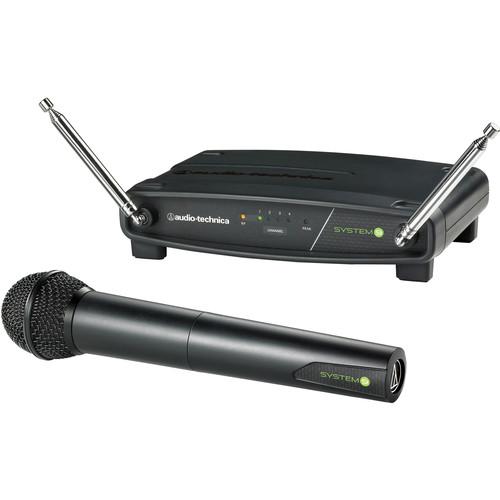

Product description The Audio-Technica ATW-902A System 9 VHF Wireless Handheld Microphone System is designed for live sound reinforcement applications. The system consists of a wireless VHF receiver and a wireless VHF handheld microphone transmitter. The receiver utilizes two dipole antennas for extended range, and allows you to select your VHF transmission frequency from 169 to 172 MHz.The receiver includes LED indicator lights for channel, RF, and AF peak. The back of the receiver includes a volume control knob, a squelch control knob, a balanced XLR audio output, and an unbalanced 1/4" audio output. The receiver also includes a power cord hook to prevent accidental pull-out of the DC power supply.

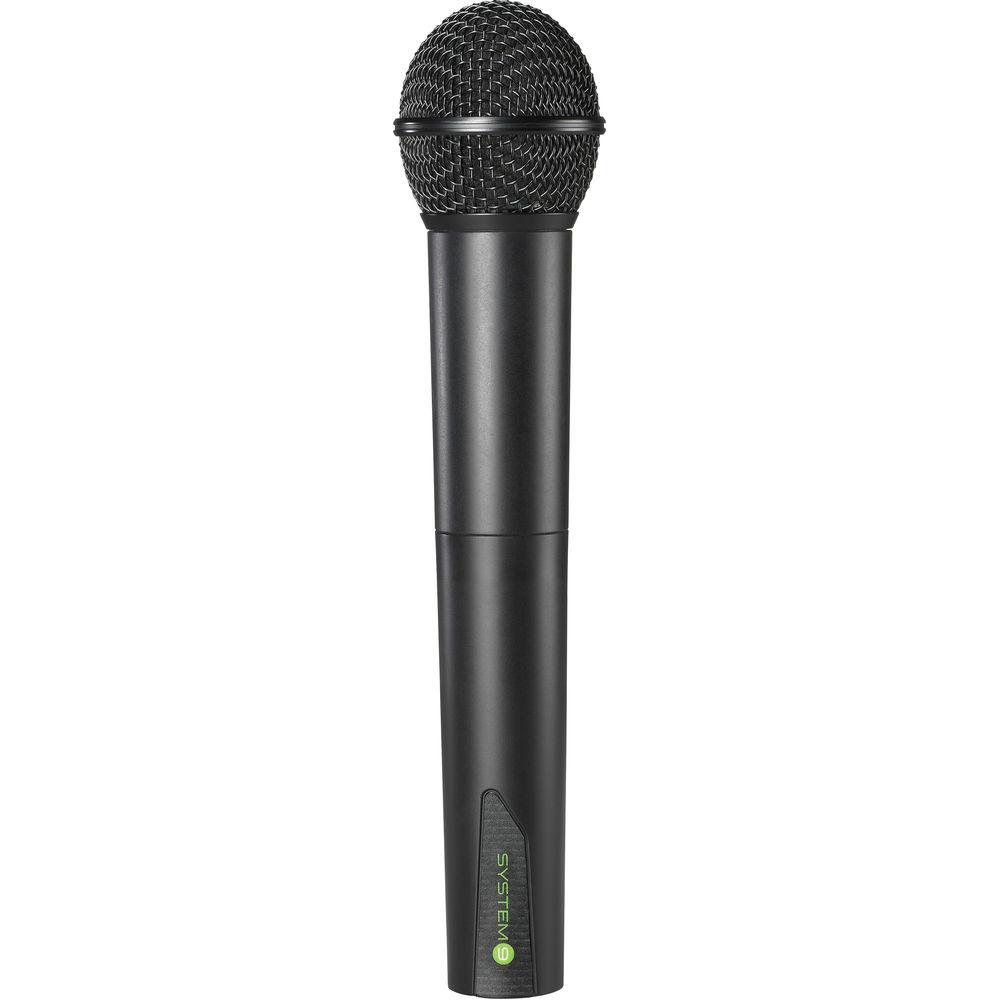

The handheld microphone transmitter is powered by two AA batteries and includes a battery status LED indicator, channel selection DIP switches, and a power/mute button. - Selectable VHF Transmission Frequencies
- Select four channels from 169 to 172 MHz
- Dipole Antenna for Extended Range
- The receiver utilizes two antennas to improve the range of the system
- Squelch Control
- The receiver features a squelch adjustment knob that controls the threshold for the radio signal that regulates audio output. If the radio signal from the microphone drops below the threshold, the squelch control mutes the audio output to prevent the transmission of radio interference and white noise from entering the speakers
In the Box Audio-Technica ATW-902A System 9 VHF Wireless Handheld Microphone System VHF Receiver VHF Handheld Microphone Transmitter AT8456a Quiet-Flex Mic Stand Clamp Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-902A System 9 VHF Wireless Handheld Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-902A Specs | | | Type | VHF High Band | | Operating Frequencies | 169 to 172 MHz | | Modulation Mode | FM | | Maximum Deviation | ±10 kHz | | Dynamic Range | ≥90 dB (A-weighted), typical | | Total Harmonic Distortion (THD) | <1% (at 1 kHz, ±10 kHz deviation) | | Operating Range | 200' (61.0 m), open range environment with no interfering signals | | Operating Temperature Range | 40 to 110°F (4 to 43°C), battery performance may be reduced at very low temperatures | | Frequency Response | 80 Hz to 13 kHz | | | | Receiving System | Non-diversity, single-channel, dual-antenna system | | Image Rejection | 50 dB minimum | | Audio Output | Nominal Output Level
Balanced XLR: 350 mV (1 kHz modulation, 10 kHz deviation, 100-kOhm load)
Unbalanced 1/4" (6.3 mm): 700 mV (1 kHz modulation, 10 kHz deviation, 100-kOhm load) | | Power Supply | 100 to 240 VAC (50/60 Hz) to 12 VDC at 0.5A (center positive) switched mode external power supply | | Dimensions (W x H x D) | 7.5 x 1.8 x 5.1" / 190 x 46.2 x 129 mm | | Weight | 12.0 oz / 337 g | | | | RF Power Output | 10 mW | | Spurious Emission | Following federal and national regulations | | Batteries | 2 x 1.5 V AA (not included) | | Battery Life | 8 hours (alkaline), depending on battery type and use pattern | | Dimensions (L x Diam) | 9.9 x 2.1" / 251.8 x 53.5 mm | | Weight | 9.2 oz / 260 g (without batteries) | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 13.8 x 10.9 x 4.3" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
