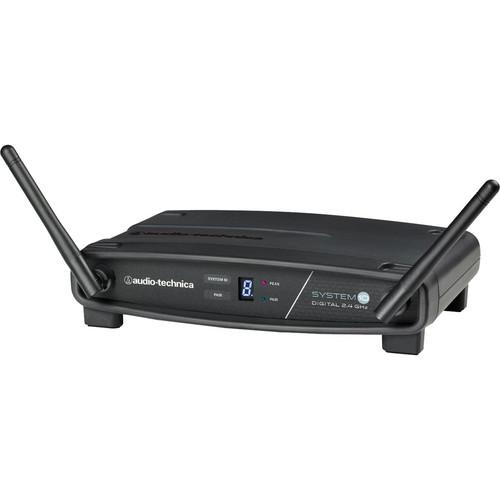

User Manual for Audio-Technica ATW-R1100 System 10 Digital Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-R1100 System 10 Digital Wireless
- Product category: Wireless Receivers Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Receivers
|
User manual for the Audio-Technica ATW-R1100 System 10 Digital Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica ATW-R1100 System 10 Digital Wireless Receiver is a digital high-fidelity wireless receiver designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup, and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, this digital receiver offers easy operation and instantaneous channel selection. Up to 8 channels can be used together without any frequency coordination problems or group selection issues. It also offers an easy-to-read digital ID display.The System 10 wireless receiver ensures clear communications by providing 3 levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on 2 dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses 2 antennas on each transmitter (not included) and receiver to maximize signal integrity. This digital receiver offers volume control along with AF peak and pair indicator lights. The ATW-R1100 Receiver includes a switching power supply that automatically adapts to changes in the mains voltage. - Digital 24-bit / 48 kHz wireless operation for high-quality sound and dependable performance
- 2.4 GHz range - completely free from TV interference
- Three levels of diversity assurance: frequency, time, and space
- Automatic frequency selection for seamless, interference-free operation
- Extremely easy operation with instantaneous channel selection, sync, and setup
- Balanced XLR and unbalanced 1/4" (6.35mm) output jacks with level control
UPC: 042005178025 In the Box Audio-Technica ATW-R1100 System 10 Digital Wireless Receiver 12VDC, 0.5A Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-R1100 System 10 Digital Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-R1100 Specs | Operating Frequency | 2.4 GHz ISM band | | Dynamic Range | > 109 dB (A-weighted), typical | | Total Harmonic Distortion | < 0.05% typical | | Operating Range | 100' (30 m) typical Open range environment with no interfering signals | | Frequency Response | 20 Hz to 20 kHz Depending on microphone type | | Audio Sampling | 24 bit / 48 kHz | | Receiving System | Diversity (frequency / time / space) | | Maximum Output Level | XLR, balanced: 0 dBV
1/4" (6.35 mm), Unbalanced: 6 dBV | | Power Supply | 100 to 240 VAC (50/60 Hz) to 12 VDC 0.5 A (center positive) switched mode external power supply | | Operating Temperature Range | 32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 7.48 x 1.82 x 5.06" (190.00 x 46.20 x 128.50 mm) | | Weight | 10.2 oz (290 g) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 14.6 x 12.4 x 4.2" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
