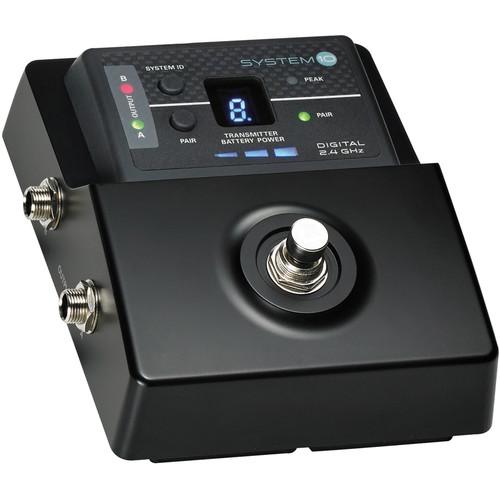

User Manual for Audio-Technica ATW-R1500 Stompbox Receiver Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-R1500 Stompbox Receiver
- Product category: Guitar Wireless Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Guitar Wireless
|
User manual for the Audio-Technica ATW-R1500 Stompbox Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The ATW-R1500 Stompbox Receiver from Audio-Technica is a single-channel, pedalboard-mountable, digital wireless receiver that operates in the 2.4 GHz range. The Stompbox has a footswitch, two switched TRS balanced 1/4" outputs, and an output mode selector. With the tap of your foot you can toggle between outputs to switch amps or to mute and unmute one output without muting the other for convenient tuning. Its metal body has easy-to-read digital ID and transmitter battery level displays, and AF peak and pair indicator lights. The Stompbox can be paired up with to eight ATW-T1001 UniPak bodypack transmitters (sold separately), enabling you to easily switch between instruments without having to move a bodypack from one instrument to the next. - Multi-pairing function to link a single receiver with up to eight bodypack transmitters
- Transmitter battery level display on receiver
- Housed in a strong metal stompbox-style body for reliable performance and pedalboard mounting
- Included hook & loop strips for adding receiver to effects pedalboard
In the Box Audio-Technica ATW-R1500 Stompbox Receiver Power Supply 2 x Hook & Loop Strips Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-R1500 Stompbox Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-R1500 Specs | Operating Frequency | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion | <0.05% typical | | Operating Range | 60' (18.3 m) radius, 120' (36.6 m) diameter typical
Open range environment with no interfering signals | | Operating Temperature Range | 32 to 104°F (0 to 40°C)
Battery performance may be reduced at very low temperatures | | Frequency Response | 20 Hz to 20 kHz
Depending on microphone type | | System | Diversity (frequency/time/space) | | Maximum Output Level | 1/4" (6.3 mm), TRS balanced: +12 dBV | | Power Supply | 100 - 240 VAC (50/60 Hz) to 12 VDC 0.5 A switched mode external power supply | | Dimensions | 3.98 x 1.73 x 5.12" (101 x 44 x 130 mm) | | Weight | 19.9 oz (565 g) |
