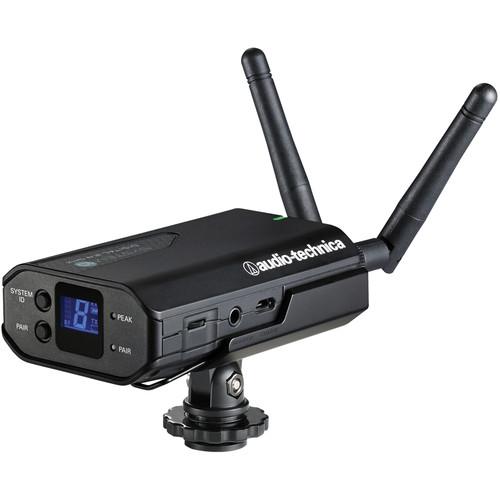

User Manual for Audio-Technica ATW-R1700 System 10 Portable Camera-Mount Digital Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-R1700 System 10 Portable Camera-Mount
- Product category: Wireless Receivers Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Receivers
|
User manual for the Audio-Technica ATW-R1700 System 10 Portable Camera-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description Audio Technica System 10 Camera-Mount Wireless System Read More The 2.4 GHz ATW-R1700 from Audio-Technica is a System 10 Portable Camera-Mount Digital Wireless Receiver. When paired with a transmitter and microphone (sold separately), it can be used on a cold shoe or hot shoe of a video camera, DSLR, mirrorless, or other similar camera for digital film making and electronic news gathering (ENG) applications. The ATW-R1700 receiver features an independent headphone monitor output, and selectable balanced or unbalanced audio outputs on a 3.5mm mini-jack connector. The unit is powered by an internal rechargeable Li-Ion battery. The receiver also features three levels of diversity assurance; namely, frequency, time, and space. The 24-bit/48 kHz and 2.4 GHz wireless operation of the ATW-R1700 provides clear sound quality and dependable performance; and furthermore, it is completely free from TV interference at all times. The System 10 camera-mount wireless receiver includes a hot/cold-shoe adapter, two antennas, an AC adapter (USB-type), a USB cable, and a 3.5mm stereo cable. - Separate headphone port and volume control for local audio monitoring
- Multi-pairing function to link a single receiver with up to eight body-pack or handheld transmitters (sold separately)
- Three levels of diversity assurance such as frequency, time & space
- Easy operation with instantaneous channel selection, sync and setup
UPC: 042005186280 In the Box Audio-Technica ATW-R1700 System 10 Portable Camera-Mount Digital Wireless Receiver (2.4 GHz) 2 x Antennas Camera Shoe Mount AC Adapter (USB-Type) USB Cable 1/8" (3.5mm) Stereo Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-R1700 System 10 Portable Camera-Mount Digital Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-R7000 Specs | | | Operating Frequencies | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion | <0.05% typical | | Operating Range | 100' (30 m) typical in open range environment with no interfering signals | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Frequency Response | 20 to 20,000 Hz | | | | System | Diversity (frequency, time, space) | | Maximum Output Level | 1/8" (3.5 mm) TRS mini-jack
Balanced: +6 dBV dual mono
Unbalanced: 0 dBV | | Antennas | 2 | | Power Supply | Internal 3.7 V rechargeable Li-Ion battery | | Battery Life | 12 hours (depending on environmental conditions) | | Battery Charging Time | 4 hours 30 minutes (depending on environmental conditions) | | Charging Temperature | Range: 41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 2.20 x 3.60 x 1.09" (56.0 x 91.4 x 27.8 mm) | | Weight | 3.7 oz (105 g) |
