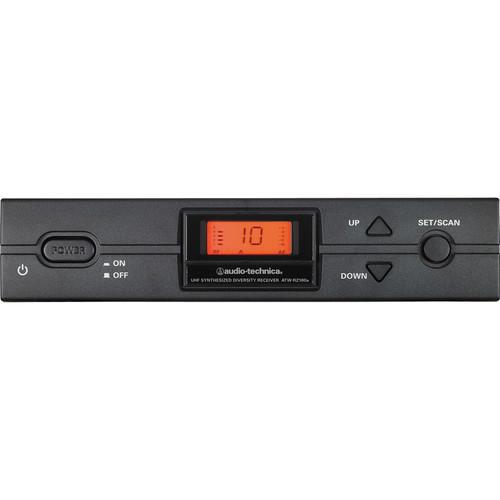

User Manual for Audio-Technica ATW-R2100b Wireless Microphone Receiver Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-R2100b Wireless Microphone Receiver
- Product category: Wireless Receivers Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Receivers
|
User manual for the Audio-Technica ATW-R2100b Wireless Microphone Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica ATW-R2100b Wireless Microphone Receiver is intended for use with the Audio-Technica 2000 Series wireless microphone systems. The receiver features UHF diversity reception, 10 user-selectable frequencies, automatic frequency scan, and Tone Lock squelch system for interference-free reception. Balanced XLR and 1/4" phone connections adapt to professional and consumer gear, and a bright LCD display delivers a comprehensive read-out of settings in dimly lit conditions. - Serious advances in affordable professional wireless
- Clear sound quality and rock-solid, dependable performance
- Automatic frequency scanning
- 10 compatible user-switchable channels in one of two UHF frequency ranges
- Antenna power available for powered antennas & other in-line RF devices
- True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
- Tone Lock tone squelch system fights interference
- Rugged metal half-rack receiver with soft-touch controls and LCD display
- Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
- Switchable transmitter power output with high and low settings offered
- Includes rackmount kit and detachable UHF antennas
- Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
In the Box Audio-Technica ATW-R2100b Wireless Microphone Receiver Flexible UHF Antennas AC Power Adapter Rackmount Adapters Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-R2100b Wireless Microphone Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-R2100b Specs | Type of Receiver | ATW-R2100b UHF Diversity Half-Rack Mount | | Type of Outputs | Balanced: XLR-male
Unbalanced: 1/4" (6.3 mm) phone | | Headphone Monitoring | No | | Power Requirements | 12-18 VDC, 500 mA | | Battery Type/Approx. Life | AC power only | | Display | Backlit LCD | | Mounting Options | Rackmount adapters (included) | | Antenna Type | BNC-type, 50 Ohms
Bias voltage 12 VDC, 60 mA, each | | Base Dimensions (WxHxD) | 8.27 x 1.73 x 6.39" (210 x 44.0 x 162.2 mm) | | Weight | 2.2 lb (1.0 kg) | | | | Box Dimensions (LxWxH) | 15.0 x 13.25 x 3.75" |
