User Manual for Audio-Technica ATW-T1002 System 10 Handheld Unidirectional Microphone Transmitter Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-T1002 System 10 Handheld Unidirectional
- Product category: Wireless Transmitters Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Transmitters
 |
User manual for the Audio-Technica ATW-T1002 System 10 Handheld Unidirectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

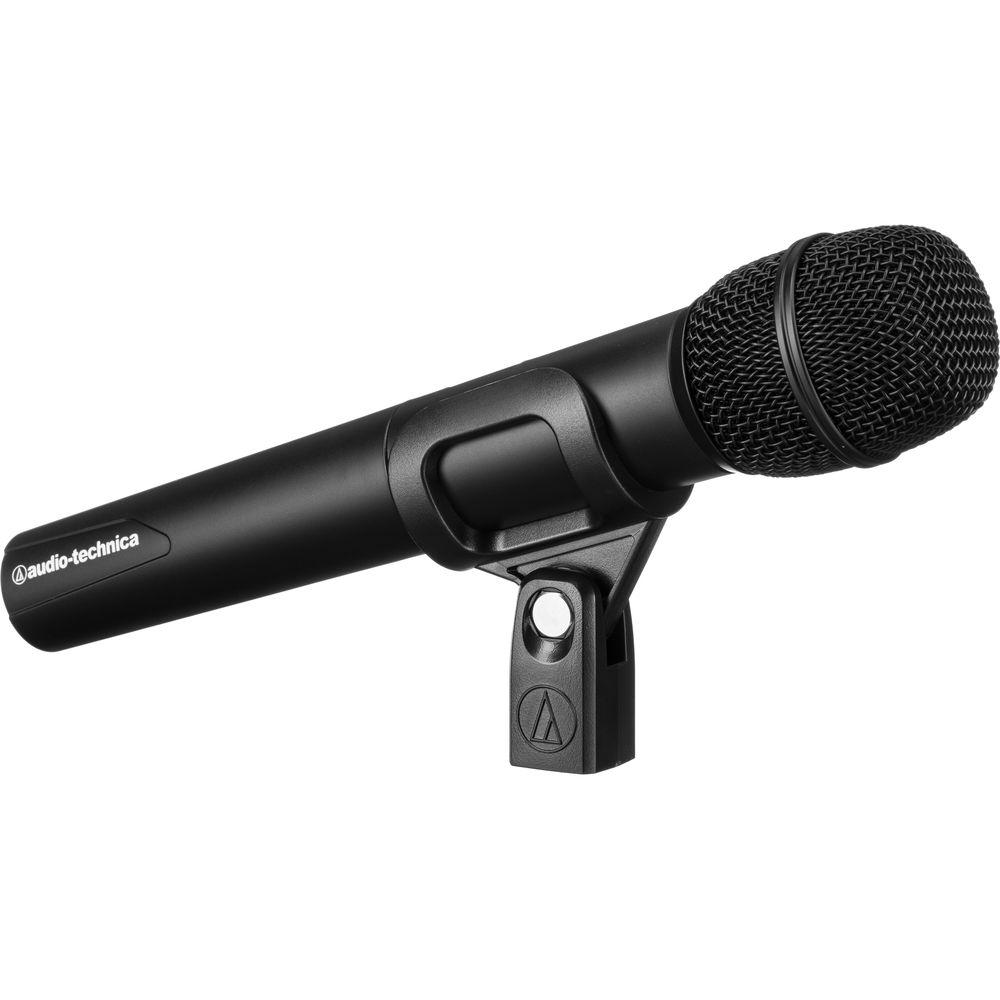

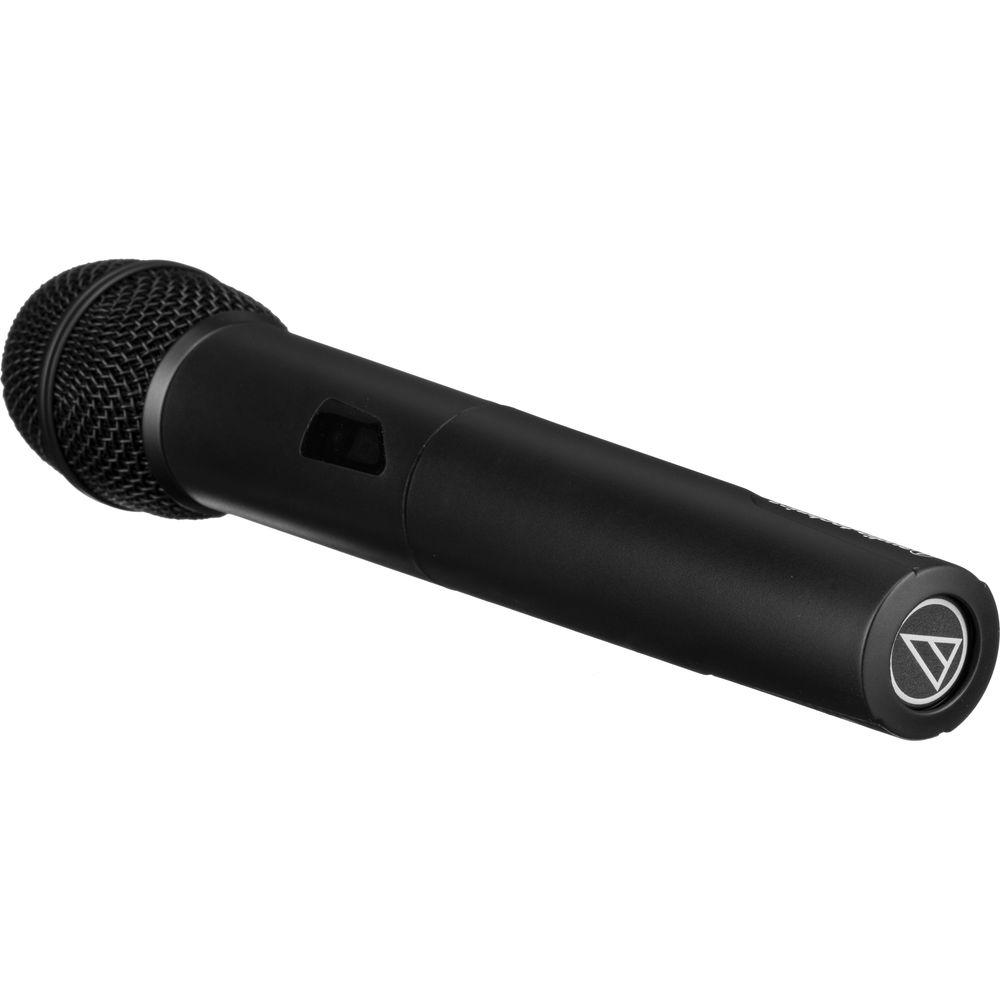

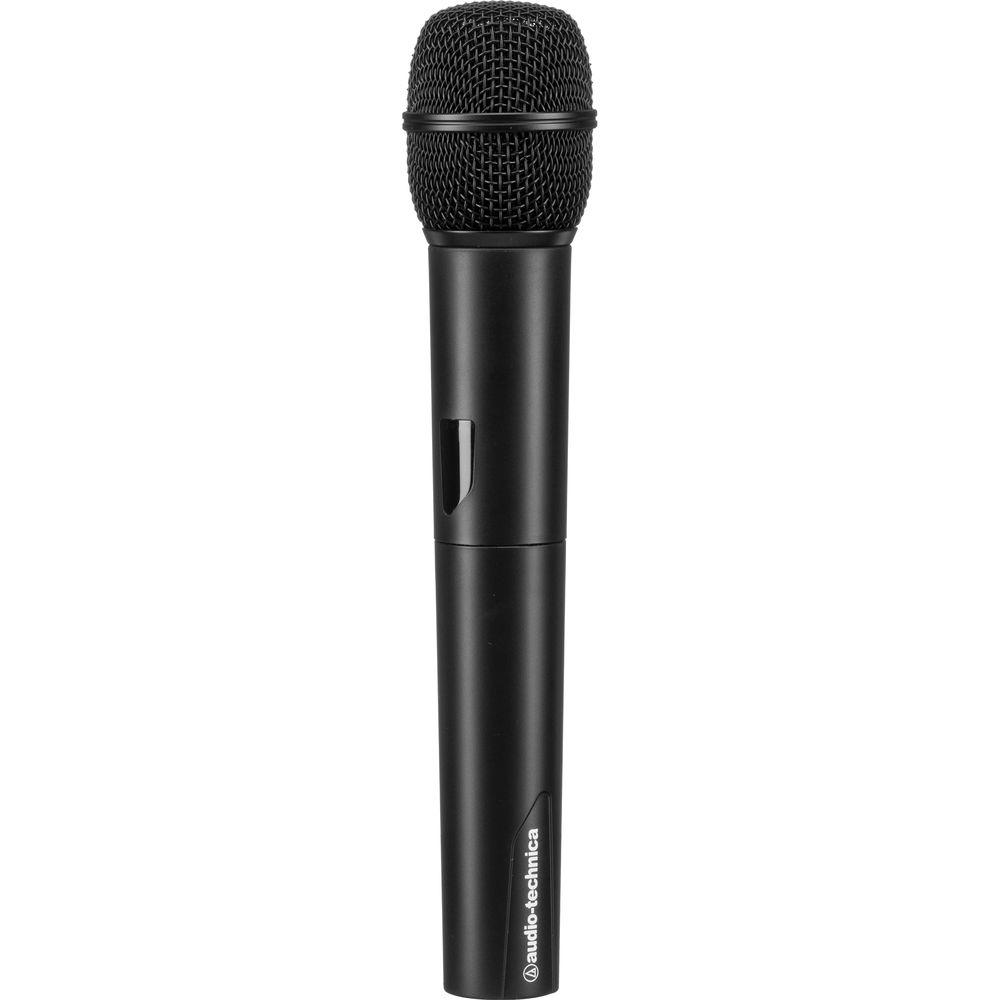

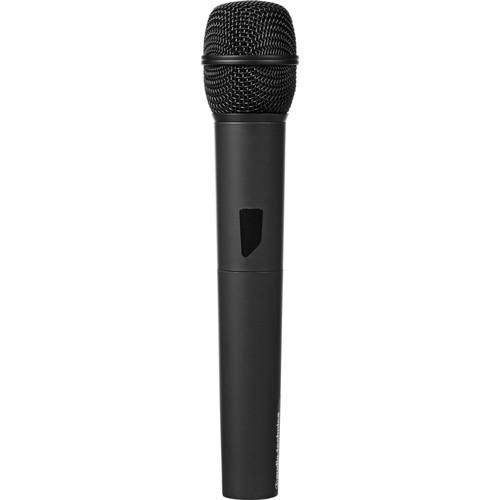

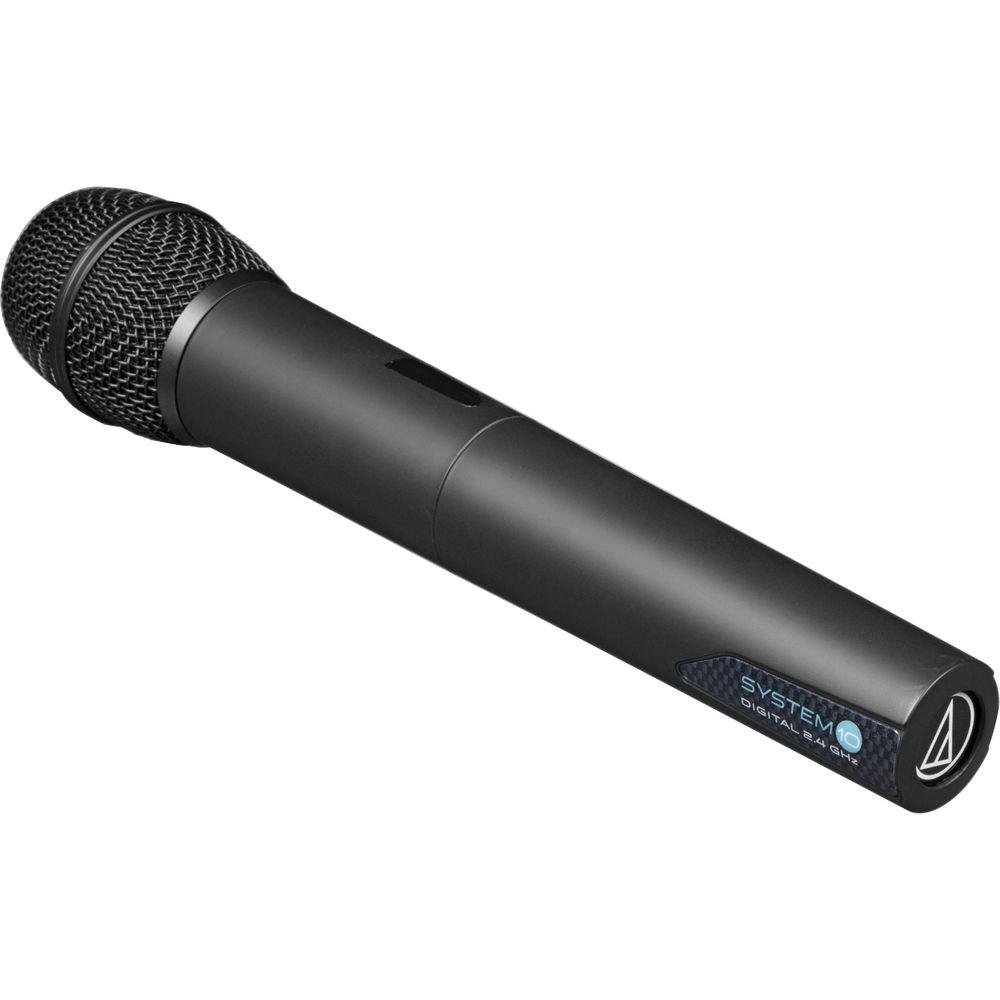

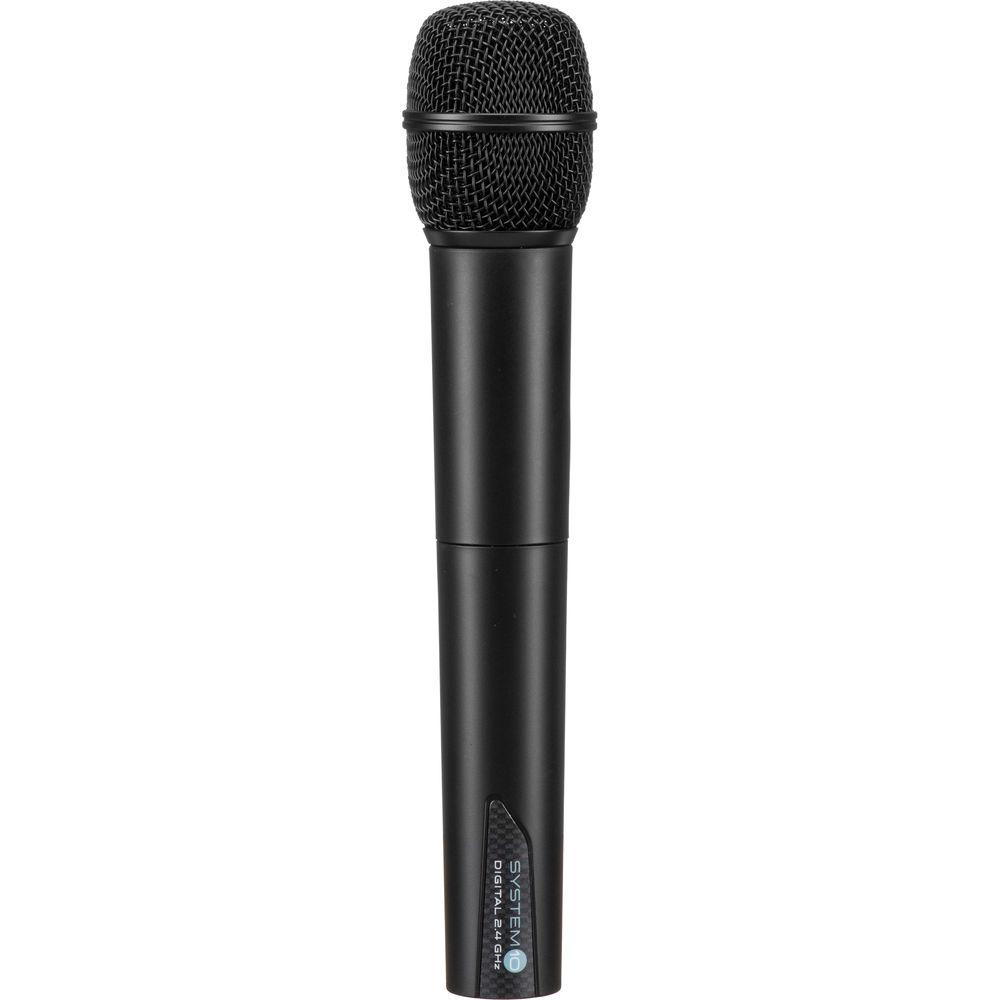

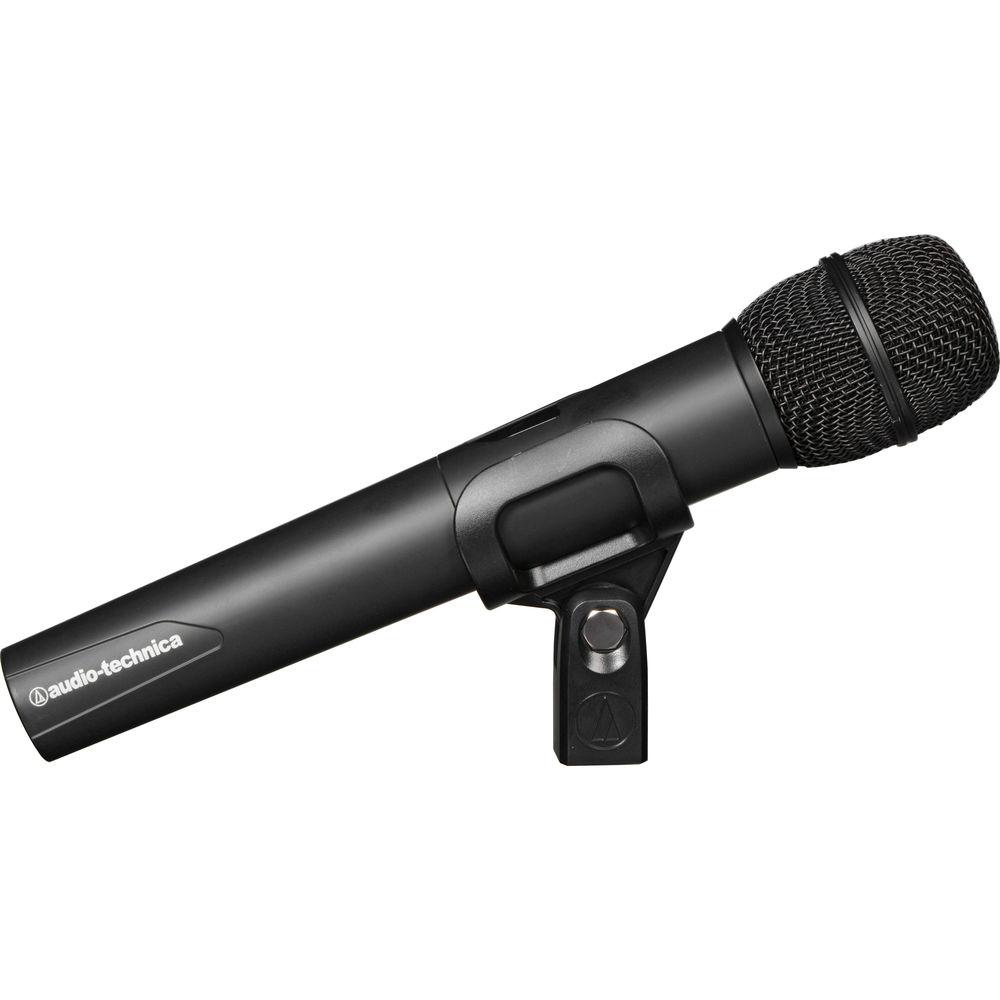

Product description The Audio-Technica ATW-T1002 System 10 Handheld Unidirectional Microphone/Transmitter is a digital high-fidelity wireless transmitter designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup, and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, this digital transmitter offers easy operation. It also offers an easy-to-read digital ID display.The System 10 wireless transmitter ensures clear communications by providing 3 levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on 2 dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses 2 antennas on the transmitter and receiver (sold separately) to maximize signal integrity. The ATW-T1002 handheld transmitter features a Unidirectional dynamic microphone element and has a Power/Mute switch, as well as an adjustable input level control. - Digital 24-bit / 48 kHz wireless operation for high-quality sound and dependable performance
- 2.4 GHz range - completely free from TV interference
- Three levels of diversity assurance: frequency, time, and space
- Unidirectional dynamic microphone
- Power/Mute/Battery indicator shows operation status and lets you know when batteries are low, dead or installed incorrectly
- Adjustable input level control with included transmitter screwdriver
- Transmitter pairing switch and system ID display for pairing the transmitter with a receiver
- Power/Mute button allows toggling between muted and unmuted operation via a single touch
UPC: 042005178018 In the Box Audio-Technica ATW-T1002 System 10 Handheld Unidirectional Microphone/Transmitter Transmitter Screwdriver AT8456a Quiet-Flex Mic Stand Clamp raasqqtadqcsubdxfxucsy Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-T1002 System 10 Handheld Unidirectional Microphone Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-T1002 Specs | Operating Frequency | 2.4 GHz ISM band | | Dynamic Range | > 109 dB (A-weighted), typical | | Total Harmonic Distortion | < 0.05% typical | | Operating Range | 100' (30 m) typical Open range environment with no interfering signals | | Frequency Response | 20 Hz to 20 kHz Depending on microphone type | | Audio Sampling | 24 bit / 48 kHz | | RF Output Power | 10 mW | | Spurious Emission | Following federal and national regulations | | Battery Requirement | Two 1.5 V AA (not included) | | Battery Life | > 7 hours (alkaline) Depending on battery type and use pattern | | Operating Temperature | 32 to 104°F (0 to 40°C) Battery performance may be reduced at very low temperatures | | Dimensions (LxDiameter) | 10.03 x 1.97" (254.8 x 50.0 mm) | | Weight | 9.9 oz (280 g) | | | | Package Weight | 0.955 lb | | Box Dimensions (LxWxH) | 12.75 x 2.7 x 2.6" |
