User Manual for Audio-Technica ATW-T3201EE1 3000 Series Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-T3201EE1 3000 Series Bodypack Transmitter
- Product category: Wireless Transmitters Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Transmitters
 |
User manual for the Audio-Technica ATW-T3201EE1 3000 Series Bodypack Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

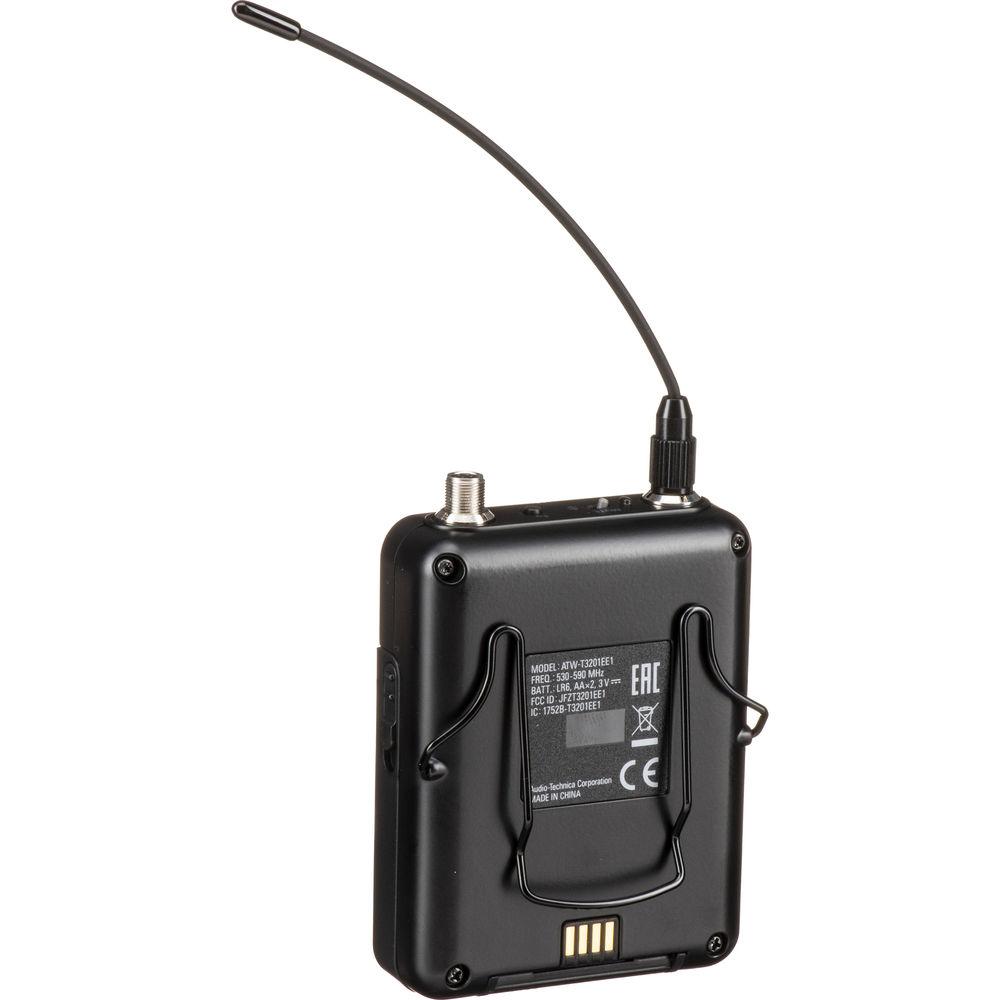

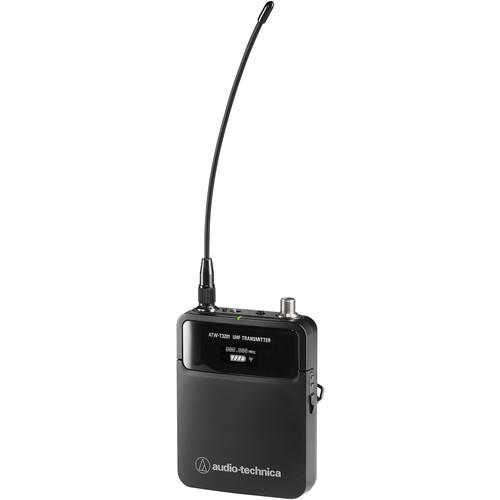

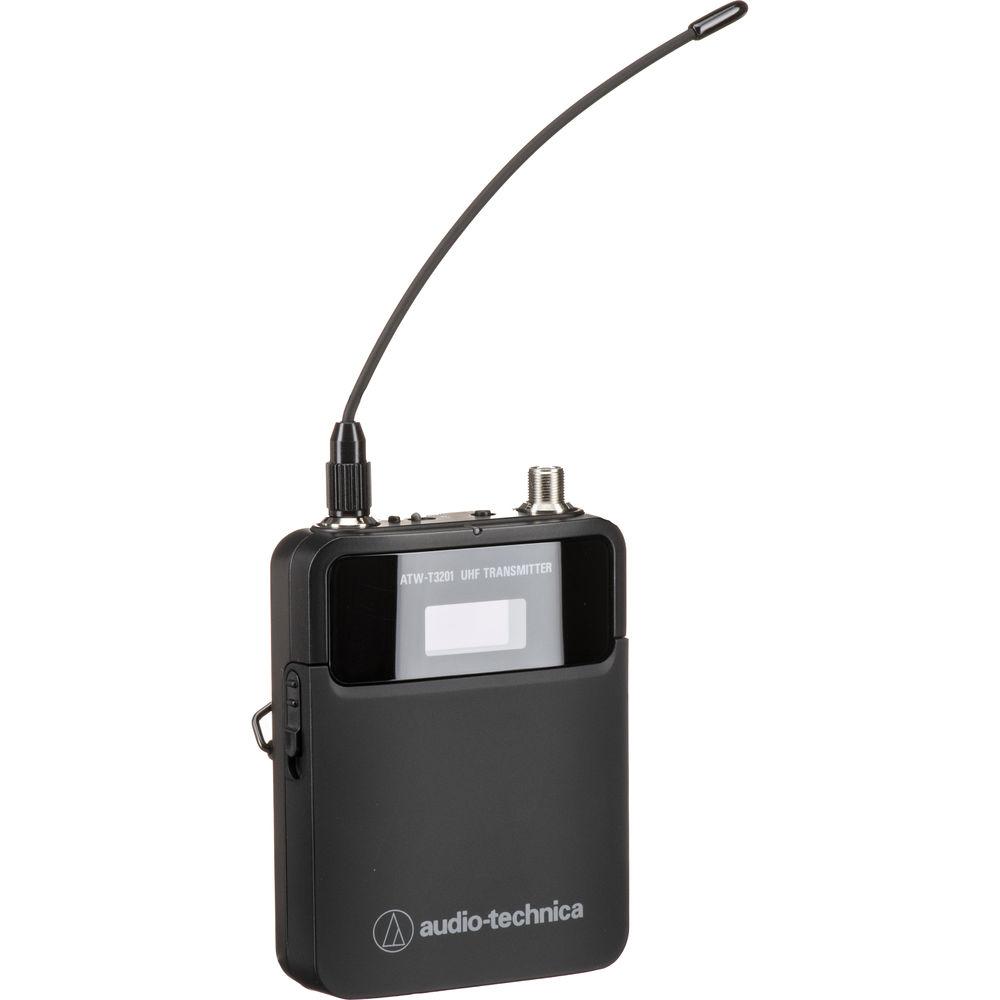

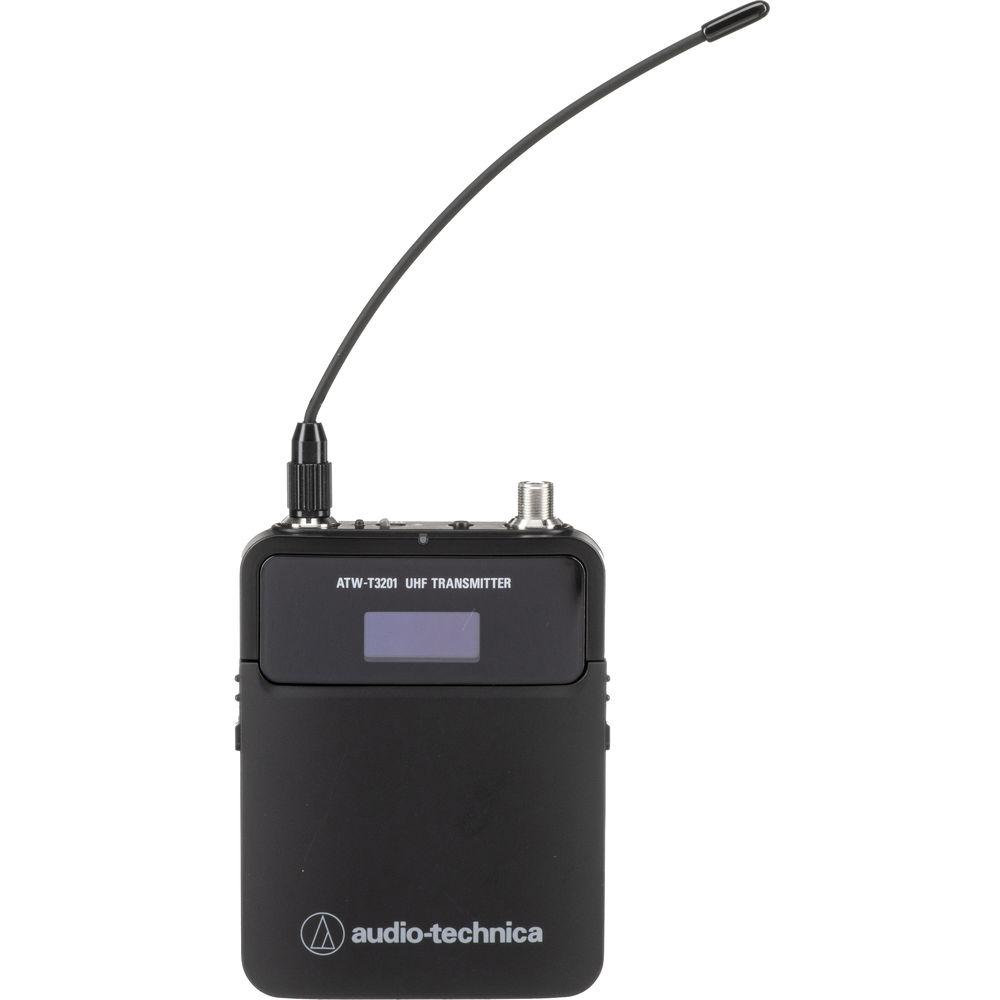

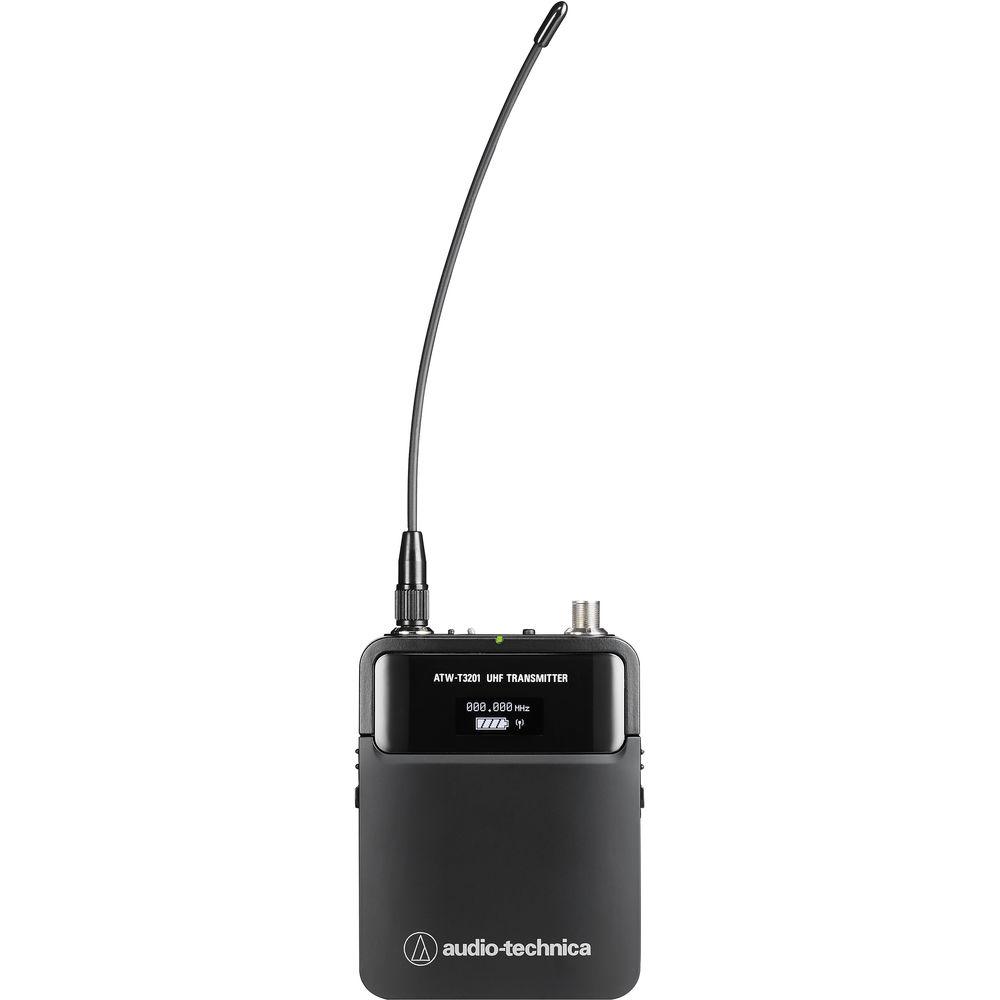

Product description The ATW-T3201EE1 3000 Series (Fourth Generation) Bodypack Transmitter from Audio-Technica is a frequency-agile, true diversity UHF wireless bodypack transmitter with a cH-style input connector. It can be used when paired with a wireless receiver and lavalier or headset microphone (sold separately) to deliver natural audio for live stage, theater, television, lecture, and presentation applications.The ATW-T3201EE1 bodypack transmitter is powered by two AA batteries. It features a rugged metal housing and a screw-down, 4-pin (cH-style) connector. The 3000 Series Fourth Generation wireless bodypack offers a 60 MHz tuning range, is equipped with 2400 frequencies, and a 328' operating range. Charging terminals on the transmitter work with the ATW-CHG3 and ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries. - Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment
- Unique multifunction button on the bodypack transmitter that can be used to switch to a backup frequency should interference be encountered
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup
- Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connectors

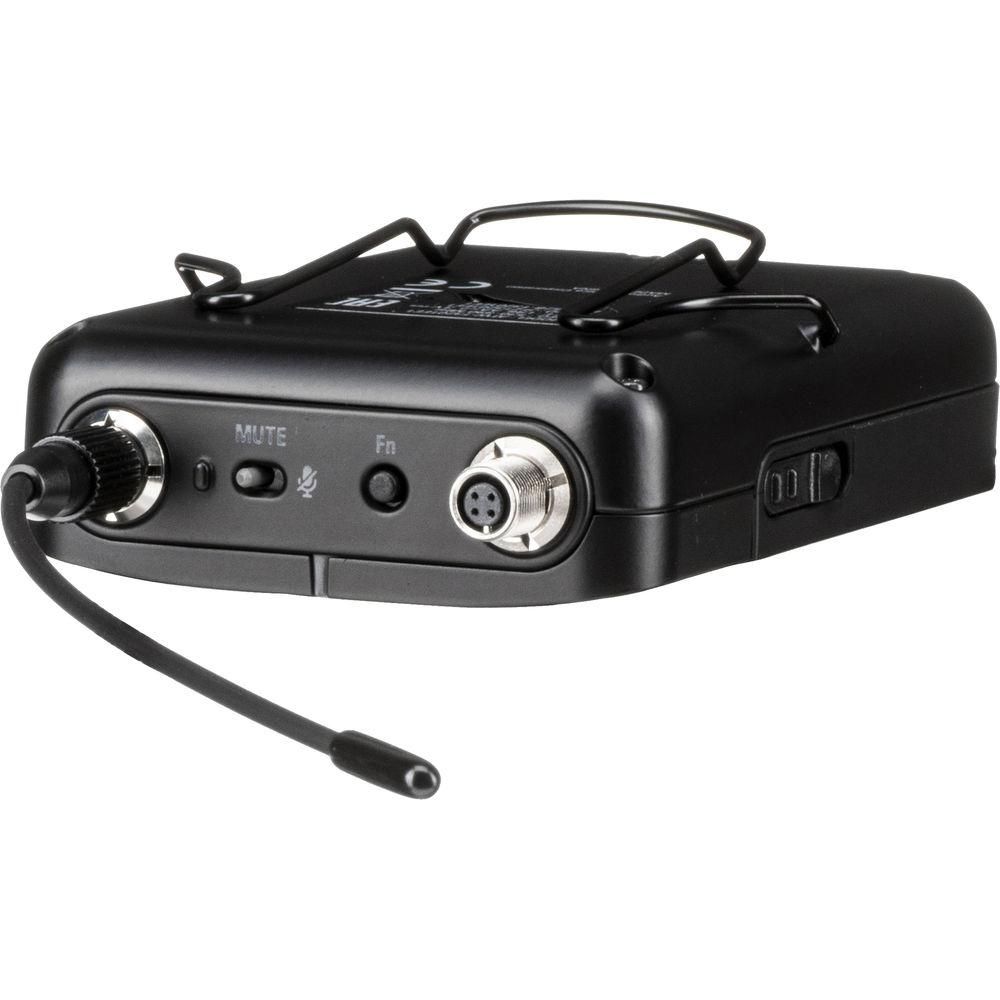

- The bodypack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
- Charging terminals on the transmitter work with optional ATW-CHG3 and ATW-CHG3N smart charging dock to recharge NiMH batteries
In the Box Audio-Technica ATW-T3201EE1 3000 Series (Fourth Generation) Bodypack Transmitter (EE1: 530.000 to 589.975 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-T3201EE1 3000 Series Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-T3201EE1 Specs | | | Frequency | EE1: 530.000 to 589.975 MHz | | RF Power Output | High: 30 mW
Low: 10 mW
(switchable, at 50 Ohms) | | Spurious Emissions | Following federal and national regulations | | Input Connections | cH-style screw-down 4-pin connector
Pin 1: GND
Pin 2: Instrument input
Pin 3: Mic input
Pin 4: DC bias +5 V | | High-Pass Filter | 125 Hz, 12 dB/octave (low-frequency roll-off) | | Batteries | 2 x 1.5 V AA (not included) | | Battery Life | Alkaline
High: 8.0 hours
Low: 9.0 hours
Ni-MH 1900 mAh
High: 9.0 hours
Low: 9.5 hours
(Depending on battery type, usage, and environmental conditions) | | Dimensions (W x D x H) | 2.52 x 3.22 x 0.91" / 64 x 82 x 23 mm | | Weight | 3.6 oz / 102 g, without batteries | | | | Package Weight | 0.42 lb | | Box Dimensions (LxWxH) | 10.5 x 3.4 x 2.0" |
