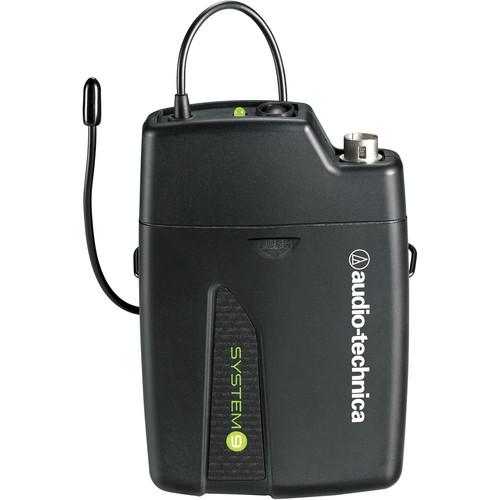

User Manual for Audio-Technica ATW-T901a System 9 Frequency-Agile VHF Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-T901a System 9 Frequency-Agile VHF
- Product category: Wireless Transmitters Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Transmitters
|
User manual for the Audio-Technica ATW-T901a System 9 Frequency-Agile VHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The ATW-T901a System 9 Frequency-Agile VHF Bodypack Transmitter from Audio Technica is a single-channel transmitter, although it is a frequency agile system, which means you can select any one of the four frequencies (169.505, 170.245, 171.045, and 171.905 MHz) and use up to four System 9 wireless systems at the same time, if each system is set to a different frequency. The ATW-T901a bodypack transmitter can be used when paired with an optional System 9 receiver and a 4-pin lavalier microphone, headset microphone, or AT-GcW guitar/instrument input cable (sold separately) to capture audio for presentation, ENG, and sound reinforcement applications. - Easy operation and clear, natural sound quality
- 4 selectable frequency-coordinated VHF channels
- Reliable performance and durable construction
In the Box Audio-Technica ATW-T901a System 9 Frequency-Agile VHF Bodypack Transmitter (169 to 172 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-T901a System 9 Frequency-Agile VHF Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-T901a Specs | | | Type | VHF high band | | Operating Frequencies | 169.505, 170.245, 171.045, and 171.905 MHz | | Modulation Mode | FM | | Maximum Deviation | ±10 kHz | | Dynamic Range | ≥90 dB (A-weighted), typical | | Total Harmonic Distortion (THD) | <1% (at 1 kHz, ±10 kHz deviation) | | Operating Range | 200' / 60 m typical, open range environment with no interfering signals | | Operating Temperature Range | 40 to 110°F / 4 to 43°C, battery performance may be reduced at very low temperatures | | Frequency Response | 80 Hz to 13 kHz | | | | RF Power Output | 10 mW | | Spurious Emissions | Following federal and national regulations | | Input Connections | Four-pin locking connector
Pin 1: GND
Pin 2: Instrument input
Pin 3: Microphone input
Pin 4: DC bias +9 V | | Batteries | 2 x 1.5 V AA | | Battery Life | Alkaline: 8 hours (depending on battery type and use pattern) | | Dimensions (W x H x D) | 2.8 x 4.1 x 1.0" / 7.0 x 10.4 x 2.5 cm | | Weight | 2.8 oz / 79.4 g without batteries |
