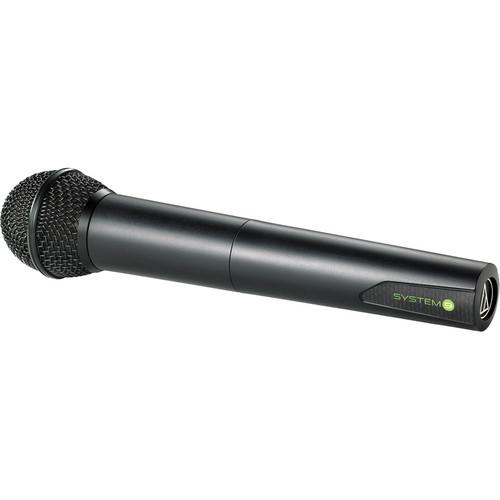

User Manual for Audio-Technica ATW-T902 System 9 Unidirectional Handheld Microphone Transmitter Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATW-T902 System 9 Unidirectional Handheld
- Product category: Wireless Transmitters Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Transmitters
|
User manual for the Audio-Technica ATW-T902 System 9 Unidirectional Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica ATW-T902 System 9 Unidirectional Handheld Microphone/Transmitter works with the ATW-R900 receiver (sold separately) and is designed to provide reliable performance along with easy setup and clear, natural sound quality. It supports four user-switchable channels in one of four available VHF frequencies (169.505, 170.245, 171.045, and 171.905 MHz).
The ATW-T902 handheld transmitter features a unidirectional dynamic microphone element and has a Power/Mute switch and input Trim (level) adjustment. It uses 2 AA batteries and can run on battery power for up to 8 hours depending on the battery type and use pattern. - Easy operation and clear, natural sound quality
- Unidirectional dynamic microphone element
- 4 selectable frequency-coordinated VHF channels
- Power/Mute switch with LED indicator, Channel Selection DIP switches and adjustable Gain Trimmer
- Reliable performance and durable construction
UPC: 042005178407 In the Box Audio-Technica ATW-T902 System 9 Unidirectional Handheld Microphone/Transmitter AT8456a Quiet-Flex Mic Stand Clamp raasqqtadqcsubdxfxucsy Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATW-T902 System 9 Unidirectional Handheld Microphone Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-T902 Specs | Operating Frequency | VHF highband, 169.505, 170.245, 171.045, and 171.905 MHz | | Modulation Mode | FM | | Maximum Deviation | ± 10 kHz | | Dynamic Range | ≥ 90 dB (A-weighted), typical | | Total Harmonic Distortion | < 1% (at 1 kHz, ± 10 kHz deviation) | | Operating Range | 200' (60 m) typical Open range environment with no interfering signals | | Operating Temperature Range | 40 to 110°F (4 to 43°C) | | Frequency Response | 80 Hz to 13 kHz | | RF Output Power | 10 mW | | Spurious Emission | Following federal and national regulations | | Battery Requirement | 2 x 1.5 V, AA size (not included) | | Battery Life | Approximately 8 hours (alkaline) Depending on battery type and use pattern | | Dimensions | 9.91 x 2.11" (251.8 x 53.5 mm) | | Weight | 9.2 oz (260 g) without batteries | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 12.7 x 2.8 x 2.8" |
