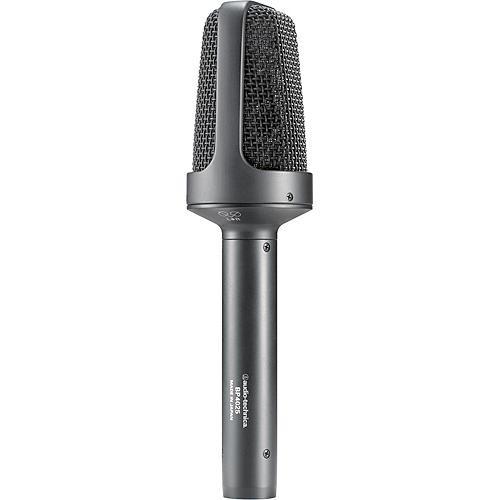

User Manual for Audio-Technica BP4025 X Y Stereo Field Recording Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica BP4025 X Y Stereo Field
- Product category: Stereo & Specialty Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Stereo & Specialty Microphones
|
User manual for the Audio-Technica BP4025 X Y Stereo Field contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica BP4025 X/Y Stereo Microphone captures ambiance, live performances and any audio source with accurate stereo imaging and detailed frequency response. The capsule features two condenser capsules mounted in an X/Y configuration. Its innovative coincident capsule configuration produces accurate stereo image in a smaller housing.The BP4025 terminates to a 5-pin XLR output and the supplied cable provides dual 3-pin XLR connectors for stereo connections to cameras, mixer channels, portable recorders, etc. The microphone requires 11-52VDC phantom power and includes the 5-pin to dual 3-pin XLR cable, stand adapter, windscreen and protective pouch. - Stereo recording of ambiance, musical performances, vocals, and more
- 5-pin output and dual 3-pin XLR cable is supplied
- Coincidence element mounting for smaller capsule profile
In the Box Audio-Technica BP4025 X/Y Stereo Field Recording Microphone 5-Pin to Dual 3-Pin XLR Cable (16.5') (5.0m) AT8405a Stand Clamp for 5/8"-27 Threaded Stands Windscreen Soft Protective Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica BP4025 X Y Stereo Field Recording Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica BP4025 Specs | Transducer | Fixed-charge back plate permanently polarized condenser | | Polar Pattern | X/Y Stereo | | Frequency Response | 20Hz to 17kHz | | Dynamic Range (Typical) | 131dB, 1kHz at Max SPL | | Signal-to-Noise Ratio | 80dB, 1kHz at 1Pa | | Maximum Input Sound Level | 145dB SPL, 1kHz at 1% T.H.D.;
155dB SPL, with 10 dB pad (nominal) | | Power Requirements | 11-52VDC, 7mA typical (both channels total) | | Output Impedance | 170 ohms | | Output Connectors | 5-pin XLR Output (5-Pin to dual 3-Pin XLR Cable Supplied) | | Pad | -10dB | | Low Frequency Roll-Off | 80Hz, 12dB / octave | | Dimensions (LxDiameter) | 7.32 x 1.87" (186.0 x 47.5mm) | | Weight | 9.5 oz (269g) | | | | Package Weight | 1.97 lb | | Box Dimensions (LxWxH) | 9.6 x 5.25 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
