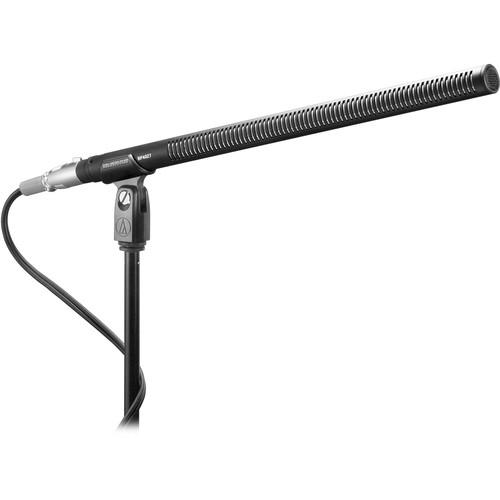

User Manual for Audio-Technica BP4027 - Stereo Shotgun Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica BP4027 - Stereo Shotgun Condenser
- Product category: Shotgun Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Shotgun Microphones
|
User manual for the Audio-Technica BP4027 - Stereo Shotgun Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The BP4027 (AT815ST) Stereo Shotgun Microphone from Audio-Technica is a direct result of input Audio Technica received from broadcasters over the last few years. After extensive testing of this microphone by television broadcast professionals, as well as at Olympic test events, this microphone became a favorite among broadcasters, sound recordists and videographers. - Designed for broadcasters, videographers and sound recordists
- Compact, lightweight design is perfect for camera-mount use
- Independent Line-cardioid and Figure-of-eight condenser elements
- Switchable low-frequency roll-off
- Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes
UPC: 042005310531 In the Box Audio-Technica BP4027 (AT815ST) - Stereo Shotgun Condenser Microphone (AT8405a) Stand Clamp 5/8"-27 to 3/8"-16 Threaded Adapter (AT8135) Foam Windscreen 24" (0.61 m) Y-Cable (5-Pin XLR-F to Two Standard XLR-3M Connectors) Protective Carrying Case Limited 5-Year Warranty Specification PDF 132.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica BP4027 - Stereo Shotgun Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica BP4027 Specs | Transducer | Fixed-Charged Back Plate Permanently Polarized Condenser | | Polar Pattern | Line-Cardioid and Figure-of-Eight | | Frequency Response | 30 Hz - 20 kHz | | Dynamic Range (Typical) | Mid: 123 dB
Side: 127 dB
LR Stereo: 126 dB, (All @ 1 kHz at Maximum SPL) | | Signal-to-Noise Ratio | Mid: 72 dB, (SPL, 1 kHz at 1 Pa)
Side: 68 dB, (SPL, 1 kHz at 1 Pa)
LR Stereo: 70 dB, (SPL, 1 kHz at 1 Pa) | | Maximum Input Sound Level | Mid: 123 dB, (1 kHz at 1% T.H.D.)
Side: 127 dB, (1 kHz at 1% T.H.D._
LR Stereo: 126 dB, (1 kHz at 1% T.H.D.) | | Power Requirements | Phantom Power, 9 - 52 VDC | | Output Impedance | 200 ohms | | Output Connectors | XLR-5M Type (from Microphone)
2 XLR-3M Connectors (L+R) from Microphone's Adapter Cable | | Pad | None | | Low Frequency Roll-Off | -12 dB/Octave, (@ 80 Hz) | | Applications | Video Film, and Broadcast Production | | Dimensions | 14.96 x 0.83" (380 x 21 mm) L x Diameter | | Weight | 5.0 oz (142 g) | | | | Package Weight | 1.995 lb | | Box Dimensions (LxWxH) | 21.5 x 5.9 x 3.4" |
