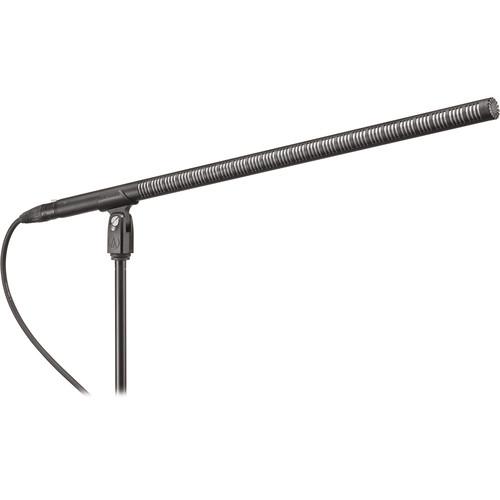

User Manual for Audio-Technica BP4071L Line and Gradient Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica BP4071L Line and Gradient Condenser
- Product category: Shotgun Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Shotgun Microphones
|
User manual for the Audio-Technica BP4071L Line and Gradient Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The BP4071L Line and Gradient Condenser Microphone from Audio-Technica features an extended length of 21" that maximizes directivity and narrows the pickup area. The result is focused audio capturing and minimal noise and artifacts from sources outside the pickup area. The BP4071L is a popular choice among broadcast and film recording professionals, but may also be used in ENG (News Gathering), sound design applications and more. - Overall length of 21.22" with an extremely narrow, highly directional pickup pattern
- Ideal for use in broadcasting, film/TV production, and theater sound reinforcement
- Direct-coupled, balanced output ensures a clean signal even in high-output conditions
- Transformerless design for improved pickup of transients
- Rugged housing made of lightweight structural-grade aluminum alloy
- Interference tube design for narrow acceptance angle
- Switchable 80 Hz high-pass filter & 10 dB pad
- RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
In the Box Audio-Technica BP4071L Line and Gradient Condenser Microphone Windscreen AT8405a Stand Clamp for 5/8"-27 Threaded Stands 5/8"-27 to 3/8"-16 Threaded Adapter AT8145 Windscreen 2 x O-Rings Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica BP4071L Line and Gradient Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica BP4071L Specs | | | Operating Principle | Line Gradient | | Transducer | Condenser | | Frequency Range | 20 Hz to 18 kHz | | Signal to Noise Ratio | 81 dB | | Equivalent Noise Level | 13 dB | | Maximum SPL | 141 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 50 Ohms | | Sensitivity | -29 dB | | Low-Cut Filter | 12 dB/Octave @ 80 Hz | | Dynamic Range | 128 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.8 mA | | Operating Voltage | 48 V | | Length | 21.22" / 539 mm | | Diameter | 0.83" / 21 mm | | Weight | 6.17 oz / 175 g | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 23.6 x 4.6 x 2.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
