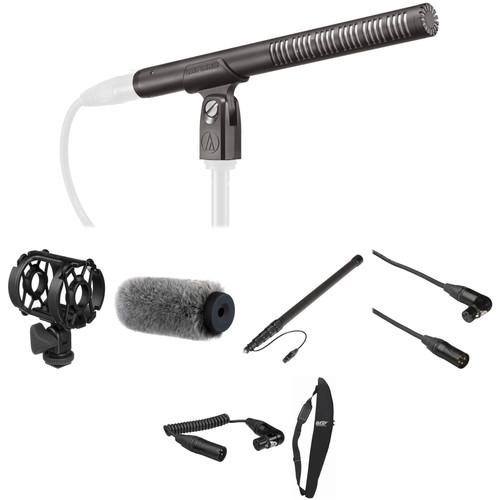

User Manual for Audio-Technica BP4073 Shotgun Microphone Advanced Kit Click to enlarge the picture
Contents of the user manual for the Audio-Technica BP4073 Shotgun Microphone Advanced Kit
- Product category: Shotgun Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Shotgun Microphones
|
User manual for the Audio-Technica BP4073 Shotgun Microphone Advanced Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica BP4073 Shotgun Microphone Advanced Kit is an exclusive for customers and accessorizes the BP4073 shotgun microphone for use in applications such as ENG (Electronic News Gathering), EFP (Electronic Field Production), video and feature film audio, broadcast audio and more.Along with Audio-Technica BP4073 microphone, the kit includes a lightweight graphite boompole with internally coiled XLR cable, softie windmuff, universal shockmount for boom and camera mounting, coiled and uncoiled XLR cables, and a neoprene storage bag for the boompole and accessories. - Audio-Technica BP4073 Line and Gradient Condenser Microphone The BP4073 Line and Gradient Condenser Microphone from Audio-Technica is a lightweight directional shotgun microphone. It can be used to capture audio in various environments for speech and audio applications such as feature film, broadcast TV, or sound for video productions. The microphone measures 9.17" in length, and weighs 3.5 oz making it ideal for long-term use on a boompole or handheld mount. Featuring a frequency response of 20 Hz to 20 kHz, a line + gradient pickup pattern, and low noise, the BP4073 shotgun microphone delivers transparent audio reproduction. Also, an 80 Hz hi-pass filter switch minimizes low-frequency noise and ambiance, while a 10 dB pad switch provides added headroom when capturing transient (peak) audio signals. The BP4073 is RoHS compliant, which means it is free from all substances in the EU directive on the reduction of hazardous substances. The microphone is built tuff in a rugged housing made of a lightweight structural-grade aluminum alloy. In addition, it includes an AT8405a stand clamp for a 5/8"-27 threaded microphone stand, a 5/8"-27 to 3/8"-16 threaded adapter, an AT8144 foam windscreen, two rubber O-Rings, and a protective carrying case.
- Designed for use in broadcasting, film/TV production, and theater sound reinforcement applications
- Direct-coupled, balanced output ensures a clean signal, even in high-output conditions
- Innovative acoustic design provides same directivity as mics up to 50% longer
- Switchable 80 Hz hi-pass filter & 10 dB pad
- Rugged housing made of lightweight structural-grade aluminum alloy
- RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
- Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
- Auray WSS-2012 Professional Windshield for Shotgun Microphones - (12cm) The Auray WSS Series Professional Windshields deliver superior 360° wind protection with acoustic transparency. They are engineered for dramatic reduction of unwanted broadband wind noise and vocal pops with very little high frequency loss, for exceptionally accurate recordings.
This WSS-2012 Professional Windshield has an inside depth of 12cm and is designed for use with many shotgun microphones. It features a specially manufactured open-cell foam matrix surrounded by a layer of 25mm-thick simulated rabbit fur. This diffusion technology lowers wind velocity in a controlled air space around the microphone, thereby reducing wind noise without muffling the sound. It also features an airtight tapered rubber base that seals out wind from the rear of the microphone, greatly improving isolation and rear wind protection.
When used on a shotgun microphone, this slip-on windshield is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to strong breeze conditions (4-25 mph) and users can generally expect a 24dB to 40dB reduction in wind noise with negligible dampening of high frequencies. For most applications, the negligible high frequency dampening is a worthwhile exchange for the dramatic wind noise reduction.
In addition to superior 360° wind protection, the WSS-2012 helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Audio Technica, Sennheiser, Sony and others.
The WSS-2012 Professional Windshield for Shotgun Microphones is an advanced solution for outstanding wind protection with acoustic transparency. - Fits these and other similar sized microphones:
-
- Audio-Technica BP4073, AT875R, AT 877, MC-230
- Ikegami HL DNS-201W, HL DV-7W, HLV 9, 55, 77, MC-10, 11, 230
- Panasonic AJ HDC 27, AJ HDX 900, AJ MC 700P, 900P, AJD-700, 800, 910, DV 200, DVC200
- Sennheiser MKH-8060, MKE-600
- Sony ECM 673, 674, ECM NV1 (Camera Mic for BVP-550, 570, 950, DSR 130P, 200, 250, 300, PD150, 170, HVR A1U, V1, UVW-100)
- Zoom SGH-6 (Capsule for H6)
UPC: 847628552708 - K-Tek KEG-100CC Avalon Series Graphite Boompole with Internal Coiled XLR Cable The K-Tek KEG-100CC Avalon Series Graphite Boompole provides a moderately priced, lightweight boompole solution for ENG, EFP, and other field recording applications. Its sturdy graphite design is tough enough to endure the rigors of road use while remaining lightweight and travel worthy. This pole features an internally coiled cable and an XLR connection at the base of the pole. A total of 5 sections telescope between 2.2 to 8.8', and will easily store in any standard equipment case. The captive-collet coupling system locks each section in place for even further reliability.
- Designed to fit in any standard equipment case for ENG, EFP, and DV location production work
- The KEG-100CC features a bottom-mounted, 3-pin XLR connection at the base
- Jam-resistant collar coupling
- Unique pole-top design with cable retention slots and replaceable stainless steel mounting stud
UPC: 791090331876 - Kopul Studio Elite 4000 Series XLR M to Angled XLR F Microphone Cable - 20' (6 m), Black The Kopul Studio Elite 4000 Series 3-Pin XLR M to Angled 3-Pin XLR F (20') is a premium, studio-quality cable that's engineered to be both quiet and durable, and is well-suited for the most critical recording and broadcast applications. Studio Elite 4000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. A 98% braided outer shield makes the cable highly resistant to EMI and RFI noise. The Neutrix XX silver connectors provide the highest level of connectivity, and all the solder connections are shrink-wrapped for maximum protection.
- 98% braided shield offers the best protection from EMI and RFI noise
- Twin conductive PVC inner shields for 100% coverage
- 24 AWG oxygen-free stranded copper conductors
- Cotton yarn reduces electrostatic and microphonic noise
- Shrink wrapped solder points for seamless protection
- Neutrik XX silver connectors for highest conductivity
UPC: 847628551275 - Kopul Coiled 3-Pin XLR-M to Angled 3-Pin XLR-F Cable - 3 to 18" (7.6 to 46 cm), Black The Kopul Coiled 3-Pin XLR-M to Angled 3-Pin XLR-F Cable provides high-quality audio transfer and is particularly suited for ENG/EFP applications. It features an oxygen-free copper core and silver-plated contacts for clean signal transfer. The cable has a 3" coiled section, with 1" straight leads into the connectors. The cable measures approximately 10" end to end, and can be extended to at least 1.5 feet. It has a 3-pin Neutrik NC-XX XLR male connector on one end and an angled 3-pin Neutrik NC-XX XLR female connector on the other.
- Copper shield protects against EMI and RFI noise
- Shrink-wrapped solder points for added protection
- 28 AWG stranded oxygen-free conductors
- Genuine Neutrik NC-XX connectors
- SuperFlex Coiled PVC outer jacket
UPC: 847628551251 - Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie The Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie is a case designed to hold up to a 34" closed boompole with shotgun microphone, softie, and shock mount. Its interior end cap is strengthened to protect the bag from punctures. It features a zipper closure with protective interior lining to prevent snags and scratches. The bag is built with an interior pocket for accessories that opens or closes with hook and loop fasteners. An adjustable shoulder strap is included with a nametag holder. UPC: 847628562790
In the Box - BP4073 Line and Gradient Condenser Microphone txdzcxrzetreabdtzyeqxxzrucxd
- AT8405a stand clamp for 5/8"-27 Threaded Stands
- 5/8"-27 to 3/8"-16 Threaded Adapter
- AT8144 Windscreen
- 2 x O-Rings
- Protective Carrying Case
- Limited 5-Year Warranty
- Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles txdzcxrzetreabdtzyeqxxzrucxd
- Auray - WSS-2012 Professional Windshield for Shotgun Microphones - (12cm)
- K-Tek - KEG-100CC Avalon Series Graphite Boompole with Internal Coiled XLR Cable
- Kopul - Studio Elite 4000 Series XLR M to Angled XLR F Microphone Cable - 20' (6 m), Black txdzcxrzetreabdtzyeqxxzrucxd
- Kopul - Coiled 3-Pin XLR-M to Angled 3-Pin XLR-F Cable - 3 to 18" (7.6 to 46 cm), Black
- Auray - Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica BP4073 Shotgun Microphone Advanced Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Audio-Technica BP4073 Line and Gradient Condenser Microphone
| | | Operating Principle | Line Gradient | | Transducer | Condenser | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 81 dB | | Equivalent Noise Level | 13 dB | | Maximum SPL | 141 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 50 Ohms | | Sensitivity | -29 dB | | Low-Cut Filter | 18@ 80 Hz | | Dynamic Range | 128 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.8 mA | | Operating Voltage | 48 V ± 4.8 V | | Length | 9.17" / 233 mm | | Diameter | 0.83" / 21 mm | | Weight | 3.49 oz / 99 g | | | | Box Dimensions (LxWxH) | 19.5 x 4.6 x 2.4" | - Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
| | | Box Dimensions (LxWxH) | 4.65 x 3.2 x 2.65" | - Auray WSS-2012 Professional Windshield for Shotgun Microphones - (12cm)
| Compatible Mic Diameter | 0.75 to 0.9" / 19 to 23 mm | | Inner Depth | 4.7" / 12 cm | | | | Box Dimensions (LxWxH) | 11.4 x 4.2 x 3.2" | - K-Tek KEG-100CC Avalon Series Graphite Boompole with Internal Coiled XLR Cable
| Material | Graphite | | Sections | 5 | | Minimum Length | 2.2 to 8.8' (65.8 to 267 cm) | | Maximum Length | 2.2 to 8.8' (65.8 to 267 cm) | | Weight | 1.26 lb (572 g) | | Load Capacity | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 32.0 x 3.0 x 2.5" | - Kopul Studio Elite 4000 Series XLR M to Angled XLR F Microphone Cable - 20' (6 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 98% Braid | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 10.6 x 7.8 x 1.2" | - Kopul Coiled 3-Pin XLR-M to Angled 3-Pin XLR-F Cable - 3 to 18" (7.6 to 46 cm), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female Right-Angle | | Cable Length | 3 to 18" / 7.6 to 45.7 cm | | Shielding | 98% Copper Braid | | Conductor Material | Oxygen-Free Copper (OFC) | | Number of Conductors | 2 | | Wire Gauge | 28 AWG | | Contact Plating | Silver | | Jacket Type | Polyvinyl Chloride (PVC) | | | | Box Dimensions (LxWxH) | 4.3 x 3.9 x 0.9" | - Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie
| Material | Neoprene | | Type of Closure | Zipper with protective lining | | Dimensions (LxWxD) | 36 x 6 x 2" (91.4 x 15.5 x 5.5 cm) | | Weight | 15 oz (454 g) | | | | Box Dimensions (LxWxH) | 39.0 x 7.8 x 1.0" |
