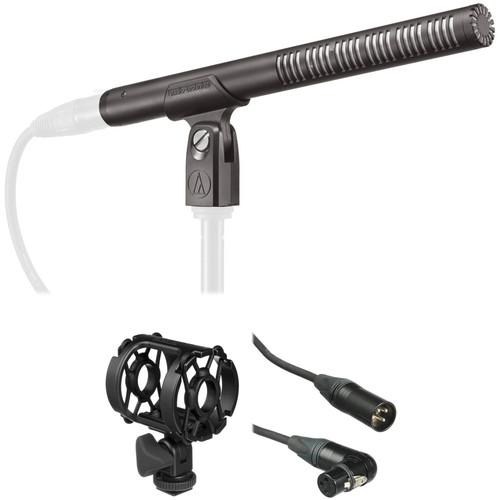

User Manual for Audio-Technica BP4073 Shotgun Microphone Kit Click to enlarge the picture
Contents of the user manual for the Audio-Technica BP4073 Shotgun Microphone Kit
- Product category: Shotgun Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Shotgun Microphones
|
User manual for the Audio-Technica BP4073 Shotgun Microphone Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica BP4073 Shotgun Microphone Kit is an exclusive for customers and accessorizes the BP4073 shotgun microphone with a universal shockmount for boompole and camera use, and a 1.5' right angled XLR cable. - Audio-Technica BP4073 Line and Gradient Condenser Microphone The BP4073 Line and Gradient Condenser Microphone from Audio-Technica is a lightweight directional shotgun microphone. It can be used to capture audio in various environments for speech and audio applications such as feature film, broadcast TV, or sound for video productions. The microphone measures 9.17" in length, and weighs 3.5 oz making it ideal for long-term use on a boompole or handheld mount. Featuring a frequency response of 20 Hz to 20 kHz, a line + gradient pickup pattern, and low noise, the BP4073 shotgun microphone delivers transparent audio reproduction. Also, an 80 Hz hi-pass filter switch minimizes low-frequency noise and ambiance, while a 10 dB pad switch provides added headroom when capturing transient (peak) audio signals. The BP4073 is RoHS compliant, which means it is free from all substances in the EU directive on the reduction of hazardous substances. The microphone is built tuff in a rugged housing made of a lightweight structural-grade aluminum alloy. In addition, it includes an AT8405a stand clamp for a 5/8"-27 threaded microphone stand, a 5/8"-27 to 3/8"-16 threaded adapter, an AT8144 foam windscreen, two rubber O-Rings, and a protective carrying case.
- Designed for use in broadcasting, film/TV production, and theater sound reinforcement applications
- Direct-coupled, balanced output ensures a clean signal, even in high-output conditions
- Innovative acoustic design provides same directivity as mics up to 50% longer
- Switchable 80 Hz hi-pass filter & 10 dB pad
- Rugged housing made of lightweight structural-grade aluminum alloy
- RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
- Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
- Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.
Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise.
- Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
- 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
- Cotton yarn reduces electrostatic and microphonic noise.
- All solder points shrink-wrapped for protection.
- Neutrik XX silver connectors offer high conductivity.
- Caged type contact and improved ground contact.
UPC: 847628558229 In the Box - BP4073 Line and Gradient Condenser Microphone uudvzwzfatbebdxdsdtqut
- AT8405a stand clamp for 5/8"-27 Threaded Stands
- 5/8"-27 to 3/8"-16 Threaded Adapter
- AT8144 Windscreen
- 2 x O-Rings
- Protective Carrying Case
- Limited 5-Year Warranty
- Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
- Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica BP4073 Shotgun Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Audio-Technica BP4073 Line and Gradient Condenser Microphone
| | | Operating Principle | Line Gradient | | Transducer | Condenser | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 81 dB | | Equivalent Noise Level | 13 dB | | Maximum SPL | 141 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 50 Ohms | | Sensitivity | -29 dB | | Low-Cut Filter | 18@ 80 Hz | | Dynamic Range | 128 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.8 mA | | Operating Voltage | 48 V ± 4.8 V | | Length | 9.17" / 233 mm | | Diameter | 0.83" / 21 mm | | Weight | 3.49 oz / 99 g | | | | Box Dimensions (LxWxH) | 19.5 x 4.6 x 2.4" | - Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
| | | Box Dimensions (LxWxH) | 4.65 x 3.2 x 2.65" | - Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female Right-Angle | | Cable Length | 1.5' / 0.45 m | | Shielding | 95% Spiral | | Conductor Material | Oxygen-Free Copper (OFC) | | Number of Conductors | 2 | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | Jacket Type | Polyvinyl Chloride (PVC) | | Insulation Type | Polyethylene | | | | Box Dimensions (LxWxH) | 4.8 x 3.1 x 0.9" |
