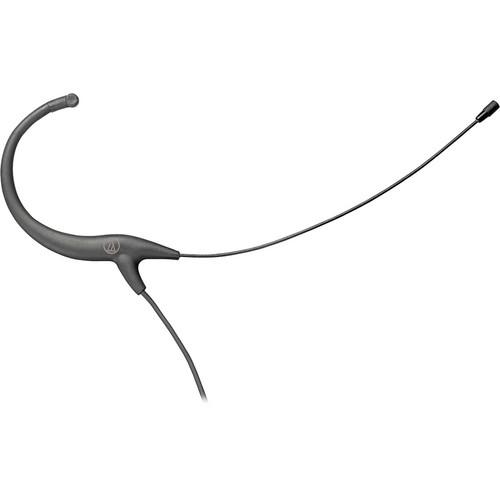

User Manual for Audio-Technica BP892CL4 MicroSet Subminiature Omnidirectional Headworn Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica BP892CL4 MicroSet Subminiature Omnidirectional Headworn
- Product category: Microphones for Wireless Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Microphones for Wireless
|
User manual for the Audio-Technica BP892CL4 MicroSet Subminiature Omnidirectional Headworn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica BP892 MicroSet Subminiature Headset Microphone features a lightweight, super low-profile ear loop that may be flexed to conform to all sizes. Its omnidirectional capsule is highly sensitive and minimizes off-axis noise while enhancing detail. High-sound pressure handling makes it an ideal choice for singers, actors, presenters, etc. - Handles high-sound pressure levels with ease
- Extremely intelligible natural audio
- Inconspicuous, lightweight headset with capsule diameter of just 2.6mm is ideal for applications requiring minimum visibility
- Ergonomic under-ear design flexible, lightweight contoured loop hooks behind the ear for an ultra-secure, comfortable fit with or without glasses
- High-pass filter on power module provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- RoHS compliant-free from all substances specified in the EU directive on hazardous substances
- Available in black and beige, wired and wireless models
In the Box Audio-Technica BP892CL4 MicroSet Subminiature Omnidirectional Headworn Microphone (Black, with Sennheiser Lemo Connection) AT8464 Dual-Ear Microphone Mount for BP892 and AT892 (Black) AT8440 Lavalier Microphone Clothing Clip 2 x AT8157 Windscreens 2 x AT8156 Element Covers Moisture Guard Belt Clip (wired only) Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica BP892CL4 MicroSet Subminiature Omnidirectional Headworn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica BP892CL4 Specs | Transducer | Fixed-charge back plate, permanently polarized condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz - 20 kHz | | Dynamic Range (Typical) | 104 dB, 1 kHz at Max SPL (wired only) | | Signal-to-Noise Ratio | 63 dB, 1 kHz at 1 Pa | | Maximum Input Sound Level | 135 dB SPL, 1 kHz at 3% T.H.D. | | Power Requirements | 11-52 VDC, 2 mA typical (wired only) | | Output Impedance | 250 Ohms (wired only) | | Output Connectors | Sennheiser Lemo Connection | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Microphone: 0.32 x 0.10" (8.1 x 2.6 mm) (Length x Diameter)
Boom: 3.87 x 0.04" (98.4 x 1.07 mm) (Length x Diameter) Cable: 55" (1.4 m) | | Weight | 0.09 oz (2.6 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 7.3 x 4.6 x 1.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
