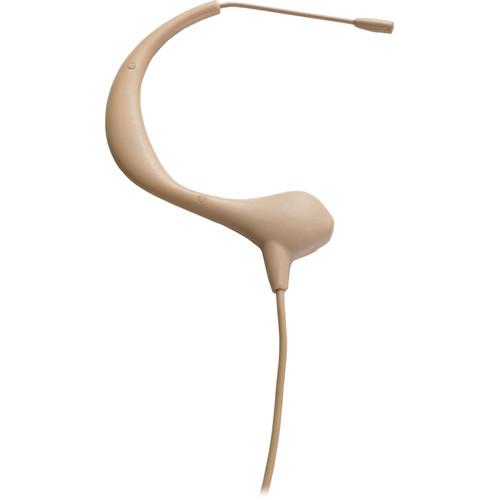

User Manual for Audio-Technica BP893c-TH MicroEarset Omnidirectional Condenser Headworn Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica BP893c-TH MicroEarset Omnidirectional Condenser Headworn
- Product category: Headset & Earset Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Headset & Earset Microphones
|
User manual for the Audio-Technica BP893c-TH MicroEarset Omnidirectional Condenser Headworn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The BP893c-TH MicroEarset Omnidirectional Condenser Headworn Microphone by Audio-Technica is a small, over-the-ear boom microphone designed to provide exceptionally clear and natural vocal pickup in theatrical performances, houses of worship, broadcast studios and many other live applications. Its thin, unobtrusive design, beige color, and 1" length makes it barely noticeable to an audience and weighing only .07 oz, the one wearing it will practically forget it's on. The microphone is an omnidirectional miniature condenser, engineered for natural vocal reproduction with an extended frequency response of 20 to 20,000 Hz, similar to what you would expect from high-quality lavalier microphones. The power module features Audio-Technica's proprietary UniSteep filter which allows you to choose from flat response or low-frequency roll-off helping to reduce or eliminate ambient noise. This BP893c-TH MicroEarset includes a permanently attached 55" (1.4 m) miniature cable that comes unterminated for use with Audio-Technica, Sennheiser, Shure, and other manufacturers' systems. It requires 11 to 52 volt phantom power for operation but is equipped with the AT8539 power module which provides this right out of the box. Also included is a cable clip to relieve strain, two windscreens, two element covers, one moisture guard, a belt clip, and a protective carrying case. - Small, over-the-ear boom microphone provide exceptionally clear and natural vocal pickup
- Its unobtrusive design, beige color, and thin 1" boom makes it nearly unnoticeable
- Lightweight (0.07 oz), ergonomic design makes one practically forget they're wearing it
- Omnidirectional miniature condenser with an extended frequency response of 20 to 20,000 Hz
- Included power module features the UniSteep filter which reduces or eliminates ambient noise
- Attached 55" (1.4 m) miniature cable comes unterminated for use with multiple systems
- Includes power module, cable clip, two windscreens, two element covers, one moisture guard, a belt clip and carrying case
UPC: 042005169498 In the Box Audio-Technica BP893c-TH MicroEarset Omnidirectional Condenser Headworn Microphone (Beige, Unterminated) Power Module Cable Clip 2 x Windscreens 2 x Element Covers Moisture Guard Belt Clip Protective Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica BP893c-TH MicroEarset Omnidirectional Condenser Headworn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica BP893c Specs | | | Element | Fixed-charge back plate, permanently polarized condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Low Frequency Roll-Off | 80 Hz, 18 dB/octave | | Open Circuit Sensitivity | -34 dB (19.9 mV) re 1 V at 1 Pa | | Impedance | 245 Ohms | | Maximum Input Sound Level | 114 dB SPL, 1 kHz at 3% T.H.D. | | Dynamic Range (Typical) | 88 dB, 1 kHz at Max SPL | | Signal-to-Noise Ratio | 68 dB, 1 kHz at 1 Pa | | Phantom Power Requirements | 11-52 VDC, 2 mA typical | | Switch | Flat, roll-off | | Output Connector | Integral 3-pin XLRM-type | | Cable | Length: 55" (1.4 m) - permanently attached to microphone
Diameter: 0.06" (1.6 mm)
2-conductor shielded cable with locking 4-pin connector | | Audio-Technica Case Style | M31 | | | | Microphone | Length: 0.32" (8.1 mm)
Diameter: 0.10" (2.6 mm) | | Boom | Length: 1.04" (26.4 mm)
Diameter: 0.04" (1.07 mm) | | Power Module | Length: 3.84" (97.6 mm)
Diameter: 0.74" (18.9 mm) | | | | Microphone, Boom & Earpiece | 0.07 oz (2.0 g) | | Power Module | 3.0 oz (85 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 7.3 x 4.6 x 1.4" |
