User Manual for Audio-Technica BP893cLM3 MicroEarset Condenser Headworn Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica BP893cLM3 MicroEarset Condenser Headworn Microphone
- Product category: Microphones for Wireless Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Microphones for Wireless
|
User manual for the Audio-Technica BP893cLM3 MicroEarset Condenser Headworn Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

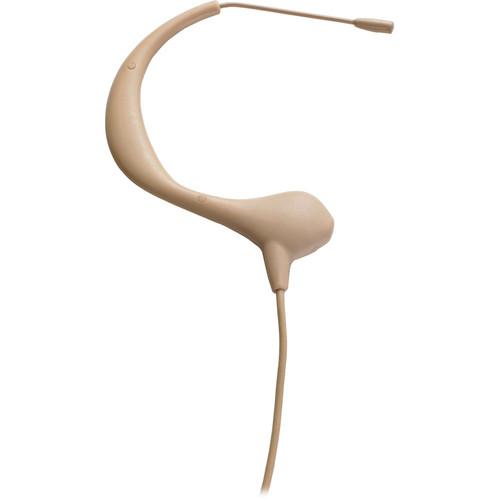

Product description Styled in beige, the Audio-Technica BP893cLM3 MicroEarset Condenser Headworn Microphone features an ergonomic low-profile design that mounts over the ear and yields professional audio results for live performances, broadcast studio applications and more. The BP893cLM3's low-profile and lightweight design allows for hours of continuous use while remaining hidden and comfortable to wear.The capsule features a wide frequency response, detailed sensitivity response and omnidirectional polar pattern for a generous pickup area. The 1" long flexible boom may be easily positioned for optimum results. The BP893cLM3 features a permanently attached 55" (1.4m) long cable with a locking 1/8" mini connection compatible with Sennheiser wireless bodypack transmitters. The Audio-Technica BP893cLM3 is optimized for speech, vocal performances, and also fares well as an ear-worn violin / viola microphone. - Outstanding clarity and intelligibility
- Lightweight, ergonomic design
- Extremely unobtrusive, 1-inch flexible boom
- Secure over-the-ear placement
- Extended frequency response for natural vocal reproduction
- Miniature locking 1/8" connection compatible with Sennheiser bodypack wireless transmitters
- UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
UPC: 042005168699 In the Box Audio-Technica BP893cLM3 MicroEarset Condenser Headworn Microphone (Beige with 1/8" Locking Mini Connection) AT8440 Cable Clip 2 x AT8157 Windscreens 2 x AT8156 Element Covers Moisture Guard Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica BP893cLM3 MicroEarset Condenser Headworn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica BP893c Specs | Transducer | Fixed-charge back plate, permanently polarized condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Signal-to-Noise Ratio | 68 dB, 1 kHz at 1 Pa | | Maximum Input Sound Level | 114 dB SPL, 1 kHz at 3% T.H.D. | | Power Requirements | 2.5-11 V, 0.1 mA typical at 5V | | Output Connectors | Locking 1/8" / 3.5 mm Mini | | Dimensions | Microphone: 0.32" / 8.1 mm long, 0.10" / 2.6 mm diameter
Boom: 1.04" / 26.4 mm long, 0.04" / 1.07 mm diameter | | Weight | Microphone, Boom & Earpiece: 0.07 oz (2.0 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 7.3 x 4.6 x 1.4" |
