User Manual for Audio-Technica BP894 Subminiature Cardioid Condenser Headworn Microphone with Power Module Click to enlarge the picture
Contents of the user manual for the Audio-Technica BP894 Subminiature Cardioid Condenser Headworn
- Product category: Microphones for Wireless Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Microphones for Wireless
 |
User manual for the Audio-Technica BP894 Subminiature Cardioid Condenser Headworn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

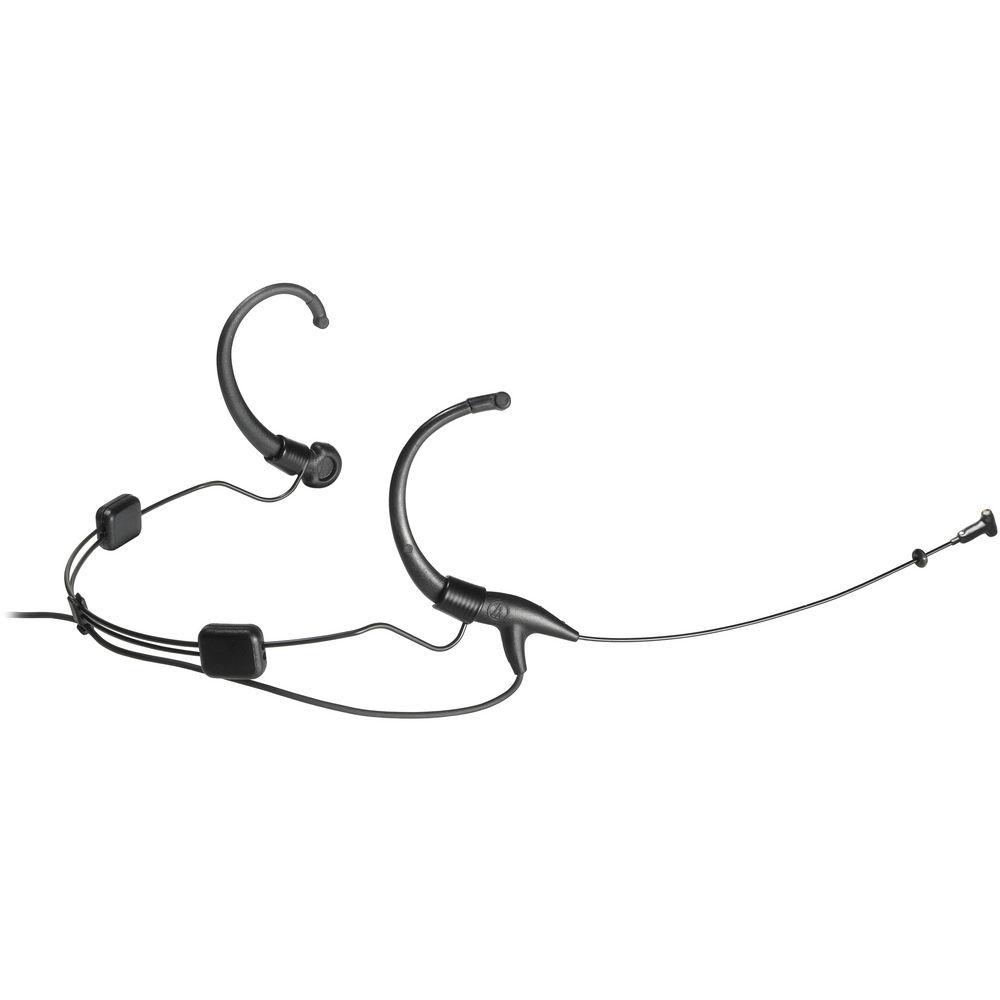

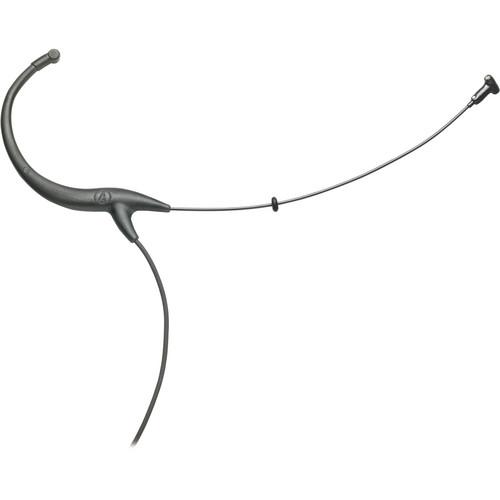

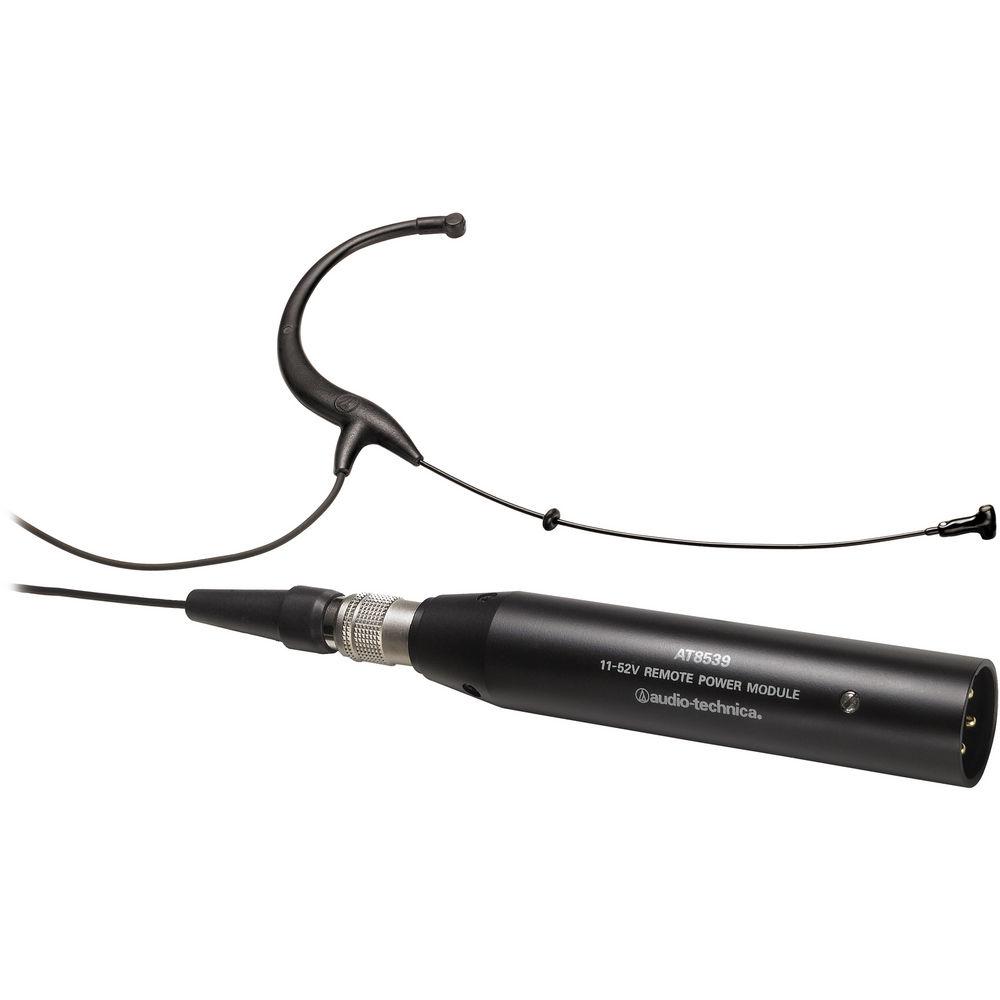

Product description The black BP894 Subminiature Cardioid Condenser Headworn Microphone with Power Module from Audio-Technica is for capturing audio. It is used to provide professional-grade audio in applications such as for stage, television talent, lecturers, houses of worship, and more. It features a cardioid polar pattern and a frequency response of 20 to 20,000 Hz. The microphone requires 11 to 52V phantom power for operation. The BP894 is built with a 55" permanently attached miniature cable. Its free end connects to the provided AT8539 power module using a 4-pin connector. This connector is also compatible with all Audio-Technica UniPak bodypack transmitters. The output of the power module is a 3-pin XLRM-type connector. A recessed switch in the power module allows the choice of a flat response or a low-frequency roll-off (via integral 80 Hz high-pass filter) to help control undesired ambient noise. This microphone includes a power module, cable clip, dual-ear mount, two windscreens, a moisture guard, a belt clip and a protective carrying case. - Features a rotating capsule housing with talk-side indicator for use on either ear and allows great polar pattern placement
- Well-suited for the stage, television talent, lecturers, and houses of worship
- Locking 4-pin microphone output connector is compatible with the included power module and all Audio-Technica UniPak bodypack wireless transmitters
- The UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- The microphone features a low-profile design with a diameter of just 2.8 mm
- This microphone handles high sound pressure levels easily

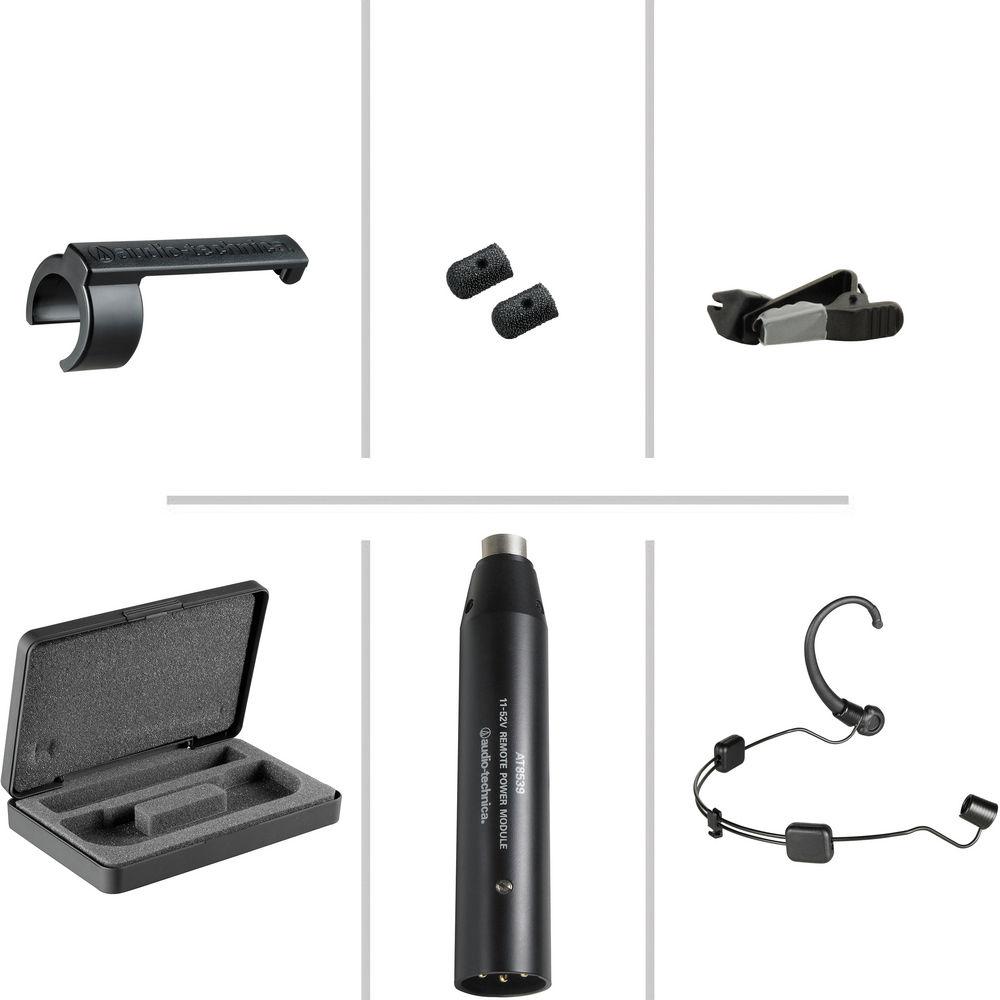

UPC: 042005182183 In the Box Audio-Technica BP894 Subminiature Cardioid Condenser Headworn Microphone with Power Module (Black) AT8539 Power Supply AT8464 Dual-Ear Microphone Mount for BP892 and AT892 (Black) AT8440 Lavalier Microphone Clothing Clip 2 x AT8163 Windscreens Moisture Guard Belt Clip Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica BP894 Subminiature Cardioid Condenser Headworn Microphone with Power Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica BP894 Specs | Element | Fixed-charge back plate, permanently polarized condenser | | Polar Pattern | Cardioid | | Frequency Response | 20 to 20,000 Hz | | Low Frequency Roll-Off | 80 Hz, 18 dB/octave (wired only) | | Open Circuit Sensitivity | -49 dB (3.5 mV) re 1V at 1 Pa | | Impedance | 250 Ω (wired only) | | Maximum Input Sound Level | 135 dB SPL, 1 kHz at 3% T.H.D. | | Dynamic Range | 104 dB, 1 kHz at Max SPL (wired only) | | Signal-to-Noise Ratio | 63 dB, 1 kHz at 1 Pa | | Power Requirements | 11 to 52 V DC, 2 mA typical (wired only) | | Switch | Flat, roll-off (wired only) | | Current Consumption | 0.1 mA typical at 5 V (wireless only) | | Voltage Range | 2.5 to 11 V (wireless only) | | Output Connector | Power Module: integral 3-pin XLRM-type | | Cable | Length x Diameter: 55 x 0.06" (1397 x 1.6 mm) | | Dimensions (L x Diam) | Microphone: 0.26 x 0.11" (6.5 x 2.8 mm)
Boom: 4.23" x 0.04" (107.4 mm x 1.09 mm)
Power Module: 3.84 x 0.74" (97.6 x 18.9 mm) | | Weight | Microphone, boom and earpiece: 0.07 oz (2.0 g)
Power Module: 3.0 oz (85 g) |
