User Manual for Audio-Technica BP894cT4 MicroSet Subminiature Cardioid Condenser Headworn Microphone with TA4F Connector for Shure Wireless Transmitters Click to enlarge the picture
Contents of the user manual for the Audio-Technica BP894cT4 MicroSet Subminiature Cardioid Condenser
- Product category: Microphones for Wireless Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Microphones for Wireless
 |
User manual for the Audio-Technica BP894cT4 MicroSet Subminiature Cardioid Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

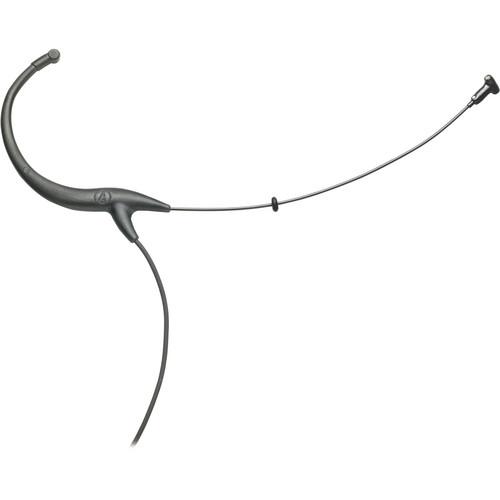

Product description The black BP894cT4 MicroSet Subminiature Cardioid Condenser Headworn Microphone with TA4F Connector for Shure Wireless Transmitters from Audio-Technica is for capturing audio. It is used to provide professional-grade audio in applications such as for stage, television talent, lecturers, houses of worship, and more. It features a cardioid polar pattern and a frequency response of 20 Hz to 20 kHz. The uniform pickup pattern rejects outside noise and handles a high level of gain before feeding back. The BP894cT4 requires 11 to 52V phantom power for operation. It is built with a 55" permanently attached miniature cable. Its free end is terminated for Shure wireless systems using a TA4F connector. This microphone includes a cable clip, dual-ear mount, two windscreens, a moisture guard, and a protective carrying case. - Well-suited for the stage, television talent, lecturers, and houses of worship
- The BP894cT4 features a rotating capsule housing with talk-side indicator for use on either ear and provides ample polar pattern placement
- Lightweight headset with capsule diameter of just 2.8mm is suitable for applications requiring minimum visibility
- This microphone handles high sound pressure levels easily
- Ergonomic under-ear design is flexible, lightweight, and hooks behind the ear for a secure comfortable fit with or without glasses

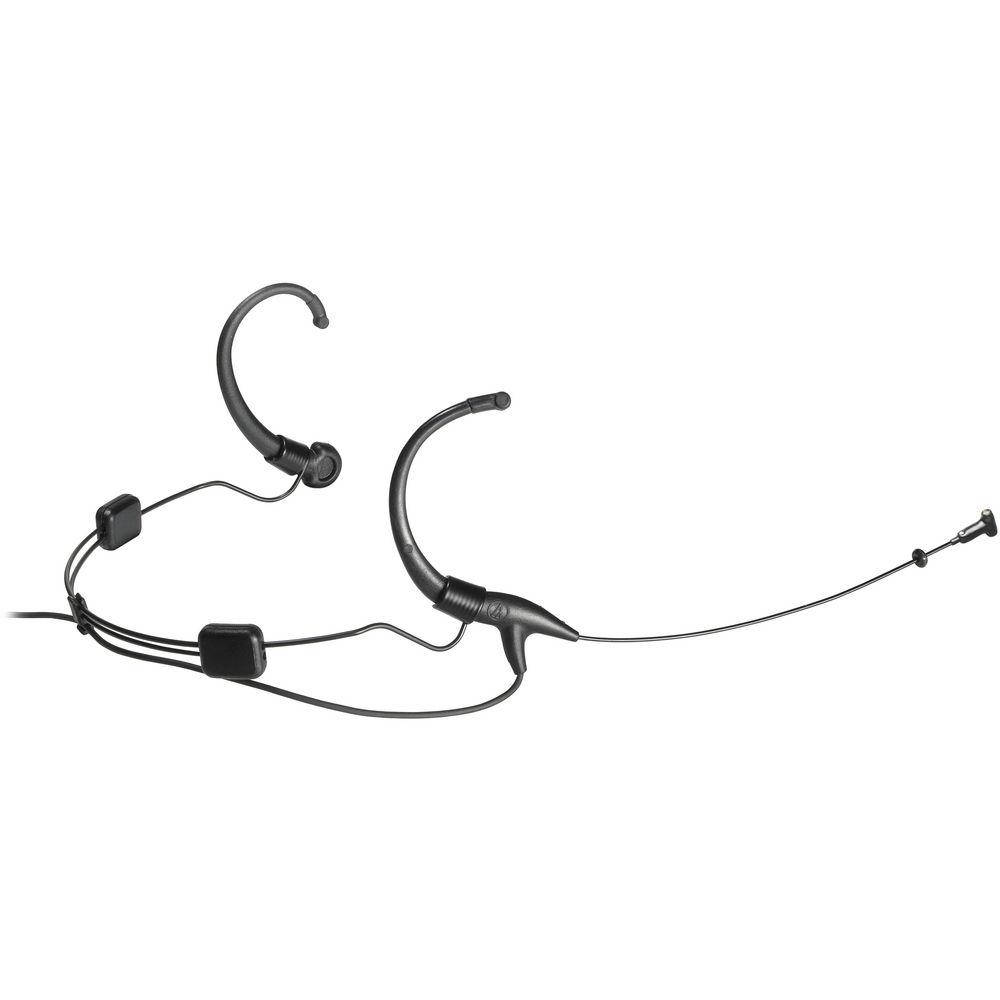

- For maximum stability and comfort, the included AT8464 dual-ear microphone mount converts the MicroSet to a dual ear-worn unit

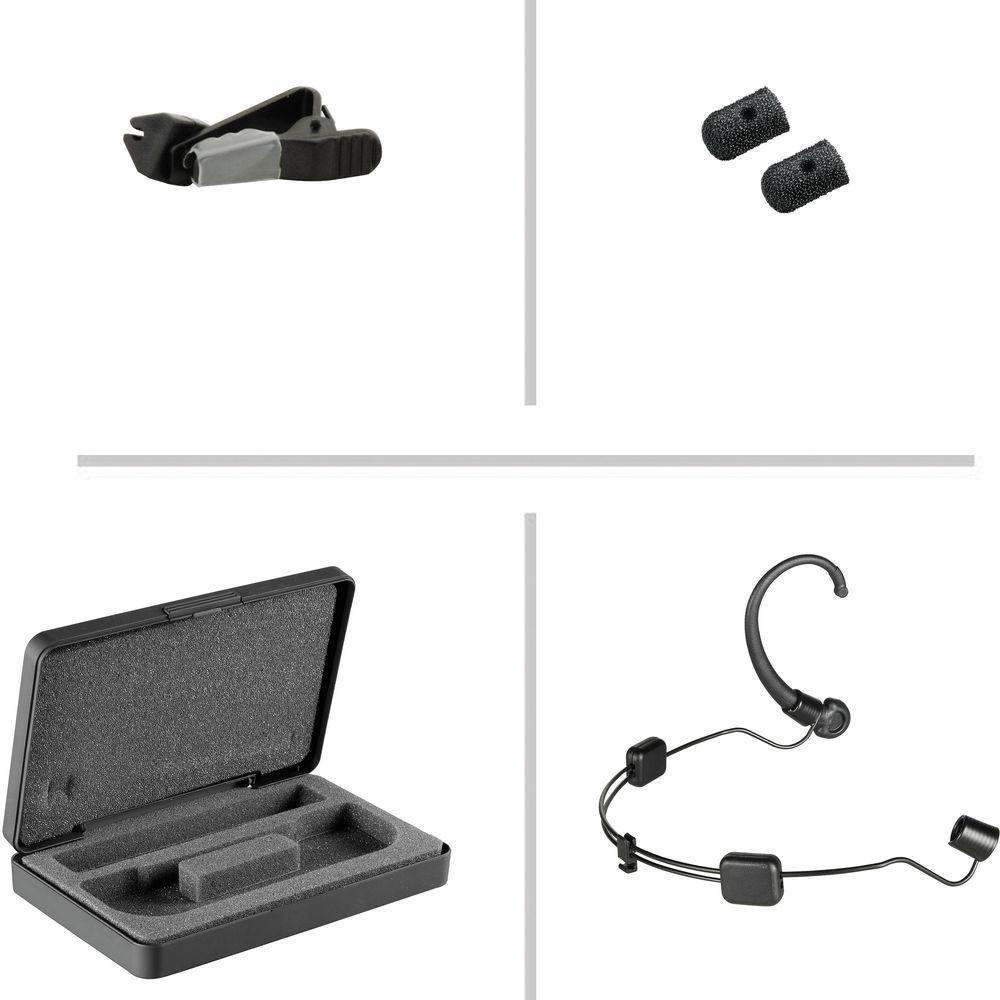

UPC: 042005182244 In the Box Audio-Technica BP894cT4 MicroSet Subminiature Cardioid Condenser Headworn Microphone with TA4F Connector for Shure Wireless Transmitters (Black) AT8464 Dual-Ear Microphone Mount for BP892 and AT892 (Black) AT8440 Lavalier Microphone Clothing Clip 2 x AT8163 Windscreens Moisture Guard Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica BP894cT4 MicroSet Subminiature Cardioid Condenser Headworn Microphone with TA4F Connector for Shure Wireless Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica BP894cT4 Specs | Element | Fixed-charge back plate, permanently polarized condenser | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz to 20 kHz | | Low Frequency Roll-Off | 80 Hz, 18 dB/octave (wired only) | | Open Circuit Sensitivity | -49 dB (3.5 mV) re 1 V at 1 Pa | | Impedance | 250 Ohms (wired only) | | Maximum Input Sound Level | 135 dB SPL, 1 kHz at 3% T.H.D. | | Dynamic Range | 104 dB, 1 kHz at Max SPL (wired only) | | Signal-to-Noise Ratio | 63 dB, 1 kHz at 1 Pa | | Power Requirements | 11 to 52 VDC, 2 mA typical (wired only) | | Switch | Flat, roll-off (wired only) | | Current Consumption | 0.1 mA typical at 5 V (wireless only) | | Voltage Range | 2.5 to 11 V (wireless only) | | Output Connector | TA4F type connector for Shure wireless systems | | Cable | 55" (1.4 m) | | Dimensions (L x Diam) | Microphone: 0.26 x 0.11" (6.5 x 2.8 mm)
Boom: 4.23 x 0.04" (107.4 x 1.09 mm) | | Weight | Microphone, boom and earpiece: 0.07 oz (2.0 g) |
