User Manual for Audio-Technica BP894cW MicroSet Subminiature Cardioid Condenser Headworn Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica BP894cW MicroSet Subminiature Cardioid Condenser
- Product category: Microphones for Wireless Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Microphones for Wireless
 |
User manual for the Audio-Technica BP894cW MicroSet Subminiature Cardioid Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

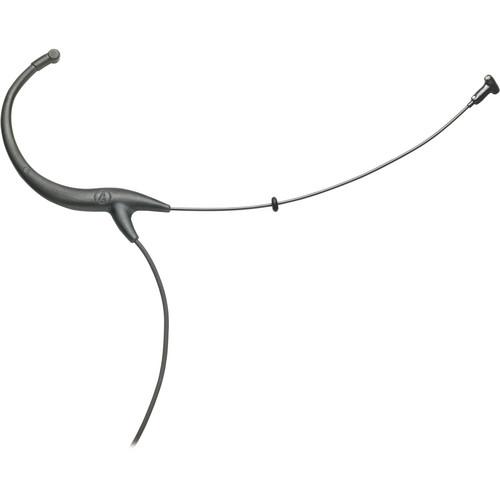

Product description The black BP894cW MicroSet Subminiature Cardioid Condenser Headworn Microphone from Audio-Technica is a subminiature headworn mic designed for use with Audio-Technica's UniPak bodypack wireless transmitter. It is designed for inconspicuous placement and has a rotating ear capsule that allows it to be worn on either ear and can be used in house of worship, lecture, broadcast, and theater applications.
The microphone has an attached, 55-inch cable that terminates in a locking 4-pin connector. It includes a dual-ear clip mount, 2 windscreens, a moisture guard, and a carry case. - Rotating capsule housing with talk-side indicator for use on either ear with proper polar pattern placement
- Provides intelligibility and clean, accurate reproduction for the house of worship user, lecturer, broadcaster or theater performer
- Inconspicuous and lightweight headset design with a capsule diameter of just 2.8 mm for minimum visibility
- Ergonomic under-ear flexible design, with lightweight contoured loop hooks behind the ear for a secure, comfortable fit with or without glasses

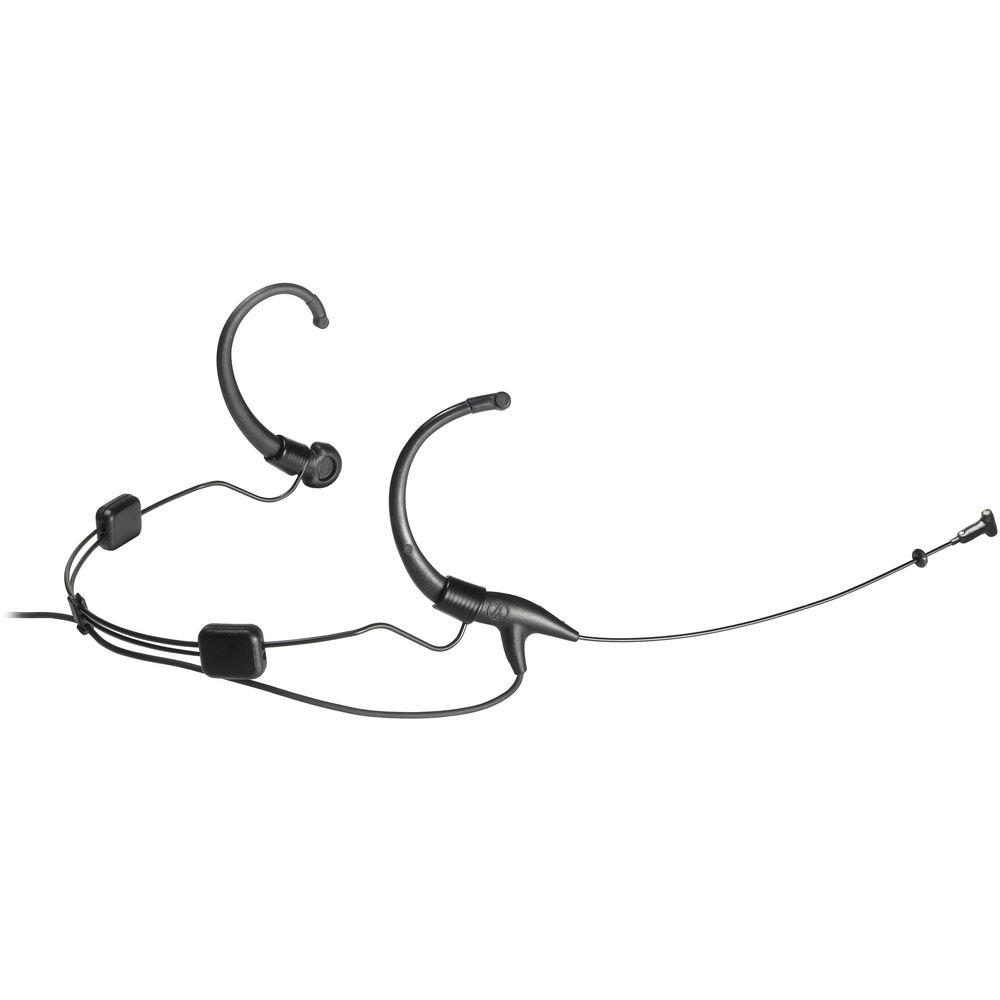

- Comes equipped with AT8464 Dual-Ear Microphone Mount that converts single ear-worn MicroSet to a dual ear-worn unit for stability and comfort

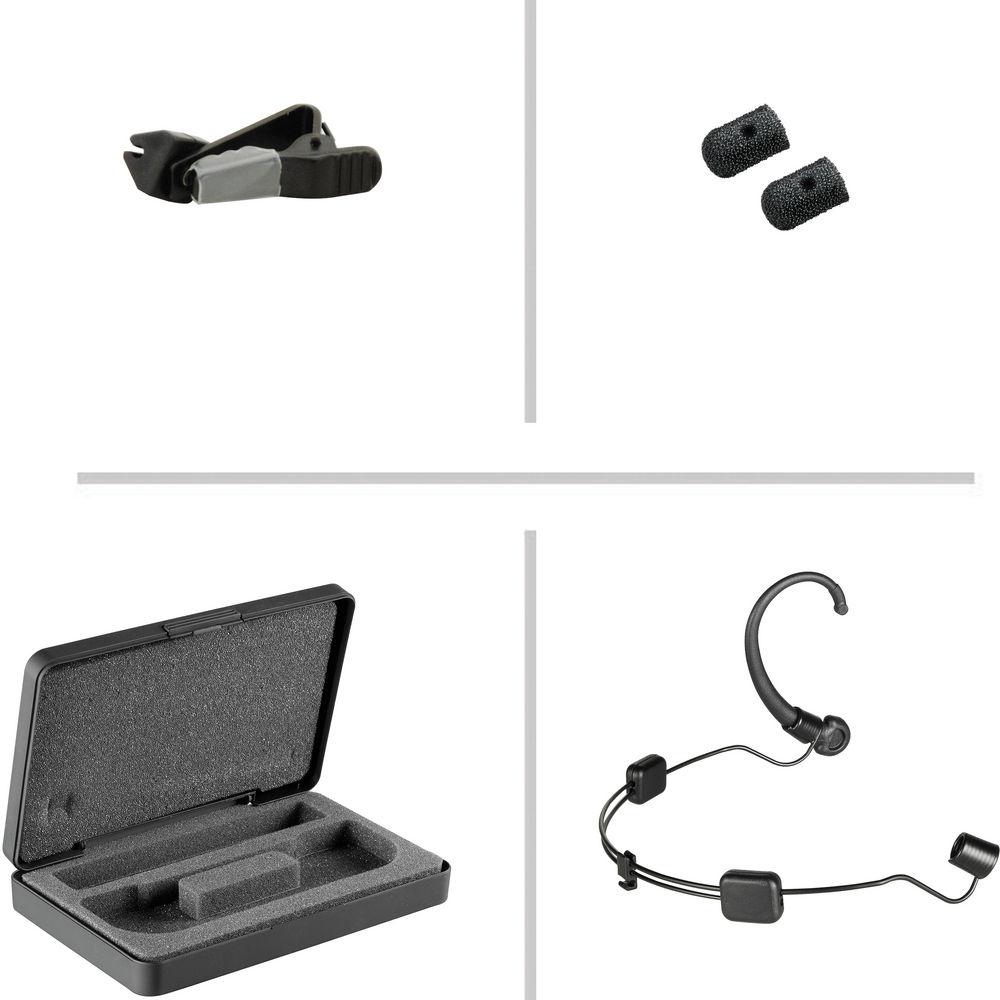

UPC: 042005182206 In the Box Audio-Technica BP894cW MicroSet Subminiature Cardioid Condenser Headworn Microphone (Black) AT8440 Lavalier Microphone Clothing Clip AT8464 Dual-Ear Microphone Mount for BP892 and AT892 (Black) 2 x AT8163 Windscreens Moisture Guard Carry Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica BP894cW MicroSet Subminiature Cardioid Condenser Headworn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica BP894cW Specs | Element | Fixed-charge back plate, permanently polarized condenser | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | Open Circuit Sensitivity: -49 dB (3.5 mV) re: 1 V at 1 Pa | | Maximum Input Sound Level | 135 dB SPL, 1 kHz at 3% T.H.D. | | Signal to Noise Ratio | 63 dB, 1 kHz at 1 Pa | | Current Consumption | 0.1 mA typical at 5 V | | Voltage Range | 2.5 to 11 V | | Cable Length | 55" (1.4 m)
Diameter: 0.06" (1.6 mm) | | Connector | Locking 4-pin | | Dimensions | Microphone: 0.26" (6.5 mm) long, 0.11" (2.8 mm) diameter
Boom: 4.23" (107.4 mm) long, 0.04" (1.09 mm) diameter | | Weight | 0.07" (2 g), without cable | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 7.3 x 4.6 x 1.4" |
