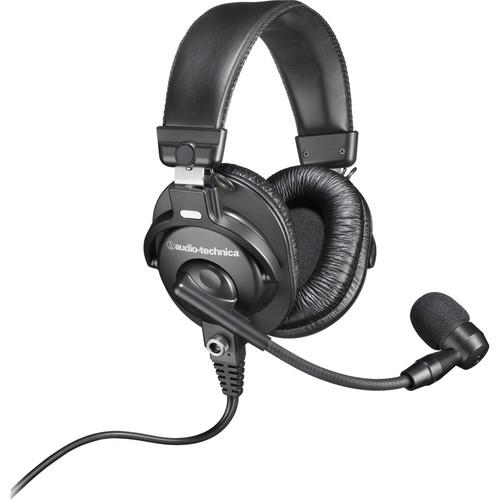

User Manual for Audio-Technica BPHS1-XF4 Communications Headset Click to enlarge the picture
Contents of the user manual for the Audio-Technica BPHS1-XF4 Communications Headset
- Product category: Headsets Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Headsets
|
User manual for the Audio-Technica BPHS1-XF4 Communications Headset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description Created for use with intercom systems, the Audio-Technica BPHS1-XF4 is a rugged communications headset that offers natural, highly intelligible and focused vocal reproduction, closed-back circumaural (around-the-ear) ear cups to seal out background noise, and a high-output dynamic microphone mounted on a flexible gooseneck boom.
The headset's microphone has a cardioid polar pattern tailored for pickup of speech with maximum voice intelligibility over a wide range of frequencies. It is more sensitive to sound originating directly in front of the element, making it useful in reducing pickup of unwanted sounds. The flexible gooseneck boom swivels for easy positioning on either the right or left side. - Microphone features polar pattern and frequency response tailored for natural, highly intelligible vocal reproduction
- Closed-back circumaural ear cups help seal out crowd noise and other background distractions
- Neodymium magnets in microphone and headphones for high output level and detailed sound reproduction
- Rugged design with user-replaceable cable and ear pads
- Cardioid pickup pattern of the dynamic microphone rejects off-axis sounds
- Boom-mounted microphone can be positioned on the left or right side
- Adjustable cushioned headband and lightweight design for long-wearing comfort
- Detachable cable (BPCB4) terminates in 4-pin XLRF-type connector for use with intercom systems
- Includes three windscreens
In the Box Audio-Technica BPHS1-XF4 Communications Headset Detachable BPCB4 4-Pin XLRF-Type Cable 3 x Windscreens Spare Connector Screw Limited 5-Year Warranty Brochure PDF 407.9kbcecqfdrxzqvtcfdaa Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica BPHS1-XF4 Communications Headset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica BPHS1-XF4 Specs | Type | Closed-back dynamic (headphone)
Cardioid dynamic (microphone) | | Driver Diameter | 40 mm (headphone) | | Voice Coil | Copper-clad aluminum wire | | Frequency Response | 20 - 20,000 Hz (headphone)
40 - 20,000 Hz (microphone) | | Maximum Input Power | 1,600 mW at 1 kHz | | Sensitivity | 100 dB (headphone)
-57 dB (1.4 mV) re 1 V at 1 Pa (microphone) | | Impedance | 65 ohms (headphone)
560 ohms (microphone) | | Cable | 6.6' (2 m ) long with 8-pin connector at headset end; 4-pin XLRF-type connector output | | Dimensions | 3.23" (82.0 mm) wide (ear cup)
1.81" (46.0 mm) wide (headband)
7.09" (180.1 mm) long (boom), microphone extended
0.94" (24.0 mm) diameter (microphone) | | Weight | 264 g (9.3 oz) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 10.0 x 7.5 x 3.8" |
