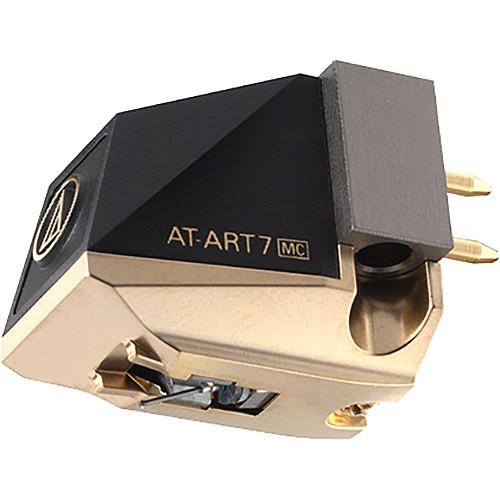

Audio-Technica Consumer AT-ART7 Non-Magnetic Core Moving

User Manual for Audio-Technica Consumer AT-ART7 Non-Magnetic Core Moving Coil Cartridge

• Product category: Turntable Accessories Audio-Technica Consumer
• Brand: Audio-Technica Consumer
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audio-Technica Consumer Turntable Accessories

Product description

Non-Magnetic Core MC Type Cartridge
• This product keeps the basic design of non-magnetic core MC type cartridge AT50ANV and changes the coil winding frame from a pure titanium armature to a newly developed liquid-crystal polymer armature via injection molding. This product also succeeds in reducing the weight of the vibration system compared to AT50ANV and provides the extremely natural and clear sound quality with the ability to express three-dimensional sound fields inherent to non-magnetic core types. In addition, this product enables an output voltage of 0.12mV, a relatively high output level for a non-magnetic core system.

Liquid-Crystal Polymer Armature
• Liquid-crystal polymer used for the coil winding frame has not only an extreme mechanical strength but also a unique property that increases the mechanical strength as the product becomes thinner. Therefore, it is a most suitable material for the vibration system of cartridges, demonstrating high intensity and vibration absorption properties and enabling high-quality sound by suppressing unwanted vibration from power generation.

Magnetic Circuit Designed to Maximizes Magnetic Energy
• The magnetic circuit of this product uses a large-sized neodymium magnet with approximately twice the volume of conventional Audio-Technica ferrite core MC types. The permendur magnetic circuit parts located around the magnet have also been newly designed to maximize the strength of the intensive magnetic field in the coil gap. This magnetic circuit increases the output voltage, and enhances playback capability in the medium-to-low-frequency range that is said to be a weak point of conventional non-magnetic core MC types. This provides a very accurate frequency response.

Line Contact Stylus and Solid Boron Cantilever
• The stylus tip is a special line contact type with a 40µm x 7µm curvature radius (used in the AT50ANV) and a solid boron cantilever with a 0.26 mm diameter. This allows accurate transfer of music signals read by the stylus tip to the power generating moving coils.

Machined Aluminum Base
• The base that supports the magnetic circuit and vibration system is made of machined aluminum material. This enables it to serve as a solid base to support stable playback capability.

Hybrid Body Reduces Unnecessary Parasitic Resonance
• The housing is made of machined aluminum materials and the cover is made of hard plastic materials. This disperses parasitic resonance and results in clear sound quality.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Audio-Technica Consumer AT-ART7 Specs

Type	Non-Magnetic Core Moving Coil
Mounting	0.5" / 12.7 mm Centers
Frequency Response	15 Hz to 15 kHz
Body Material	Aluminum
Channel Separation	30 dB (1 kHz)
Channel Balance	0.5 dB (1 kHz)
Output Voltage	0.12 mV (1 kHz and 5 cm/sec)
Vertical Tracking Angle	23°
Tracking Force	Vertical Tracking Force Range: 1.6 to 2.0 g (1.8 g Standard)
Stylus	Stylus Shape: Special Line Contact Stylus Stylus Curvature Radius: 40 x 7 µH Stylus Construction: Nude Square Shank
Stylus Cantilever	0.01" / 0.26 mm Ø Solid Boron
Coil	Coil Impedance: 12 Ohms (1 kHz) Coil Inductance: 8 µH (1 kHz)
DC Resistance	12 Ohms
Static Compliance	35 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 07 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
