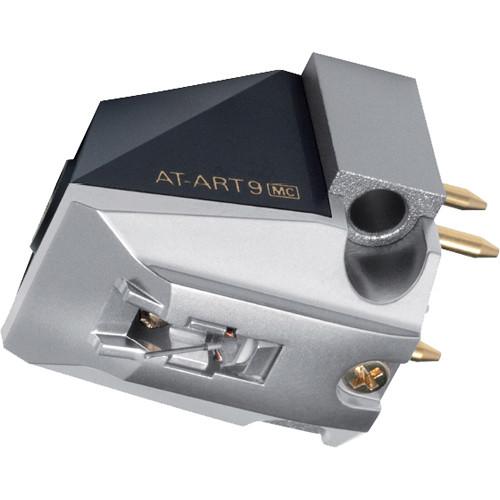

User Manual for Audio-Technica Consumer AT-ART9 Moving Coil Cartridge Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-ART9 Moving Coil Cartridge
- Product category: Turntable Accessories Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Turntable Accessories
|
User manual for the Audio-Technica Consumer AT-ART9 Moving Coil Cartridge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description Inheriting the basic magnetic design from the popular AT50ANV, the Audio-Technica Consumer AT-ART9 is the flagship magnetic core moving coil cartridge designed for Hi-Fi playback systems, providing clear and smooth sound with low distortion.
A neodymium magnet is employed for increased magnetic energy, while the hybrid aluminum/plastic body helps disperse parasitic resonance for remarkable clarity and quality of sound. The special line contract and solid boron cantilever provide accurate transfer of music signals read by the stylus tip to the magnetic coil. The AT-ART9 includes a non-magnetic screwdriver, mounting hardware, a plastic protector and a set of PCOCC lead wires. - Magnetic Core MC Type Cartridge
- The AT-ART9 inherits the basic magnetic design from the AT50ANV and reproduces the highest-quality sound using the vibration system from the AT-OC9/III.
- Neodymium Magnet and Permendur Yoke
- A neodymium magnet is employed with a maximum energy product, BHmax of 50[kJ/m3], whilst a permendur yoke is used with a high saturation flux density and remarkable magnetic materials.
- Hybrid Body Reduces Unnecessary Parasitic Resonance
- The housing is made of machined aluminum materials and the cover is made of hard plastic materials. This disperses parasitic resonance and results in clear sound quality.
- Machined Aluminum Base
- The base that supports the magnetic circuit and vibration system is made of machined aluminum material. This enables it to serve as a solid base to support stable playback capability.
- High-Separation, Wide-Response Dual Moving Coil
- The basic structure is an original MC type with separate cylindrical coils to the left and right channels. Since power is generated independently in each of the left and right channels, this structure offers truly superior separation. If the signal from the opposite channel escapes, this can cause intermodulation distortion and have a decisive impact on audio quality and how the stereo sound spreads. The structure of this product ensures a clear and smooth sound. Additionally, the two coils have a reverse-V shape, reducing effective moving mass as seen from the stylus tip, limiting unnecessary movement of the coil, and further eliminating distortion.
- Line Contact Stylus and Solid Boron Cantilever
- The stylus tip is a special line contact type with a 40µm x 7µm curvature radius (used in the AT50ANV) and a solid boron cantilever with a 0.26 mm diameter. This allows accurate transfer of music signals read by the stylus tip to the power generating moving coils.
- High Sound Quality Brass Mounting Screws
- Two brass mounting screws are provided to attach the cartridge to the shell. They are optimally suited to the high sound quality of the cartridge itself.
- PCOCC Coil
- The PCOCC coil enables purer transmission because it does not produce grain boundaries in the direction of the transmission.
In the Box Audio-Technica Consumer AT-ART9 Moving Coil Cartridge Non-Magnetic Screw Driver Brush Set of Mounting Hardware (Screws, Washers, Nuts) Plastic Protector Set of PCOCC Lead Wires Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-ART9 Moving Coil Cartridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-ART9 Specs | Type | Magnetic Core Moving Coil | | Mounting | 0.5" / 12.7 mm Centers | | Frequency Response | 15 Hz to 15 kHz | | Body Material | Aluminum | | Channel Separation | 30 dB (1 kHz) | | Channel Balance | 0.5 dB (1 kHz) | | Output Voltage | 0.5 mV (1 kHz and 5 cm/sec) | | Vertical Tracking Angle | 23° | | Tracking Force | Vertical Tracking Force Range: 1.6 to 2.0 g (1.8 g Standard) | | Stylus | Stylus Shape: Special Line Contact Stylus
Stylus Curvature Radius: 40 x 7 µH
Stylus Construction: Nude Square Shank | | Stylus Cantilever | 0.01" / 0.26 mm
