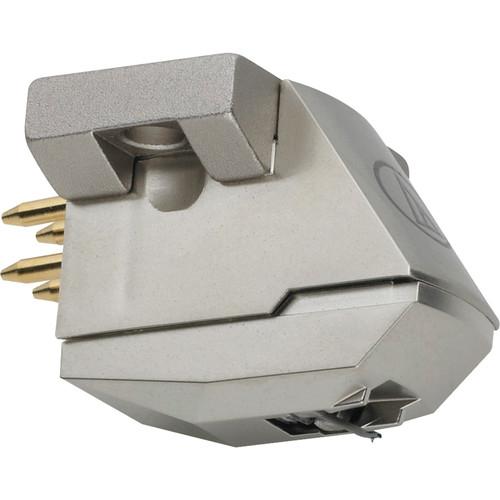

User Manual for Audio-Technica Consumer AT-F7 Dual Moving Coil Cartridge Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-F7 Dual Moving Coil
- Product category: Cartridges & Stylus Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Cartridges & Stylus
|
User manual for the Audio-Technica Consumer AT-F7 Dual Moving Coil contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description The AT-F7 Dual Moving Coil Cartridge from Audio Technica is a dual-coil stereo cartridge with an elliptical stylus. It offers clarity and transparency of tone, along with improved frequency response and precise stereo imaging. The cartridge is equipped with a 0.07mil stainless suspension wire that serves as a fulcrum point for audio signal transfer, resulting in enhanced high-frequency reproduction. This half-inch mount cartridge has four large pin-terminals at the back that connect to four individual wires at the end of the tone arm. The cartridge is secured to the tone arm's headshell with two screws (included), spaced half an inch apart. In the Box Audio-Technica Consumer AT-F7 Dual Moving Coil Cartridge 2 x 5mm Non-Magnetic Mounting Screws 2 x 9mm Non-Magnetic Mounting Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-F7 Dual Moving Coil Cartridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-F7 Specs | Frequency Response | 15 - 50,000 Hz | | Channel Separation | 27 dB @ 1 kHz | | Tracking Force | Range: 1.8 - 2.2 g
Standard: 2.0 g | | Recommended Load Impedance | Min. 100 Ω (when head amplifier is connected) | | Output | Voltage: 0.35 mV @ 1 kHz, 2.0" (5 cm) per sec | | Channel Balance | 1.5 dB (1 kHz) | | Stylus Type | Nude elliptical, 0.2 x 0.7 mil | | Stylus Cantilever | Aluminum | | Mount | 0.5" (12.7 mm) | | Screw Type | Non-magnetic | | Dimensions (H x W x L) | 0.7 x 0.7 x 1.0" (1.7 x 1.7 x 2.5 cm) | | Weight | 0.18 oz (5 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 4.0 x 4.0 x 2.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
