User Manual for Audio-Technica Consumer AT-LP120USB Direct Drive Professional DJ Turntable with USB Output Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-LP120USB Direct Drive Professional
- Product category: Turntables Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Turntables
 |
User manual for the Audio-Technica Consumer AT-LP120USB Direct Drive Professional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description - How to Install Audacity Software for Windows 7
- How to Record Using Audacity Software with Audio-Technica USB Turntable
- How to Download Audacity Software for Windows 7

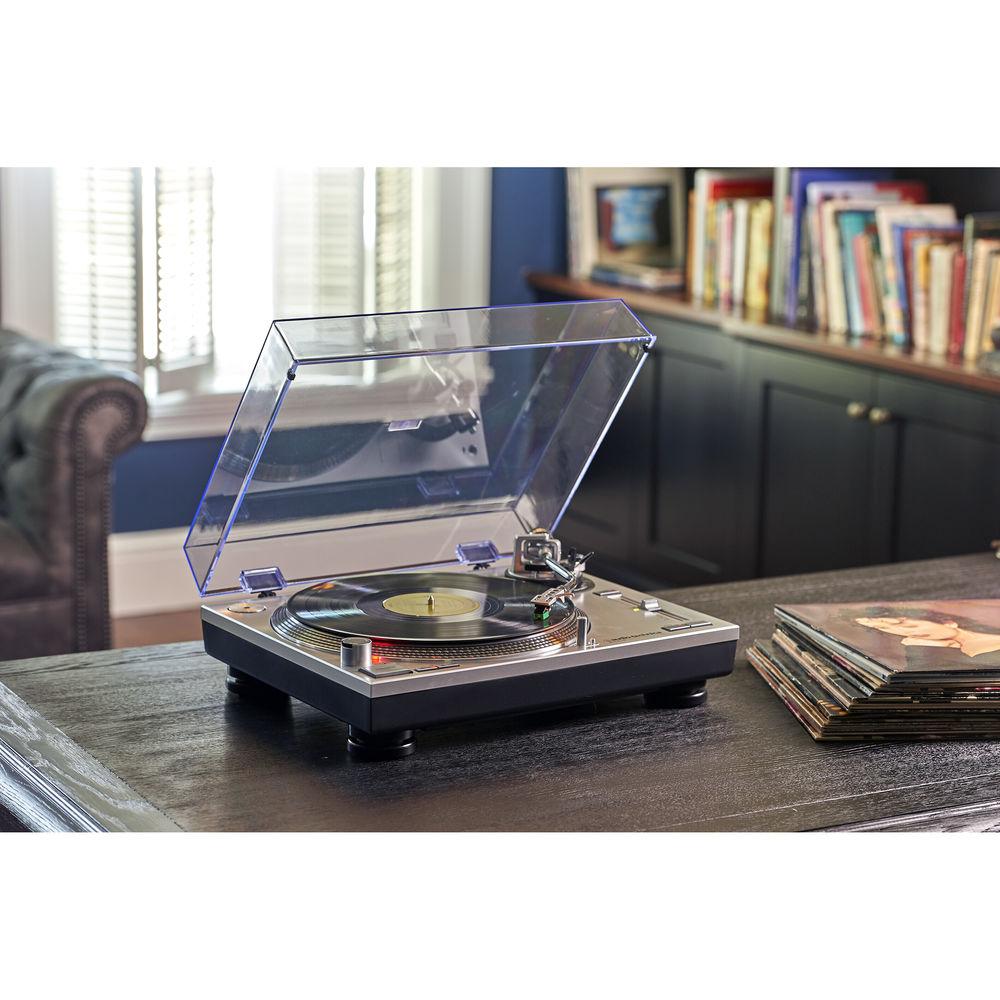

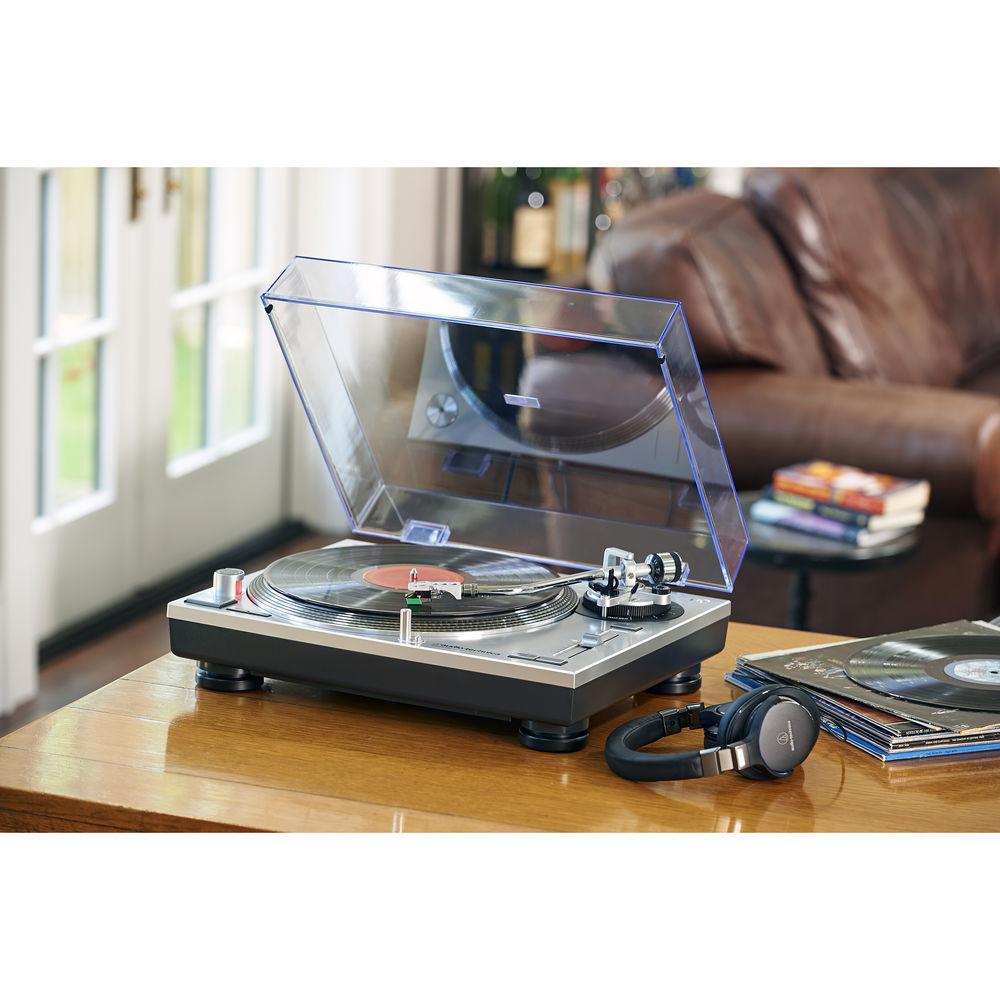

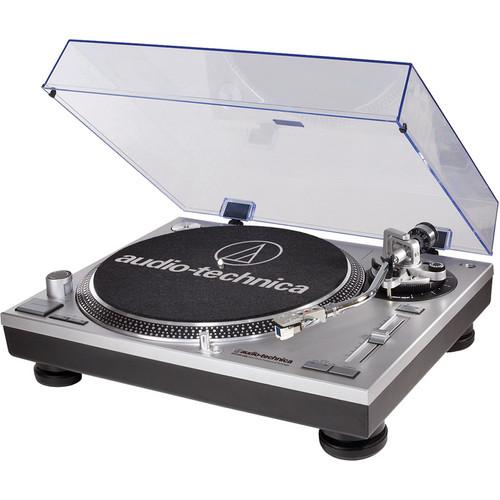

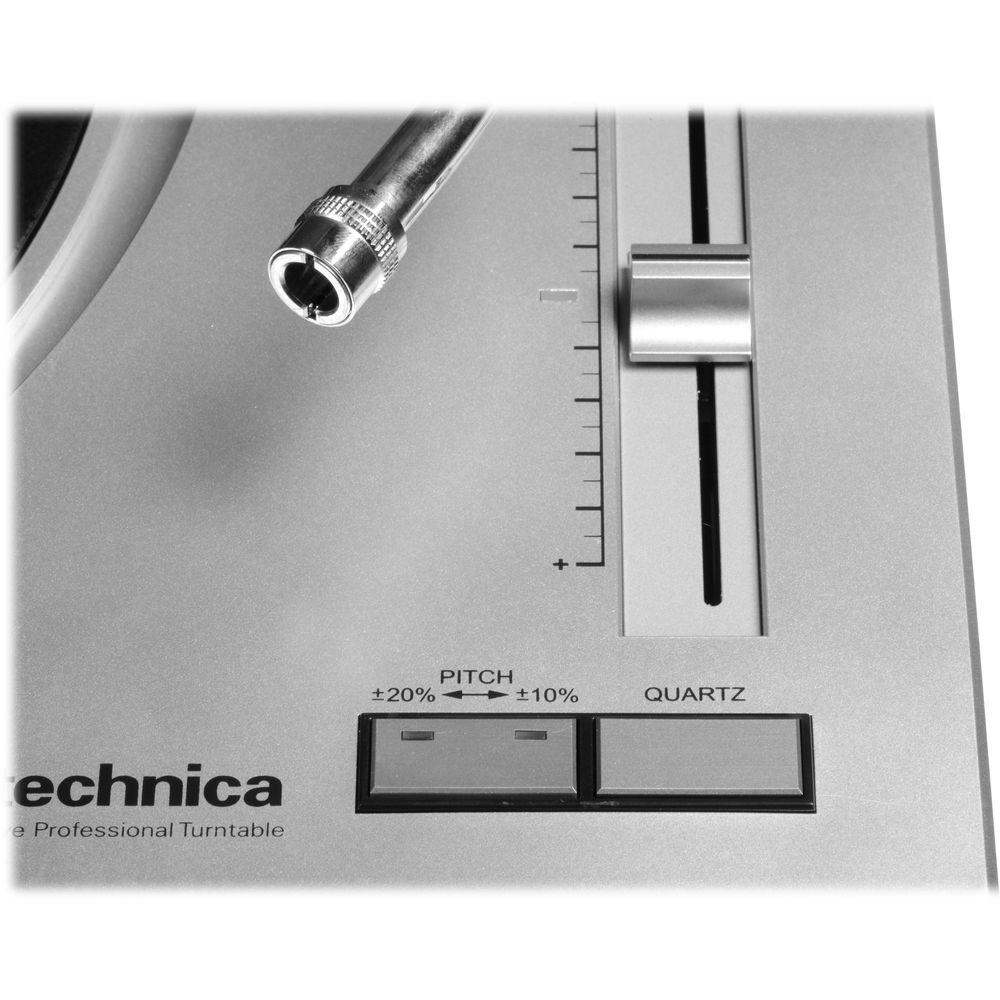

The silver Audio-Technica AT-LP120USB Direct Drive Professional DJ Turntable delivers a host of features that are suitable for use in nightclub DJ booths and mobile and home DJ applications. The AT-LP120USB features a rugged cast aluminum construction with line and phono audio outputs. A USB output will interface with Mac or Windows computers and give DJs the ability to digitize their vinyl collections. Audacity recording software is also included for Mac and Windows. Additional features include 33 1/3, 45 and 78 rpm speeds, +/- 20% and 10% quartz pitch control, and reverse mode. - USB output—connects directly to your computer for plug-&-play use
- Mac and PC compatible Audacity software digitizes your LPs
- Direct drive high-torque motor

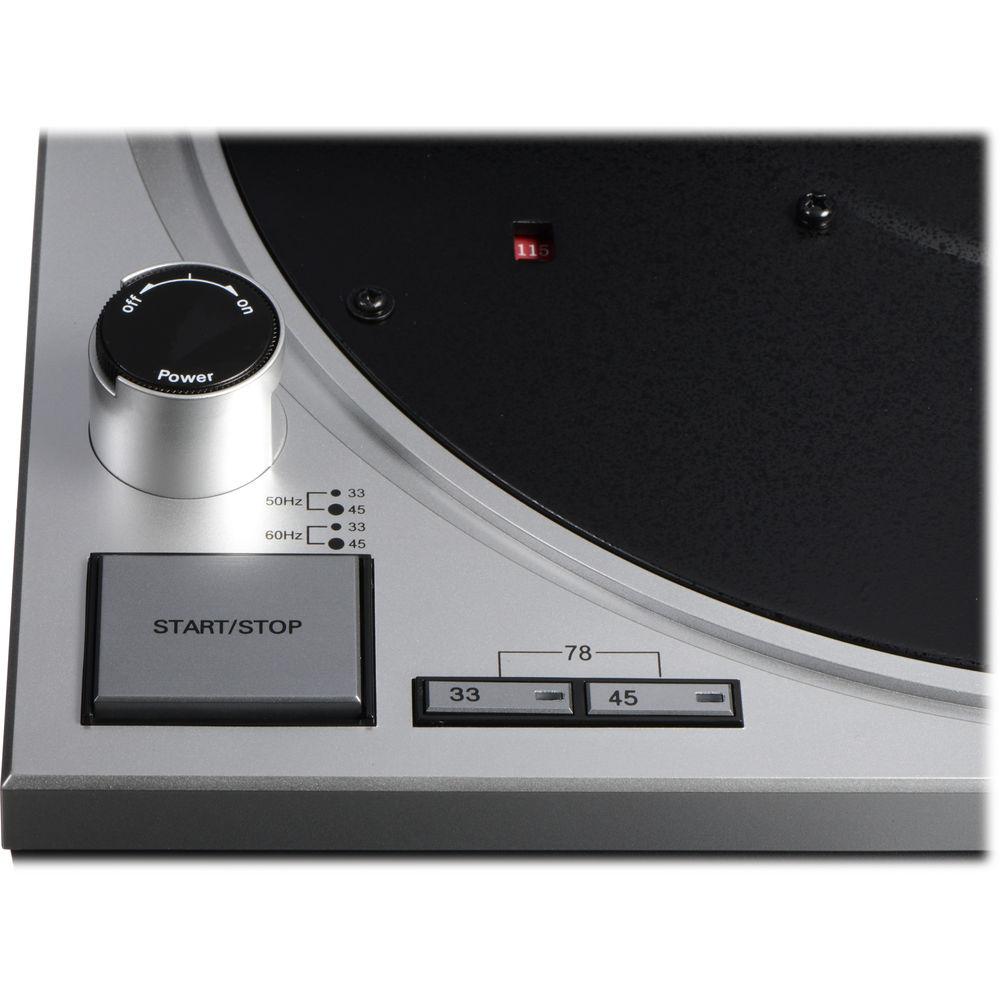

- Selectable 33/45/78 rpm speeds
- Professional cast aluminum platter with slip mat
- Integral Dual Magnet phono cartridge with replaceable stylus
- Balanced tone arm with soft damping control
- Switchable built-in pre-amplifier with line-level RCA output cables
- Included cables connect to your stereo or powered speakers
- Stroboscopic platter speed indicator

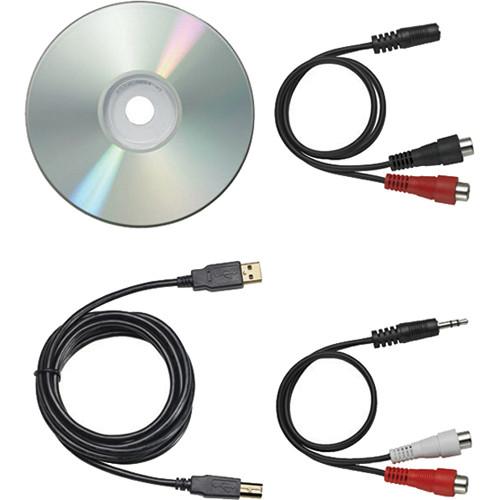

UPC: 042005159512 In the Box Audio-Technica Consumer AT-LP120USB Direct Drive Professional DJ Turntable with USB Output (Silver) AT95E Cartridge AC Power Cord Dual RCA (F) to 1/8" / 3.5 mm (M) Stereo Adapter Cable Dual RCA (F) to 1/8" / 3.5 mm (F) Stereo Adapter Cable 45 RPM Adapter USB Cable Audacity Software (Mac & Windows) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-LP120USB Direct Drive Professional DJ Turntable with USB Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-LP120-USB Specs | | | Frequency Response | 20 Hz to 20 kHz | | Channel Separation | > 20 dB at 1 kHz | | Tracking Force | Vertical Tracking Force: 1.5 to 2.5 g | | Stylus | Stylus Construction: Bonded round shank
Stylus Shape: 0.02 x 0.03" / 0.40 x 0.70 mm elliptical

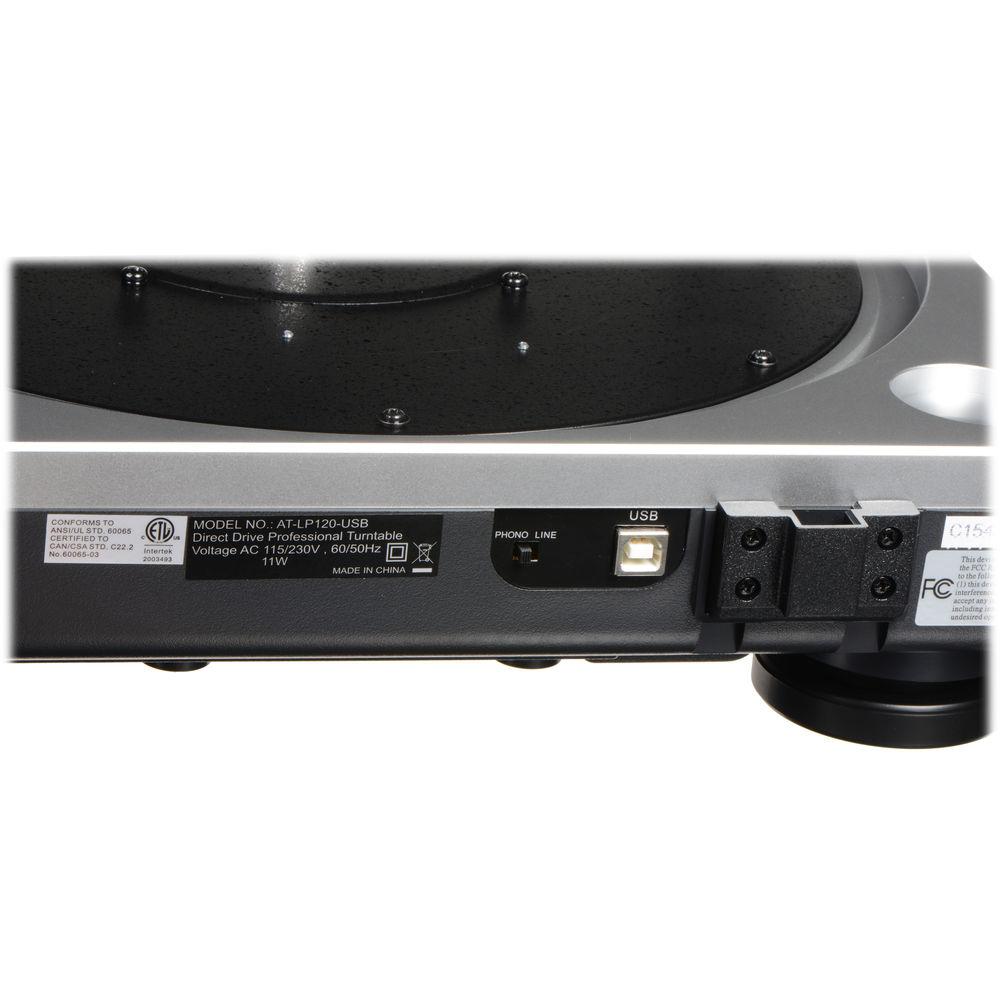

Stylus Cantilever: Aluminum | | Output | 3.5 mV at 1 kHz, 5 cm/sec | | Channel Balance | 2.0 dB | | Mount | 0.5" / 12.7 mm | | Replacement Stylus | ATN95E | | | | Type | 3-speed, fully manual | | Output Connectors | Phono RCA
Line RCA
USB | | Motor | Direct Drive DC Motor | | Speeds | 33-1/3, 45, 78 rpm | | Brake | Electronic Brake | | Pitch Control Range | +/-10% or +/-20% | | Wow and Flutter | < 0.2% WRMS (33 rpm) | | Signal-to-Noise Ratio | > 50 dB | | Turntable Platter | Die-cast aluminum | | Torque | Starting Torque: > 1.6 kgf.cm | | Output Level | Phono Pre-Amp: 2.5 mV nominal at 1 kHz, 5 cm/sec
Line Pre-Amp: 150 mV nominal at 1 kHz, 5 cm/sec | | Gain | Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized | | USB Functions | A/D, D/A: 16-bit, 44.1 kHz or 48 kHz USB selectable
Computer Interface: USB 1.1 Compliant Windows XP, Vista or MAC OSX | | Power | Power supply Requirements: 115/230 VAC, 60/50 Hz
Power Consumption: 11 W | | Dimensions (WxDxH) | 17.72 x 13.86 x 6.10" (450 x 352 x 157 mm) | | Weight | 23.5 lb (10.7 kg) | | | | Package Weight | 27.6 lb | | Box Dimensions (LxWxH) | 21.5 x 16.4 x 8.0" |
