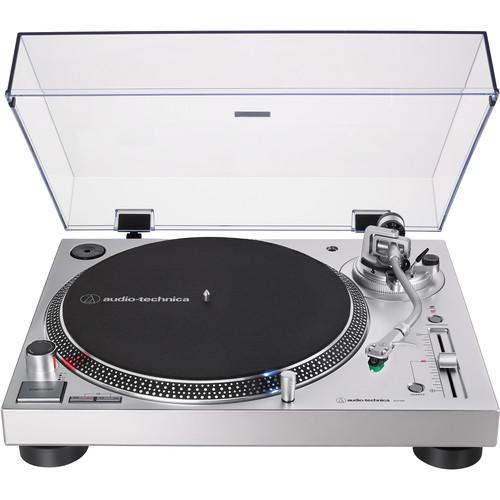

User Manual for Audio-Technica Consumer AT-LP120XUSB Stereo Turntable Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-LP120XUSB Stereo Turntable
- Product category: Turntables Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Turntables
|
User manual for the Audio-Technica Consumer AT-LP120XUSB Stereo Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description Preserve your favorite 33 1/3 and 45 rpm vinyl records as digital files with your computer and the silver Audio-Technica AT-LP120XUSB Stereo Turntable. Its USB output lets you connect a computer to convert your tracks into digital audio files. This turntable also has a built-in switchable preamplifier, allowing you to connect it directly to your stereo system or speakers of choice via RCA cables. A removable dust cover, USB cable, RCA audio cable, and 45 rpm adapter are included. - Fully manual operation with 33 1/3, 45, and 78 rpm speeds
- Anti-resonance, die-cast aluminum platter with felt mat
- Dual magnet phono cartridge with elliptical stylus
- Cartridge is compatible with nearly any VM95 series replacement stylus
- S-shaped tonearm with hydraulically damped lift control and lockable rest
- Switchable built-in preamplifier for phono- or line-level output
- Stroboscopic platter with speed indicator
- Variable pitch control with quartz speed lock
- Removable plug-type target light for easier queuing in low light
- Damped base construction for reduced low-frequency feedback coloration
- AC adapter handles AC/DC conversion outside the chassis, helping to reduce noise in the signal chain
- Convert your vinyl records to digital audio files with your recording software
In the Box Audio-Technica Consumer AT-LP120XUSB Stereo Turntable (Silver) 45 rpm Adapter USB Cable Stereo RCA Cable with Ground Wire Hinged Dust Cover Felt Mat Counterweight Plug-Type Stylus Target Light AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-LP120XUSB Stereo Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-LP120XUSB Specs | Motor | DC Servo | | Drive Method | Direct Drive | | Speeds | 33 1/3, 45, 78 rpm | | Tonearm Type | S-Shaped | | Effective Arm Length | 9.075" / 230.5 mm | | Overhang | 0.63" / 16 mm | | Tracking Error Angle | <3° | | Torque | Starting: >1 kgf.cm | | Brake System | Electronic | | Cartridge Weight | Applicable: 3.5 to 8.5 g | | Anti-Skating Range | 0 to 4 g | | Signal to Noise Ratio | >50 dB | | Wow and Flutter | <0.2% (WTD) @ 3 kHz (JIS) | | Headshell | Model: AT-HS6
Mount: 1/2" Mount | | Cartridge | AT-VM95E | | Stylus | 0.3 x 0.7 Mil Elliptical | | Output | 1 x Stereo RCA Phono / Line Pair (Switchable Preamplifier)
1 x USB 1.1 | | Output Level | Phono: 4 mV Nominal at 1 kHz, 5 cm/sec
Line: 240 mV Nominal at 1 kHz, 5 cm/sec | | D/A Converter | 16-Bit / 44.1 kHz or 48 kHz, USB Selectable | | Gain | Phono Preamp: 36 dB Nominal, RIAA Equalized | | Turntable Platter | Die-Cast Aluminum | | System Requirements | Windows 7 or Above or Mac OS X or Above
Available USB Port (USB 1.1 or Higher) | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | 3 W | | Dimensions (W x H x D) | 17.8 x 5.57 x 13.86" / 452 x 141.6 x 352 mm | | Weight | 17.6 lb / 8 kg Without Dust Cover | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 21.85 x 18.0 x 10.0" |
