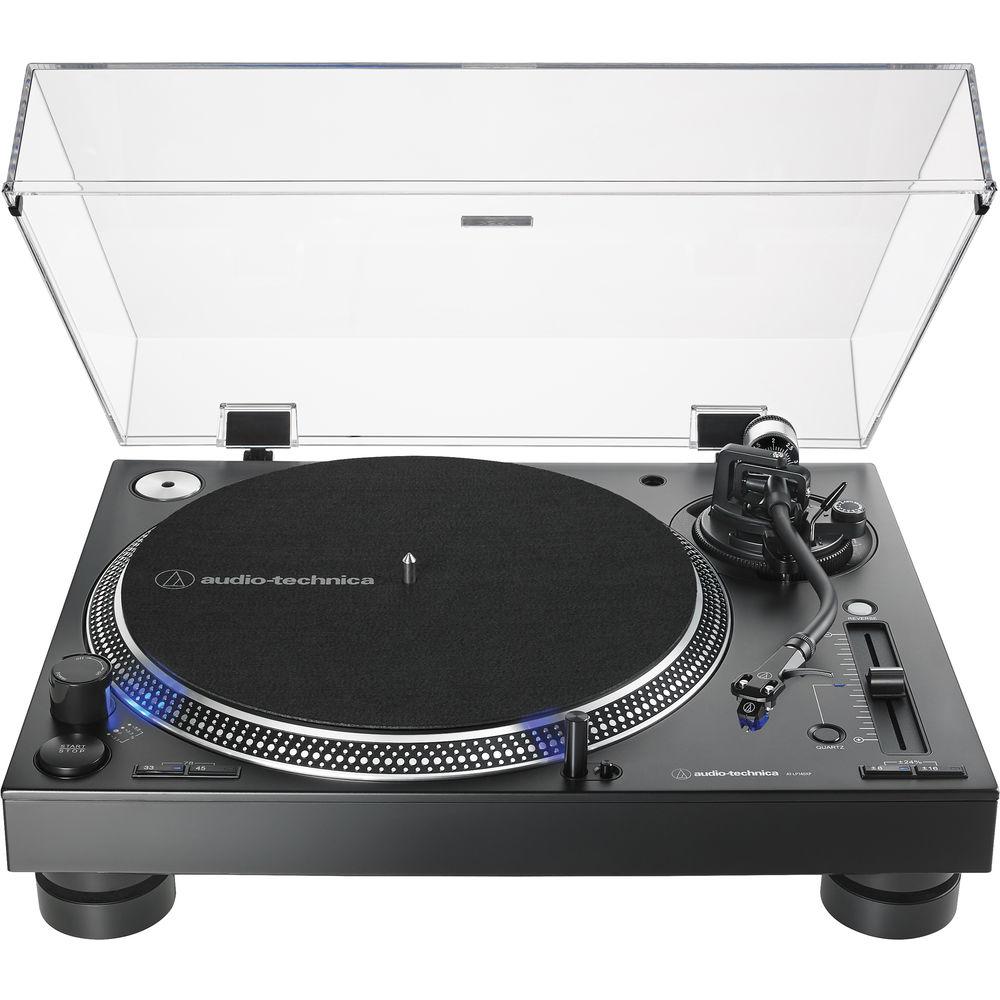

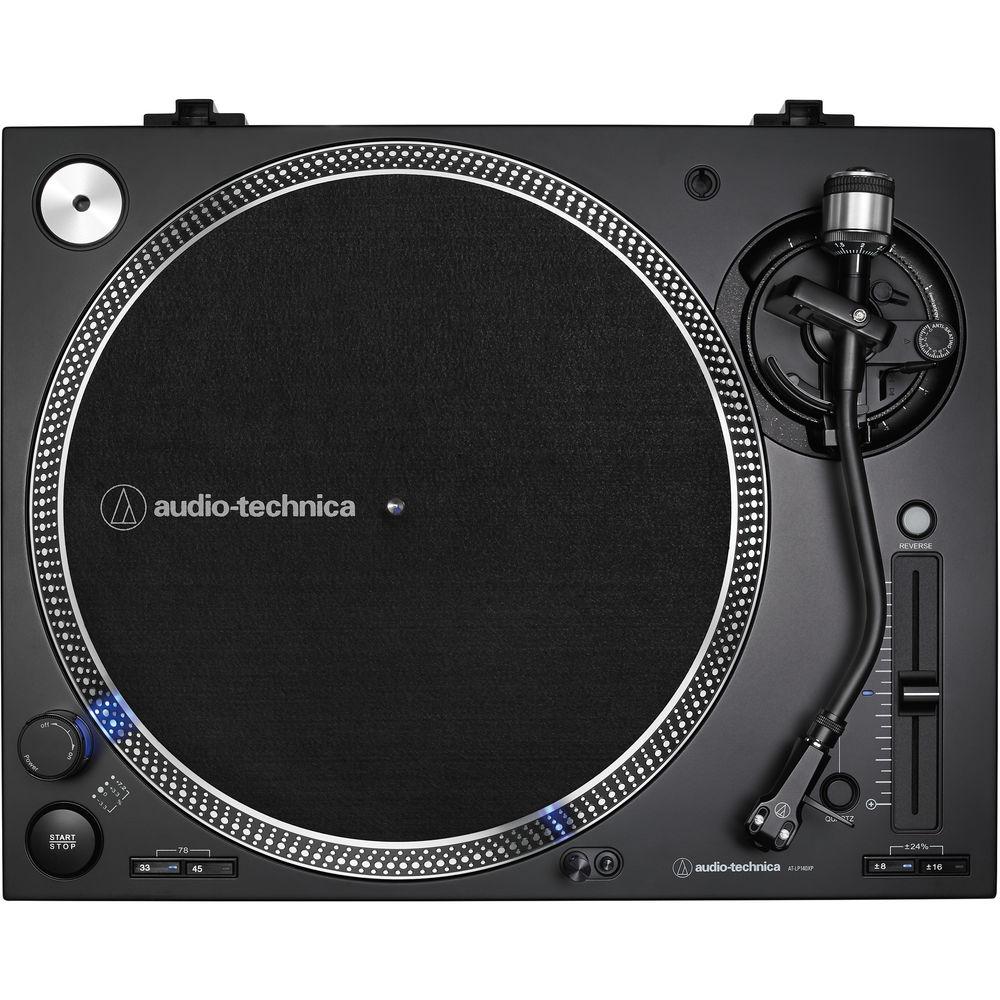

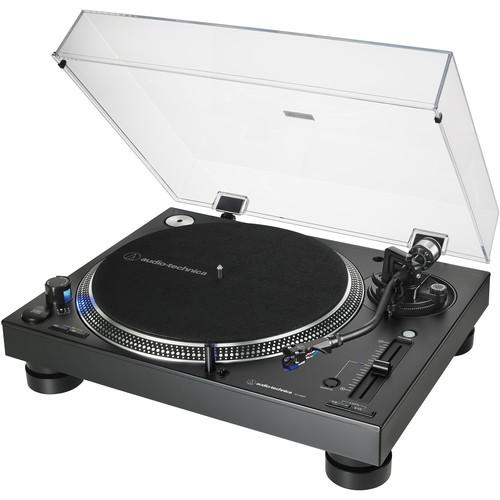

User Manual for Audio-Technica Consumer AT-LP140XP Direct Drive Professional DJ Turntable Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-LP140XP Direct Drive Professional
- Product category: Turntables Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Turntables
 |
User manual for the Audio-Technica Consumer AT-LP140XP Direct Drive Professional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description The black Audio-Technica Consumer AT-LP140XP Direct Drive Professional DJ Turntable delivers a host of features that are suitable for use in nightclub DJ booths and mobile and home DJ applications. The AT-LP140XP features a rugged cast aluminum construction that houses a high-torque DC motor and a balanced S-shaped tonearm. The AT-XP3 DJ cartridge is included and premounted to an AT-HS6 universal 1/2"-mount headshell.
Additional professional features include a start/stop button, forward and reverse play, selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with ±8%, ±16%, and ±24% adjustment ranges, a stroboscopic platter with speed indicator, a retractable plug-type stylus target light, and a removable hinged dust cover. The Audio-Technica AT-LP140XP also includes a counterweight, felt mat, and 45 rpm adapter. -
- Experience high-fidelity audio and professional DJ performance
- Direct-drive, high-torque servo motor with speed stabilization
- Fully manual operation
- Adjustable dynamic anti-skate control
- Selectable 33/45/78 rpm speeds
- Professional anti-resonance, mass-damped, die-cast aluminum platter with felt mat
- AT-HS6 universal ½" mount headshell and AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus
- Balanced S-shaped tonearm with hydraulically damped lift control, height adjustment, and lockable rest
- Dedicated phono-level output (5.5 mV)
- Stroboscopic platter with speed indicator
- Forward/reverse operation and variable pitch control with quartz speed lock
- Retractable plug-type target light for easier cueing in low light
- Damped base construction for reduced low-frequency feedback coloration
- Includes: detachable RCA output cable (dual RCA male to dual RCA male), power cable, 45 rpm adapter, counterweight, felt mat, and removable hinged dust cover
In the Box Audio-Technica Consumer AT-LP140XP Direct Drive Professional DJ Turntable (Black) AT-XP3 DJ Cartridge AT-HS6 9g Headshell Aluminum Die Cast Body (Black) AC Power Cord Dual RCA to RCA Cable with Ground Wire 45 RPM Adapter Counterweight Felt Slip Mat Dust Cover Plug-Type Stylus Target Light Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-LP140XP Direct Drive Professional DJ Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-LP140XP Specs | | | Cartridge | AT-XP3 | | Frequency Response | 20 Hz to 18 kHz | | Channel Separation | >20 dB at 1 kHz | | Tracking Force | Vertical Tracking Force: 2.0 to 4.0 g (3.0 g Standard) | | Stylus | Stylus Construction: Bonded Round Sank
Stylus Shape: 0.6 mm Conical
Stylus Cantilever: Carbon Fiber-Reinforced ABS | | Output | 5.5 mV at 1 kHz, 5 cm/sec | | Channel Balance | 2.0 dB (1 kHz) | | Mount | 0.5" / 12.7 mm | | Replacement Stylus | ATN-XP3 | | | | Type | 3-Speed, Fully Manual | | Motor | Direct Drive High-Torque DC Motor | | Speeds | 33-1/3, 45, 78 rpm | | Pitch Control Range | ±8%, ±16%, and ±24% | | Turntable Platter | Die-Cast Aluminum | | Torque | Starting Torque: >2.2 kgf cm | | Wow and Flutter | <0.2% (WTD) @ 3 kHz (JIS) | | Signal-to-Noise Ratio | >50 dB | | Output Level | 5.5 mV nominal at 1 kHz, 5 cm/sec | | | | Type | Balanced S-Shaped Tonearm with Detachable Headshell | | Effective Arm Length | 9.1" / 230.5 mm | | Overhang | 0.6" / 16.0 mm | | Tracking Error Angle | <3° | | Cartridge Weight | Applicable Cartridge Weight: 3.5 to 8.5 g | | Anti-Skating Range | 0 to 4 g | | Replacement Stylus | ATN-XP3 | | | | Power | Power Supply Requirements: 115/230 VAC, 60/50 Hz
Power Consumption: 11 W | | Dimensions (WxDxH) | 17.8 x 13.9 x 6.2" / 452.1 x 352.0 x 158.5 mm | | Weight | 22.0 lb / 10.0 kg |
